The SDS011 sensor determines the dust particle concentration in the air using the scattered light method. The USB-UART adapter also allows the sensor to be read out directly via USB port on a computer. Specifications Interface UART (3.3 V level) Resolution 0.3 µg/m3 Response time < 10s Other feature Integrated fan Current in idle < 4 mA Supply current 70 mA Operating voltage 5 V Dimensions 70 x 70 x 24 mm Weight 70 g Included 1x SDS011 dust sensor 1x Connection cable 1x USB-UART adapter Downloads Datasheet Manual

Read more less

The ZED-F9R module is a 184-channel u-blox F9 engine GNSS receiver, meaning it can receive signals from the GPS, GLONASS, Galileo, and BeiDou constellations with ~0.2-meter accuracy! That's right; such accuracy can be achieved with an RTK navigation solution when used with a correction source. Note that the ZED-F9R can only operate as a rover, so you will need to connect to a base station. The module supports the concurrent reception of four GNSS systems. The combination of GNSS and integrated 3D sensor measurements on the ZED-F9R provide accurate, real-time positioning rates of up to 30Hz. Compared to other GPS modules, this pHAT maximizes position accuracy in dense cities or covered areas. Even under poor signal conditions, continuous positioning is provided in urban environments and is also available during complete signal loss (e.g. short tunnels and parking garages). The ZED-F9R is the ultimate solution for autonomous robotic applications that require accurate positioning under challenging conditions. This u-blox receiver supports a few serial protocols. By default, we chose to use the Raspberry Pi's serial UART to communicate with the module. With pre-soldered headers, no soldering is required to stack the pHAT on a Raspberry Pi, NVIDIA Jetson Nano, Google Coral, or any single-board computer with the 2x20 form factor. We have also broken out a few 0.1'-spaced pins from the u-blox receiver. A Qwiic connector is also added in case you need to connect a Qwiic enabled device. U-blox based GPS products are configurable using the popular but dense, windows program called u-centre. Plenty of different functions can be configured on the ZED-F9R: baud rates, update rates, geofencing, spoofing detection, external interrupts, SBAS/D-GPS, etc. The SparkFun ZED-F9R GPS pHAT is also equipped with an on-board rechargeable battery that provides power to the RTC on the ZED-F9R. This reduces the time-to-first fix from a cold start (~24s) to a hot start (~2s). The battery will maintain RTC and GNSS orbit data without being connected to power for plenty of time. Features 1 x Qwiic Connector Integrated U.FL connector for use with an antenna of your choice Concurrent reception of GPS, GLONASS, Galileo and BeiDou 184-Channel GNSS Receiver Receives both L1C/A and L2C bands Horizontal Position Accuracy: 0.20 m with RTK Max Navigation Rate: Up to 30Hz Time to First Fix Cold: 24 s Hot: 2 s Operational Limits Max G: ≤4 G Max Altitude: 50 km Max Velocity: 500 m/s Velocity Accuracy: 0.5 m/s Heading Accuracy: 0.2 degrees Built-In Accelerometer and Gyroscope Time Pulse Accuracy: 30ns Voltage: 5 V or 3.3 V, but all logic is 3.3 V Current: ~85mA to ~130mA (varies with constellations and tracking state) Software Configurable Geofencing Odometer Spoofing Detection External Interrupt Pin Control Low Power Mode Supports NMEA, UBX, and RTCM protocols over UART

Read more less

Take control of your smart environment with the compact and powerful 4-inch ESP32-S3 IPS Touchscreen Control Panel. Designed for high performance and versatility, this sleek 86-box format panel integrates advanced connectivity, intuitive touch control, and real-time environmental sensing. Features Powerful Core Module WT32-S3-WROVER-N16R8 4-inch IPS full-screen display Resolution: 480 x 480 pixels (RGB565 format) Screen Driver IC: GC9503V Touch Controller IC: FT6336U Equipped with an SHT20 Temperature and Humidity Sensor for real-time monitoring of environmental conditions. RS485 Interface using an automatic transceiver circuit Built-in WiFi and Bluetooth Applications Smart Home Control Panels Industrial Automation Interfaces Environmental Monitoring Systems IoT Projects and Custom Smart Solutions

Read more less

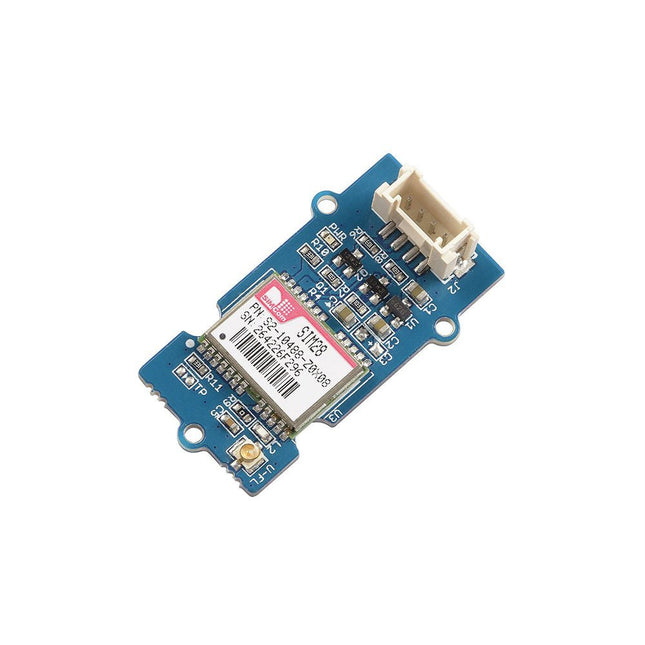

Features Supports NMEA and U-Blox 6 protocols. Low power consumption Baud rates configurable Grove UART interface Specifications Dimensions 40 mm x 20 mm x 13 mm Update Rate 1 Hz, max 10 Hz Baud Rate 9,600 – 115,200 Input Voltage 3.3 V / 5 V Navigation Sensitivity -160dBm Power Requirements 3.3/5V Number of Channels 22 tracking, 66 channels Time to first start Cold start: 13s Warm start: 1-2s Hot start: < 1s Antennas Antenna included Accuracy 2.5m GPS Horizontal Position Accuracy

Read more less

YDLIDAR TG30 is a 360 degrees 2D LiDAR. Based on the principle of ToF, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously obtain the angle information and output the point cloud data of the scanning environment while ranging. Features IP65 protection level 360 degrees omnidirectional scanning and 5-12 Hz frequency Ranging frequency up to 20 kHz High accuracy, stable performance Strong resistance to ambient light interference Class I eye safety Specifications Range Frequency 20000 Hz Scan Frequency 5-12 Hz Range Distance 0.05-30 m Scan Angle 360° Angle resolution 0.09°-0.22° Size Φ 75.8 x 34.7 mm Applications Robot navigation and obstacle avoidance Industrial automation Regional security Smart transportation Environmental scanning and 3D reconstruction Digital multimedia interaction Robot ROS teaching and research Downloads Datasheet User manual Development manual

Read more less

The Sensirion SGP30 is a digital multi-pixel gas sensor that can easily integrate with air purifiers, demand-controlled ventilation, and other IoT applications. Powered by Sensirion’s CMOSens®technology, it integrates a complete sensor system on a single chip featuring a digital I2C interface, a temperature-controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor featuring multiple sensing elements on one chip, the SGP30 provides more detailed information about air quality. Features Multi-pixel gas sensor for indoor air quality applications Outstanding long-term stability I2C interface with TVOC and CO2eq output signals Low power consumption Chip module tape and reel packaged, reflow solderable Specifications Weight: 9g Battery: Exclude Working Voltage: 3.3V/5V Output range: TVOC-0 ppb to 60000ppb / CO₂eq - 400 ppm to 60000 ppm Sampling rate: 1 Hz

Read more less

YDLIDAR X4PRO is a 360 degrees two-dimensional rangefinder. Based on the principle of triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high- accuracy distance measurement. The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging. Features 360 degrees omnidirectional scanning ranging distance measurement Small distance error, stable performance and high accuracy Wide ranging distance Strong resistance to ambient light interference Low power consumption, small size and long service life Laser power meets Class I laser safety standards Adjustable motor speed, scanning frequency is 6~12 Hz High-speed ranging, ranging frequency up to 5 kHz Applications Robot navigation and obstacle avoidance Robot ROS teaching and research Regional security Environmental scanning and 3D reconstruction Navigation and obstacle avoidance of robot vacuum cleaner/ROS Learning robot Specifications Range Frequency 5000 Hz Scan Frequency 6-12 Hz Range Distance 0.12 10 m Scan Angle 360° Angle Resolution 0.43-0.85° Dimensions 110.6 x 71.1 x 52.3 mm Downloads Datasheet User Manual Development Manual SDK Tool ROS

Read more less

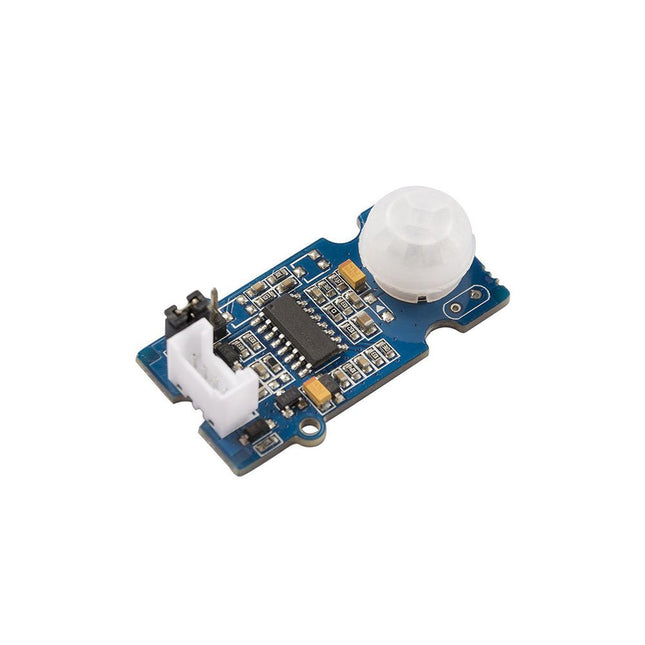

This Grove - PIR Motion Sensor(Passive Infrared Sensor) can detect infrared signals caused by motion. If the PIR sensor notices the infrared energy, the motion detector is triggered and the sensor outputs HIGH on its SIG pin. The detecting range and response speed can be adjusted by 2 potentiometers soldered on its circuit board, The response speed is from 0.3s - 25s, and max 6 meters of detecting range. The Grove - PIR Motion Sensor(Passive Infrared Sensor) is an easy-to-use motion sensor with Grove compatible interface. Simply connecting it to Base Shield and programming it, it can be used as a suitable motion detector for Arduino projects. For example, the PIR Motion Sensor is commonly used in security alarm systems and automatic lighting applications. Features Grove compatible interface Voltage range: 3 V – 5 V Size: 20 mm x 40 mm Detecting angle: 120 degree Detecting Max distance: 6m (3m by default) Adjustable detecting distance and holding time Applications Motion Sensor Motion Detector Security Alarm System Human Detection System Technical Specifications Dimensions 40 mm x 20 mm x 15 mm Weight 12 g Battery Exclude Voltage range 3 V – 5 V Detecting angle 120 degree Detecting distance max 6m (3m by default)

Read more less

These are some of our favourite sensors from each category. But wait, there's more! The SparkFun Sensor Kit now includes several of our sensor boards that feature the Qwiic Connect System for rapid prototyping! This version of the kit has received a complete overhaul! This huge assortment of sensors makes an amazing gift for that exceptional electronics enthusiast in your life! Included Large Piezo Vibration Sensor (With Mass): A flexible film able to sense for vibration, touch, shock, etc. When the film moves back and forth an AC wave is created, with a voltage of up to ±90. Reed Switch: Senses magnetic fields, makes for a great non-contact switch. 0.25' Magnet Square: Plays nicely with the reed switch. Embed the magnet into stuffed animals or inside a box to create a hidden actuator to the reed switch. 0.5' Force Sensitive Resistor: A force-sensing resistor with a 0.5' diameter sensing area. Great for sensing pressure (i.e., if it's being squeezed). Flex Sensor (2.2'): As the sensor is flexed, the resistance across the sensor increases. Useful for sensing motion or positioning. SoftPot: These are very thin variable potentiometers. By pressing on various positions along the strip, you vary the resistance. Mini Photocell: The photocell will vary its resistance based on how much light it's exposed to. Will vary from 1kΩ in the light to 10kΩ in the dark. PIR Motion Sensor: Easy-to-use motion detector with an analog interface. Power it with 5-12VDC, and you'll be alerted of any movement. QRD1114 Optical Detector/Phototransistor: An all-in-one infrared emitter and detector. Ideal for sensing black-to-white transitions or can be used to detect nearby objects. IR Diode: This LED can handle up to 50mA of current and outputs in the 940-950nm IR spectrum. Use to send signal to talk to the included IR receiver diode or just turn off your neighbor's TV. IR Receiver Diode: This simple IR receiver will detect an IR signal coming from a standard IR remote control or the IR diode included in the kit. Resistor 1.0M Ohm 1/4 Watt PTH: Two 1/4 Watt, +/- 5% tolerance PTH resistors. Commonly used in breadboards and perf boards. The large resistor helps dampen any voltage spikes when using the large piezo vibration sensor with a microcontroller. Resistor 10K Ohm 1/4 Watt PTH – 20 pack (Thick Leads): 1/4 Watt, +/- 5% tolerance PTH resistors. Commonly used in breadboards and perf boards, these 10KΩ resistors make excellent pullups, pulldowns, and current limiters. Resistor 330 Ohm 1/4 Watt PTH – 20 pack (Thick Leads): 1/4 Watt +/- 5% tolerance PTH resistors. Commonly used in breadboards and perf boards, these 330Ω resistors make excellent current-limiting resistors for LEDs. SparkFun 9DoF IMU Breakout – ISM330DHCX, MMC5983MA (Qwiic): This breakout board includes a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer. Connect this board over I2C using a Qwiic cable or solder wires or headers to the SPI pins to get started using one of the three sensors or using all three together to determine 3D orientation. SparkFun Atmospheric Sensor Breakout – BME280 (Qwiic): The SparkFun BME280 Atmospheric Sensor Breakout is an easy way to measure barometric pressure, humidity, and temperature readings, all without taking up too much space. SparkFun Indoor Air Quality Sensor – ENS160 (Qwiic): The SparkFun ENS160 Indoor Air Quality Sensor is a digital multi-gas sensor solution with four sensor elements that can be used in a wide range of applications including building automation, smart home, and HVAC. SparkFun Capacitive Touch Slider – CAP1203 (Qwiic): This little board acts great as a non-mechanical button. Use the three pads on the board or connect your own input for a great touch button or slider with no moving parts. Flexible Qwiic Cable (100 mm): Use these to connect up to four Qwiic boards in your kit. RGB and Gesture Sensor (APDS-9960): This board does a little bit of everything. You can measure ambient light or color as well as detect proximity and do gesture sensing all over I2C. Soil Moisture Sensor (with screw terminals): Ever wonder if your plant needs water? This sensor outputs an analog signal based on the resistance of the soil. Since water is conductive, the soil water content will be reflected in the soil resistance. Sound Detector: Ever need to know if there is noise in an area? This board will not only tell you, but it will also output amplitude as well as the full audio signal. Break Away Headers (Straight): Solder these pins to any of the breakouts to prototype on a breadboard. You'll want to solder these to boards that do not have Qwiic connectors such as the gesture sensor and sound detector.

Read more less

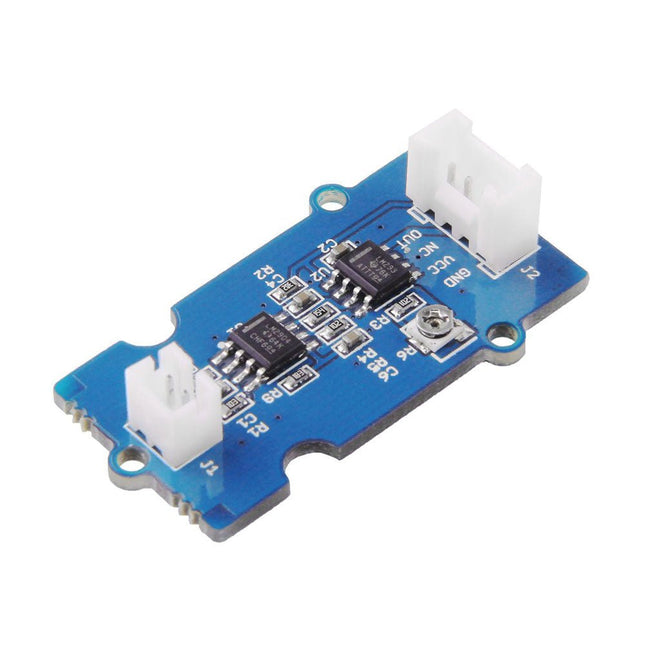

Grove Piezo Vibration Sensor is suitable for measurements of flexibility, vibration, impact and touch. The module is based on PZT film sensor LDT0-028. When the sensor moves back and forth, a certain voltage will be created by the voltage comparator inside of it. Therefore, outputs high & low levels. In spite of the fact that it has a high receptivity for strong impacts, a wide dynamic range (0.001 Hz~1000 MHz) also guarantees excellent measuring performance. Finally, you can adjust its sensitivity by adjusting the potentiometer with a screw. Features Standard grove socket Wide dynamic range：0.001 Hz~1000 MHz Adjustable sensitivity High receptivity for strong impact Applications Vibration Sensing in Washing Machine Low Power Wake-up Switch Low-Cost Vibration Sensing Car Alarms Body Movement Security Systems Downloads Download Wiki PDF Grove - Piezo Vibration Sensor Eagle File Grove - Piezo Vibration Sensor Schematic PDF File Grove - Piezo Vibration Sensor PCB PDF File Piezo Vibration Sensor Datasheet

Read more less

The JOY-iT R301T fingerprint sensor module is capable of image collection and algorithm calculation due to this integrated chip. Another remarkable function of the sensor is, that it can recognize the fingerprint in different conditions, for example humidity, light texture or changes of the skin. This offers a very wide range of possible applications to secure locks and doors among others. The chip can send data via UART, TTL serial and USB to the connected controller. Specifications Model JP2000 sensor Chip 32 Bit ARM Cortex-M3 Chip storage 96 kB RAM, 1 MB Flash Power supply 4.2-6.0 V Working current Typical: 40 mAPeak: 50 mA Logic level 3,3/5 V TTL Logic Fingerprint storage capacity 3000 Prints Matching mode 1:N Identification1:1 Verification Adjustable security level 1 - 5 levels(default security level: 3) False acceptance rate < 0.001%(on security level 3) False acceptance rate < 0.1%(on security level 3) Response time Pre-treatment: < 0.45 sMatch: < 1.5 s Baud rate support 9600 - 921600 UART communication No parity, Stop Bit: 1 Dimensions 42 x 19 x 8 mm Included 1x Fingerprint sensor COM-FP-R301T 1x Cable Downloads Datasheet Manual

Read more less

This ultrasonic distance sensor (ME007-ULA V1) offers high performance with a robust, waterproof probe. Operating on the principle of ultrasonic echo ranging, the sensor determines the distance to a target by measuring the time elapsed between sending a pulse and receiving the echo. Its non-contact design allows it to detect a wide range of materials, including transparent or non-ferrous objects, metals, non-metals, liquids, solids, and powders. Specifications Detecting Distance 27~800 cm Output Interface RS232, Voltage Analog Operating Voltage 5-12 V Average Current <10 mA Operating Temperature −15~60°C Dimensions 60 x 43 x 31 mm
