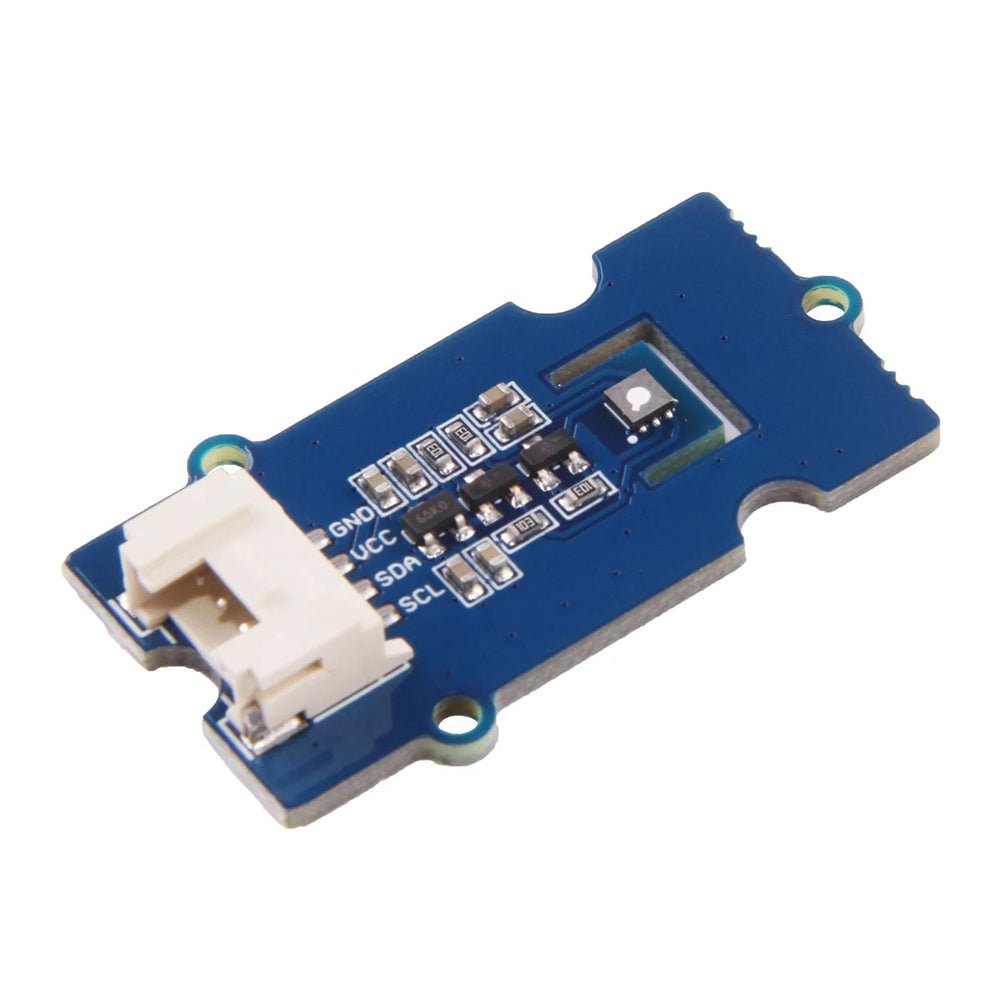

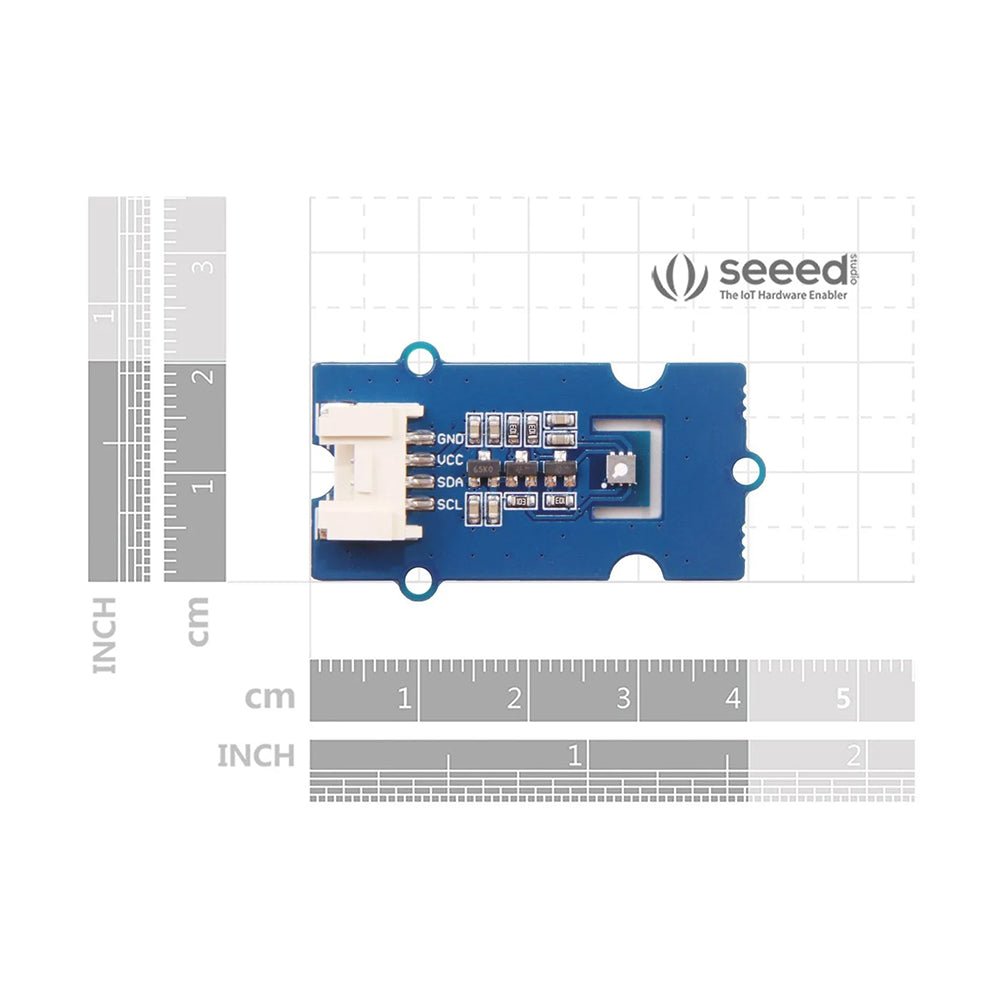

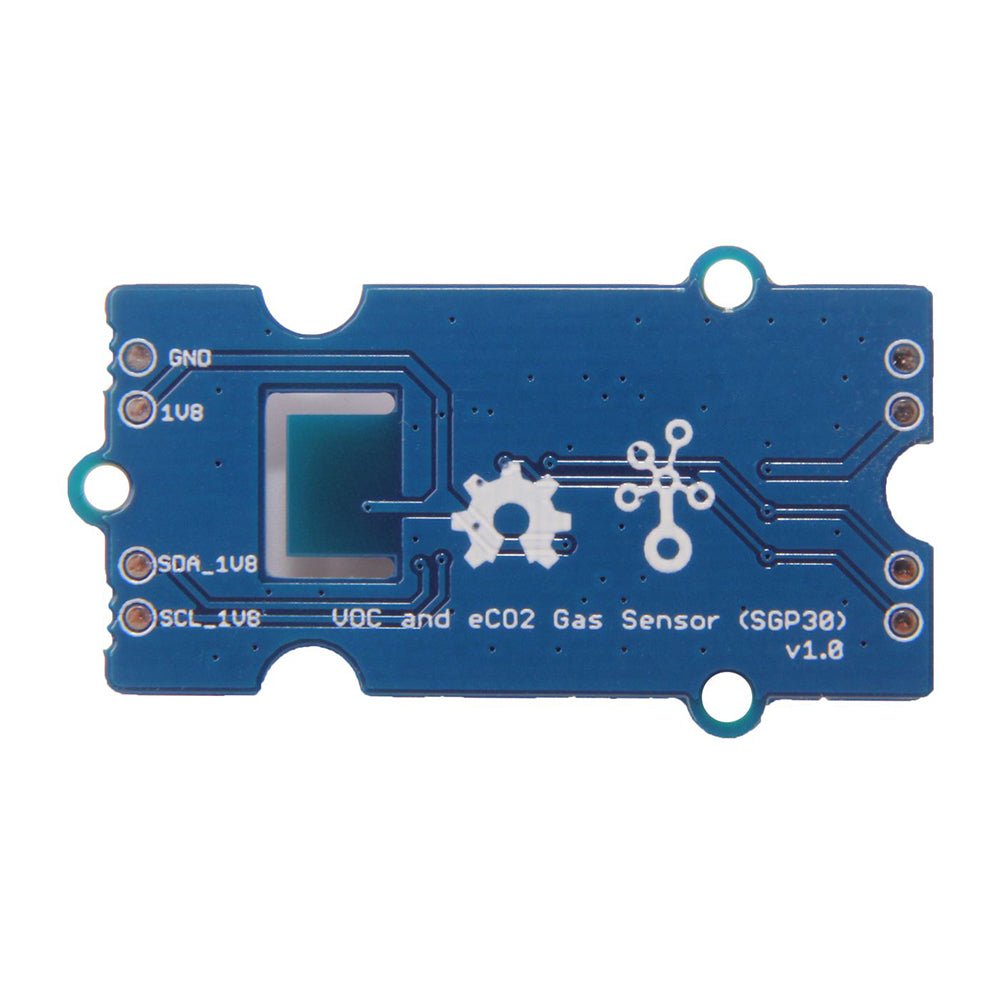

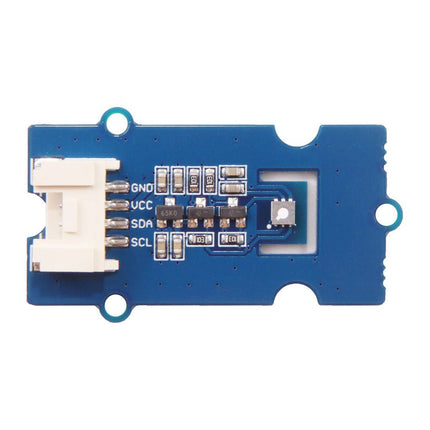

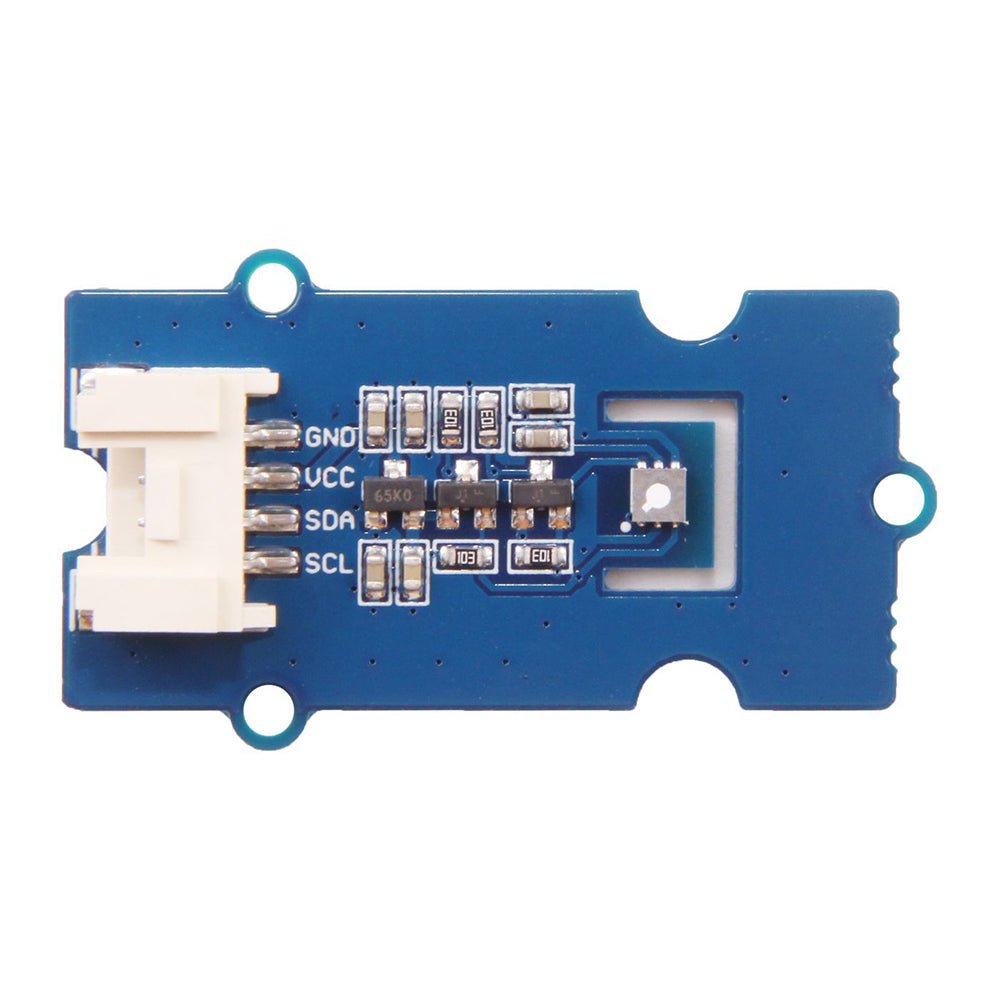

Seeed Studio Grove SGP30 VOC & eCO2 Gas Sensor (Arduino-compatible)

  • BrandSeeed Studio

Description

The Sensirion SGP30 is a digital multi-pixel gas sensor that can easily integrate with air purifiers, demand-controlled ventilation, and other IoT applications. Powered by Sensirion’s CMOSens®technology, it integrates a complete sensor system on a single chip featuring a digital I2C interface, a temperature-controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor featuring multiple sensing elements on one chip, the SGP30 provides more detailed information about air quality.

Features

  • Multi-pixel gas sensor for indoor air quality applications
  • Outstanding long-term stability
  • I2C interface with TVOC and CO2eq output signals
  • Low power consumption
  • Chip module tape and reel packaged, reflow solderable

Specifications

  • Weight: 9g
  • Battery: Exclude
  • Working Voltage: 3.3V/5V
  • Output range: TVOC-0 ppb to 60000ppb / CO₂eq - 400 ppm to 60000 ppm
  • Sampling rate: 1 Hz
Product form

The Sensirion SGP30 is a digital multi-pixel gas sensor that can easily integrate with air purifiers, demand-controlled ventilation, and other... Read more

€ 22,95 incl. VAT
Members € 20,66

    • Ship today? Order within Jul 21, 2024 17:00:00 +0200

    Details

    SKU: 20023
    EAN: 101020512

    Description

    The Sensirion SGP30 is a digital multi-pixel gas sensor that can easily integrate with air purifiers, demand-controlled ventilation, and other IoT applications. Powered by Sensirion’s CMOSens®technology, it integrates a complete sensor system on a single chip featuring a digital I2C interface, a temperature-controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor featuring multiple sensing elements on one chip, the SGP30 provides more detailed information about air quality.

    Features

    • Multi-pixel gas sensor for indoor air quality applications
    • Outstanding long-term stability
    • I2C interface with TVOC and CO2eq output signals
    • Low power consumption
    • Chip module tape and reel packaged, reflow solderable

    Specifications

    • Weight: 9g
    • Battery: Exclude
    • Working Voltage: 3.3V/5V
    • Output range: TVOC-0 ppb to 60000ppb / CO₂eq - 400 ppm to 60000 ppm
    • Sampling rate: 1 Hz
