Arduino Shields

20 products

  • Elektor Special: Arduino Shields

    Elektor Special: Arduino Shields

    Make your project dreams come true: an odometer for the hamster wheel, a fully automatic control of your ant farm with web interface, or the Sandwich-O-Mat – a machine that toasts and grills sandwiches of your choice. With the Arduino and the DIY or Maker movement, not only did entry into microcontroller programming become child's play, but a second development also took place: Resourceful developers brought small boards – so-called shields or modules – to the market, which greatly simplified the use of additional hardware. The small modules contain all the important electronic parts to be connected to the microcontroller with a few plug-in cables, eliminating the need for a fiddly and time-consuming assembly on the plug-in board. In addition, it is also possible to handle tiny components that do not have any connecting legs (so-called SMDs). Projects Discussed Arduino seeks connection BMP and introduction to libraries, I²C Learn I/O basics with the multi-purpose shield I²C LCD adapter and DOT matrix displays LCD keypad shield Level converter W5100: Internet connection I/O expansion shield Relays and solid-state relays The multi-function shield: A universal control unit Connecting an SD card reader via SPI Keys and 7-segment displays 16-bit ADC MCP4725 DAC 16-way PWM servo driver MP3 player GPS data logger using an SD card Touch sensor Joystick SHT31: Temperature and humidity VEML6070 UV-A sensor VL53L0X time-of-flight Ultrasonic distance meter MAX7219-based LED DOT matrix display DS3231 RTC Port expander MCP23017 433 MHz radio MPU-650 gyroscope ADXL345 accelerometer WS2812 RGB LEDs Power supply MQ-xx gas sensors CO2 gas sensor ACS712 current sensor INA219 current sensor L298 motor driver MFRC522 RFID 28BYJ-48 stepper motor TMC2209 silent step stick X9C10x digital potentiometer ST7735 in a color TFT display e-Paper display Bluetooth Geiger counter SIM800L GSM module I²C multiplexer Controller Area Network

    € 14,95

    Members € 13,46

  •  -25% Elektor SDR-shield 2.0

    Elektor Labs Elektor SDR Shield 2.0

    This board is a newer version of the Elektor SDR Reloaded, the difference is that on this new version with two PLL outputs and two LF-outputs, which are accessible via additional connectors on the board (not included in the kit). This allows the user to use this Arduino shield as a signal generator, SW transmitter or even transceiver. Specifications Operating Voltage 5 V and 3.3 V from Arduino Frequency Range 150 kHz to 30 MHz Sensitivity 1 µV Overall Gain 40 dB Maximum signal level at antenna 10 mV Dynamic Range 80 dB Please note: The module doesn't come pre-soldered. Links Elektor SDR Shield 2.0 (1) Elektor SDR Shield 2.0 (2) Elektor SDR Shield 2.0 (3)

    € 39,95€ 29,95

    Members € 26,96

  • Cytron 10Amp 5-30 V DC Motor Driver

    Cytron Cytron 10Amp 5-30 V DC Motor Driver

    DC brushed motors are the most commonly used and widely available motors in the market. The Cytron 10 Amp 5-30 V DC Motor Driver will help you add functionality to your DC motor. It supports both sign-magnitude PWM signal and locked-antiphase. It is compatible with full solid-state components resulting in higher response time and eliminates the wear and tear of the mechanical relay. Features Supports motor voltage from 5 V to 30 V DC Current up to 13 A continuous and 30 A peak 3.3 V and 5 V logic level input Compatible with Arduino and Raspberry Pi Speed control PWM frequency up to 20 kHz Fully NMOS H-Bridge for better efficiency No heat sink is required Bi-directional control for one Brushed DC motor Regenerative Braking Downloads User Manual Arduino Library

    € 17,95

    Members € 16,16

  • Cytron 10Amp 7-30 V DC Motor Driver Shield voor Arduino (2 Channels)

    Cytron Cytron 10Amp 7-30 V DC Motor Driver Shield for Arduino (2 Channels)

    You can control the motor driver with PWM and DIR inputs. The Arduino pins for these inputs are configurable via jumpers. If the specified pins on Arduino are already used up by other application/shield, you can select another pin easily with the jumper. There is also a possibility to quickly and conveniently test the functionality of the motor driver with the onboard test buttons and output LEDs. Buck regulator which produces 5 V output is also available to power the Arduino mainboard, which eliminates the need of extra power supply for the Arduino mainboard. The board also offers various protection features. Overcurrent protection prevents the motor driver from damage when the motor stalls or an oversized motor is hooked up. When the motor is trying to draw current more than what the motor driver can support, the motor current will be limited at the maximum threshold. Assisted by temperature protection, the maximum current limiting threshold is determined by the board temperature. The higher the board temperature, the lower the current limiting threshold. As a result, the motor driver delivers its full potential depending on the current conditions without damaging any MOSFETs. Features Shield for Arduino form factor Bidirectional control for two brushed DC motors Control one unipolar/bipolar stepper motor Operating Voltage: DC 7 V to 30 V Maximum Motor Current: 10 A continuous, 30 A peak Buck regulator to produce 5 V output (500 mA max) Buttons for quick testing LEDs for motor output state Selectable Arduino pins for PWM/DIR inputs. PWM/DIR inputs compatible with 1.8 V, 3.3 V and 5 V logic PWM frequency up to 20 kHz (Output frequency is same as input frequency). Overcurrent protection with active current limiting Temperature protection Undervoltage shutdown Possible applications Mobile Robot Automated Guided Vehicle (AGV) Solar Tracker Game Simulator Automation Machine Downloads Datasheet Sample Code 3D CAD Files Packing List 1x 10Amps 7V-30V DC Motor Driver Shield for Arduino (2 Channels) MDD010

    € 29,95

    Members € 26,96

  • EasyVR 3 Plus Shield voor Arduino

    EasyVR 3 Plus Shield for Arduino

    Do you make time to talk to your Arduino? Maybe you should! The EasyVR 3 Plus Shield is a voice recognition shield for Arduino boards integrating an EasyVR module. This kit includes the EasyVR 3 Plus Module, the Arduino Shield Adapter, microphone, and headers. With all of these parts, everything has been provided to you to get up and running in a short amount of time with minimal soldering! EasyVR 3 Plus is a multi-purpose speech recognition module designed to add versatile, robust and cost effective speech recognition capabilities to almost any application. The EasyVR 3 Plus module can be used with any host with a UART interface powered at 3.3V – 5V, such as PIC and Arduino boards. Some application examples include home automation, such as voice-controlled light switches, locks, curtains or kitchen appliances, or adding “hearing” to the most popular robots on the market. Note: Please be aware that the EasyVR 3 Plus Shield for Arduino does not come pre-assembled and will require some soldering and assembly before operation. Includes EasyVR 3 Plus Module EasyVR Shield 3 Wired Microphone Speaker cable (Speaker not included) Header Set Features Up to 256 user-defined Speaker Dependent (SD) or Speaker Verification (SV) commands, that can be trained in ANY language, divided into maximum 16 groups (up to 32 SD or 5 SV commands each). A selection of 26 built-in Speaker Independent (SI) commands for ready-to-run basic controls, in the following languages: US English French German Italian Japanese Spanish Other SI commands freely downloadable from the Fortebit website (downloads section). SonicNet™ technology for wireless communications between modules or any other sound source (Audio CD, DVD, MP3 Player). Up to around 21 minutes of pre-recorded sounds or speech. Up to about 137 seconds of live message recording and playback. Real-time Lip-sync capability. DTMF tone generation. Differential audio output that directly supports 8Ω speakers. Easy-to-use Graphical User Interface to program Voice Commands and audio. Standard UART interface (powered at 3.3V - 5V). Simple and robust documented serial protocol to access and program through the host board. Six General purpose I/O lines that can be controlled via UART commands. With the optional Quick T2SI Lite license, up to 28 custom Speaker Independent (SI) command vocabularies, with up to 12 commands each, for a total of 336 possible commands in the following languages: US English British English French German Italian Japanese Korean Mandarin Spanish Compatible with Arduino boards that have the 1.0 Shield interface (UNO R3) including, but not limited to: Arduino Zero Arduino Uno Arduino Mega Arduino Leonardo Arduino Due Supports 5V and 3.3V main boards through the IOREF pin (defaults to 5V if this pin is absent) Supports direct connection to the PC on main boards with a separate USB/Serial chip and a special software-driven “bridge mode” on boards with only native USB interface, for easy access and configuration with the EasyVR Commander Enables different modes of serial connection and also flash updates to the embedded EasyVR module (through the Mode Jumper) Supports remapping of serial pins used by the Shield (in SW mode) Provides a 3.5mm audio output jack suitable for headphones or as a line out

    € 47,95

    Members € 43,16

  • Cytron 3Amp 4-16 V DC Motor Driver (2 Channels)

    Cytron Cytron 3Amp 4-16 V DC Motor Driver (2 Channels)

    Features: Supports motor voltage from 4 V to 16 V DC Bidirectional control for two brushed DC motor. Control one unipolar or one bipolar stepper motor. Maximum Motor Current: 3A continuous, 5A peak LEDs for motor output state. Buttons for quick testing. Compatible with Arduino and Raspberry Pi PWM frequency up to 20kHz Reverse polarity protection Here you can find the product's Datasheet. Check out the sample code provided by Cytron here.

    € 10,95

    Members € 9,86

  • Arduino Giga Display Shield

    Arduino Arduino Giga Display Shield

    The Giga Display Shield is a touch screen solution designed to effortlessly deploy graphic interfaces in your projects. Leveraging the new pin header connector in the middle of Giga R1 WiFi, this shield offers seamless integration and enhanced functionalities. With the Giga Display Shield, you gain access to an array of features, including a digital microphone, 6-axis IMU, and Arducam connector. These added capabilities allow you to fully utilize the other 54 available pins, making it incredibly convenient to create handheld devices or dashboards to control your project. Specifications Display KD040WVFID026-01-C025A Size 3.97” Resolution 480x800 RGB Color 16.7M Touch Mode Five points and Gestures Interface I²C Sensors IMU BMI270 Microphone MP34DT06JTR Downloads Datasheet Schematics

    € 84,95

    Members € 76,46

  • JOY-iT CNC Controller Shield for Arduino

    JOY-iT JOY-iT CNC Controller Shield for Arduino

    Input Voltage: 12 - 36 V Max. Phase Current: 2 A per phase Removable motor drivers Reset-button Screw terminals for power supply Dimensions: 53 mm x 68 mm x 18 mm Weight: 46 g

    € 17,95

    Members € 16,16

  • Arduino Portenta Vision Shield (Ethernet)

    Arduino Arduino Pro Portenta Vision Shield (Ethernet)

    Features 324x324 pixels camera sensor: use one of the cores in Portenta to run image recognition algorithms using the OpenMV for Arduino editor 100 Mbps Ethernet connector: get your Portenta H7 connected to the wired Internet 2 onboard microphones for directional sound detection: capture and analyse sound in real-time JTAG connector: perform low-level debugging of your Portenta board or special firmware updates using an external programmer SD-Card connector: store your captured data in the card, or read configuration files The Vision Shield has been designed to fit on top of the Arduino Portenta family. The Portenta boards feature multicore 32-bit ARM Cortex processors running at hundreds of megahertz, with megabytes of program memory and RAM. Portenta boards come with WiFi and Bluetooth. Embedded Computer Vision Made Easy Arduino has teamed up with OpenMV to offer you a free license to the OpenMV IDE, an easy way into computer vision using MicroPython as a programming paradigm. Download the OpenMV for Arduino Editor from our professional tutorials site and browse through the examples we have prepared for you inside the OpenMV IDE. Companies across the whole world are already building their commercial products based on this simple-yet-powerful approach to detect, filter, and classify images, QR codes, and others. Debugging With Professional Tools Connect your Portenta H7 to a professional debugger through the JTAG connector. Use professional software tools like the ones from Lauterbach or Segger on top of your board to debug your code step by step. The Vision Shield exposes the required pins for you to plug in your external JTAG. Camera Himax HM-01B0 camera module Resolution 320 x 320 active pixel resolution with support for QVGA Image sensor High sensitivity 3.6μ BrightSense pixel technology Microphone 2 x MP34DT05 Length 66 mm Width 25 mm Weight 11 gr For more information, check out the tutorials provided by Arduino here.

    € 69,95

    Members € 62,96

  • SparkFun RedBoard – Programmed met Arduino

    SparkFun SparkFun RedBoard (Programmed with Arduino)

    Are you tired of all the different Arduino boards, and having to choose which features you need? Wouldn't it be much simpler to have all the best features on the same board and not have to compromise? That is precisely what the people at SparkFun thought and delivered the fantastic SparkFun RedBoard Programmed with Arduino. Features ATmega328 microcontroller with Optiboot (UNO) Bootloader Input voltage: 7-15 V 0-5 V outputs with 3.3 V compatible inputs 6 Analog Inputs 14 Digital I/O Pins (6 PWM outputs) ISP Header 16 MHz Clock Spee 32 k Flash Memory R3 Shield Compatible All SMD Construction USB Programming Facilitated by the Ubiquitous FTDI FT231X Red PCB The SparkFun RedBoard combines the stability of the FTDI, the simplicity of the Uno's Optiboot bootloader, and the R3 shield compatibility of the Uno R3. RedBoard has the hardware peripherals you are used to: 6 Analog Inputs 14 Digital I/O pins (6 PWM pins) SPI UART External interrupts Downloads Drivers GitHub

    € 24,95

    Members € 22,46

  • SparkFun Weather Shield

    SparkFun SparkFun Weather Shield

    The SparkFun Weather Shield uses the Si7021 humidity / temperature sensor, the MPL3115A2 barometric pressure sensor, and the ALS-PT19 light sensor. The shield utilizes the MPL3115A2 and Si7021 Arduino libraries. The SparkFun Weather Shield comes with two unpopulated RJ11 connector spaces and a 6-pin GPS connector. Finally, each Weather Shield can operate from 3.3 V up to 16 V and has built-in voltage regulators and signal translators. Check out the GitHub page, Schematics, and Eagle Files for more information.

    € 49,95

    Members € 44,96

  • Arduino MKR IoT Carrier

    Arduino Arduino MKR IoT Carrier

    Data Capture: Map the environment around the carrier using the integrated temperature, humidity, and pressure sensors and collect data about movement using the 6 axis IMU and light, gesture, and proximity sensors. Easily add more external sensors to capture more data from more sources via the on-board Grove connectors (x3). Data Storage: Capture and store all the data locally on an SD card, or connect to the Arduino IoT Cloud for real-time data capture, storage, and visualization. Data Visualisation: Locally view real-time sensor readings on the built-in OLED Color Display and create visual or sound prompts using the embedded LEDs and buzzer. Total Control: Directly control small-voltage electronic appliances using the onboard relays and the five tactile buttons, with the integrated display providing a handy on-device interface for immediate control.

    € 57,95

    Members € 52,16

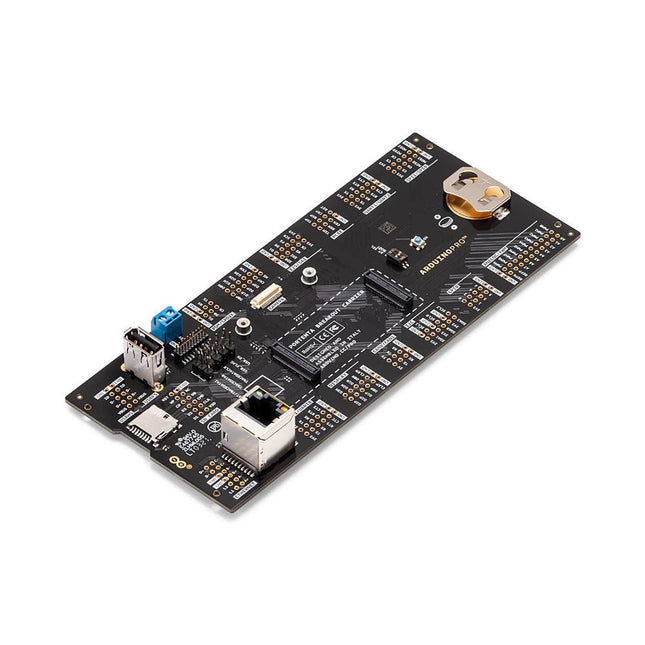

  • Arduino Pro Portenta Breakout

    Arduino Arduino Pro Portenta Breakout

    Portenta Breakout board is designed to help hardware engineers and makers to prototype and help test devices connections and capacity within the Portenta family boards (e.g. the Portenta H7). It makes all high-density connectors’ signals individually accessible, making it quick and easy to connect and test external hardware components and devices as normally needed during development in the lab. Features PowerON Button Boot mode DIP switch Connectors USB-A RJ45 up to 1Gb/s Micro-SD Card MIPI-20T-JTAG with Trace-Capability. Power CR2032 RTC-Lithium battery backup External power terminal block I/O Break out all Portenta High Density connector signals Male/female HD connectors allow interposing breakout between Portenta and shield to debug signals Compatibility Standard Portenta High Density connector pinout Specifications USB Port USB-A Ethernet RJ45 up to 1 Gb/s Memory slot Micro SD card Debug MIPI-20T-JTAG with trace capability Connectors HD Male/Female RTC power battery CR2032 Dimensions 164 x 72 mm Weight 69 g Downloads Datasheet Schematics Pinout

    € 59,95

    Members € 53,96

  • M5Stack Proto Board

    M5Stack M5Stack Proto Board

    PROTO board is used as a Core Extensions feature. Suitable with Arduino and ESP32

    € 7,95

    Members € 7,16

  • Arduino MKR WAN 1310

    Arduino Arduino MKR WAN 1310

    Ever wanted an automated house? Or a smart garden? Well, now it’s easy with the Arduino IoT Cloud compatible boards. It means: you can connect devices, visualize data, control and share your projects from anywhere in the world. Whether you’re a beginner or a pro, we have a wide range of plans to make sure you get the features you need. Connect your sensors and actuators over long distances harnessing the power of the LoRa wireless protocol or throughout LoRaWAN networks. The Arduino MKR WAN 1310 board provides a practical and cost effective solution to add LoRa connectivity to projects requiring low power. This open source board can be connected to the Arduino IoT Cloud. Better and More Efficient The MKR WAN 1310, brings in a series of improvements when compared to its predecessor, the MKR WAN 1300. While still based on the Microchip SAMD21 low power processor, the Murata CMWX1ZZABZ LoRa module, and the MKR family’s characteristic crypto chip (the ECC508), the MKR WAN 1310 includes a new battery charger, a 2 MByte SPI Flash, and improved control of the board’s power consumption. Improved Battery Power The latest modifications have considerably improved the battery life on the MKR WAN 1310. When properly configured, the power consumption is now as low as 104 uA! It is also possible to use the USB port to supply power (5 V) to the board; run the board with or without batteries – the choice is yours. On-board Storage Data logging and other OTA (Over The Air) functions are now possible since the inclusion of the on board 2 MByte Flash. This new exciting feature will let you transfer configuration files from the infrastructure onto the board, create your own scripting commands, or simply store data locally to send it whenever the connectivity is best. Whilst the MKR WAN 1310’s crypto chip adds further security by storing credentials & certificates in the embedded secure element. These features make it the perfect IoT node and building block for low-power wide-area IoT devices. Specifications The Arduino MKR WAN 1310 is based on the SAMD21 microcontroller. Microcontroller SAMD21 Cortex-M0+ 32-bit low power ARM MCU (datasheet) Radio module CMWX1ZZABZ (datasheet) Board power supply (USB/VIN) 5 V Secure element ATECC508 (datasheet) Supported batteries Rechargeable Li-Ion, or Li-Po, 1024 mAh minimum capacity Circuit operating voltage 3.3 V Digital I/O pins 8 PWM pins 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4) UART 1 SPI 1 I²C 1 Analog input pins 7 (ADC 8/10/12 bit) Analog output pins 1 (DAC 10 bit) External interrupts 8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2) DC current per I/O pin 7 mA CPU flash memory 256 KB (internal) QSPI flash memory 2 MByte (external) SRAM 32 KB EEPROM No Clock speed 32.768 kHz (RTC), 48 MHz LED_BUILTIN 6 USB Full-Speed USB Device and embedded Host Antenna gain 2 dB (bundled pentaband antenna) Carrier frequency 433/868/915 MHz Dimensions 67.64 x 25 mm Weight 32 g Downloads Eagle Files Schematics Fritzing Pinout

    € 59,95

    Members € 53,96

  • Ardi Display Shield for Arduino Uno

    SB Components Ardi Display Shield for Arduino Uno

    The Ardi Display Shield features a vibrant 2" IPS screen with a resolution of 240 x 320 pixels, providing sharp and crisp visuals for your projects. Whether you're working on a small-scale project or a complex prototype, this display shield ensures clear and vibrant display output. With 2 programmable buttons, you have the flexibility to create interactive experiences and user-friendly interfaces. Customize the buttons to trigger specific actions or navigate through menus effortlessly. The possibilities are endless, limited only by your imagination. In addition to the programmable buttons, the Ardi Display Shield also includes a 5-way joystick for intuitive control. With the joystick's SPI interface, you can easily navigate menus, scroll through options, and control various aspects of your Arduino project with precision and ease. Designed with compatibility and ease of use in mind, the Ardi Display Shield seamlessly integrates with the Arduino Uno board. Simply connect it to your Arduino Uno and unlock a world of possibilities for visual feedback, user interaction, and data visualization. Features Onboard 2.0" TFT Display Compatible with 3.3 V/5 V MCU, Selection provided Onboard 5-Way Joystick allows better control-related projects Two programmable Buttons to add additional functionality to project Mounts directly onto ArdiPi, Ardi32 or other Arduino compatible boards Specifications Display resolution: 240x320 pixels Pixel Pitch: 0.1275 x 0.1275 mm Active Area: 30.6 x 40.8 mm Module Size: 34.6 x 47.8 x 2.05 mm SPI Interface Display Colors: 65K colors Drive IC: ST7789V2 Viewing Direction: All-view the best image

    € 24,95

    Members € 22,46

  • Ardi Relay Shield for Arduino Uno

    SB Components Ardi Relay Shield for Arduino Uno

    Enhance your Arduino projects with the Ardi Relay Shield, a versatile 4-channel optoisolated relay board. Designed to handle AC (250 V, 7 AMP) and DC (30 V, 10 AMP) power, this shield empowers you to easily control a wide range of electrical devices. Equipped with four LED relay indicators, the Ardi Relay Shield provides visual feedback on the status of each relay, ensuring you stay informed and in control of your circuit. The shield also features four 3-pin screw terminals (NC, NO, COM) for convenient and secure connections. Designed in the Arduino form factor, this shield seamlessly integrates with your Arduino Uno, allowing you to expand its capabilities and create interactive projects. Whether you're automating home appliances, building intelligent systems, or working on industrial applications, the Ardi Relay Shield is the reliable choice for robust and efficient relay control. Features 4-channel optoisolated relay so better electrical isolation between High and Low side voltage. 4x Relay shield compatible with both 3.3 V and 5 V MCU Onboard 4 Status LED to indicate each relay ON/OFF State High-quality relays Provides NO/NC interfaces with Screw terminals. Mounts directly onto ArdiPi, Ardi32 or other Arduino compatible boards Specifications Max Switching Voltage: 250 V AC/30 V DC Max Switching Current: 7 A/10 A Max Switching Power: 2770 VA/240 W Frequency: 1 Hz Initial Contact Resistance: 50 mΩ max at 6 V DC/1 A Operate Time: 10ms max Release Time: 5ms max Life Expectancy Electrical: 100,000 operations (rated load) Life Expectancy Mechanical: 10,000,000 operations (no load)

    € 12,95

    Members € 11,66

  • Ardi RFID Shield for Arduino Uno

    SB Components Ardi RFID Shield for Arduino Uno

    Designed with convenience and security in mind, the Ardi RFID Shield is based on the EM-18 module, operating at a frequency of 125 KHz. This shield allows you to easily integrate RFID (Radio Frequency Identification) technology into your projects, enabling seamless identification and access control systems. Equipped with a powerful 1-channel optoisolated relay, the Ardi RFID Shield offers a reliable switching solution with a maximum DC rating of 30 V and 10 A, as well as an AC rating of 250 V and 7 A. Whether you need to control lights, motors, or other high-power devices, this shield provides the necessary functionality. Additionally, the Ardi RFID Shield features an onboard buzzer that can be utilized for audio feedback, allowing for enhanced user interaction and system feedback. With the onboard 2-indication LEDs, you can easily monitor the status of RFID card detection, power supply, and relay activation, providing clear visual cues for your project's operation. Compatibility is key, and the Ardi RFID Shield ensures seamless integration with the Arduino Uno platform. Paired with a read-only RFID module, this shield opens up a world of possibilities for applications such as access control systems, attendance tracking, inventory management, and more. Features Onboard 125 kHz EM18 RFID small, compact module Onboard High-quality relays Relay with Screw terminal and NO/NC interfaces Shield compatible with both 3.3 V and 5 V MCU Onboard 3 LEDs power, relay ON/OFF State and RFID Scan status Multi-tone Buzzer onboard for Audio alerts Mounts directly onto ArdiPi, Ardi32 or other Arduino compatible boards Specifications RFID operating Frequency: 125 kHz Reading distance: 10 cm, depending on TAG Integrated Antenna Relay Max Switching Voltage: 250 V AC/30 V DC Relay Max Switching Current: 7 A/10 A

    € 24,95

    Members € 22,46

  • Ardi UHF Shield for Arduino Uno (EU/UK)

    SB Components Ardi UHF Shield for Arduino Uno (EU/UK)

    Designed with cutting-edge technology, this shield brings the power of Ultra High Frequency (UHF) RFID to your fingertips. With the Ardi UHF Shield, you can effortlessly read up to an impressive 50 tags per second, allowing for fast and efficient data collection. The shield features an onboard UHF antenna, ensuring reliable and accurate tag detection even in challenging environments. Equipped with a high-performance 0.91" OLED display, the Ardi UHF Shield provides clear and concise visual feedback, making it easy to monitor and interact with the RFID readings. Whether you're tracking inventory, managing access control, or implementing a smart attendance system, this shield has you covered. With a remarkable 1-meter reading distance, the Ardi UHF Shield offers an extended range for capturing RFID data. Say goodbye to the limitations of proximity-based RFID systems and embrace the flexibility and convenience of a wider reading range. The shield provides read-write capabilities, allowing you to not only retrieve information from RFID tags but also update or modify data as needed. This versatility opens up a world of possibilities for advanced applications and custom solutions. Features Onboard High-performance UHF RFID reader module 24 hours x 365 days’ work normally 0.91” OLED display for visual interaction with shield Multi-tone Buzzer onboard for Audio alerts Shield compatible with both 3.3 V and 5 V MCU Mounts directly onto ArdiPi, Ardi32 or other Arduino compatible boards Specifications OLED resolution 128x32 pixels I²C Interface for OLED UHF Frequency Range (EU/UK): 865.1-867.9 MHz UHF Module Type: Read/Write Protocols Supported: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C Reading Distance: 1 meters Can identify over 50 tags simultaneously Communication interface: TTL UART Interface for UHF Communication baud rate: 115200 bps (default and recommend) – 38400 bps Operation current: 180 mA @ 3.5 V (26 dBm Output, 25°C), 110 mA @ 3.5 V (18 dBm Output, 25°C) Working humidity <95% (+25°C) Heat-dissipating method Air cooling(no need out install cooling fin) Tags storage capacity: 200 pcs tags @ 96 bit EPC Output power: 18-26 dBm Output power accuracy: +/-1 dB Tags RSSI support

    € 129,95

    Members € 116,96

  • Arduino Pro Portenta Vision Shield LoRa

    Arduino Arduino Pro Portenta Vision Shield LoRa

    The Portenta Vision Shield LoRa brings industry-rated features to your Portenta. This hardware add-on will let you run embedded computer vision applications, connect wirelessly via LoRa to the Arduino Cloud or your own infrastructure, and activate your system upon the detection of sound events. The shield comes with: a 320x320 pixels camera sensor: use one of the cores in Portenta to run image recognition algorithms using the OpenMV for Arduino editor long range 868/915 MHz LoRa wireless connectivity: get your Portenta H7 connected to the Internet of Things with low power consumption two on-board microphones for directional sound detection: capture and analyse sound in real-time JTAG connector: perform low-level debugging of your Portenta board or special firmware updates using an external programmer SD-Card connector: store your captured data in the card, or read configuration files The Vision Shield LoRa has been designed to work with the Arduino Portenta H7. The Portenta boards feature multicore 32-bit ARM Cortex processors running at hundreds of megahertz, with megabytes of program memory and RAM. Portenta boards come with WiFi and Bluetooth. Specifications Camera Himax HM-01B0 camera module (manufacturer site) Resolution 320 x 320 active pixel resolution with support for QVGA Image sensor High sensitivity 3.6μ BrightSense pixel technology Microphone 2x MP34DT05 (datasheet) Connectivity 868/915MHz ABZ-093 LoRa Module with ARM Cortex-M0+ (datasheet) Dimensions 66 x 25 mm Weight 8 g Downloads Datasheet Schematics

    € 84,95

    Members € 76,46

What are Arduino Shields?

Shields are compact and easy-to-install extensions designed to add certain tasks or functionality to your Arduino board. There are shields available for almost every task you can do with an Arduino board, from adding Wi-Fi connectivity to running complex sensors and actuators .

Most shields are plug-and-play, meaning they can easily be connected to the Arduino board without any special knowledge or experience required. In addition, most shields offer specific software libraries and other tools to simplify the development process and improve performance.

Make more possible with Arduino Shields

Add-on shields allow you to access advanced features and technologies that are otherwise unavailable on the Arduino board. For example, shields are available for adding Wi-Fi connectivity, running motion detection sensors, controlling displays, and more.

Install Arduino add-ons

Using Arduino Shields is simple and fast. Below are some steps to help you use these shields:

Choose the right type of shield: Choose the shield you need for your project based on the functionalities and purposes you need.

  • Connect the shield to the Arduino: Use the headers on the shield and connect it to the headers on the Arduino board.
  • Add code: Add code to your Arduino project to take advantage of the shield's functionality.
  • Test and debug: Test and debug your project to ensure the shield works correctly.

These steps will help you quickly and easily expand the capabilities of your Arduino project using a shield.

Wide range of Arduino Shields at Elektor

Are you excited about buying an Arduino Shield? At Elektor you will find a wide range to go wild with your Arduino! Elektor is also the right place for inspiration! The Elektor Special about Arduino Shields is full of practical shields, sensors and other modules.
