ESP

56 products


  • ESP32-C3-DevKitM-1

    Espressif ESP32-C3-DevKitM-1

    Out of stock

    ESP32-C3-DevKitM-1 is an entry-level development board based on ESP32-C3-MINI-1, a module named for its small size. This board integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the ESP32-C3-MINI-1 module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitM-1 on a breadboard. Specifications ESP32-C3-MINI-1 ESP32-C3-MINI-1 is a general-purpose Wi-Fi and Bluetooth LE combo module that comes with a PCB antenna. At the core of this module is ESP32-C3FN4, a chip that has an embedded flash of 4 MB. Since flash is packaged in the ESP32-C3FN4 chip, rather than integrated into the module, ESP32-C3-MINI-1 has a smaller package size. 5 V to 3.3 V LDO Power regulator that converts a 5 V supply into a 3.3 V output. 5 V Power On LED Turns on when the USB power is connected to the board. Pin Headers All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board. For details, please see Header Block. Boot Button Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port. Micro-USB Port USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-C3FN4 chip. Reset Button Press this button to restart the system. USB-to-UART Bridge Single USB-UART bridge chip provides transfer rates up to 3 Mbps. RGB LED Addressable RGB LED, driven by GPIO 8. Downloads ESP32-C3 Datasheet ESP32-C3-MINI-1 Datasheet ESP32-C3-DevKitM-1 Schematic ESP32-C3-DevKitM-1 PCB Layout ESP32-C3-DevKitM-1 Dimensions

    Out of stock

    € 19,95

    Members € 17,96

  •  -19% MakePython ESP32 Development Kit

    Elektor Labs MakePython ESP32 Development Kit

    Learn how to use the ESP32 Microcontroller and MicroPython programming in your future projects! The project book, written by well-known Elektor author Dogan Ibrahim, holds many software- and hardware-based projects especially developed for the MakePython ESP32 Development Kit. The kit comes with several LEDs, sensors, and actuators. The kit will help you acquire the basic knowledge to create IoT projects. The book’s fully evaluated projects feature all the supplied components. Each project includes a block diagram, a circuit diagram, a full program listing, and a complete program description. Included in the kit 1x MakePython ESP32 development board with color LCD 1x Ultrasonic ranging module 1x Temperature and humidity sensor 1x Buzzer module 1x DS18B20 module 1x Infrared module 1x Potentiometer 1x WS2812 module 1x Sound sensor 1x Vibration sensor 1x Photosensitive resistance module 1x Pulse sensor 1x Servo motor 1x USB cable 2x Button 2x Breadboard 45x Jumper wire 10x Resistor 330R 10x LED (Red) 10x LED (Green) 1x Project book (206 pages) 46 Projects in the Book LED Projects Blinking LED Flashing SOS Blinking LED – using a timer Alternately flashing LEDs Button control Changing the LED flashing rate using pushbutton interrupts Chasing-LEDs Binary-counting LEDs Christmas lights (random-flashing 8 LEDs) Electronic dice Lucky day of the week Pulsewidth Modulation (PWM) Projects Generate a 1000-Hz PWM waveform with 50% duty cycle LED brightness control Measuring the frequency and duty cycle of a PWM waveform Melody maker Simple electronic organ Servo motor control Servo motor DS18B20 thermometer Analog To Digital Converter (ADC) Projects Voltmeter Plotting the analog input voltage ESP32 internal temperature sensor Ohmmeter Photosensitive resistance module Digital To Analog Converter (DAC) Projects Generating fixed voltages Generating a sawtooth-wave signal Generating a triangular-wave signal Arbitrary periodic waveform Generating a sinewave signal Generating accurate sinewave signal using timer interrupts Using The OLED Display Seconds counter Event counter DS18B20 OLED based digital thermometer ON-OFF temperature controller Measuring the temperature and humidity Ultrasonic distance measurement Height of a person (stadiometer) Heart rate (pulse) measurement Other Sensors Supplied with the Kit Theft alarm Sound-activated light Infrared obstacle avoidance with buzzer WS2812 RGB LED ring Timestamping temperature and humidity readings Network Programming Wi-Fi scanner Remote control from the Internet browser (using a smartphone or PC) – Web Server Storing temperature and humidity data in the Cloud Low-Power Operation Using a timer to wake up the processor

    € 79,95€ 64,95

    Members identical

  • RISC-V Assembly Language Programming using ESP32-C3 and QEMU (+ GRATIS ESP32 RISC-V Board)

    RISC-V Assembly Language Programming using ESP32-C3 and QEMU

    With the availability of free and open source C/C++ compilers today, you might wonder why someone would be interested in assembler language. What is so compelling about the RISC-V Instruction Set Architecture (ISA)? How does RISC-V differ from existing architectures? And most importantly, how do we gain experience with the RISC-V without a major investment? Is there affordable hardware available? The availability of the Espressif ESP32-C3 chip provides a way to get hands-on experience with RISC-V. The open sourced QEMU emulator adds a 64-bit experience in RISC-V under Linux. These are just two ways for the student and enthusiast alike to explore RISC-V in this book. The projects in this book are boiled down to the barest essentials to keep the assembly language concepts clear and simple. In this manner you will have “aha!” moments rather than puzzling about something difficult. The focus in this book is about learning how to write RISC-V assembly language code without getting bogged down. As you work your way through this tutorial, you’ll build up small demonstration programs to be run and tested. Often the result is some simple printed messages to prove a concept. Once you’ve mastered these basic concepts, you will be well equipped to apply assembly language in larger projects.

    € 39,95

    Members € 35,96

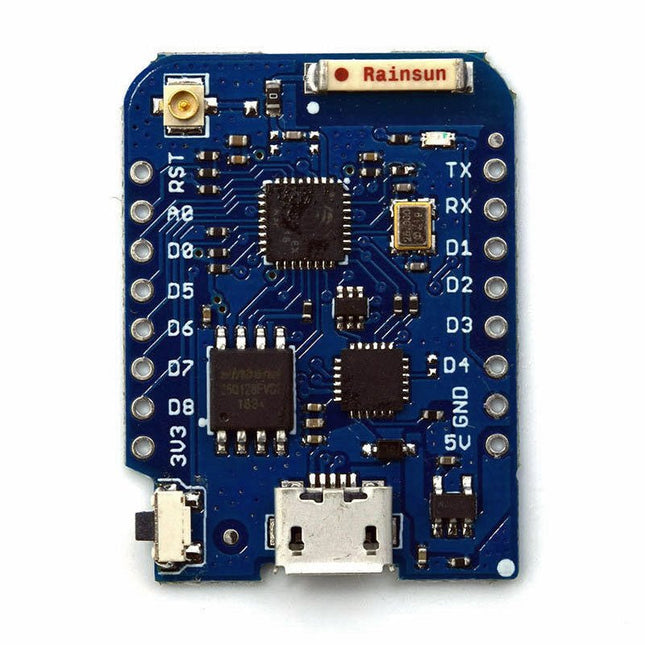

  • WeMos D1 mini Pro – ESP8266 based WiFi Module

    WeMos D1 mini Pro - ESP8266 based WiFi Module

    This mini WiFi board has 16 MB flash, external antenna connector and built-in ceramic antenna based on ESP8266EX. Features 11 digital input/output pins Interrupt/pwm/I²C/one-wire 1 analog input (3.2 V max input) 16 MB Flash External antenna connector Built-in ceramic antenna CP2104 USB-TO-UART IC Specifications Operating Voltage 3.3 V Digital I/O Pins 11 Analog Input Pins 1 (3.2 V max) Clock Speed 80/160 MHz Flash 16 MB Size 34.2 x 25.6 mm Weight 3 g Pin Configuration Pin Function ESP8266 Pin RX RXD RXD A0 Analog input, max 3.2 V A0 D0 IO GPIO16 D1 IO, SCL GPIO5 D2 IO, SDA GPIO4 D3 IO, 10k Pull-up GPIO0 D4 IO, 10k Pull-up, BUILTIN_LED GPIO2 D5 IO, SCK GPIO14 D6 IO, MISO GPIO12 D7 IO, MOSI GPIO13 D8 IO, 10k Pull-down, SS GPIO15 G Ground GND 5V 5 V - 3V3 3.3 V 3.3 V RST Reset RST Included 1x WeMos D1 mini Pro (based on ESP8266EX) 2x Pin header (short) 2x Female connector strip (short) 2x Female connector strip (long)

    € 14,95

    Members € 13,46

  •  -14% Practical Audio DSP Projects with the ESP32

    Practical Audio DSP Projects with the ESP32

    Easy and Affordable Digital Signal Processing The aim of this book is to teach the basic principles of Digital Signal Processing (DSP) and to introduce it from a practical point of view using the bare minimum of mathematics. Only the basic level of discrete-time systems theory is given, sufficient to implement DSP applications in real time. The practical implementations are described in real time using the highly popular ESP32 DevKitC microcontroller development board. With the low cost and extremely popular ESP32 microcontroller, you should be able to design elementary DSP projects with sampling frequencies within the audio range. All programming is done using the popular Arduino IDE in conjunction with the C language compiler. After laying a solid foundation of DSP theory and pertinent discussions on the main DSP software tools on the market, the book presents the following audio-based sound and DSP projects: Using an I²S-based digital microphone to capture audio sound Using an I²S-based class-D audio amplifier and speaker Playing MP3 music stored on an SD card through an I²S-based amplifier and speaker Playing MP3 music files stored in ESP32 flash memory through an I²S-based amplifier and speaker Mono and stereo Internet radio with I²S-based amplifiers and speakers Text-to-speech output with an I²S-based amplifier and speaker Using the volume control in I²S-based amplifier and speaker systems A speaking event counter with an I²S-based amplifier and speaker An adjustable sinewave generator with I²S-based amplifier and speaker Using the Pmod I²S2 24-bit fast ADC/DAC module Digital low-pass and band-pass real-time FIR filter design with external and internal A/D and D/A conversion Digital low-pass and band-pass real-time IIR filter design with external and internal A/D and D/A conversion Fast Fourier Transforms (FFT)

    € 34,95€ 29,95

    Members identical

  • Home Appliance Hack-and-IoT Guidebook (+ GRATIS ESP8266 Board)

    Home Appliance Hack-and-IoT Guidebook

    Affordable solutions with the ESP8266 and 3D printing If you are looking for a small yet powerful IoT device, you are likely to come across the ESP8266 and compatible products on the market today. One of these, the Wemos/Lolin D1 Mini Pro board strikes a remarkable balance between cost and performance. A small and very affordable prototype board, the D1 Mini Pro stands out with its WiFi functionality and a 16-Mbytes flash memory for easy creation of a flash file system. In addition, there are sufficient input and output pins (only one analog input though) to support PWM, I²C, and One-Wire systems to mention but a few. The book describes the operation, modding, construction, and programming of home appliances including a colorful smart home accessory, a refrigerator/greenhouse controller, an AC powerline monitor, a door lock monitor, and an IKEA Trådfri controller. As a benefit, all firmware developed for these DIY, "IoT-ized" devices can be updated over-the-air (OTA). For most of the designs in the book, a small printed circuit board (PCB) and an enclosure are presented so readers can have a finished and attractive-looking product. Readers having – or with access to! – a 3D printer can "print" the suggested enclosures at home or in a shop. Some of the constructions benefit from a Raspberry Pi configured as a gateway or cms server. This is also described in detail with all the necessary configuring. You don’t need to be an expert but the prerequisites to successful replication of the projects include basic skills with PC software including the ability to surf the Internet. In terms of hardware, you should be comfortable with soldering and generally assembling the PCBs presented in the book. All custom software written for the IoT devices, the PCB layouts, and 3D print files described in the book are available for free downloading.

    € 39,95

    Members € 35,96

  • FreeRTOS for ESP32-Arduino

    FreeRTOS for ESP32-Arduino

    Practical Multitasking Fundamentals Programming embedded systems is difficult because of resource constraints and limited debugging facilities. Why develop your own Real-Time Operating System (RTOS) as well as your application when the proven FreeRTOS software is freely available? Why not start with a validated foundation? Every software developer knows that you must divide a difficult problem into smaller ones to conquer it. Using separate preemptive tasks and FreeRTOS communication mechanisms, a clean separation of functions is achieved within the entire application. This results in safe and maintainable designs. Practicing engineers and students alike can use this book and the ESP32 Arduino environment to wade into FreeRTOS concepts at a comfortable pace. The well-organized text enables you to master each concept before starting the next chapter. Practical breadboard experiments and schematics are included to bring the lessons home. Experience is the best teacher. Each chapter includes exercises to test your knowledge. The coverage of the FreeRTOS Application Programming Interface (API) is complete for the ESP32 Arduino environment. You can apply what you learn to other FreeRTOS environments, including Espressif’s ESP-IDF. The source code is available from GitHub. All of these resources put you in the driver’s seat when it is time to develop your next uber-cool ESP32 project. What you will learn: How preemptive scheduling works within FreeRTOS The Arduino startup “loopTask” Message queues FreeRTOS timers and the IDLE task The semaphore, mutex, and their differences The mailbox and its application Real-time task priorities and its effect Interrupt interaction and use with FreeRTOS Queue sets Notifying tasks with events Event groups Critical sections Task local storage The gatekeeper task

    € 37,50

    Members € 33,75

  •  -27% Bundel: Getting Started with ESPHome + LILYGO TTGO T-Display ESP32 (16 MB)

    Bundle: Getting Started with ESPHome + LILYGO T-Display ESP32 (16 MB)

    1 review

    About the book Espressif's ESP8266 and ESP32 microcontrollers have brought DIY home automation to the masses. However, not everyone is fluent in programming these microcontrollers with Espressif's C/C++ SDK, the Arduino core, or MicroPython. This is where ESPHome comes into its own: with this project, you don’t program your microcontroller but configure it. This book demonstrates how to create your own home automation devices with ESPHome on an ESP32 microcontroller board. You’ll learn how to combine all kinds of electronic components and automate complex behaviours. Your devices can work completely autonomously, and connect over Wi-Fi to your home automation gateways such as Home Assistant or MQTT broker. By the end of this book, you will be able to create your own custom home automation devices the way you want. Thanks to ESPHome and the ESP32, this is within everyone’s grasp. Set up an ESPHome development environment and create maintainable configurations Use buttons and LEDs Sound a buzzer and play melodies Read measurements from various types of sensors Communicate over a short distance with NFC, infrared light, and Bluetooth Low Energy Show information on various types of displays About the board Chipset Espressif-ESP32 240 MHz Xtensa single-/dual-core 32-bit LX6 microprocessor FLASH QSPI flash 16 MB SRAM 520 kB SRAM Button Reset USB to TTL CP2104 Modular interface UART, SPI, SDIO, I²C, LED PWM, TV PWM, I²S, IRGPIO, ADC, capacitor touch sensor, DACLNA pre-amplifier Display IPS ST7789V 1.14 Inch Working voltage 2.7-4.2 V Working current About 67 MA Sleep current About 350 uA Working temperature range -40℃ ~ +85℃ Size & Weight 51.52 x 25.04 x 8.54 mm (7.81 g) Power Supply USB 5 V/1 A Charging current 500 mA Battery 3.7 V lithium battery JST Connector 2-Pin 1.25 mm USB Connector USB-C

    € 54,95€ 39,95

    Members identical

  • The Complete ESP32 Projects Guide

    The Complete ESP32 Projects Guide

    1 review

    59 Experiments with Arduino IDE and Python The main aim of this book is to teach the Arduino IDE and MicroPython programming languages in ESP32 based projects, using the highly popular ESP32 DevKitC development board. Many simple, basic, and intermediate level projects are provided in the book using the Arduino IDE with ESP32 DevKitC. All projects have been tested and work. Block diagrams, circuit diagrams, and complete program listings of all projects are given with explanations. In addition, several projects are provided for programming the ESP32 DevKitC using MicroPython. The projects provided in this book are designed to teach the following features of the ESP32 processor: GPIOs Touch sensors External interrupts Timer interrupts I²C and I²S SPI PWM ADC DAC UART Hall sensor Temperature sensor Infrared controller Reading and writing to SD card Reading and writing to flash memory RTC timer Chip ID Security and encryption Wi-Fi and network programming Bluetooth BLE programming Communication mobile devices Low power design ESP-IDF programming The projects have been organized with increasing levels of difficulty. Readers are encouraged to tackle the projects in the order given. A specially prepared hardware kit is available from Elektor. With the help of this hardware, it should be easy and fun to build the projects in this book.

    € 39,95

    Members € 35,96

  • ESP32-PICO-Kit V4

    Espressif ESP32-PICO-Kit V4

    The ESP32-PICO-KIT fits into a mini breadboard. It is fully functional with the minimum number of discrete components, while it has all the ESP32 pins exposed. Features Complete up-to-date documentation is available. All instructions and commands presented work as described. Plentiful additional information and hardware documentation are available too. Applications for the ESP32-PICO-KIT can be developed on Windows, Linux or Mac. Two cores and a radio Like the ESP8266 the ESP32 has Wi-Fi but adds Bluetooth. It also has two 32-bit cores inside, making it extremely powerful, and providing all the ports and interfaces that the ESP8266 is lacking.Oversimplifying things, one might say that the ESP8266 is a Wi-Fi controller that provides some I/O, whereas the ESP32 is a full-fledged controller that also has Wi-Fi. ESP32 peripherals The ESP32 exposes an ADC & DAC, touch sensor circuitry, an SD/SDIO/MMC host controller, an SDIO/SPI slave controller, an EMAC, PWM to control LEDs and motors, UART, SPI, I²C, I²S, infrared remote controller, and, of course, GPIO. ESP32-PICO-KIT Development board V4 The ESP32-PICO-D4 is a System-on-Chip (SoC) integrating an ESP32 chip together with a 4 MB SPI flash memory in a tiny 7 x 7 mm package. The ESP32-PICO-KIT is a breakout board for this SoC with an onboard USB-to-serial converter for easy programming and debugging. Besides the board, you'll need a programming toolchain. Complete, up-to-date documentation from Espressif is available on the Read the Docs website. All instructions and commands presented work as described.Plentiful additional information and hardware documentation are available too. Applications for the ESP32-PICO-KIT can be developed on Windows, Linux or Mac.

    € 19,95

    Members € 17,96

  • Getting Started with ESPHome

    Getting Started with ESPHome

    Develop your own custom home automation devices Espressif's ESP8266 and ESP32 microcontrollers have brought DIY home automation to the masses. However, not everyone is fluent in programming these microcontrollers with Espressif's C/C++ SDK, the Arduino core, or MicroPython. This is where ESPHome comes into its own: with this project, you don’t program your microcontroller but configure it. This book demonstrates how to create your own home automation devices with ESPHome on an ESP32 microcontroller board. You’ll learn how to combine all kinds of electronic components and automate complex behaviours. Your devices can work completely autonomously, and connect over Wi-Fi to your home automation gateways such as Home Assistant or MQTT broker. By the end of this book, you will be able to create your own custom home automation devices the way you want. Thanks to ESPHome and the ESP32, this is within everyone’s grasp. Set up an ESPHome development environment and create maintainable configurations Use buttons and LEDs Sound a buzzer and play melodies Read measurements from various types of sensors Communicate over a short distance with NFC, infrared light, and Bluetooth Low Energy Show information on various types of displays Download the software and view the errata for the book on GitHub https://github.com/koenvervloesem/Getting-Started-with-ESPHome

    € 29,95

    Members € 26,96

  • JOY-iT NodeMCU ESP32 Development Board

    JOY-iT JOY-iT NodeMCU ESP32 Development Board

    With the NodeMCU-ESP32, comfortable prototyping is possible with simple programming via Luascript or the Arduino IDE and the breadboard-compatible design. This board has 2.4 GHz dual-mode Wifi and a BT wireless connection. In addition, a 512 KB SRAM and a 4 MB memory are integrated on the microcontroller development board. The board has 21 pins for interface connection, including I²C, SPI, UART, DAC and ADC. Specifications Type ESP32 Processor Tensilica LX6 Dual-Core Clock Frequency 240 MHz SRAM 512 kB Memory 4 MB Wireless Lan 802.11 b/g/n Frequency 2.4 GHz Bluetooth Classic / LE Data Interfaces UART / I²C / SPI / DAC / ADC Operating Voltage 3.3 V (operable via 5 V microUSB) Operating Temperature –40°C – 125°C Dimensions 48 x 26 x 11.5 mm Weight 10 g Downloads Manual

    € 12,95

    Members € 11,66

  • ESP32-DevKitC-32D

    Espressif ESP32-DevKitC-32D

    Out of stock

    ESP32-DevKitC V4 is a small-sized ESP32-based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can connect these pins to peripherals as needed. Standard headers also make development easy and convenient when using a breadboard. The board supports various ESP32 modules, including ESP32-WROOM-32, ESP32-WROOM-32U, ESP32-WROOM-32D, ESP32-SOLO-1, and ESP32-WROVER series. The following list and figure below describe key components, interfaces and controls of ESP32-DevKitC V4 board ESP32-WROOM-32 module soldered to the ESP32-DevKitC V4 board. Optional Space for ESP32-WROVER: Longer ESP32-WROVER modules may be soldered instead of the ESP32-WROOM-32. A single chip USB-to-UART bridge provides up to 3 Mbps transfers rates. Download button: holding down the Boot button and pressing the EN button initiates the firmware download mode. Then the user can download firmware through the serial port. EN Button: Reset button - pressing this button resets the system Micro USB Port: USB interface. It functions as the power supply for the board and the communication interface between PC and the ESP module. 5 V Power On LED: This LED lights when the USB or an external 5 V power supply is applied to the board. I/O Connector: Most of the pins on the ESP module are broken out to the pin headers on the board. Users can program ESP32 to enable multiple functions such as PWM, ADC, DAC, I2C, I2S, SPI, etc ESP32-DevKitC V4 schematic (PDF)

    Out of stock

    € 16,95

    Members € 15,26

  • Arduino Nano ESP32 with Headers

    Arduino Arduino Nano ESP32 with Headers

    The Arduino Nano ESP32 (with and without headers) is a Nano form factor board based on the ESP32-S3 (embedded in the NORA-W106-10B from u-blox). This is the first Arduino board to be based fully on an ESP32, and features Wi-Fi, Bluetooth LE, debugging via native USB in the Arduino IDE as well as low power. The Nano ESP32 is compatible with the Arduino IoT Cloud, and has support for MicroPython. It is an ideal board for getting started with IoT development. Features Tiny footprint: Designed with the well-known Nano form factor in mind, this board's compact size makes it perfect for embedding in standalone projects. Wi-Fi and Bluetooth: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth connectivity. Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps. Arduino IoT Cloud compatible: Quickly and easily create IoT projects with just a few lines of code. The setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app. HID support: Simulate human interface devices, such as keyboards or mice, over USB, opening up new possibilities for interacting with your computer. Specifications Microcontroller u-blox NORA-W106 (ESP32-S3) USB connector USB-C Pins Built-in LED pins 13 Built-in RGB LED pins 14-16 Digital I/O pins 14 Analog input pins 8 PWM pins 5 External interrupts All digital pins Connectivity Wi-Fi u-blox NORA-W106 (ESP32-S3) Bluetooth u-blox NORA-W106 (ESP32-S3) Communication UART 2x I²C 1x, A4 (SDA), A5 (SCL) SPI D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS) Power I/O Voltage 3.3 V Input voltage (nominal) 6-21 V Source Current per I/O pin 40 mA Sink Current per I/O pin 28 mA Clock speed Processor Up to 240 MHz Memory ROM 384 kB SRAM 512 kB External Flash 128 Mbit (16 MB) Dimensions 18 x 45 mm Downloads Datasheet Schematics

    € 24,95

    Members € 22,46

  • ESP32-Cam-CH340 Development Board

    Espressif ESP32-Cam-CH340 Development Board

    Features Product model: HW-818 Working voltage: DC 5V Product size: 27mm x 48.5 mm x 4.5 mm / 1.06” x 1.9” x 0.17” SPI Flash: Default 32Mbit RAM: Internal 520KB + External 4MPSRAM Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards Wi-Fi: 802 II b/g/n/e/i Support interfaces: UART, SPI, I2C, PWM Supporting TF Card: Maximum Supporting 4G IO port: 9 Serial port rate: default 115200 BPS Image output format: JPEG (OV2640 only), BMP, GRAYSCALE Spectrum range: 2412-2484 MHz Antenna form: board PCB antenna, gain 2dBi Transmitting power: 802.l1b: 17 + 2dBm (1lMbps) 802.l1g:14+2dBm (54Mbps) 802.l1n:13+2dBm (MCS7)

    € 11,95

    Members € 10,76

  • LILYGO T-Display-S3 ESP32-S3 Development Board (with Headers)

    LILYGO LILYGO T-Display-S3 ESP32-S3 Development Board (with Headers)

    Out of stock

    LILYGO T-Display-S3 ESP32-S3 1.9-inch ST7789 LCD Display Development Board WiFi Bluetooth 5.0 Wireless Module 170x320 Resolution T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming. Specifications MCU ESP32-S3R8 Dual-core LX7 microprocessor Wireless Connectivity Wi-Fi 802.11, BLE 5 + BT Mesh Programming Platform Arduino IDE Micropython Flash 16 MB PSRAM 8 MB Bat voltage detection IO04 Onboard functions Boot + Reset + IO14 Button LCD 1.9" diagonal, Full-color TFT Display Drive Chip ST7789V Resolution 170(H)RGB x320(V) 8-Bit Parallel Interface Working power supply 3.3 V Support STEMMA QT / Qwiic  Connector JST-GH 1.25 mm 2-pin Downloads Pinout GitHub

    Out of stock

    € 29,95

    Members € 26,96

  • ESP-C3-12F-Kit Development Board with built-in 4 MB Flash

    Espressif ESP-C3-12F-Kit Development Board with built-in 4 MB Flash

    The ESP32-C3 chip has industry-leading low-power performance and radio frequency performance, and supports Wi-Fi IEEE802.11b/g/n protocol and BLE 5.0. The chip is equipped with a RISC-V 32-bit single-core processor with an operating frequency of up to 160 MHz. Support secondary development without using other microcontrollers or processors. The chip has built-in 400 KB SRAM, 384 KB ROM, 8 KB RTC SRAM, built-in 4 MB Flash also supports external Flash. The chip supports a variety of low power consumption working states, which can meet the power consumption requirements of various application scenarios. The chip's unique features such as fine clock gating function, dynamic voltage clock frequency adjustment function, and RF output power adjustable function can achieve the best balance between communication distance, communication rate and power consumption. The ESP-C3-12F module provides a wealth of peripheral interfaces, including UART, PWM, SPI, I²S, I²C, ADC, temperature sensor and up to 15 GPIOs. Features Support Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150 Mbps Support BLE5.0, does not support classic Bluetooth, rate support: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps RISC-V 32-bit single-core processor, supports a clock frequency of up to 160 MHz, has 400 KB SRAM, 384 KB ROM, 8 KB RTC SRAM Support UART/PWM/GPIO/ADC/I²C/I²S interface, support temperature sensor, pulse counter The development board has RGB three-in-one lamp beads, which is convenient for the second development of customers. Support multiple sleep modes, deep sleep current is less than 5 uA Serial port rate up to 5 Mbps Support STA/AP/STA+AP mode and promiscuous mode Support Smart Config (APP)/AirKiss (WeChat) of Android and iOS, one-click network configuration Support serial port local upgrade and remote firmware upgrade (FOTA) General AT commands can be used quickly Support secondary development, integrated Windows and Linux development environment About Flash configuration ESP-C3-12F uses the built-in 4 MB Flash of the chip by default, and supports the external Flash version of the chip.

    € 14,95

    Members € 13,46

  • Seeed Studio XIAO ESP32C3 Microcontroller Board

    Seeed Studio Seeed Studio XIAO ESP32C3

    Seeed Studio XIAO ESP32C3 has equipped a highly-integrated ESP32-C3 chip, built around a 32-bit RISC-V chip processor with a four-stage pipeline that operates at up to 160 MHz.The board equips highly-integrated ESP32-C3 SoC. The chip has been installed with a complete 2.4 GHz Wi-Fi subsystem which means it supports Station mode, SoftAP mode, SoftAP & Station mode, and promiscuous mode for multiple Wi-Fi applications. It works under an ultra-low power state, also supporting features of Bluetooth 5 and Bluetooth mesh. There are 400 KB SRAM & 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.Applications Internet of Things Wearable devices Health monitoring Education Low-Power (LP) networking Rapid prototyping Features Outstanding RF performance: Powerful ESP32-C3 SoC and U.FL antenna provided that supports WiFi/Bluetooth connection over 100 m. Thumb-size Design: 21 x 17.5 mm overall dimension, portable and lightweight. Low power consumption: Lowest as 44 μA (deep sleep mode), with 4 working modes available. Onboard battery charge IC: Supports battery charging, great for various wearable scenarios and wireless IoT applications. Specifications Processor ESP32-C3 SoC RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz Wireless Complete 2.4 GHz Wi-Fi subsystem Bluetooth 5.0 / Bluetooth mesh On-chip Memory 400 KB SRAM & 4 MB Flash Interface 1x UART, 1x I²C, 1x I²S, 1x SPI, 11x GPIO (PWM), 4x ADC 1x Reset button, 1x Boot button Dimensions 21 x 17.5 mm Power Circuit operating voltage: 3.3 V @ 200 mA Charging current: 50 mA/100 mA Input voltage (VIN): 5 V Deep Sleep Power Consumption Deep Sleep Model: >44 μA Wi-Fi Enabled Power Consumption Active Model: <75 mA Modem-sleep Model: <25 mA Light-sleep Model: <4 mA BLE Enabled Power Consumption Modem-sleep Model: <27 mA Light-sleep Model: <10 mA Included 1x Seeed Studio XIAO ESP32C3 1x Antenna Downloads XIAO ESP32 Pinout ESP32-C3 Datasheet

    € 12,95

    Members € 11,66

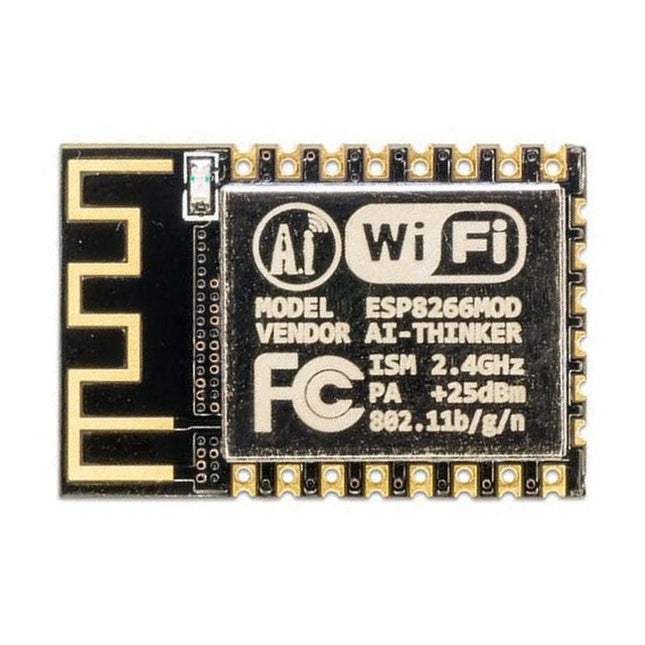

  • ESP-12F – ESP8266-based Wi-Fi Module

    ESP-12F - ESP8266-based Wi-Fi Module

    This Wi-Fi module is based on the popular ESP8266 chip. The module is FCC and CE certified and RoHS compliant. Fully compatible with ESP-12E. 13 GPIO pins, 1 analog input, 4 MB flash memory.

    € 8,95

    Members € 8,06

  • ESP32-DevKitC-32E

    Espressif ESP32-DevKitC-32E

    ESP32-DevKitC is a low-footprint and entry-level development board that is part of the ESP32 series. This board has a rich peripheral set. The built-in ESP32 pinout is optimized for hassle-free prototyping! Wi-Fi & Bluetooth Connectivity This minimum-system development board is powered by an ESP32 module. It integrates Wi-Fi and Bluetooth functions, and provides a rich peripheral set for rapid prototyping! Rapid Prototyping ESP32-DevKitC achieves optimal RF performance. You can get right into application design and development, without worrying about RF performance and antenna design. ESP32-DevKitC has your basic system-requirements already covered. Just plug in the USB cable and you are ready to go! Flexible and Feature-Rich ESP32-DevKitC contains the entire support circuitry of ESP32-WROOM series, ESP32-WROVER series, and ESP32-SOLO series of modules, also including a USB-UART bridge, reset- and boot-mode buttons, an LDO regulator and a micro-USB connector. Every important GPIO is available to the developer. Breadboard-Friendly The ESP32-DevKitC pinout is optimized to enable prototyping on a breadboard. The on-board LDO output is led out for powering up additional off-board electronics. Peripheral outputs are grouped together for hassle-free prototyping. Specifications Board ESP32-DevKitC-32E Related Module ESP32-WROOM-32E Flash Memory 4 MB Antenna PCB Downloads Datasheet

    € 14,95

    Members € 13,46

  • ESP8266 and MicroPython

    ESP8266 and MicroPython

    Recently, the development of a tiny chip called the ESP8266 has made it possible to interface any type of microcontroller to a Wi-Fi AP. The ESP8266 is a low-cost tiny Wi-Fi chip having fully built-in TCP/IP stack and a 32-bit microcontroller unit. This chip, produced by Shanghai based Chinese manufacturer Espressif System, is IEEE 802.11 b/g/n Wi-Fi compatible with on-chip program and data memory, and general purpose input-output ports. Several manufacturers have incorporated the ESP8266 chip in their hardware products (e.g. ESP-xx, NodeMCU etc) and offer these products as a means of connecting a microcontroller system such as the Android, PIC microcontroller or others to a Wi-Fi. The ESP8266 is a low-power chip and costs only a few Dollars.ESP8266 and MicroPython – Coding Cool Stuff is an introduction to the ESP8266 chip and describes the features of this chip and shows how various firmware and programming languages such as the MicroPython can be uploaded to the chip. The main aim of the book is to teach the readers how to use the MicroPython programming language on ESP8266 based hardware, especially on the NodeMCU.Several interesting and useful projects are given in the book to show how to use the MicroPython in NodeMCU type ESP8266 hardware: Project “What shall I wear today?”: You will be developing a weather information system using a NodeMCU development board together with a Text-to-Speech processor module. Project “The Temperature and Humidity on the Cloud”: You will be developing a system that will get the ambient temperature and humidity using a sensor and then store this data on the cloud so that it can be accessed from anywhere. Project “Remote Web Based Control”: You will be developing a system that will remotely control two LEDs connected to a NodeMCU development board using an HTTP Web Server application.

    € 29,95

    Members € 26,96

  • Last stock! Elektor ESP32 Smart Kit Bundel

    Elektor Labs Elektor ESP32 Smart Kit Bundle

    2 reviews

    Experimenting with the ESP32 has never been easier! With the Elektor ESP32 Smart Kit Bundle, you'll learn programming with the ESP32 IoT Microcontroller using the Arduino IDE and MicroPython programming languages. The kit consists of the highly popular ESP32 DevKitC development board, breadboard, sensors, LEDs, LCD, etc. for use in experiments. The book provides basic and intermediate level projects. All projects have been tested and work. Block diagrams, circuit diagrams, and complete program listings of all projects are given with explanations. About the book: The main aim of this book is to teach the Arduino IDE and MicroPython programming languages in ESP32 based projects, using the highly popular ESP32 DevKitC development board. Many simple, basic, and intermediate level projects are provided in the book using the Arduino IDE with ESP32 DevKitC. All projects have been tested and work. Block diagrams, circuit diagrams, and complete program listings of all projects are given with explanations. In addition, several projects are provided for programming the ESP32 DevKitC using MicroPython. The kit consists of: 1x ESP32 DevKitC 8x LEDs (RED) 1x LED (GREEN) 2x push-button 8x 330 ohm resistors 1x Buzzer 1x RGB LED 1x TMP36 temperature sensor chip 1x DHT11 temperature and humidity chip 1x MCP23017 (DIL 28 package) 1x LDR 1x BC108 (or any other PNP) transistor 1x 7 segment LED 1x Small Microphone Module 1x I²C LCD 1x SG90 servo 1x 4x4 Keypad 8x Female-Male jumpers 4x Male-Male jumpers 1x Small breadboard

    € 69,95

    Members € 62,96

  • LILYGO T-PicoC3 Development Board

    LILYGO LILYGO T-PicoC3 Development Board

    T-PicoC3 is LILYGO's first motherboard with dual MCUs – equipped with Raspberry Pi RP2040 and ESP32-C3 chip (supporting WiFi and Bluetooth).Specifications MCU RP2040 Dual ARM Cortex-M0+ Flash 4 MB Programming language C/C++, MicroPython Support machine leraning library TensorFlow Lite Onboard functions Buttons: IO06+IO07, battery power detection 1.14 inch ST7789V IPS LCD Resolution 135 x 240 Display Full-color TFT Interface 4-Wire SPI Power supply 3.3 V Operating temperature -20~70°C Dimensions 2.4 x 5.3 cm (W x H) DownloadsGitHub

    € 17,95

    Members € 16,16

  • LILYGO TTGO T-Display ESP32 Development Board (16 MB)

    LILYGO LILYGO T-Display ESP32 Development Board (16 MB)

    LILYGO T-Display ESP32 WiFi and Bluetooth Module Development Board 1.14-inch LCD Control BoardSpecifications Chipset Espressif-ESP32 240 MHz Xtensa single-/dual-core 32-bit LX6 microprocessor Flash QSPI flash 16 MB SRAM 520 kB SRAM Button Reset USB to TTL CP2104 Modular interface UART, SPI, SDIO, I²C, LED PWM, TV PWM, I²S, IRGPIO, ADC, capacitor touch sensor, DACLNA pre-amplifier Display IPS ST7789V 1.14 Inch Working voltage 2.7-4.2 V Working current About 67 MA Sleep current About 350 uA Working temperature range -40°C ~ +85°C Size & Weight 51.52 x 25.04 x 8.54 mm (7.81 g) Power Supply USB 5 V/1 A Charging current 500 mA Battery 3.7 V lithium battery JST Connector 2-Pin 1.25 mm USB Type-C WiFi Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 chip) Protocol 802.11 b/g/n (802.11n, speed up to 150 Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval Frequency range 2.4~2.5 GHz (2400~2483.5 M) Transmit Power 22 dBm Communication distance 300 m Bluetooth Protocol Meet bluetooth v4.2BR/EDR and BLE standard Radio frequency With -97 dBm sensitivity NZIF receiver Class-1, Class-2 & Class-3 emitter AFH Audio frequency CVSD&SBC audio frequency Software Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P Security mechanism WPA/WPA2/WPA2-Enterprise/WPS Encryption Type AES/RSA/ECC/SHA Firmware upgrade UART download/OTA (Through network/host to download and write firmware) Software Development Support cloud server development /SDK for user firmware development Networking protocol IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT User Configuration AT + Instruction set, cloud server, Android/iOS app OS FreeRTOS Included 1x T-Display (16 MB) 1x Charging Cable 2x Pin

    € 24,95

    Members € 22,46

Ben je bekend met ESP32 en ESP8266? Wat zijn de voordelen van een ESP32 of een ESP8266?

Espressif stimuleert IoT ontwikkeling met een complete serie veelzijdige, energiezuinige, en veilige Wi-Fi, Bluetooth, en combo chips. Populaire producten zijn de voordelige ESP8266 en ESP32 serie chips, modules, en ontwikkelingskaarten. Beide chips zijn uitgerust met een 32-bit CPU.

Kort nadat de ESP8266 uitkwam, verscheen ook NodeMCU, een goedkoop open-source IoT platform, waarmee de populariteit van deze Espressif producten werd verwacht. NodeMCU bevat de firmware die op de ESP8266 draait, en heeft het voordeel van laag stroomverbruik, uitgebreid geheugen, en ingebouwde Wi-Fi. Met deze toepassingen kun je betaalbaar apparatuur op afstand bedienen en bewaken.

Als je de draadloze mogelijkheden van de ESP32/ESP8266 niet nodig hebt, kun je hem ook gebruiken om ingangen en uitgangen te besturen zoals een Arduino. Je moet echter wel beseffen dat de Arduino 5-V logica gebruikt, de ESP32 en ESP8266 gebruiken 3.3-V logica, wat betekent dat Arduino voor veel beginners een mooie oplossing is.

De ESP32 is de opvolger van de ESP8266. Hij heeft onder andere een extra CPU-kern, snellere Wi-Fi, meer GPIO's, en mogelijkheden voor Bluetooth 4.2 en Bluetooth low energy. De ESP32 bevat ook aanraakgevoelige pinnen die gebruikt kunnen worden om hem uit een deep sleep mode te laten ontwaken.

De ESP32 chip heeft 48 pinnen met verschillende functies. Niet alle pinnen kunnen echter op de ESP32 ontwikkelingskaarten gebruikt worden. Om de pinout eenvoudiger en gemakkelijker te maken zijn pinnen met gelijksoortige functies bij elkaar gegroepeerd.

Wil je een ESP32, een ESP8266, of een aanverwant product?

Wat maakt de ESP32 en ESP8266 zo bijzonder? Met hun kleine PCB afmetingen leveren ESP32/8266 essentiële functionaliteit en diversiteit aan je projecten. En waarom zijn ze zo betaalbaar, ook al bieden ze een veelheid aan projectmogelijkheden? Het korte antwoord is dat de ESP32 en ESP8266 goedkoop te maken zijn. Behalve veel van de nu verkrijgbare ontwikkelingskaarten biedt Elektor ook een aantal ESP gerelateerde kits (b.v. ESP32 Weather Station Kit) en bundels (d.w.z. ontwikkelingskaarten gecombineerd met een boek), zoals de Elektor ESP32 Smart Kit Bundle.

Welke accessoires zijn er voor de ESP32 en ESP8266?

Het is niet gemakkelijk of praktisch om de ESP32 of ESP8266 chips te gebruiken voor testen en prototypen. Meestal voldoen ESP32 en ESP8266 ontwikkelingskaarten aan je eisen. Deze borden bevatten alle elektronica die nodig is om de chip van stroom te voorzien en op je computer aan te sluiten.

Je profiteert ook van een handige schakeling voor het uploaden van code, pinnen voor het aansluiten van randapparatuur, ingebouwde voedings- en controle-LED's, en andere handige functies. Bovendien biedt Elektor verschillende boeken over ESP32 en ESP8266, waaronder Getting Started with ESPHome, FreeRTOS for ESP32-Arduino, en The Complete ESP32 Projects Guide.

Waarom bij Elektor zoeken voor ESP32/ESP8266-gerelateerde producten?

Elektor stelt alles in het werk om zijn klanten de juiste hulpmiddelen te bieden voor het bouwen van fraaie projecten. Behalve een verscheidenheid aan handige ESP32/ESP8266-gerelateerde toepassingen, biedt Elektor boeken en artikelen die je helpen bij het ontwikkelen van nieuwe projecten en het opwaarderen van je vaardigheden als technicus. Veel van de originele projecten van ons eigen team van technici bevatten deze technologieën.

Lees meer over ESP32 chips op Elektor Magazine
