This CAN Module is based on the CAN bus controller MCP2515 and CAN transceiver TJA1050. With this module, you will easy to control any CAN Bus device by SPI interface with your MCU, such as Arduino Uno and so on. Features Support CAN V2.0B Communication rate up to 1 MB/s Working Voltage: 5 V Working Current: 5 mA Interface: SPI Downloads MCP2515 Datasheet TJA1050 Datasheet

Read more less

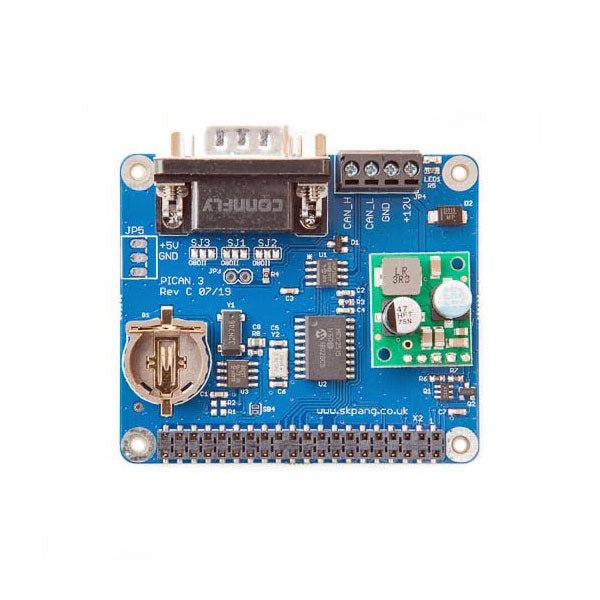

This PiCAN3 board provides CAN-Bus capability for the Raspberry Pi 4. It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. Connection are made via DB9 or 3-way screw terminal. This board includes a switch mode power suppler that powers the Raspberry Pi is well. Easy to install SocketCAN driver. Programming can be done in C or Python. Features CAN v2.0B at 1 Mb/s High speed SPI Interface (10 MHz) Standard and extended data and remote frames CAN connection via standard 9-way sub-D connector or screw terminal Compatible with OBDII cable Solder bridge to set different configuration for DB9 connector 120Ω terminator ready Serial LCD ready LED indicator Four fixing holes, comply with Pi Hat standard SocketCAN driver, appears as can0 to application Interrupt RX on GPIO25 5 V/3 A SMPS to power Raspberry Pi and accessories from DB9 or screw terminal Reverse polarity protection High efficiency switch mode design 6-24 V input range Optional fixing screws – select at bottom of this webpage RTC with battery backup (battery not included, requires CR1225 cell) Downloads User guide Schematic Driver installation Writing your own program in Python Python3 examples

Read more less

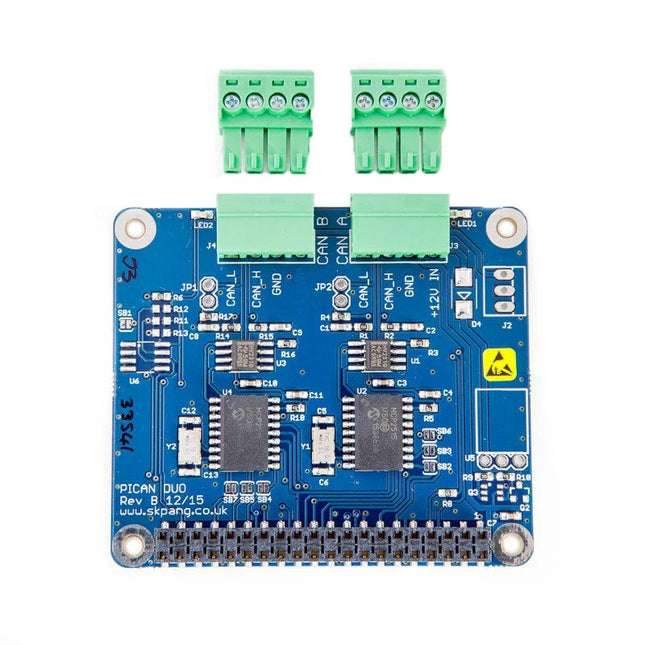

The PiCAN2 Duo board provides two independent CAN-Bus channels for the Raspberry Pi 2, 3, and 4. It uses the Microchip MCP2515 CAN controller, with connections made via a 4-way screw terminal. An easy-to-install SocketCAN driver is available, and programming can be done in C or Python. Features CAN v2.0B at 1 Mb/s High speed SPI Interface (10 MHz) Standard and extended data and remote frames CAN connection screw terminal 120Ω terminator ready Serial LCD ready LED indicator Four fixing holes, comply with Pi Hat standard SocketCAN driver, appears as can0 and can1 to application Interrupt RX on GPIO25 and GPIO24 Downloads User guide Schematic Rev B Software installation Writing your own program in Python

Read more less

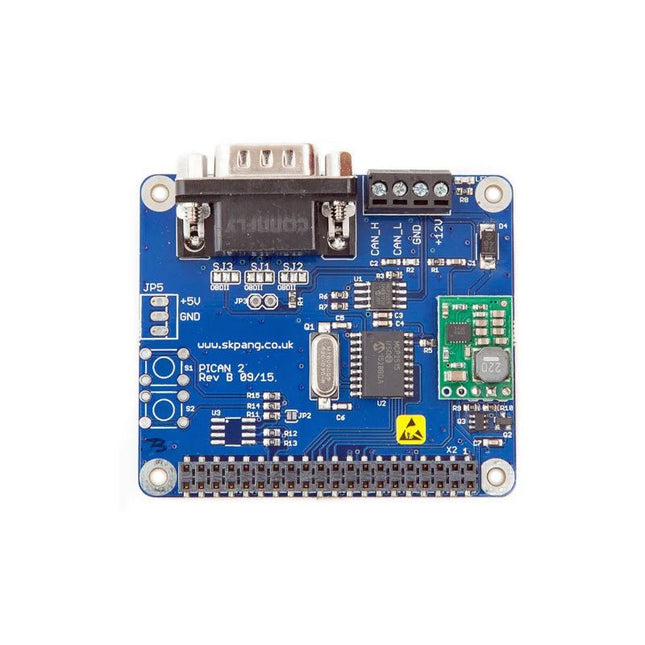

This PiCAN 2 board provides CAN-Bus capability for the Raspberry Pi 2/3. It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. Connection are made via DB9 or 3-way screw terminal. This board includes a switch mode power suppler that powers the Raspberry Pi is well. Easy to install SocketCAN driver. Programming can be done in C or Python. Not suitable for Raspberry Pi 4, please use PiCAN 3 instead. Features CAN v2.0B at 1 Mb/s High speed SPI Interface (10 MHz) Standard and extended data and remote frames CAN connection via standard 9-way sub-D connector or screw terminal Compatible with OBDII cable Solder bridge to set different configuration for DB9 connector 120Ω terminator ready Serial LCD ready LED indicator Foot print for two mini push buttons Four fixing holes, comply with Pi Hat standard SocketCAN driver, appears as can0 to application Interrupt RX on GPIO25 5 V/1 A SMPS to power Raspberry Pi and accessories from DB9 or screw terminal Reverse polarity protection High efficiency switch mode design 6-20 V input range Optional fixing screws – select at bottom of this webpage Downloads User guide Schematic Rev B Writing your own program in Python Python3 examples in Github

Read more less

Features ATmega32U4 with Arduino Leonardo bootloader on the board MCP2515 CAN Bus controller and MCP2551 CAN Bus transceiver OBD-II and CAN standard pinout selectable at the sub-D connector Compatible with Arduino IDE Parameter Value MCU ATmega32U4(with Arduino Leonardo bootloader) Clock Speed 16 MHz Flash Memory 32 KB SRAM 2.5 KB EEPROM 1 KB Operate Voltage（CAN-BUS） 9 V - 28 V Operate Voltage （MicroUSB） 5 V Input Interface sub-D Included CANBed PCBA sub-D connector 4PIN Terminal 2 x 4PIN 2.0 Connector 1 x 9x2 2.54 Header 1 x 3x2 2.54 Header

Read more less

This kit is the perfect solution for you to communicate with your vehicle's OBD-II interface without visiting a mechanic. It includes a Serial CAN Bus module, an OBD-II Connector, and other accessories to help you do all the diagnostics and data logging with ease. There is also a tutorial which is based on Arduino and you can easily obtain data from your vehicle by following this tutorial. Features Fast serial communication with CAN Bus rate up to 1 MB/s Easy Setup with all components included Easily get started with the provided Arduino-based tutorials Multi-platform support (Arduino, Raspberry Pi, Beaglebone Board, etc.) Included 1x Serial CAN Bus Module 1x OBD-II Connector 1x Screwdriver 1x Cable for CAN Bus 1x Grove Cable Downloads Wiki Arduino Library Schematics

Read more less

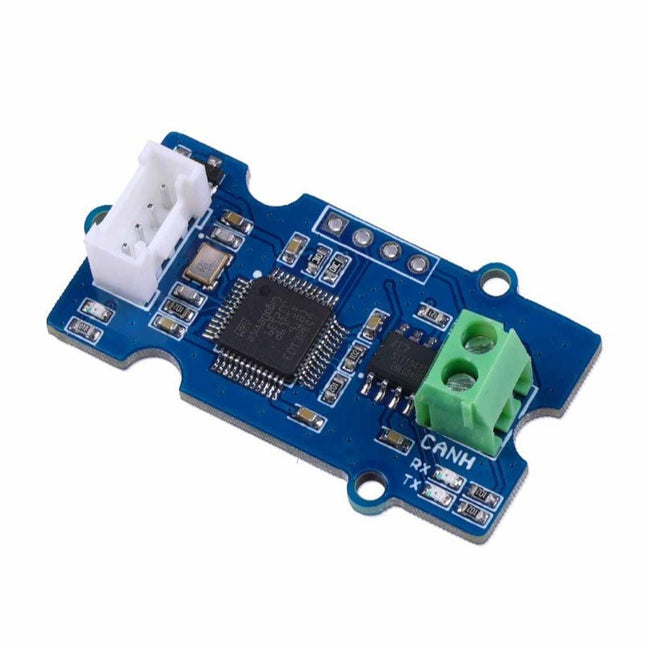

This Grove CAN-BUS Module based on GD32E103 adopts a brand-new design, uses the cost-effective and high-performance GD32E103 microcontroller as the main control and cooperates with a firmware we wrote to complete the function of the serial port to CAN FD. Features Support CAN communication: Implements CAN FD at up to 5 Mb/s Easy to program: Support AT command which enables simple serial port programming Grove ecosystem: 20 x 40 x 10 mm small size, 4-pin Grove connector to plug and play, Arduino compatible This Grove CAN-BUS Module supports CAN FD(CAN with Flexible Data-Rate) communication, which is an extension to the original CAN protocol as specified in ISO 11898-1 that responds to increased bandwidth requirements in automotive networks. In CAN FD, the data rate (i.e. number of bits transmitted per second) is increased to be 5 times faster than the classic CAN (5 Mbit/s for the data payload only, the arbitration bit rate is still limited to 1Mbit/s for compatibility). It supports AT command which enables simple serial port programming. This Grove CAN-BUS Module is based on GD32E103 with a frequency up to 120 MHz. It has a flash size from 64 KB to 128 KB and an SRAM size from 20 KB to 32 KB. Applications Car hacking: allows different parts of the vehicle to talk to each other, including the engine, the transmission, and the brakes. Windows, doors, and mirror adjustment. 3D Printers Building automation Lighting control systems Medical instruments and equipment Specifications MCU GD32E103 UART baud rate Up to 115200 (default 9600) CAN FD baud rate Up to 5 Mb/s Indicator TX and RX led Working voltage 3.3 V Grove connector 4-pin Grove connector to plug and play Size 20 x 40 x 10 mm Downloads Datasheet GitHub

Read more less

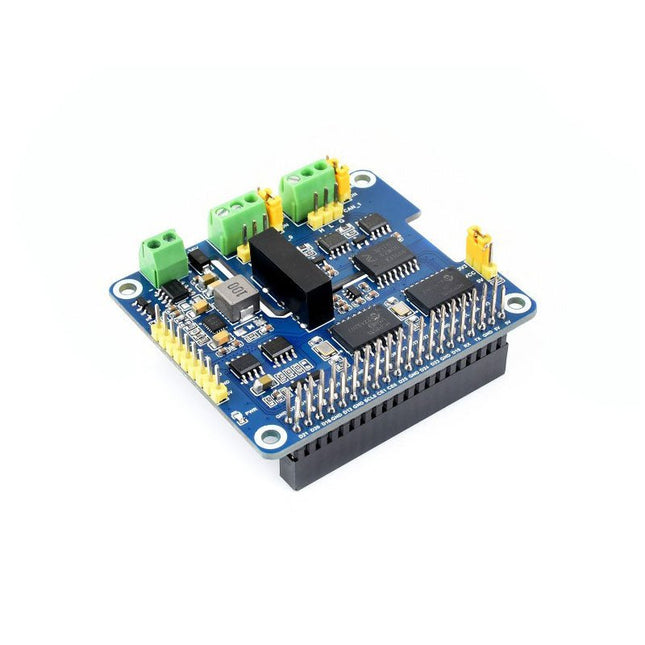

2-ch CAN HAT+ is an isolated expansion board for Raspberry Pi. It supports dual-channel CAN communication and features multi-protection circuits, wide voltage input, and more. Features Designed for Raspberry Pi Standard HAT+ design, with onboard EEPROM chip. Adopts MCP2515 and SN65HVD230 dual-chip solution, allowing 2-channel CAN communication. Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal. Onboard digital isolation chip, signal isolation communication is safer, more stable, and better anti-interference. Onboard SM24CANB (transient voltage suppressor), provides ESD protection and transient peak voltage protection. Onboard voltage conversion circuit, select 3.3 V/5 V operating voltage by jumper. Onboard 120 Ω terminal resistor, enable through the jumper cap. Elicits the SPI control interface, for connecting with host control boards like STM32/Arduino. Provides online supporting information manuals and demos. Specifications CAN controller MCP2515 Control Bus SPI Power supply method External power supply terminal or Raspberry Pi GPIO Terminal voltage input DC 7~36 V Operating voltage 5 V Logic level 3.3 V/5 V Dimensions 65.0 x 56.5 mm Downloads Wiki

Read more less

This expansion board allows you to add an RS485 and a CAN interface to a Raspberry Pi Pico. The board also offers the option of operating it either via a standard USB-C connection with 5 V or via a screw terminal that accepts a voltage of 6 to 12 V. The voltage applied to the screw terminal is reduced to 5 V by a voltage converter integrated on the board. Features Power can be supplied via a USB-C connection with 5 V or via a screw terminal that draws between 6 and 12 V. In the latter case, a built-in voltage converter reduces the voltage to 5 V. To increase the versatility and range of functions, the connection pins of the Raspberry Pi Pico have been routed to the outside. The expansion board also offers the option of communication via the RS485 and CAN interfaces. Specifications CAN Interface SPI, CAN RS485 Interface Serial, RS485 Power supply 5 V DC (USB-C) Screw terminal 6-12 V DC Logic level 3.3 V Terminating resistor CAN 120 Ω (can be activated and deactivated as required) Terminating resistor RS485 120 Ω (can be activated and deactivated as required)

Read more less

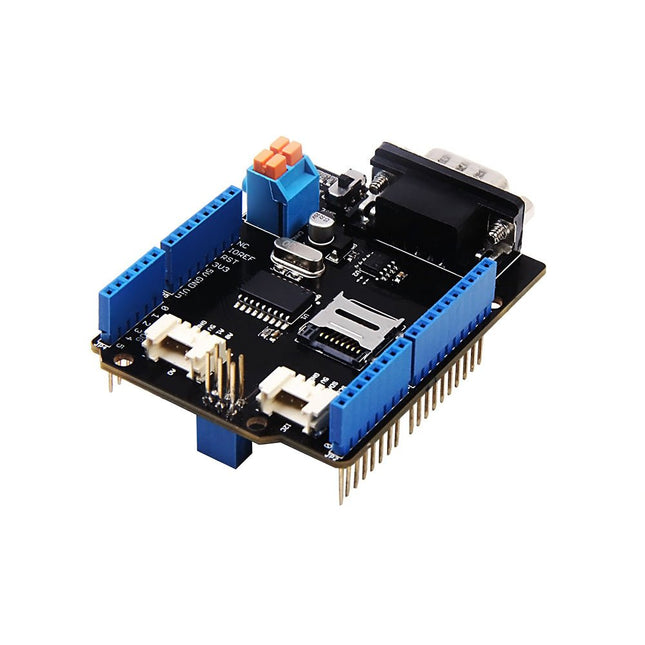

Features Implements CAN V2.0B at up to 1 Mb/s Industrial standard 9 pin sub-D connector OBD-II and CAN standard pinout selectable. Changeable chip select pin Changeable CS pin for TF card slot Changeable INT pin Screw terminal that easily to connect CAN_H and CAN_L Arduino Uno pin headers Micro SD card holder 2 Grove connectors (I2C and UART) SPI Interface up to 10 MHz Standard (11 bit) and extended (29 bit) data and remote frames Two receive buffers with prioritized message storage
