IoT & LoRa

44 products

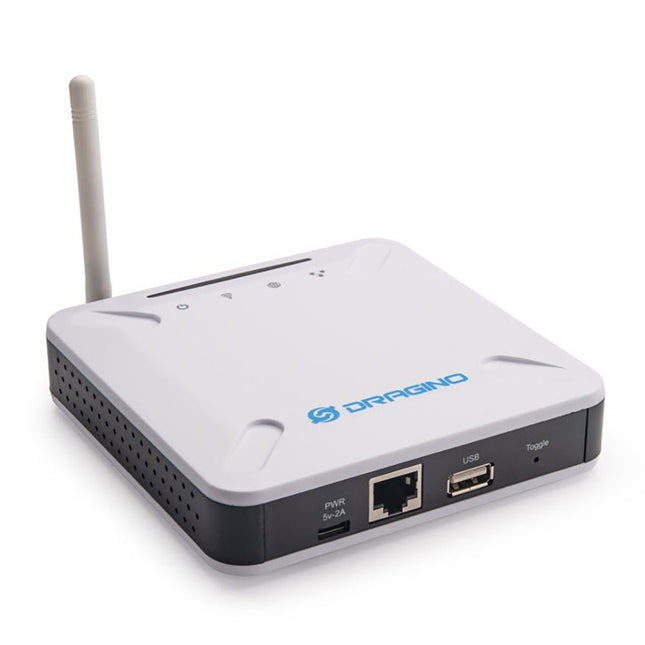

  • Dragino LPS8 Indoor LoRaWAN Gateway (EU868)

    Dragino Dragino LPS8 Indoor LoRaWAN Gateway (EU868)

    The LPS8 is an open source multi-channel LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi or Ethernet. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. The LPS8 uses Semtech Packet Forwarder and is fully compatible with the LoRaWAN protocol. It includes a SX1308 LoRa concentrator, which provides 10 programmable parallel demodulation paths. LPS8 has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customized the frequency bands to use in their own LoRa network. Features Linux-based OpenWrt system Managed by intuitive Web GUI, SSH via LAN of WiFi Remote access with Reverse-SSH Emulates 49x LoRa demodulators LoRaWAN Gateway 10 programmable parallel demodulation paths Applications Logistiek and Supply Chain Management Smart Buildings & Home Automation Smart Cities Smart Agriculture Smart Factory Smart Metering Specifications Power Input via USB Type-C (5 V, 2 A) 1x USB host port 1x RJ45 (10/100 Mbit/s) 1x 2.4 GHz WiFi (802.11 b/g/n) LoRa Specs: 1x SX1308 Lora Concentrator 2x 1257 LoRa Transceiver Downloads Datasheet User Manual Source code on GitHub Dragino LoRa Gateway Selection Guide Use Dragino LPS8 as Helium Data-Only Hotspot Dragino LoRaWAN Gateway Setup Dragino Gateways/Hotspots with Helium Tutorial Firmware

    € 199,95

    Members € 179,96

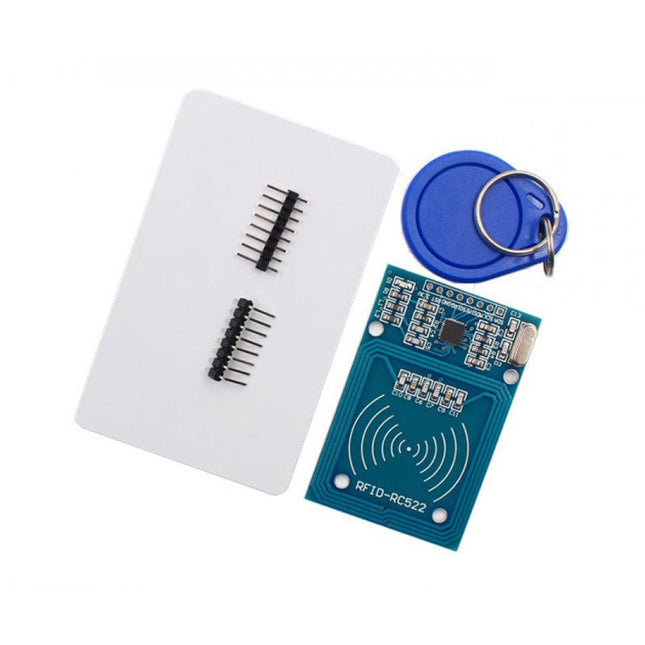

  • Makerfabs RC522 RFID Reader met Cards Kit (13.56 MHz)

    Makerfabs Makerfabs RC522 RFID Reader with Cards Kit (13.56 MHz)

    Out of stock

    This RC522 RFID Kit includes a 13.56 MHz RF reader module that uses an RC522 IC and two S50 RFID cards to help you learn and add the 13.56 MHz RF transition to your project. The MF RC522 is a highly integrated transmission module for contactless communication at 13.56 MHz. RC522 supports ISO 14443A/MIFARE mode. The module uses SPI to communicate with microcontrollers. The open-hardware community already has a lot of projects exploiting the RC522 – RFID Communication, using Arduino. Features Operating Current: 13-26 mA/DC 3.3 V Idle Current: 10-13 mA/DC 3.3 V Sleep Current: Peak Current: Operating Frequency: 13.56 MHz Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, Mifare Pro, MIFARE DESFire Environmental Operating Temperature: -20-80 degrees Celsius Environmental Storage Temperature: -40-85 degrees Celsius Relative humidity: relative humidity 5% -95% Reader Distance: ≥50 mm/1.95" (Mifare 1) Module Size: 40×60 mm/1.57*2.34" Module interfaces SPI Parameter Data transfer rate: maximum 10 Mbit/s Included 1x RFID-RC522 Module 1x Standard S50 Blank Card 1x S50 special-shaped card (as shown by the keyring shape) 1x Straight Pin 1x Curved Pin Downloads Arduino Library MFRC522 Datasheet MFRC522_ANT Mifare S50

    Out of stock

    € 5,95

    Members € 5,36

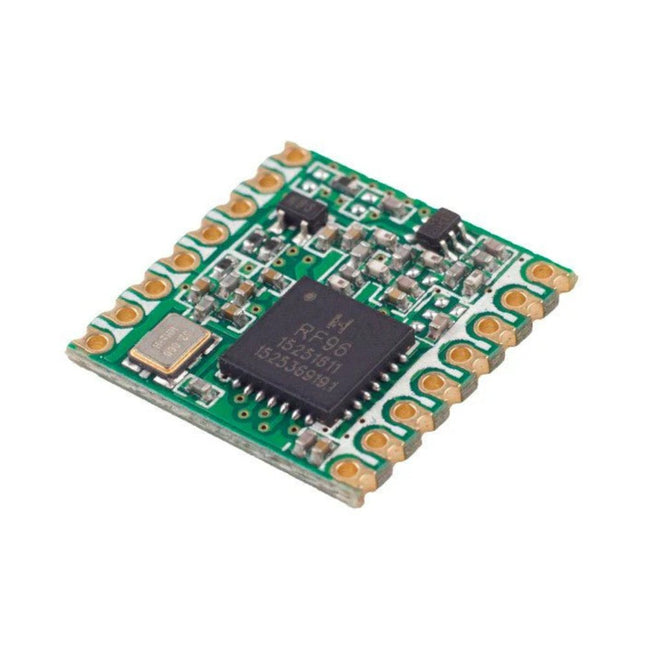

  • Seeed Studio RFM95 Ultra-long LoRa Transceiver Module (EU868)

    Seeed Studio Seeed Studio RFM95 Ultra-long LoRa Transceiver Module (EU868)

    The RFM95 is a LoRa / SigFox module to be used with Arduino / ESP32 / Raspberry Pi and many other. With ideal conditions, you can get ranges up to 2km+ while having only small power consumption. It is equipped with the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity. Using the patented LoRa™ modulation technique RFM95 can achieve a sensitivity of over -148dBm using a low-cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. Features maximum link budget: 168 dB +20 dBm - 100 mW constant RF output vs. V supply +14 dBm high efficiency PA Programmable bit rate up to 300 kbps. High sensitivity: down to -148 dBm. Bullet-proof front end: IIP3 = -12.5 dBm. Built-in bit synchronizer for clock recovery. Excellent blocking immunity. Low RX current of 10.3 mA, 200 mA register retention. Fully integrated synthesizer with a resolution of 61 Hz. FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation. Preamble detection. 127 dB Dynamic Range RSSI. Automatic RF Sense and CAD with ultra-fast AFC. Packet engine up to 256 bytes with CRC. Built-in temperature sensor Low battery indicator. Dimensions: 16 x 16 mm Applications Automated Meter Reading Home and Building Automation Wireless Alarm and Security Systems Industrial Monitoring and Control Long range Irrigation Systems

    € 15,95

    Members € 14,36

  • Sipeed Maixduino Kit voor RISC-V AI + IoT

    Seeed Studio Sipeed Maixduino Kit for RISC-V AI + IoT

    Out of stock

    MAIX is Sipeed's purpose-built product series designed to run AI at the edge. Move AI models from cloud down to devices on the edge of the network where they can run faster, at lower cost, and with greater privacy. MAIX isn't just a hardware solution, it combines custom hardware, open software, and state-of-the-art AI algorithms. Different kinds of dev. boards, kits, peripherals as well as wide compatibility enable rapid and agile prototype development, make AIoT projects much easier. And thanks to MAIX' s performance, small footprint, low power, and low cost, it enables the broad deployment of high-quality Edge AI. Applications Smart Home applications like robot cleaners, smart speakers, electronic door locks, household monitoring etc. Medical Industry applications like Auxiliary diagnosis and treatment, medical image recognition, emergency alarm etc. Smart Industry applications like industrial machinery, intelligent sorting, monitoring of electrical equipment, etc. Education applications like educational robots, intelligent interactive platforms, educational efficiency inspection, etc. Agriculture applications like agricultural monitoring, pest and disease monitoring, automated control, etc. Features CPU: RISC-V Dual Core 64bit, with FPU; 400MHz neural network processor QVGA@60FPS/VGA@30FPS image identification Onboard ESP32 module support 2.4G 802.11. b/g/n and Bluetooth 4.2 Arduino Uno form factor, Arduino compatible interface Onboard omnidirectional I²S digital output MEMS Microphone 24P 0.5mm FPC connector for DVP Camera 8-bit MCU LCD 24P 0.5mm FPC connector Support self-elastic micro SD card holder Reset and boot button; 3W DAC+PA Audio output Just connect the USB Type-C cable to complete the download Machine vision based on convolutional neural network High performance microphone array processor for machine hearing Support MaixPy IDE, Arduino IDE, OpenMV IDE, and PlatformIO IDE Support Tiny-Yolo, Mobilenet and TensorFlow Lite for deep learning Technical Specifications Master module Sipeed MAIX-I AIoT module Power Input USB Type-CDC-DC step-down circuit:support 6-12V input; Provide 5V 1.2A output Micro SD Card (TF card) slot Support Self-elastic card holder Onboard MEMS microphone MSM261S4030H0 is an omnidirectional, Bottom-ported, I²S digital output MEMS Microphone. It has high performance and Reliability. DVP Camera interface 24P 0.5mm FPC connector LCD connector 8bit MCU LCD 24P 0.5mm FPC connector Audio output DAC+PATM8211: 16 bit dynamic range;Low harmonic distortionNS4150: 3W output power; Up to 90% efficiency ESP32 module Support 2.4G 802.11.b/g/n802.11 n (2.4 GHz) speeds up to 150 MbpsBluetooth v4.2 full standard, including traditional Bluetooth (BR/EDR) and Bluetooth Low Energy (BLE) Supply voltage of external power supply 4.8V ~ 5.2V Supply current of external power supply >600mA Temperature rise Range of working temperature -30℃ ~ 85℃ MCU: ESP8285 Tensilica L106 32-bit MCU Wireless Standard 802.11 b/g/n Frequency Range 2400Mhz - 2483.5Mhz TX Power(Conduction test) 802.11.b: +15dBm802.11.g: +10dBm(54Mbps)802.11.n: +10dBm (65Mbps) Antenna Connector IPEX 3.0x3.0mm Wi-Fi mode Station/SoftAP/SoftAP+Station Contents 1x Maixduino Development Board 1x GC0328 Camera Module 1x 2.4 inch TFT Display

    Out of stock

    € 32,95

    Members € 29,66

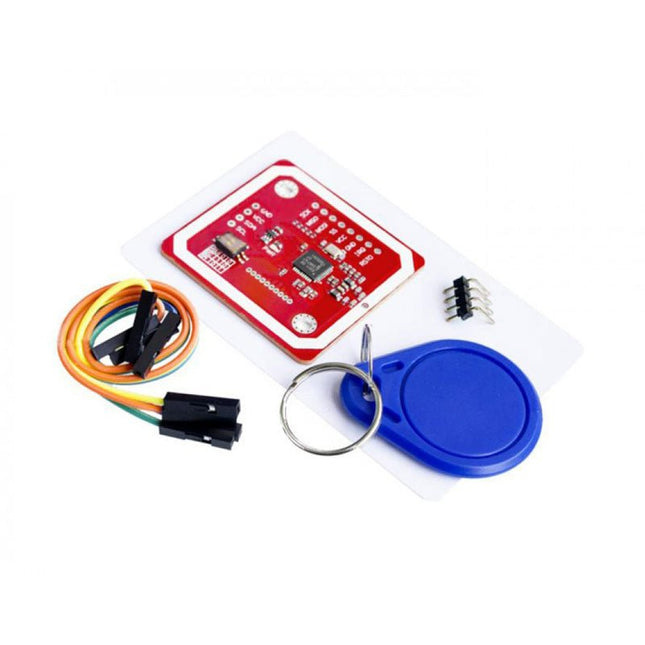

  •  -31% Makerfabs PN532 NFC Module V3

    Makerfabs Makerfabs PN532 NFC Module V3

    NFC is a popular technology in recent years. Almost all the high-end phones in the market support NFC. Near field communication (NFC) is a set of standards for smartphones and similar devices to establish radio communication with each other by touching them together or bringing them into close proximity, usually no more than a few centimeters. This module is built around NXP PN532. NXP PN532 is very popular in the NFC area. Makerfabs developed this module based on the official document. A library for this module is available. Features Small dimension and easy to embed into your project Support I²C, SPI, and HSU (High-Speed UART), easy to change between those modes Support RFID reading and writing, P2P communication with peers, NFC with Android phone Up to 5~7 cm reading distance On-board level shifter, Standard 5 V TTL for I²C and UART, 3.3 V TTL SPI Arduino compatible, plugin and play with our shield RFID reader/writer supports Mifare 1k, 4k, Ultralight, and DESFire cards ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX) Innovision Jewel cards such as IRT5001 cards FeliCa cards such as RCS_860 and RCS_854 Downloads Usage NFC Library

    € 12,95€ 8,95

    Members identical

  • makerdiary nRF52840 MDK USB Dongle incl. Case

    Make makerdiary nRF52840 MDK USB Dongle incl. Case

    The Makerdiary nRF52840 Dongle with Case is a small and low-cost development platform enabled by the nRF52840 multiprotocol SoC in a convenient USB dongle form factor. The USB Dongle is fully multiprotocol capable with full protocol concurrency. It has protocol support for Bluetooth 5, Bluetooth mesh, Thread, ZigBee, IEEE 802.15.4, ANT and 2.4 GHz proprietary stacks. Alternatively the USB Dongle can act as a Network Co-Processor (NCP) with a simple connection to a PC or other USB enabled device. Features Low cost USB dongle supporting Bluetooth 5, Bluetooth mesh, Thread, ZigBee, IEEE 802.15.4, ANT and 2.4 GHz proprietary stacks Shipped with USB enabled bootloader and OpenThread NCP firmware Programming via nRF Connect for Desktop or nRFUtil OpenThread Border Router supported Thread Network Sniffer with Wireshark Thread Topology Monitor Nordic nRF52840 System-on-Chip ARM Cortex-M4F processor optimized for ultra-low power operation Combining Bluetooth 5, Bluetooth Mesh, Thread, IEEE 802.15.4, ANT and 2.4 GHz proprietary On-chip USB 2.0 (Full speed) controller ARM TrustZone Cryptocell 310 security subsystem 1 MB FLASH and 256 kB RAM 1 user-programmable button 1 user-programmable RGB LED Integrated 2.4 GHz chip antenna Convenient USB dongle form factor Dimensions: 50.8 x 21.1 x 7.6 mm Weight: 6.0g Downloads Wiki

    € 29,95

    Members € 26,96

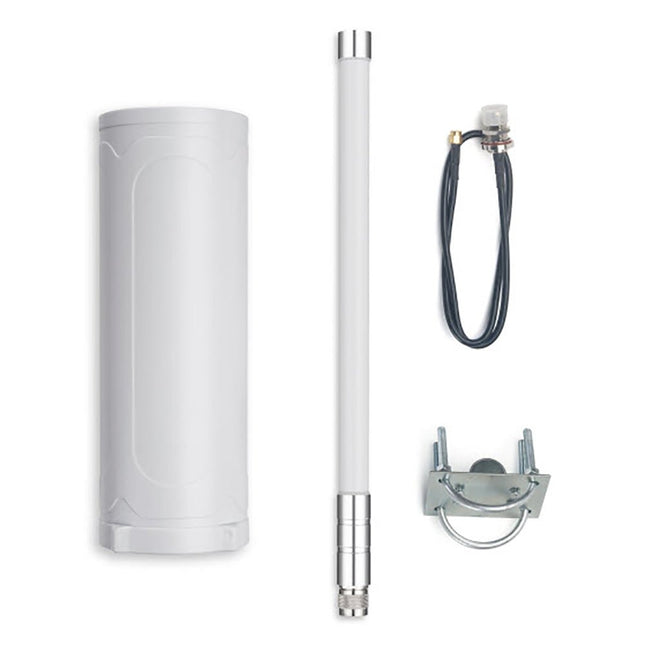

  • Dragino DLOS8 Outdoor LoRaWAN Gateway (EU868)

    Dragino Dragino DLOS8 Outdoor LoRaWAN Gateway (EU868)

    The DLOS8 is an open-source outdoor LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via Ethernet, WiFi or 3G. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. The DLOS8 uses Semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes an SX1301 LoRaWAN concentrator, which provides ten programmable parallel demodulation paths. DLOS8 has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customize the frequency bands to use in their LoRaWAN network. DLOS8 can communicate with ABP LoRaWAN end node without LoRaWAN server. The system integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service. Features Managed by SSH via LAN or WiFi, Web GUI Open Source OpenWrt system Emulates 49x LoRa demodulators Outdoor LoRaWAN Gateway LoRaWAN packet filtering Ten programmable parallel demodulation paths Farseeing LED indicator External fibreglass antenna Built-in GPS module for location & timing 802.3af PoE IP65 Lighting Protection Power Consumption:12 V, 300 mA ~ 500 mA 1x 10M / 100M RJ45 Ports 1x USB host port 2.4G WiFi (802.11 bgn) Applications Logistics and Supply Chain Management Smart Buildings & Home Automation Smart Metering Smart Cities Smart Agriculture Smart Factory Downloads Datasheet User Manual Firmware Mechanical

    € 399,00

    Members € 359,10

  • Dragino LSN50v2-S31 LoRaWAN Temperature & Humidity Sensor (EU868)

    Dragino Dragino LSN50v2-S31 LoRaWAN Temperature & Humidity Sensor (EU868)

    The temperature & humidity sensor used in LSN50v2-S31 is SHT31, which is fully calibrated, linearized, and temperature compensated digital output from Sensirion, it provides strong reliability and long-term stability. The SHT31 is fixed in a waterproof anti-condensation casing for long-term use. The LSN50v2-S31 supports a temperature and humidity alarm feature, the user can get an alarm for instant notice. LSN50v2-S31 is powered by an 8500mAh Li-SOCI2 battery, It is designed for long-term use up to 10 years.  Each LSN50v2-S31 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to the local LoRaWAN server and it will auto-connect after power on. Features LoRaWAN v1.0.3 Class A Ultra-low power consumption External 3m SHT31 probe Measure range -40°C ~ 80°C Temperature alarm AT Commands to change parameters Uplink on periodically or Interrupt Downlink to change configure  Applications Wireless Alarm and Security Systems Home and Building Automation Automated Meter Reading Industrial Monitoring and Control Long-range Irrigation Systems Temperature Sensor Range: -40 to + 80 °C Accuracy: ±0.2 @ 0-90 °C Resolution: 0.01 °C Long Term Shift: Humidity Sensor Range: 0 ~ 99.9% RH Accuracy: ± 2% RH (0 ~ 100% RH) Resolution: 0.01% RH Long Term Shift: Downloads Datasheet User Manual Firmware

    € 69,95

    Members € 62,96

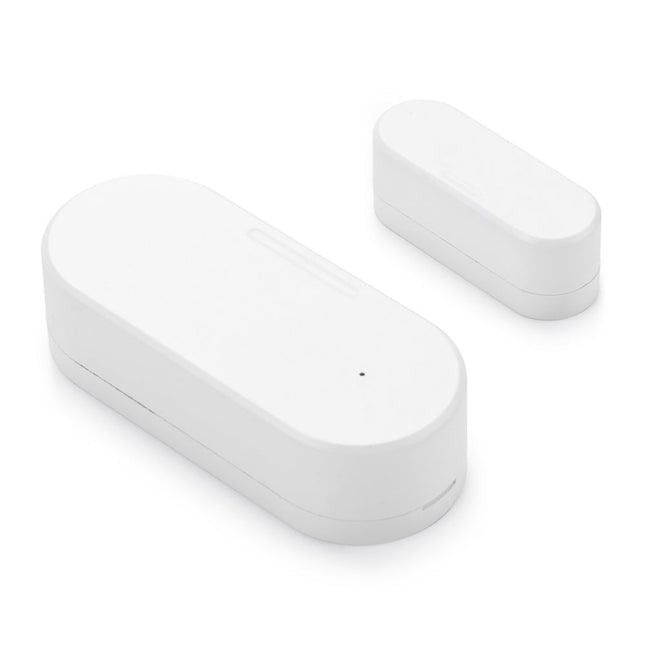

  • Dragino LDS02 LoRaWAN Door Sensor (EU868)

    Dragino Dragino LDS02 LoRaWAN Door Sensor (EU868)

    The LDS02 is powered by 2x AAA batteries and targets long-time use, these two batteries can provide about 16,000 ~ 70,000 uplink packets. After the batteries run out, the user can easily open the enclosure and replace them with 2 common AAA batteries. It will send periodically data every day as well as for each door open/close action. It also counts the door open times and calculates the last door open duration. The user can also disable the uplink for each open/close event, instead, the device can count each open event and uplink periodically. It also has the open alarm feature, the user can set this feature so the device will send an alarm if the door has been open for a certain time. Each LDS02 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to the LoRaWAN server and it will auto-connect after power on. Features LoRaWAN v1.0.3 Class A SX1262 LoRa Core Door Open/Close detect 2 x AAA LR03 Batteries Door open/close statistics AT Commands to change parameters Uplink on periodically and open/close action Open duration alarm Downlink to change configure Applications Wireless Alarm and Security Systems Home and Building Automation Industrial Monitoring and Control

    € 34,95

    Members € 31,46

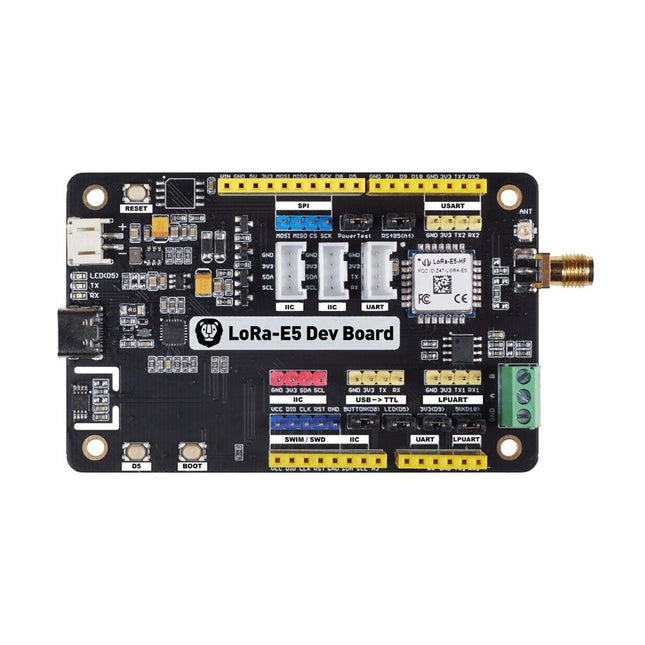

  • Seeed Studio LoRa-E5 STM32WLE5JC ontwikkelingskit

    Seeed Studio Seeed Studio LoRa-E5 STM32WLE5JC Development Kit

    LoRa-E5 Development Kit is an easy-to-use compact development toolset for you to unlock the powerful performance of the LoRa-E5 STM32WLE5JC. It consists of a LoRa-E5 Dev Board, an antenna (EU868), a USB type C cable, and a 2-AA 3 V Battery Holder. LoRa-E5 Dev Board embedded with LoRa-E5 STM32WLE5JC Module, which is  the world-first combo of LoRa RF and MCU chip into one single tiny chip and is FCC and CE certified. It is powered by ARM Cortex-M4 core and Semtech SX126X LoRa chip, supports both LoRaWAN and LoRa protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and LoRa modulations. The LoRa-E5 development board features a very long transmission range, extremely low power consumption and user-friendly interfaces. LoRa-E5 Dev Board has a long-distance transmission range of LoRa-E5 up to 10 km in an open area. The sleep current of LoRa-E5 modules on board is as low as 2.1 uA (WOR mode). It is designed with industrial standards with a wide working temperature at -40℃ ~ 85℃, high sensitivity between -116.5 dBm ~ -136 dBm, and power output up to +20.8 dBm at 3.3 V. LoRa-E5 Dev Board also has rich interfaces. Developed to unlock the full functionality of the LoRa-E5 module, LoRa-E5 Dev Board has led out full 28 pins of LoRa-E5 and provides with rich interfaces including Grove connectors, RS-485 terminal, male/female pin headers for you to connect sensors and modules with different connectors and data protocols, saving your time on wire soldering. You could also easily power the board by connecting the battery holder with 2-AA batteries, enabling temporary use when lacking an external power source. It is a user-friendly board for easy testing and rapid prototyping. Specifications Size LoRa-E5 Dev Board: 85.6 x 54 mm Voltage (supply) 3-5 V (Battery) / 5 V (USB-C) Voltage (output) EN 3V3 / 5 V Power (output) Up to +20.8 dBm at 3.3 V Frequency EU868 Protocol LoRaWAN Sensitivity -116.5 dBm ~ -136 dBm Interfaces USB Type C / JST2.0 / 3x Grove (2x I²C/1x UART) / RS485 / SMA-K / IPEX Modulation LoRa, (G)FSK, (G)MSK, BPSK Working temperature -40℃ ~ 85℃ Current LoRa-E5 module sleep current as low as 2.1 uA (WOR mode) Included 1x LoRa-E5 Dev Board 1x Antenna (EU868) 1x USB Type C Cable (20 cm) 1x 2-AA 3 V Battery Holder

    € 39,95

    Members € 35,96

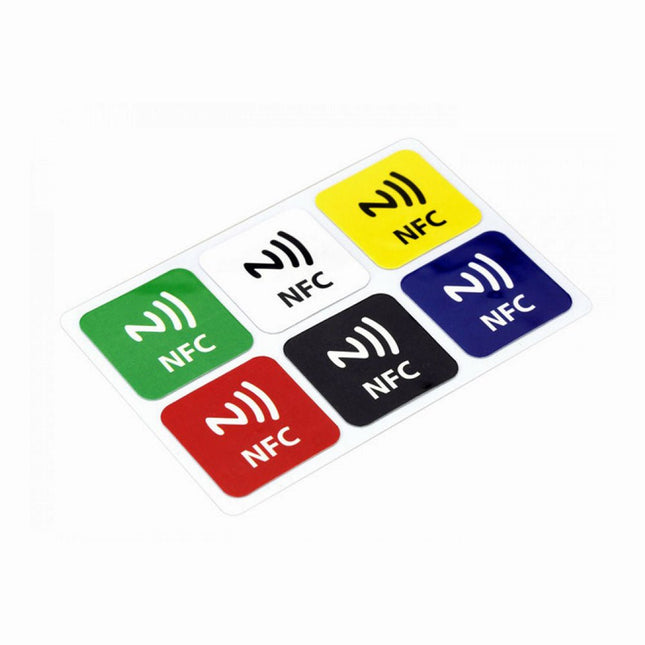

  •  -30% Makerfabs NFC Stickers (6 pcs)

    Makerfabs Makerfabs NFC Stickers (6 pcs)

    Features NFC chip material: PET + Etching antenna Chip: NTAG216 (compatible with all NFC phones) Frequency: 13.56 MHz (High Frequency) Reading time: 1 - 2 ms Storage capacity: 888 bytes Read and write times: > 100,000 times Reading distance: 0 - 5 mm Data retention: > 10 years NFC chip size: Diameter 30 mm Non-contact, no friction, the failure rate is small, low maintenance costs Read rate, verification speed, which can effectively save time and improve efficiency Waterproof, dustproof, anti-vibration No power comes with an antenna, embedded encryption control logic, and communication logic circuit Included 1x NFC Stickers (6-color kit)

    € 9,95€ 6,95

    Members identical

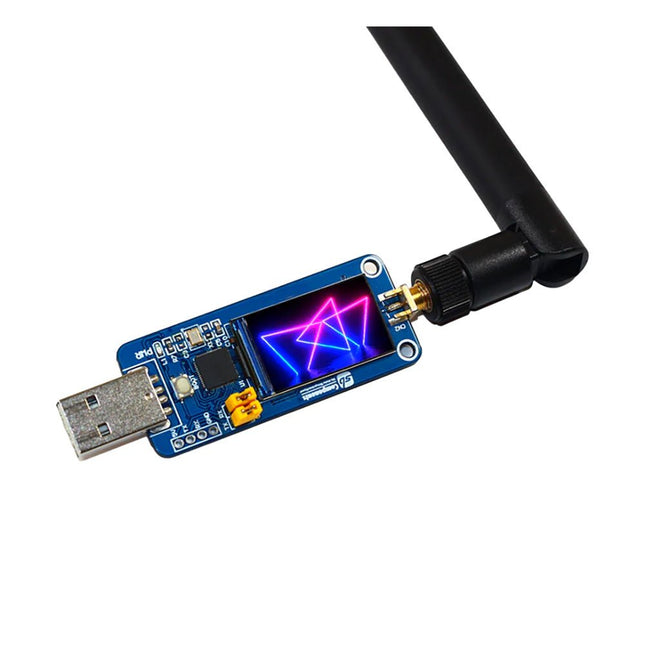

  • RangePi - LoRa USB-dongle gebaseerd op RP2040 (EU868)

    SB Components RangePi - LoRa USB Dongle based on RP2040 (EU868)

    The RangePi – LoRa USB Dongle uses the Semtech SX1262 that allows communications up to 5 km. The RangePi can be used with any device that utilizes a USB connection, eliminating the need for extra equipment just to connect to the LoRa network. Specifications 1.14” LCD RP2040 MCU Up to 5 km distance UART Included 1x RangePi 1x Antenna Downloads STEP File Product Dimension 3D PDF File Schematic File GitHub

    € 54,95

    Members € 49,46

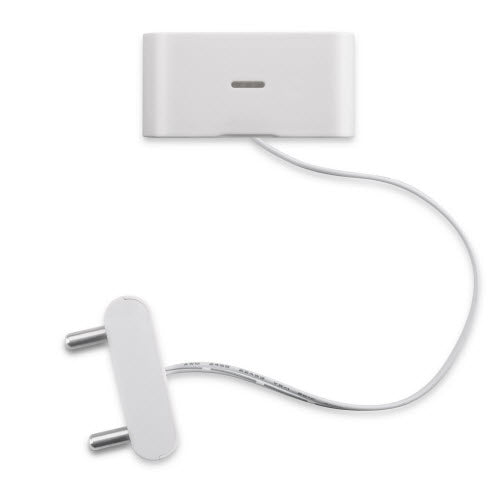

  • Dragino LWL01 LoRaWAN Water Leak Sensor (EU868)

    Dragino Dragino LWL01 LoRaWAN Water Leak Sensor (EU868)

    LWL01 is powered by a CR2032 coin battery, in a good LoRaWAN Network Coverage case, it can transmit as many as 12,000 uplink packets (based on SF 7, 14 dB). In poor LoRaWAN network coverage, it can transmit ~ 1,300 uplink packets (based on SF 10, 18.5 B). The design goal for one battery is up to 2 years. User can easily change the CR2032 battery for reuse. The LWL01 will send periodically data every day as well as for water leak event. It also counts the water leak event times and also calculates last water leak duration. Each LWL01 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on. Features LoRaWAN v1.0.3 Class A SX1262 LoRa Core Water Leak detect CR2032 battery powered AT Commands to change parameters Uplink on periodically and water leak event Downlink to change configure Applications Wireless Alarm and Security Systems Home and Building Automation Industrial Monitoring and Control

    € 19,95

    Members € 17,96

  • Dragino LSN50v2-D20 LoRaWAN Waterproof Outdoor Temperature Sensor (EU868)

    Dragino Dragino LSN50v2-D20 LoRaWAN Waterproof Outdoor Temperature Sensor (EU868)

    The temperature sensor used in LSN50v2-D20 is DS18B20, which can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C). The sensor cable is made by Silica Gel, and the connection between the metal probe and cable is double compressed for waterproof, moisture-proof, and anti-rust for long-term usage. The LSN50v2-D20 supports a temperature alarm feature, the user can set a temperature alarm for instant notice. It is powered by an 8500mAh Li-SOCI2 battery, It is designed for long-term use up to 10 years. Each LSN50v2-D20 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to the local LoRaWAN server and it will auto-connect after power on. Features LoRaWAN v1.0.3 Class A Ultra-low power consumption External DS18B20 Probe (default 2meters) Measure range -55°C ~ 125°C Temperature alarm AT Commands to change parameters Uplink on periodically or Interrupt Downlink to change configure  Applications Wireless Alarm and Security Systems Home and Building Automation Automated Meter Reading Industrial Monitoring and Control Long-range Irrigation Systems

    € 64,95

    Members € 58,46

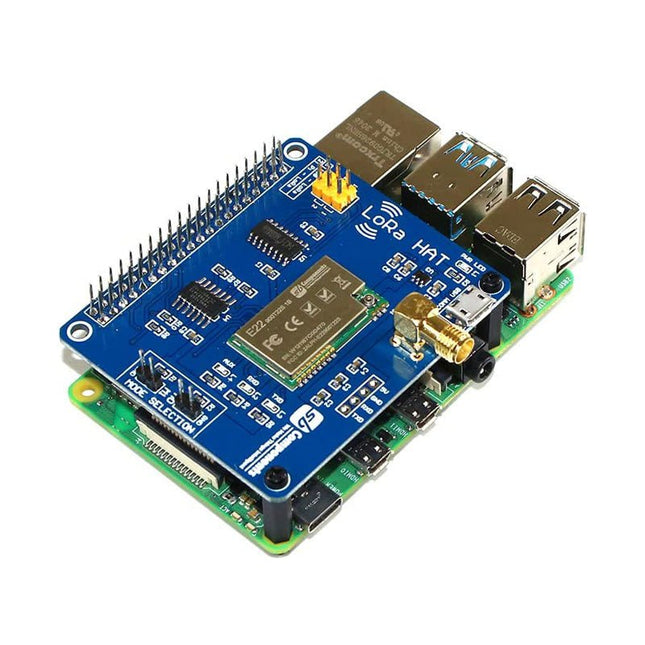

  • Last stock! SB Components LoRa HAT for Raspberry Pi (EU868)

    SB Components SB Components LoRa HAT for Raspberry Pi (EU868)

    LoRa HAT, a low-power consumption data transmission module, comes with an onboard CH340 USB to UART converter, Voltage Level Translator (74HC125V), E22-900T22S and E22-400T22S SMA antenna connector, IPEX antenna connector, LoRa Spread Spectrum Modulation technology with auto multi-level repeating. Features Onboard 1.14' LCD Voltage Level Translator (74HC125V) Communication range up to 5 km Supports auto repeating to transmit longer Low Power Consumption Highly Secured For Evaluating signal quality with the RSSI or 'Received Signal Strength Indicator' Wireless parameter configuration support Fixed-point transmission support SMA and IPEX Antenna Connector USB to LoRa and Pico to LoRa Communication via UART Comes with development resources and manual LED Indicators: RXD/TXD: UART RX/TX indicator AUX: auxiliary indicator PWR: power indicator Serial/USB selection jumpers: A: USB TO UART to control the LoRa module through USB B: control the LoRa module through Raspberry Pi Pico Data/Command mode selection jumpers: Short M0, short M1: Transmission mode Short M0, open M1: Configuration mode Open M0, short M1: WOR mode Open M0, open M1: Deep sleep mode Specifications Frequency: 850.125~930.125 MHz / 410~493 MHz (Programmable Range) Power: 22dBm Distance: Up to 5 km Interface: UART Communication Serial Port Module: E22-900T22S1B / E22-400T22S Voltage Level Translator: 74HC125V Included 1x LoRa Module 1x Antenna Note: Raspberry Pi Board is not included. Downloads GitHub Wiki

    € 49,95

    Members € 44,96

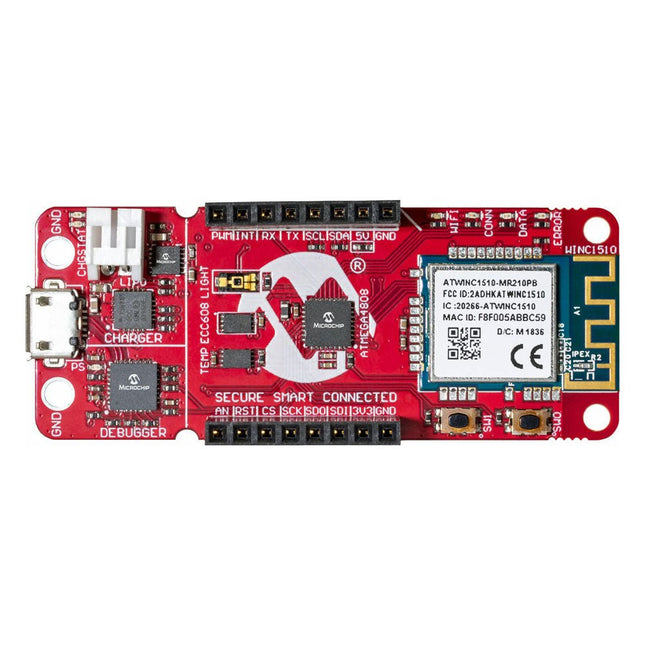

  •  -25% Microchip AVR-IoT WA Development Board

    Microchip Microchip AVR-IoT WA Development Board

    The AVR-IoT WA development board combines a powerful ATmega4808 AVR MCU, an ATECC608A CryptoAuthentication™ secure element IC and the fully certified ATWINC1510 Wi-Fi network controller – which provides the most simple and effective way to connect your embedded application to Amazon Web Services (AWS). The board also includes an on-board debugger, and requires no external hardware to program and debug the MCU.Out of the box, the MCU comes preloaded with a firmware image that enables you to quickly connect and send data to the AWS platform using the on-board temperature and light sensors. Once you are ready to build your own custom design, you can easily generate code using the free software libraries in Atmel START or MPLAB Code Configurator (MCC).The AVR-IoT WA board is supported by two award-winning Integrated Development Environments (IDEs) – Atmel Studio and Microchip MPLAB X IDE – giving you the freedom to innovate with your environment of choice.Features ATmega4808 microcontroller Four user LED’s Two mechanical buttons mikroBUS header footprint TEMT6000 Light sensor MCP9808 Temperature sensor ATECC608A CryptoAuthentication™ device WINC1510 WiFi Module On-board Debugger Auto-ID for board identification in Atmel Studio and Microchip MPLAB X One green board power and status LED Programming and debugging Virtual COM port (CDC) Two DGI GPIO lines USB and battery powered Integrated Li-Ion/LiPo battery charger

    € 39,95€ 29,95

    Members identical

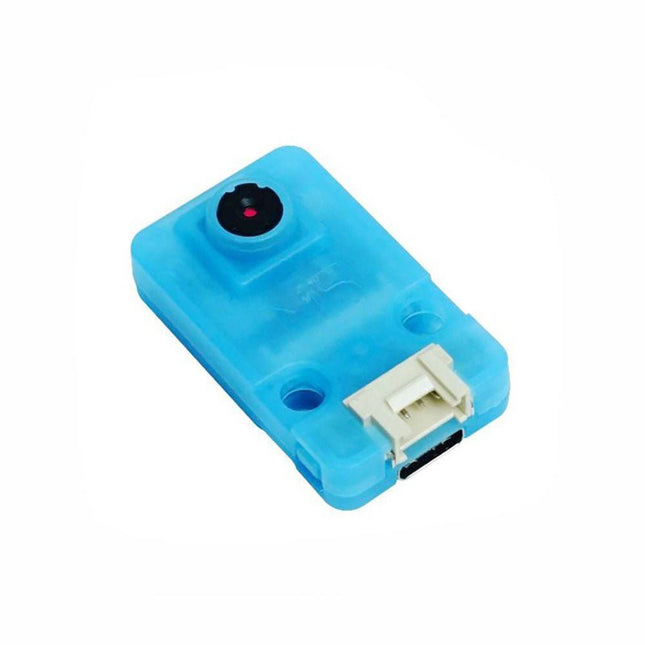

  •  -20% M5Stack UnitV K210 AI Camera for Edge Computing (OV7740)

    M5Stack M5Stack UnitV K210 AI Camera for Edge Computing (OV7740)

    Features Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal) Dual Independent Double Precision FPU 8MiB 64bit width On-Chip SRAM Neural Network Processor(KPU) / 0.8Tops Field-Programmable IO Array (FPIOA) AES, SHA256 Accelerator Direct Memory Access Controller (DMAC) Micropython Support Firmware encryption support On-board Hardware: Flash: 16M Camera :OV7740 2x Buttons Status Indicator LED External storage: TF card/Micro SD Interface: HY2.0/compatible GROVE  Applications Face recognition/detection Object detection/classification Obtain the size and coordinates of the target in real-time Obtain the type of detected target in real-time Shape recognition Video recorder Included 1x UNIT-V(include 20cm 4P cable and USB-C cable)

    € 34,95€ 27,95

    Members identical

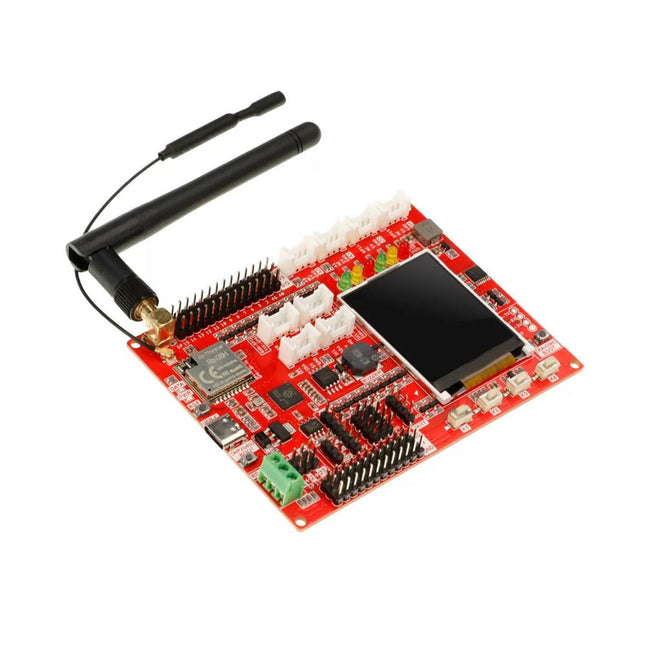

  • RA-08H LoRaWAN Development Board with integrated RP2040 and 1.8" LCD (EU868)

    RA-08H LoRaWAN Development Board with integrated RP2040 and 1.8" LCD (EU868)

    Lora technology and Lora devices have been widely used in the field of the Internet of Things (IoT), and more and more people are joining and learning Lora development, making it an indispensable part of the IoT world. To help beginners learn and develop Lora technology better, a Lora development board has been designed specifically for beginners, which uses RP2040 as the main control and is equipped with the RA-08H module that supports Lora and LoRaWAN protocols to help users realize development. RP2040 is a dual-core, high-performance, and low-power ARM Cortex-M0+ architecture chip, suitable for IoT, robots, control, embedded systems, and other application fields. RA-08H is made from the Semtech-authorized ASR6601 RF chip, which supports the 868 MHz frequency band, has a 32 MHz MCU built-in, which has more powerful functions than ordinary RF modules, and also supports AT command control. This board retains various functional interfaces for development, such as the Crowtail interface, the common PIN to PIN header that leads out GPIO ports, and provides 3.3 V and 5 V outputs, suitable for the development and use of commonly used sensors and electronic modules on the market. In addition, the board also reserves RS485 interface, SPI, I²C, and UART interfaces, which can be compatible with more sensors/modules. In addition to the basic development interfaces, the board also integrates some commonly used functions, such as a buzzer, a custom button, red-yellow-green three-color indicator lights, and a 1.8-inch SPI interface LCD screen with a resolution of 128x160. Features Uses RP2040 as the main controller, with two 32-bit ARM Cortex M0+ processor cores (dual-core), and provides more powerful performance Integrates the RA-08H module with 32 MHz MCU, supports the 868 MHz frequency band and AT command control Abundant external interface resources, compatible with Crowtail series modules and other common interface modules on the market Integrates commonly used functions like buzzer, LED light, LCD display and custom button, making it more concise and convenient when creating projects Onboard 1.8-inch 128x160 SPI-TFT-LCD, ST7735S driver chip Compatible with Arduino/Micropython, easy to carry out different projects Specifications Main Chip Raspberry Pi RP2040, built-in 264 KB SRAM, onboard 4  MB Flash Processor Dual Core Arm Cortex-M0+ @ 133 MHz RA-08H Frequency band 803-930 MHz RA-08H Interface External antenna, SMA interface or IPEX first-generation interface LCD Display Onboard 1.8-inch 128x160SPI-TFT-LCD LCD Resolution 128x160 LCD Driver ST7735S (4-wire SPI) Development environment Arduino/MicroPython Interfaces 1x passive buzzer 4x user-defined buttons 6x programmable LEDs 1x RS485 communication interface 8x 5 V Crowtail interfaces (2x analog interfaces, 2x digital interfaces, 2x UART, 2x I²C) 12x 5 V universal pin header IO 14x 3.3 V universal pin header IO 1x 3.3 V/5 V switchable SPI 1x 3.3 V/5 V switchable UART 3x 3.3 V/5 V switchable I²C Working input voltage USB 5 V/1 A Operating temperature -10°C ~ 65°C Dimensions 102 x 76.5 mm (L x W) Included 1x Lora RA-08H Development Board 1x Lora Spring Antenna (868 MHz) 1x Lora Rubber Antenna (868 Mhz) Downloads Wiki

    € 32,95

    Members € 29,66

  •  -25%Last stock! Microchip PIC-IoT WA Development Board

    Microchip Microchip PIC-IoT WA Development Board

    2 in stock

    The PIC-IoT WA Development Board combines a powerful PIC24FJ128GA705 MCU, an ATECC608A CryptoAuthentication™ secure element IC and the fully-certified ATWINC1510 Wi-Fi network controller – which provides the most simple and effective way to connect your embedded application to Amazon Web Services (AWS). The board also includes an on-board debugger, and requires no external hardware to program and debug the MCU.Out of the box, the MCU comes preloaded with firmware that enables you to quickly connect and send data to the AWS platform using the on-board temperature and light sensors. Once you are ready to build your own custom design, you can easily generate code using the free software libraries in MPLAB Code Configurator (MCC).The PIC-IoT WA Board is supported by MPLAB X IDE.Features PIC24FJ128GA705 microcontroller128 KB Flash Memory & 16 KB SRAM ATWINC1510 WiFi ModuleSingle-band 2.4GHz b/g/n IoT Network Controller, Pre-certified Module ATECC608A CryptoAuthentication™ deviceProtected Storage for 16 Keys, SHA256, AES-CCM, ECDH (Elliptic Curve Diffie-Hellman), ECDSA Other Board Features Four Status LED’s Blue LED indicates a connection to Wi-Fi network Green LED indicates a connection to the AWS servers Yellow LED indicates a packet of sensor data has been successfully published to the AWS MQTT servers Red LED indicates an Error occurred Two mechanical buttons TEMT6000 Light sensor MCP9808 Temperature sensor mikroBUS header to interface to MikroElekronika click Boards™ Auto-ID for board identification in Microchip MPLAB X On-board Debugger Programming and debugging Virtual COM port (CDC) One logic analyzer channel (DGI GPIO) USB and battery powered Integrated Li-Ion/LiPo battery charger

    2 in stock

    € 39,95€ 29,95

    Members identical

  • SB Components Raspberry Pi Pico LoRa Expansion (EU868)

    SB Components SB Components Raspberry Pi Pico LoRa Expansion (EU868)

    Pico LoRa Expansion is a low-power consumption data transmission board, comes with an onboard CH340 USB to UART converter, Voltage Level Translator (74HC125V), E22-900T22S SMA antenna connector that covers 868 MHz frequency band, Onboard 1.14" LCD, IPEX antenna connector, LoRa Spread Spectrum Modulation technology with auto multi-level repeating. Pico LoRa Expansion is developed to enable data transmission up to 5 km through serial port. With the new generation LoRa spread spectrum modulation technology, a user can easily transmit the data in low-power consumption. E22-900T22S Pico LoRa Expansion discrete itself from the normal LoRa with its longer communication distance, lower power consumption with better safety and ani-inference system. USB-UART communication of Pico LoRa enables the direct communication with a desktop/laptop without using Raspberry Pi Pico. LoRa is the abbreviation of Long-range that runs on a technique called spread-spectrum technique, procured from chirp spread spectrum (CSS) technology, that encodes information by using the wideband linear frequency modulated chirp pulses. Features Onboard 1.14" LCD Voltage Level Translator (74HC125V) Communication range up to 5 km Supports auto repeating to transmit longer Low Power Consumption Highly Secured For Evaluating signal quality with the RSSI or "Received Signal Strength Indicator" Wireless parameter configuration support Fixed-point transmission support SMA and IPEX Antenna Connector USB to LoRa and Pico to LoRa Communication via UART Comes with development resources and manual LED Indicators: RXD/TXD: UART RX/TX indicator AUX: auxiliary indicator PWR: power indicator Serial/USB selection jumpers: A: USB to UART to control the LoRa module through USB B: control the LoRa module through Raspberry Pi Pico Data/Command mode selection jumpers: Short M0, short M1: Transmission mode Short M0, open M1: Configuration mode Open M0, short M1: WOR mode Open M0, open M1: Deep sleep mode Included 1x Raspberry Pi Pico LoRa Expansion (868 MHz) 1x Antenna Note: Raspberry Pi Pico is not included. Downloads GitHub Wiki

    € 64,95

    Members € 58,46

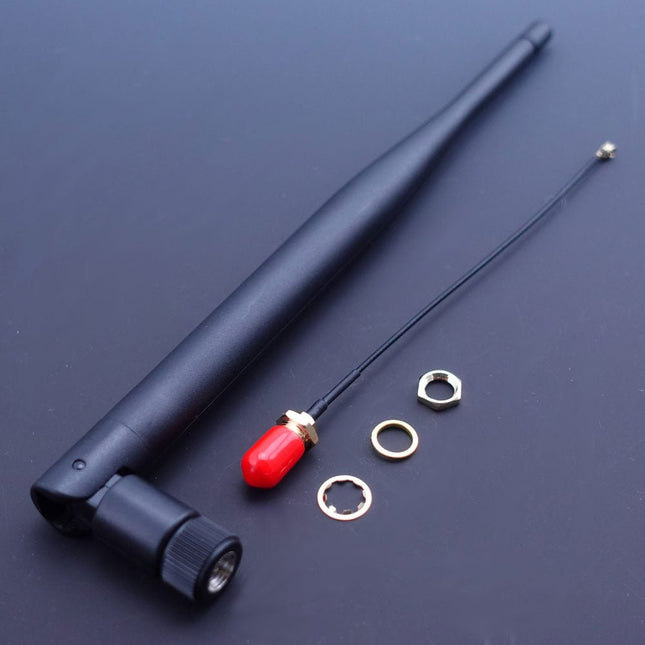

  • iLabs LoRa Antenna (EU868)

    iLabs iLabs LoRa Antenna (EU868)

    This is a 170 mm long 868 MHz 50 hm antenna kit targeted for use with iLabs Challenger LoRa products. The antenna can tilt and swivel making it easy to install it in various applications. The kit also comes with a RF cable assembly containing an SMA (Female) and JK-IPEX/MHF/U.FL for connection to the PCB. The coax is a 1-13 mm 50 Ohm cable and is 100 mm’s long.

    € 7,95

    Members € 7,16

  •  -21%Last stock! M5Stack UnitV2 AI Camera for Edge Computing

    M5Stack M5Stack UnitV2 AI Camera for Edge Computing

    1 in stock

    Features Sigmstar SSD202D Dual Cortex-A7 1.2Ghz Processor 128MB DDR3 512MB NAND Flash GC2145 1080P Colored Sensor Microphone WiFi 2.4GHz Applications AI recognition function development Industrial visual identification sorting Machine vision learning Included 1 x M5Stack UnitV2 1 x 16g TF Card 1 x USB-C Cabel (50cm) 1 x Stand 1 x Back Brick

    1 in stock

    € 94,95€ 74,95

    Members identical

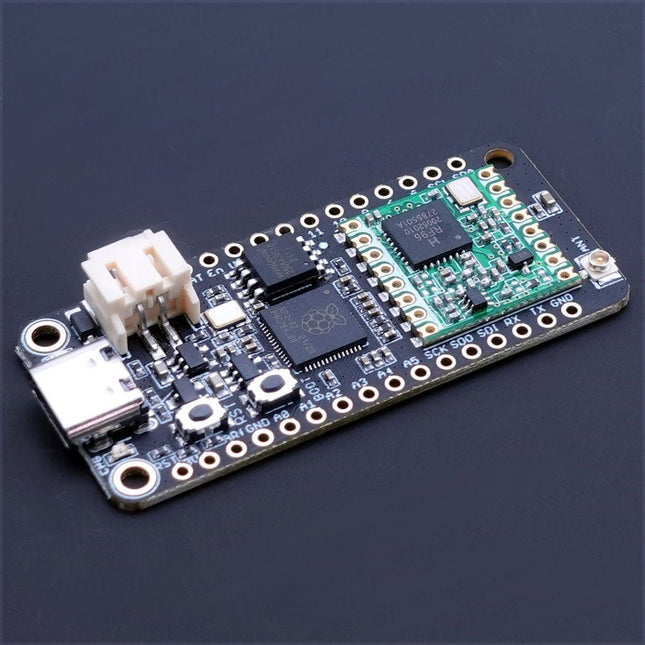

  • iLabs Challenger RP2040 LoRa (EU868)

    iLabs iLabs Challenger RP2040 LoRa (EU868)

    The Challenger RP2040 LoRa is an Arduino/CircuitPython compatible Adafruit Feather format microcontroller board based on the Raspberry Pi Pico (RP2040) chip.The transceiver features a LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.LoRaThe integrated module LoRa module (RFM95W) can achieve a sensitivity of over -148 dBm utilizing a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. LoRa also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.The RFM95W is connected to the RP2040 via SPI channel 1 and a few GPIO’s that is required for signaling. A U.FL connector is used to attach your LoRa antenna to the board. 168 dB maximum link budget +20 dBm – 100 mW constant RF output vs. V supply +14 dBm high efficiency PA Programmable bit rate up to 300 kbps High sensitivity: down to -148 dBm Bullet-proof front end: IIP3 = -12.5 dBm Excellent blocking immunity Low RX current of 10.3 mA, 200 nA register retention Fully integrated synthesizer with a resolution of 61 Hz FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation Built-in bit synchronizer for clock recovery Preamble detection 127 dB Dynamic Range RSSI Automatic RF Sense and CAD with ultra-fast AFC Packet engine up to 256 bytes with CRC Specifications Microcontroller RP2040 from Raspberry Pi (133 MHz dual-core Cortex-M0) SPI Two SPI channels configured (second SPI connected to RFM95W) I²C One I²C channel configured UART One UART channel configured Analog inputs 4 analog input channels Radio module RFM95W from Hope RF Flash memory 8 MB, 133 MHz SRAM memory 264 KB (divided into 6 banks) USB 2.0 controller Up to 12 MBit/s full speed (integrated USB 1.1 PHY) JST Battery connector 2.0 mm pitch On board LiPo charger 450 mA standard charge current Dimensions 51 x 23 x 3,2 mm Weight 9 g Downloads Datasheet Design files

    € 24,95

    Members € 22,46

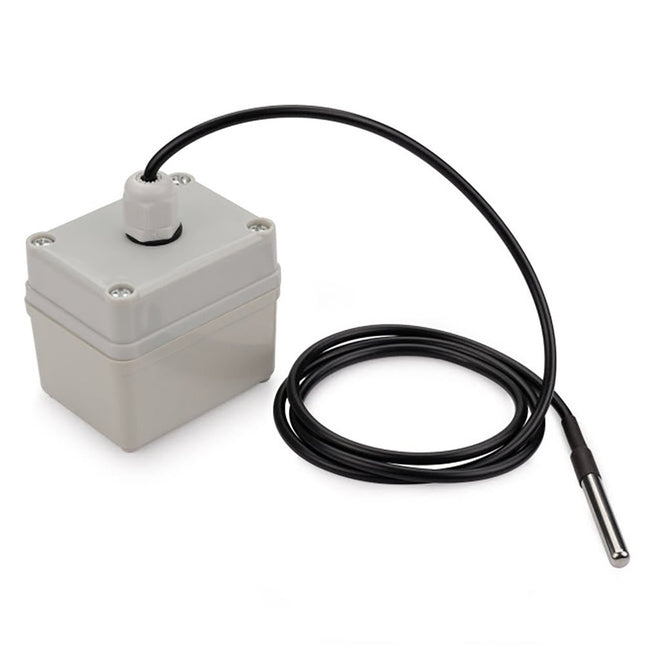

  • Dragino LSN50 Waterproof Long Range Wireless LoRa Sensor Node (EU868)

    Dragino Dragino LSN50 Waterproof Long Range Wireless LoRa Sensor Node (EU868)

    The LSN50 wireless part is based on SX1276/SX1278 allows the user to send data and reach extremely long ranges at low data rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on. The LSN50 MCU part uses STM32l0x chip from ST, STML0x is the ultra-low-power STM32L072xx microcontrollers incorporate the connectivity power of the universal serial bus (USB 2.0 crystal-less) with the high-performance ARM® Cortex®-M0+ 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit (MPU), high-speed embedded memories (192 Kbytes of Flash program memory, 6 Kbytes of data EEPROM and 20 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals. The LSN50 is an open-source product, it is based on the STM32Cube HAL drivers and lots of libraries can be found on the STM site for rapid development. Features STM32L072CZT6 MCU SX1276/78 LoRa Wireless Modem Pre-load with ISP bootloader I2C,LPUSART1,USB 18 x Digital I/Os 2 x 12bit ADC; 1 x 12bit DAC MCU wakes up by UART or Interrupt LoRa™ Modem Preamble detection Baud rate configurable LoRaWAN 1.0.2 Specification Software base on STM32Cube HAL drivers Open-source hardware / software IP66 Waterproof Enclosure Ultra-Low power consumption AT Commands to setup parameters 4000mAh Battery for Long term use Applications Wireless Alarm and Security Systems Home and Building Automation Automated Meter Reading Industrial Monitoring and Control Long-range Irrigation Systems LoRa Spec 168 dB maximum link budget. +20 dBm - 100 mW constant RF output vs. +14 dBm high-efficiency PA. Programmable bit rate up to 300 kbps. High sensitivity: down to -148 dBm. Bullet-proof front end: IIP3 = -12.5 dBm. Excellent blocking immunity. Low RX current of 10.3 mA, 200 nA register retention. Fully integrated synthesizer with a resolution of 61 Hz. FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation. Built-in bit synchronizer for clock recovery. Preamble detection. 127 dB Dynamic Range RSSI. Automatic RF Sense and CAD with ultra-fast AFC. Packet engine up to 256 bytes with CRC. Built-in temperature sensor and low battery indicator. MCU Spec MCU: STM32L072CZT6 Flash: 192KB SRAM: 20KB EEPROM: 6KB Clock Speed: 32Mhz Absolute Maximum Ratings VCC: 0.5 V ~ 3.9 V Operating Tempature: -40°C ~ 85°C I/O pins: 0.5 V ~ VCC+0.5 V Common DC Characteristics Supply Voltage: 1.8 V ~ 3.6 V Operating Tempature: -40°C ~ 85°C I/O pins: STM32L072CZT6 datasheet Power Consumption STOP Mode: 2.7 μA @ 3.3 V RX Mode: 7.2 mA TX Mode: 125 mA@ 20 dbm Battery Li/SOCI2 unchargable battery Capacity: 4000 mAh Self Discharge: Max continuously current: 130 mA Max boost current: 2 A, 1 second

    € 54,95

    Members € 49,46

Wat is het Internet of Things (IoT)?

Het Internet of Things, of IoT, is een systeem van onderling verbonden computer-apparaten, fysieke objecten met sensoren, verwerkingsvermogen, software, en andere technologieën die unieke identificatiecodes (UID) hebben. Het IoT netwerk heeft te maken met de communicatie tussen machines, de identificatie van apparaten, en de communicatie. Daarom is het kiezen van het beste draadloze netwerk op basis van de IoT specificaties essentieel.

IoT apparaten kunnen gegevens over een netwerk overbrengen zonder dat interactie van mens tot mens of van mens tot computer nodig is. Daardoor kunnen gebruikers moeilijkheden ondervinden met beveiliging, integratie, procescapaciteit, schaalbaarheid, en toegankelijkheid. Om deze problemen op te lossen is een slimme aanpak van het beheer van IoT apparaten nodig.

Wat zijn LoRa en LoRaWAN?

LoRa maakt transmissies over zeer grote afstanden mogelijk (meer dan 10 km in landelijke gebieden) met een laag stroomverbruik. Het is wereldwijd een veel gebruikte technologie voor IoT netwerken. Dankzij de LoRa technologie kunnen we enkele van 's werelds grootste problemen oplossen: energiebeheer, vermindering van natuurlijke hulpbronnen, milieubescherming, efficiëntie van infrastructuur, rampenbestrijding, en meer.

De lage bandbreedte van LoRa kan echter niet voor zomaar elke toepassing gebruikt worden. Als gevolg van beperkingen in het frequentiebereik dat het gebruikt, is het protocol niet in staat continu te zenden.

LoRaWAN is een low-power, wide area networking protocol dat gebouwd is op de LoRa radiomodulatietechniek. Het verbindt apparaten draadloos met het Internet en beheert de communicatie tussen end-node apparaten en netwerk gateways. Zo definieert LoRaWAN het communicatieprotocol en de systeemarchitectuur voor het netwerk, terwijl de fysieke laag van LoRa de communicatieverbinding over lange afstand mogelijk maakt, met de hulp van de gateway.

De gateway helpt om transmissie van een elektrisch apparaat naar de cloud te realiseren, vooral in omgevingen waar andere soorten netwerken door technische beperkingen niet bruikbaar zijn.

Wat kun je met LoRa technologie doen? Wat biedt Elektor aan? Welke accessoires zijn er?

LoRa is een uitstekende keuze voor gebruik binnenshuis in een breed spectrum van toepassingen, waaronder smart cities, gebouwen, landbouw, meting, gezondheidszorg, en logistiek. Het is veilig, bidirectioneel, low-power, en heeft een groot bereik.

Accessoires helpen gebruikers hun IoT opstellingen te optimaliseren. Elektor biedt een ruime keuze aan componenten, waaronder gateways, RFID-lezers, IoT-shields, en verschillende soorten sensoren (bv. temperatuur, positie, en luchtvochtigheid) om aan de diverse behoeften van een groot aantal klanten te voldoen.

De toekomst van LoRa

LoRa zal de kosten helpen verlagen om IoT oplossingen te maken en grootschalige IoT toepassingen mogelijk te maken. Verwacht wordt dat het een sleutelrol zal spelen als communicatienetwerk. We verwachten bijvoorbeeld dat het gebruikt zal worden voor een breed scala van toepassingen, zoals talloze slimme verlichtingssystemen, het volgen van het gebruik van waterkracht, en industriële gegevensbewaking en -analyse.
