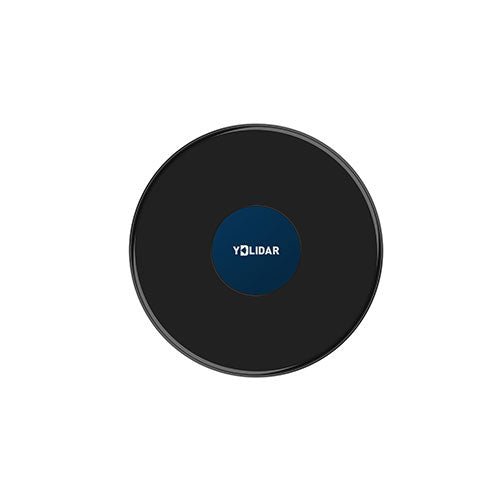

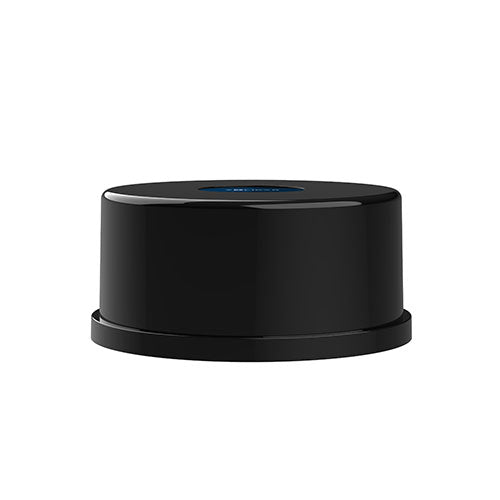

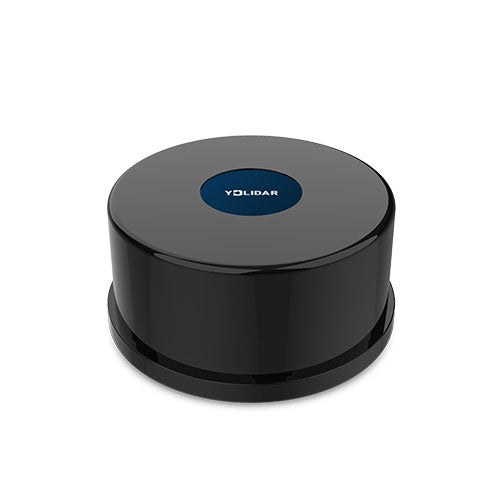

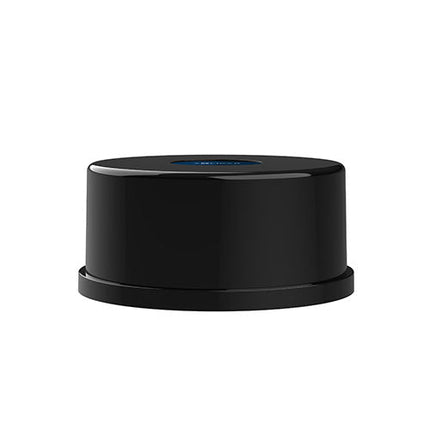

YDLIDAR TG30 Lidar - 360-degree Laser Range Scanner (30 m)

  • BrandYDLIDAR

Description

YDLIDAR TG30 is a 360 degrees 2D LiDAR. Based on the principle of ToF, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously obtain the angle information and output the point cloud data of the scanning environment while ranging.

Features

  • IP65 protection level
  • 360 degrees omnidirectional scanning and 5-12 Hz frequency
  • Ranging frequency up to 20 kHz
  • High accuracy, stable performance
  • Strong resistance to ambient light interference
  • Class I eye safety

Specifications

Range Frequency 20000 Hz
Scan Frequency 5-12 Hz
Range Distance 0.05-30 m
Scan Angle 360°
Angle resolution 0.09°-0.22°
Size Φ 75.8 x 34.7 mm

Applications

  • Robot navigation and obstacle avoidance
  • Industrial automation
  • Regional security
  • Smart transportation
  • Environmental scanning and 3D reconstruction
  • Digital multimedia interaction
  • Robot ROS teaching and research

Downloads


Product form

YDLIDAR TG30 is a 360 degrees 2D LiDAR. Based on the principle of ToF, it is equipped with related optics,... Read more

€ 449,00 incl. VAT
Members € 404,10

      Details

      SKU: 20211
      EAN: 020211

      Description

      YDLIDAR TG30 is a 360 degrees 2D LiDAR. Based on the principle of ToF, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously obtain the angle information and output the point cloud data of the scanning environment while ranging.

      Features

      • IP65 protection level
      • 360 degrees omnidirectional scanning and 5-12 Hz frequency
      • Ranging frequency up to 20 kHz
      • High accuracy, stable performance
      • Strong resistance to ambient light interference
      • Class I eye safety

      Specifications

      Range Frequency 20000 Hz
      Scan Frequency 5-12 Hz
      Range Distance 0.05-30 m
      Scan Angle 360°
      Angle resolution 0.09°-0.22°
      Size Φ 75.8 x 34.7 mm

      Applications

      • Robot navigation and obstacle avoidance
      • Industrial automation
      • Regional security
      • Smart transportation
      • Environmental scanning and 3D reconstruction
      • Digital multimedia interaction
      • Robot ROS teaching and research

      Downloads
