The TOPDON TC004 Lite thermal imaging camera combines simplicity with advanced features, making it ideal for both hobbyists and professionals. With a 160 x 120 pixel resolution, 1x/2x/4x zoom, and a wide 40° x 30° field of view, it delivers sharp and accurate thermal images. It operates across a broad temperature range (−20°C to +550°C), making it suitable for various industries like HVAC, electrical, and automotive diagnostics. Its lightweight design, 2.8” display, and 15-hour battery life ensure portability and uninterrupted use, providing a powerful tool for thorough thermal analysis. Features Wide Temp Ranging from −20°C to +550°C (−4°F to +1022°F) IR Photography 5 Color Palettes for More Possibilities Tripod Mountable for a Stable View High and Low Temperature Alarm Monitor Temperature Change with Waveform Graphs Long-lasting 15 Hour Battery Life Specifications TC004 TC004 SE TC004 Lite Display 2.8" Color TFT (320 x 240 Pixels) 2.8" Color TFT (320 x 240 Pixels) 2.8" Color TFT (320 x 240 Pixels) IR light resolution 256 x 192 Pixels 256 x 192 Pixels 160 x 120 Pixels Spectral range 8~14 μm 8~14 μm 8~14 μm FOV 52.5° x 39.5° 56° x 42° 40° x 30° Storage 2 GB RAM + 16 GB TF card 32 GB Built-in 512 MB Built-in Measuring range −20~350°C (−4~662°F) −20~550°C (−4~1022°F) −20~550°C (−4~1022°F) Temperature resolution 0.1°C (0.18°F) 0.1°C (0.18°F) 0.1°C (0.18°F) Measuring modes Center spot/hot spot/cold spot Center spot/hot spot/cold spot Center spot/hot spot/cold spot Measuring accuracy ±2°C or ±2% ±2°C or ±2% ±2°C or ±2% Frame rate 25 Hz 25 Hz 25 Hz Focal length 3.2 mm (0.12") 3.2 mm (0.12") 2.6 mm (0.1") NETD <40 mK <40 mK <40 mK Magnification 1x/2x/4x (digital zoom) 1x/2x/4x (digital zoom) 1x/2x/4x (digital zoom) Tripod screw hole Yes Yes Yes High/Low temperature alarm Yes Yes Yes LED flashlight Yes Yes No Video recording Yes Yes No Auto shutdown 5 min, 10 min, 20 min, OFF 5 min, 10 min, 20 min, OFF 5 min, 10 min, 20 min, OFF Battery Built-in 5000 mAh battery Built-in 5300 mAh battery Built-in 2900 mAh battery Charging time 4 h 4 h 4 h Standby time 12 h 16 h (High Brightness)21 h (Low Brightness) 15 h Operating system Standalone use/Windows devices Standalone use/Windows devices Standalone use PC-based analysis Supports image analysis with PC Yes No Dimensions 240 x 70 x 90 mm 240 x 70 x 90 mm 240 x 70 x 90 mm Weight 520 g 520 g 520 g Included 1x TOPDON TC004 Lite Thermal Imaging Camera 1x USB Power Supply 4x Plugs (EU, UK, US, and AU) 1x USB Cable 1x Storage Bag 1x Manual Downloads Datasheet Manual

Read more less

This is a simple DIY kit using Makerfabs' ESP32-S3 3.5" Parallel TFT with Touch (320x480) and Mabee MLX90640 module to monitor the temperature and display on the screen or save to SD card. It is a nice tool for circuit testing and non-contact temperature sensing. Features Based on ESP32-S3, 3.5-inch TFT with capacitive touch Auto check the highest temperature point Temperature accuracy: <1°C Suitable for applications such as human temperature checking or electronic boards debugging All hardware & software are open, users can modify & add more functions, such WiFi/Bluetooth data transmitting Downloads Default firmware New remote monitoring firmware Blog

Read more less

The TOPDON TC004 SE is a reliable thermal camera designed for locating and tackling industrial, electrical, building, HVAC, and automotive problems with confidence. With an impressive battery life of up to 21 hours (at low brightness), it ensures all-day use. Its video recording capability allows you to monitor maintenance history and reassure customers that systems are functioning safely. The TC004 SE enhances your diagnostic capabilities, excelling in pinpointing and resolving issues across multiple industries, including industrial, electrical, building, HVAC, and automotive. Features 21-hour runtime for reliable all-day use (at low brightness) Supports video recording for later review Store up to 160,000 images with built-in 32 GB storage Professional PC software for expanded display and thermal data analysis Switch between 1x, 2x, and 4x digital zoom to capture every detail Detailed & smooth images with 256 x 192 IR resolution and 25 Hz refresh rate Mount on a tripod for steady monitoring Two built-in LED lights for inspecting hard-to-reach areas Specifications TC004 TC004 SE TC004 Lite Display 2.8" Color TFT (320 x 240 Pixels) 2.8" Color TFT (320 x 240 Pixels) 2.8" Color TFT (320 x 240 Pixels) IR light resolution 256 x 192 Pixels 256 x 192 Pixels 160 x 120 Pixels Spectral range 8~14 μm 8~14 μm 8~14 μm FOV 52.5° x 39.5° 56° x 42° 40° x 30° Storage 2 GB RAM + 16 GB TF card 32 GB Built-in 512 MB Built-in Measuring range −20~350°C (−4~662°F) −20~550°C (−4~1022°F) −20~550°C (−4~1022°F) Temperature resolution 0.1°C (0.18°F) 0.1°C (0.18°F) 0.1°C (0.18°F) Measuring modes Center spot/hot spot/cold spot Center spot/hot spot/cold spot Center spot/hot spot/cold spot Measuring accuracy ±2°C or ±2% ±2°C or ±2% ±2°C or ±2% Frame rate 25 Hz 25 Hz 25 Hz Focal length 3.2 mm (0.12") 3.2 mm (0.12") 2.6 mm (0.1") NETD <40 mK <40 mK <40 mK Magnification 1x/2x/4x (digital zoom) 1x/2x/4x (digital zoom) 1x/2x/4x (digital zoom) Tripod screw hole Yes Yes Yes High/Low temperature alarm Yes Yes Yes LED flashlight Yes Yes No Video recording Yes Yes No Auto shutdown 5 min, 10 min, 20 min, OFF 5 min, 10 min, 20 min, OFF 5 min, 10 min, 20 min, OFF Battery Built-in 5000 mAh battery Built-in 5300 mAh battery Built-in 2900 mAh battery Charging time 4 h 4 h 4 h Standby time 12 h 16 h (High Brightness)21 h (Low Brightness) 15 h Operating system Standalone use/Windows devices Standalone use/Windows devices Standalone use PC-based analysis Supports image analysis with PC Yes No Dimensions 240 x 70 x 90 mm 240 x 70 x 90 mm 240 x 70 x 90 mm Weight 520 g 520 g 520 g Included 1x TOPDON TC004 SE Thermal Imaging Camera 1x USB Power Supply 4x Plugs (EU, UK, US, and AU) 1x USB Cable 1x Storage Bag 1x Manual Downloads Manual PC Software (Windows)

Read more less

The TC001 is a portable camera that transforms your Android smartphone/tablet or Windows laptop into a powerful thermal imager. Simply download the accompanying app, connect the TC001 to your device’s USB-C port, and access thermal technology once exclusive to specialists. Ideal for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers seeking to protect crops and livestock, the TC001 is perfect for professionals across various fields. Specifications Resolution 256 x 192 pixels Pixel Size 12 μm Spectral Range 8~14 μm Focal Length 3.2 mm Temperature Range −20°C to 550°C (−4°F to 1022°F) Temperature Accuracy ±2°C or ±2% Temperature Resolution 0.1°C Frame Rate 25 Hz NETD <40 mK Field of View 56° x 42° Color Palettes 10 Colors High/Low Temperature Alarm Yes Compatible Systems Android/Windows Devices with USB-C Dimensions 71 x 42 x 14 mm Weight 30 g Included TC001 Thermal Imaging Camera Multifunctional Adapter Cable (50 cm) Carrying Bag Cleaning Cloth Manual Downloads Manual Datasheet Android App Windows App

Read more less

The TC002C offers exceptional precision in temperature detection, insulation inspection, and circuit board analysis, making it your reliable companion for a wide range of applications. With an impressive resolution of 256 x 192, it captures thermal imagery with unparalleled clarity and detail. Its energy-efficient design, consuming only 0.35 W, ensures prolonged usage without the inconvenience of frequent recharging. Featuring a remarkable heat sensitivity of 40 mK, the TC002C swiftly identifies concealed anomalies, empowering users with rapid troubleshooting capabilities. Ideal for a multitude of tasks, the TC002C excels in diverse applications such as home inspections, HVAC diagnostics, water leak detection, electrical maintenance, automotive repairs, and more. Specifications Resolution 256 x 192 pixels Pixel Size 12 μm Spectral Range 8~14 μm Focal Length 3.2 mm Temperature Range −20°C to 550°C (−4°F to 1022°F) Temperature Accuracy ±2°C or ±2% Temperature Resolution 0.1°C Frame Rate 25 Hz NETD <40 mK Field of View 56° x 42° Color Palettes 10 Colors High/Low Temperature Alarm Yes Compatible Systems iOS Devices with USB-C Dimensions 71 x 42 x 14 mm Weight 30 g Included TC002C Thermal Imaging Camera USB-C Extension Cable (50 cm) USB-C to Lightning Cable Cleaning Cloth EVA Carrying Bag Manual Downloads iOS App

Read more less

The FR01D (2-in-1) thermal imaging camera and multimeter is a compact and lightweight solution that simplifies diagnostic and maintenance tasks. The one-click function allows you to switch effortlessly between thermal imaging and multimeter mode, giving you two important tools in one portable device. The multimeter is capable of measuring DC and AC voltage, resistance, diode checks, continuity testing, and capacitance. The FR01D has a 2.8-inch touchscreen with a resolution of 320 x 480 pixels. The device is powered by an integrated rechargeable lithium battery and can be charged via USB. With the FR01D, you can inspect and maintain circuit boards, check power supplies, repair electronic devices, and overhaul household appliances. Its compact size, multifunctionality, and user-friendliness make the FR01D the ideal companion for electronics and maintenance technicians. General Specifications Display size 2.8" (320 x 480) Touchscreen Resistive Data transmission USB-C Image storage format BMP Battery Li-ion battery Storage temperature −20°C～60°C（−4°F～140°F) Operating temperature 0°C～50°C（32°F～122°F) Operating humidity <85% RH Dimensions 134 x 69 x 25 mm Weight 130 g Thermal Imaging Specifications Sensor Vanadium oxide (VOx) Image capture frequency 25 Hz Thermal imaging pixels 192 x 192 Field of View (FOV) 50.0°(H) x 50°(V) / 72.1°(D) Temperature range −20°C ~ +550°C (−4°F～1022°F) Gain mode Auto Accuracy ±2°C or ±2% Measurement resolution 0.1°C / 0.1°F Multimeter Specifications DC input voltage (max.) 1000 V AC input voltage (max.) 750 V Resistance (max.) 99.99 MΩ Capacitance (max.) 99.99 mF Duty cycle test range 0.1% ~ 99.9% Diode test range 0 V ~ 3 V Continuity test 999.9 Ω Display 9999 counts (Refreshes 3x per second) Accuracy Function Range Resolution Accuracy AC Voltage 400 mV 0.1 mV 2% +3 9.999 V 0.001 V 1.0% +3 99.99 V 0.01 V 999.9 V 0.1V DC Voltage 400 mV 0.1 mV 2% +3 9.999 V 0.001 V 1.0% +3 99.99 V 0.01 V 999.9 V 0.1 V Resistance 999.9 Ω 0.1 Ω 0.5% +3 9.999 KΩ 0.001 kΩ 99.99 KΩ 0.01 kΩ 999.9 KΩ 0.1 kΩ 9.999 MΩ 0.001 MΩ 99.99 MΩ 0.01 MΩ 1.5% +3 Diode Test 3.000 V 0.001 V 10% Capacitance 9.999 nF 0.001 nF 2% +5 99.99 nF 0.01 nF 999.9 nF 0.1 nF 9.999 uF 0.001 uF 99.99 uF 0.01 uF 999.9 uF 0.1 uF 9.999 mF 0.001 mF 5% +5 99.99 mF 0.01 mF Included 1x FR01D IR-Camera and Multimeter 2x Test Leads 1x USB Cable 1x Manual

Read more less

The TOPDON TC004 Thermal Imaging Camera offers a wide temperature range from -20°C to 350°C (-4°F to +662°F) with a 12-hour battery life. It features a high-resolution 256 x 192 pixel infrared camera, ensuring clear, detailed images. With a thermal sensitivity of 0.05°C, it can detect subtle temperature changes. The camera automatically detects center, hot, and cold spots, enhancing visual temperature analysis. Its wide 56° field of view captures more in a single shot without needing focal adjustments. The TC004 offers precise measurements with ±2°C accuracy, a NETD of less than 40 mK, and a resolution down to 0.1°C. It supports both standalone and PC modes, allowing users to upload and project images for easy analysis. The built-in LED light enables usage in low-light conditions, and the professional software simplifies data sharing. Features Wide Temp Ranging from −20°C to 350°C (−4°F to 662°F) Real-time Photo and Video Recording 5 Color Palettes for More Possibilities Tripod Mountable for a Stable View High and Low Temperature Alarm Monitor Temperature Change with Waveform Graphs Long-lasting 12 Hour Battery Life PC Image Analysis and Instant Projection Built-in LED Light Specifications TC004 TC004 SE TC004 Lite Display 2.8" Color TFT (320 x 240 Pixels) 2.8" Color TFT (320 x 240 Pixels) 2.8" Color TFT (320 x 240 Pixels) IR light resolution 256 x 192 Pixels 256 x 192 Pixels 160 x 120 Pixels Spectral range 8~14 μm 8~14 μm 8~14 μm FOV 52.5° x 39.5° 56° x 42° 40° x 30° Storage 2 GB RAM + 16 GB TF card 32 GB Built-in 512 MB Built-in Measuring range −20~350°C (−4~662°F) −20~550°C (−4~1022°F) −20~550°C (−4~1022°F) Temperature resolution 0.1°C (0.18°F) 0.1°C (0.18°F) 0.1°C (0.18°F) Measuring modes Center spot/hot spot/cold spot Center spot/hot spot/cold spot Center spot/hot spot/cold spot Measuring accuracy ±2°C or ±2% ±2°C or ±2% ±2°C or ±2% Frame rate 25 Hz 25 Hz 25 Hz Focal length 3.2 mm (0.12") 3.2 mm (0.12") 2.6 mm (0.1") NETD <40 mK <40 mK <40 mK Magnification 1x/2x/4x (digital zoom) 1x/2x/4x (digital zoom) 1x/2x/4x (digital zoom) Tripod screw hole Yes Yes Yes High/Low temperature alarm Yes Yes Yes LED flashlight Yes Yes No Video recording Yes Yes No Auto shutdown 5 min, 10 min, 20 min, OFF 5 min, 10 min, 20 min, OFF 5 min, 10 min, 20 min, OFF Battery Built-in 5000 mAh battery Built-in 5300 mAh battery Built-in 2900 mAh battery Charging time 4 h 4 h 4 h Standby time 12 h 16 h (High Brightness)21 h (Low Brightness) 15 h Operating system Standalone use/Windows devices Standalone use/Windows devices Standalone use PC-based analysis Supports image analysis with PC Yes No Dimensions 240 x 70 x 90 mm 240 x 70 x 90 mm 240 x 70 x 90 mm Weight 520 g 520 g 520 g Included 1x TOPDON TC004 Thermal Imaging Camera 1x USB Power Supply 4x Plugs (EU, UK, US, and AU) 1x USB Cable 1x Storage Bag 1x Manual Downloads Datasheet Manual

Read more less

This is a long-wave IR thermal imaging camera that adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR1 distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications. Features Adopts the hybrid technology of microbolometer and thermopile, 80x62 array pixels Continuous operation and thermal imaging video stream due to shutterless design Noise Equivalent Temperature Difference (NETD) 150mK RMS@1 Hz refresh rate Up to 25 fps (Max) thermal imaging video stream output Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.) Applications High precision long-term non-contact temperature online monitoring IR thermal imaging devices, IR thermometers Smart home, intelligent building, intelligent lighting Industrial temperature control, security & safety, intrude/motion detection Small Target Thermal Analysis, Heat Trend Analysis and Solutions Specifications Power supply 5 V Operating current 61 mA@5 V Wavelength range 8~14 μm Operating temperature -20~85°C Target temperature -20~400°C Refresh rate 25 fps (Max) FOV 45° x 45° (H x V) Noise equivalentTemperature diffenerence 150 mK Measuring accuracy ±2°C (ambient temp. 10~70°C) Dimensions 65.0 x 30.5 mm Included 1x Thermal Camera HAT 1x 40-pin female header 1x FPC 15-pin cable 0.3 mm pitch (100 mm) 1x Screws pack Downloads Wiki

Read more less

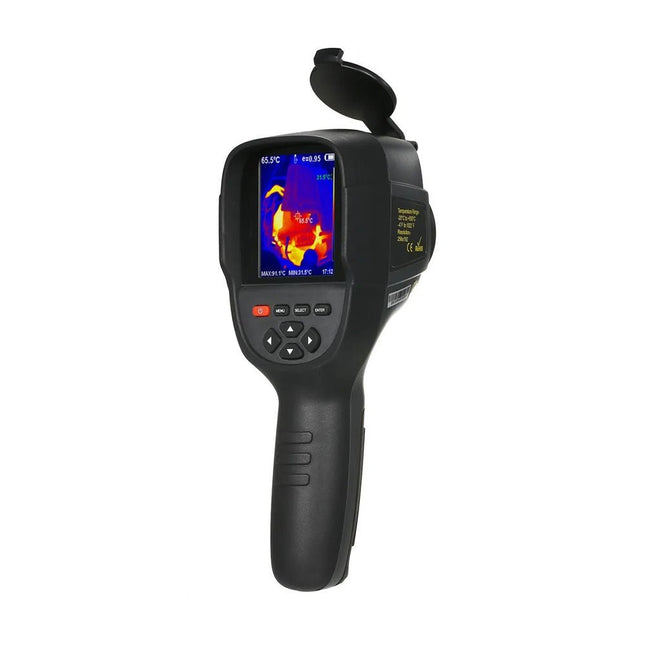

The Hti HT-18+ is a professional thermal imaging camera designed for precise temperature measurements and real-time thermal imaging. It has an impressive infrared resolution of 256 x 192 pixels at a frame rate of 25 Hz, resulting in clear and detailed thermal images. The temperature measurement range extends from −20°C to +550°C, with a measurement accuracy of ±2°C or ±2%. The camera is equipped with a 3.2-inch color display for easy viewing of thermal images. It offers five different color palettes – rainbow, iron red, cold color, black and white and white and black – to adapt the display to different requirements. It also has a built-in memory of 4 GB for storing images and videos in JPG or MP4 format, which can be transferred to a computer via a USB connection. Specifications Infrared resolution 256 x 192 Infrared response band 8 to 14 μm Cell size 12 μm NETD ≤50 mK @ 25°C, @F/1.1 Lens focal length 3.2 mm IFOV 3.75 mrad Field angle 56° x 42° Focus mode Free focus Temperature measurement range −20°C~550°C (−4~1022°F) Measurement accuracy −15°C to 550°C (±2°C or ±2%)−20°C to −15°C (±4°C) Temperature measurement resolution 0.1°C Temperature measurement mode Center point/hot and cold spot tracking Color palette Rainbow, iron oxide red, cold color, black & white, white & black Emissivity setting Adjustable from 0.01 to 1.00 Thermal imaging frame rate ≤25 Hz Visible light resolution 640 x 480 Display size 3.2-inch (240 x 320) Image display mode Infrared/visible light/dual light fusion Device storage Built-in 4 GB eMMC (user available storage space is about 3 GB Storage Image/Video Format JPG/MP4 Image/video export method USB connection to computer export Image analysis function Support offline analysis on PC Battery Type Dedicated removable rechargeable Lithium battery Battery capacity 2200 mAh Working time 2 to 3 hours Power interface Micro USB Power configuration 5 minutes, 20 minutes, no automatic shutdown Working temperature −10°C to +50°C Relative humidity 10% to 85% RH (non-condensing) Menu languages English, German, Italian, Chinese Dimensions 90 x 105 x 223 mm Weight 389 g Included 1x Hti HT-18+ Thermal Imaging Camera 1x USB cable 1x Manual Downloads Manual

Read more less

The PeakTech 5620 is a professional thermal imaging camera with a high thermal resolution of 384x288 thermal image points and a variety of excellent features for work in building thermography or industrial use. In addition to the pure thermal image display, this new development also offers a PIP (picture-in-picture) display, a real image camera or a fusion function in which the contours of the real image recording are combined with the thermal image in order to ensure an even better display. All of the image modes mentioned can also be used for video recording, which also enables audio recordings for the respective video. The many functions are controlled via push buttons on the device, but also via the touch screen function of the color TFT display. All thermal images can be opened and evaluated using the enclosed software, with subsequent changes, e.g. can be done on the pallet selection. Features Professional thermal imaging technology 3.5" touchscreen and graphic menu navigation Thermal image resolution of 384x288 pixels High temperature measuring range up to +550°C High quality thermal image sensor with high temperature sensitivity Fast thermal imaging with 25 Hz Seven color palettes (Iron, Rainbow, White, Black ...) Photo and video recordings with audio commentary WiFi, USB and Bluetooth interfaces IP 54 protected against dust and splash water Accessories: Hard case, 2x Li-Po battery, charger, carrying strap, connection cable, software and instructions Specifications Thermal Resolution 384 x 288 Pixel Temperature Range -20°C … 550°C (-4°F … 1022°F), 0,1° Resolution Accuracy ±2% (±2°C) Display 3.5" Touchscreen TFT Thermal Sensivity <40 mK Field of View (FOV) 37,2°x 28,5° Pixel Pitch 17 µm IFOV 1.7 mrad Wave Length 8 ... 14 µm Emissivity 0.01~1.0 Image Frequency 25 Hz Storage Micro SD (64 GB) Data Interface USB, WiFi, Bluetooth Operation voltage 5000 mAh / 3.7 V Li-Ion Dimensions 100 x 244 x 104 mm Weight approx. 660 g
