Seeed Studio Grove PIR Motion Sensor

  • BrandSeeed Studio

Description

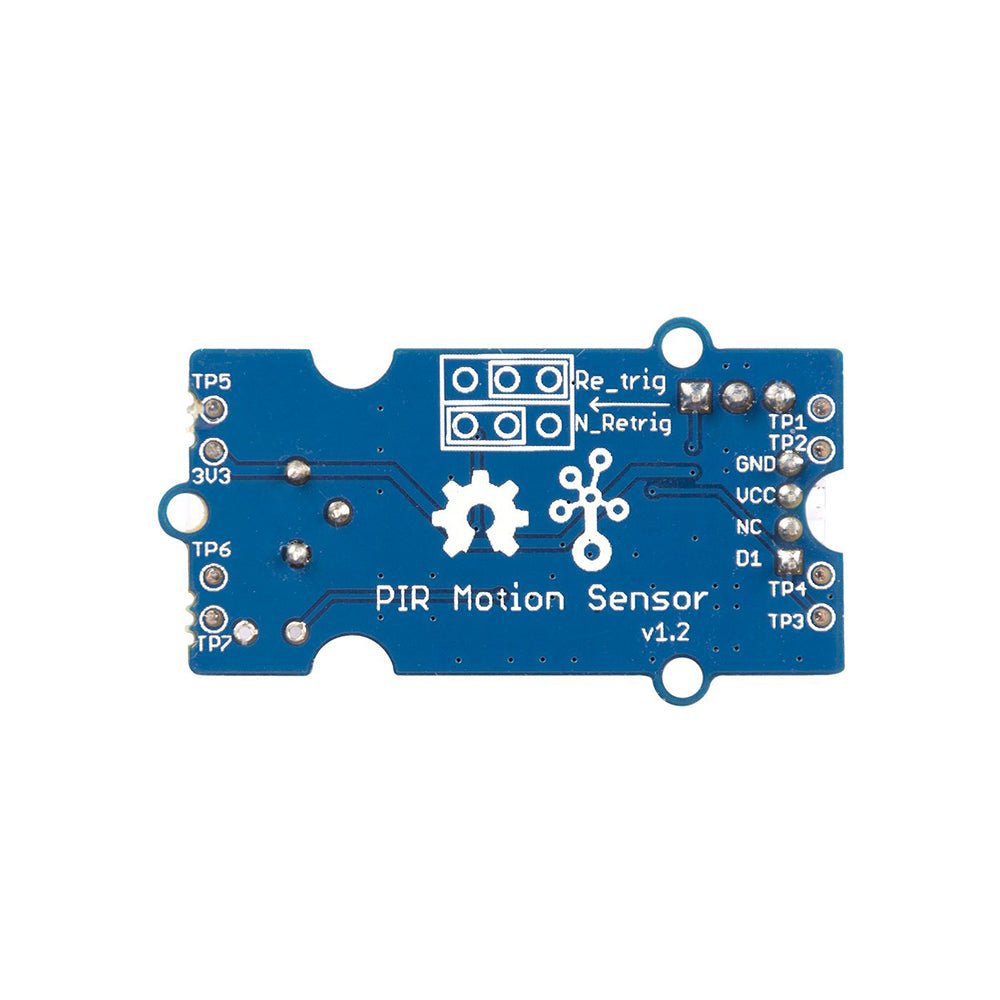

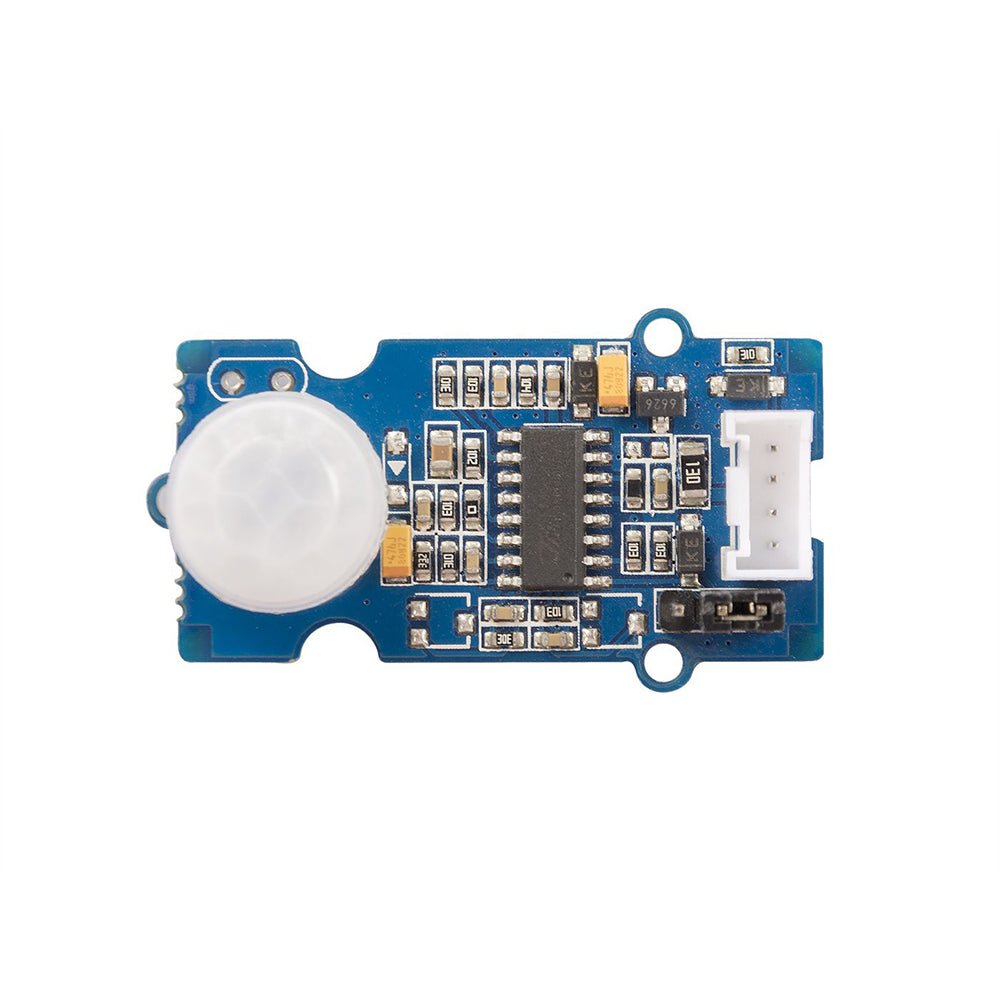

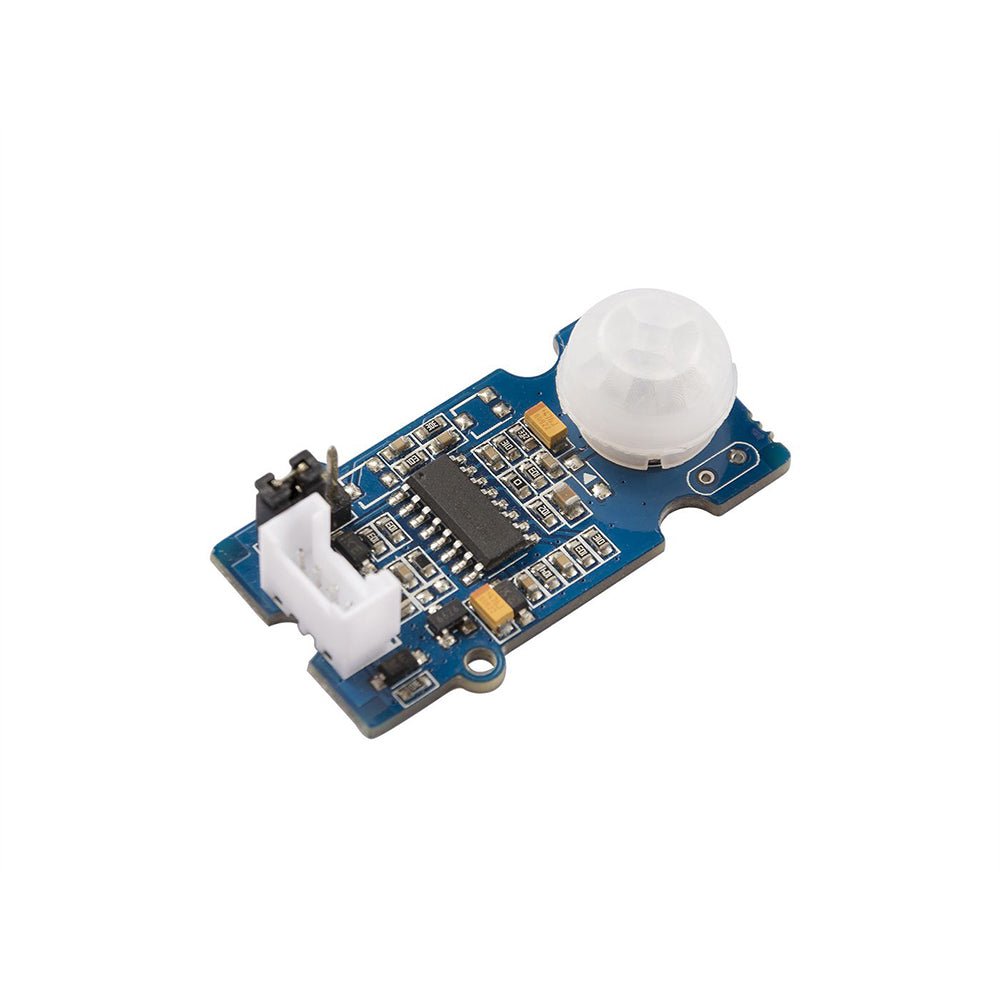

This Grove - PIR Motion Sensor(Passive Infrared Sensor) can detect infrared signals caused by motion. If the PIR sensor notices the infrared energy, the motion detector is triggered and the sensor outputs HIGH on its SIG pin. The detecting range and response speed can be adjusted by 2 potentiometers soldered on its circuit board, The response speed is from 0.3s - 25s, and max 6 meters of detecting range.

The Grove - PIR Motion Sensor(Passive Infrared Sensor) is an easy-to-use motion sensor with Grove compatible interface. Simply connecting it to Base Shield and programming it, it can be used as a suitable motion detector for Arduino projects. For example, the PIR Motion Sensor is commonly used in security alarm systems and automatic lighting applications.

Features

  • Grove compatible interface
  • Voltage range: 3 V – 5 V
  • Size: 20 mm x 40 mm
  • Detecting angle: 120 degree
  • Detecting Max distance: 6m (3m by default)
  • Adjustable detecting distance and holding time

Applications

  • Motion Sensor
  • Motion Detector
  • Security Alarm System
  • Human Detection System

Technical Specifications

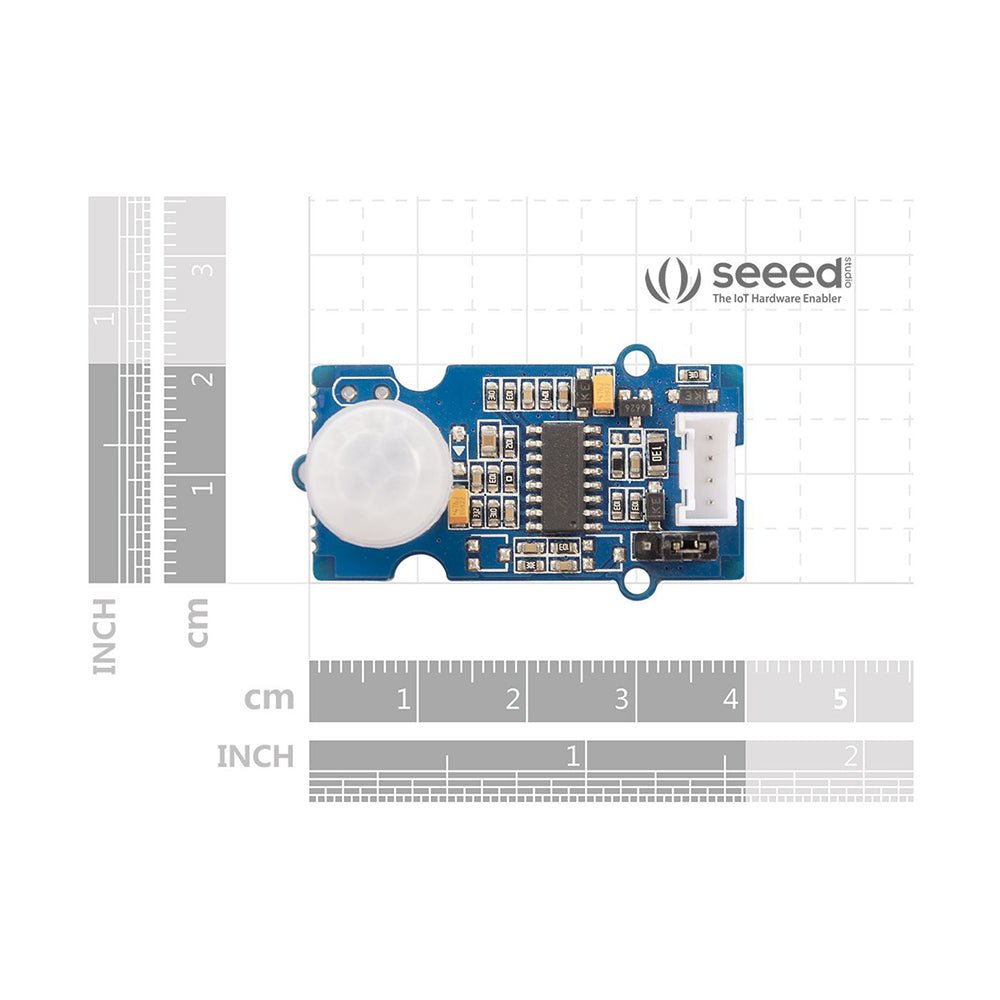

Dimensions 40 mm x 20 mm x 15 mm
Weight 12 g
Battery Exclude
Voltage range 3 V – 5 V
Detecting angle 120 degree
Detecting distance max 6m (3m by default)
Product form

This Grove - PIR Motion Sensor(Passive Infrared Sensor) can detect infrared signals caused by motion. If the PIR sensor notices... Read more

€ 12,95 incl. VAT
Members € 11,66

      Details

      SKU: 20028
      EAN: 101020020

      Description

      This Grove - PIR Motion Sensor(Passive Infrared Sensor) can detect infrared signals caused by motion. If the PIR sensor notices the infrared energy, the motion detector is triggered and the sensor outputs HIGH on its SIG pin. The detecting range and response speed can be adjusted by 2 potentiometers soldered on its circuit board, The response speed is from 0.3s - 25s, and max 6 meters of detecting range.

      The Grove - PIR Motion Sensor(Passive Infrared Sensor) is an easy-to-use motion sensor with Grove compatible interface. Simply connecting it to Base Shield and programming it, it can be used as a suitable motion detector for Arduino projects. For example, the PIR Motion Sensor is commonly used in security alarm systems and automatic lighting applications.

      Features

      • Grove compatible interface
      • Voltage range: 3 V – 5 V
      • Size: 20 mm x 40 mm
      • Detecting angle: 120 degree
      • Detecting Max distance: 6m (3m by default)
      • Adjustable detecting distance and holding time

      Applications

      • Motion Sensor
      • Motion Detector
      • Security Alarm System
      • Human Detection System

      Technical Specifications

      Dimensions 40 mm x 20 mm x 15 mm
      Weight 12 g
      Battery Exclude
      Voltage range 3 V – 5 V
      Detecting angle 120 degree
      Detecting distance max 6m (3m by default)
