Multimeters

33 products

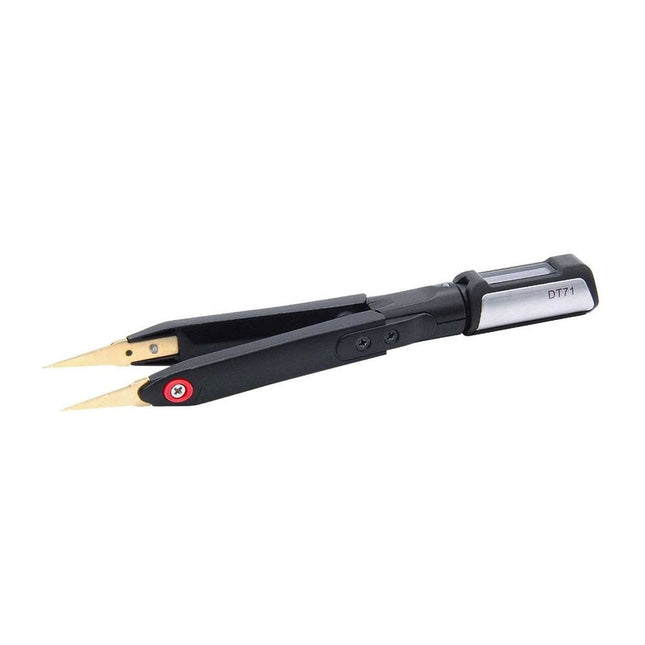

  • Miniware DT71 Mini Digital Tweezers - Elektor

    Miniware Miniware DT71 Mini Digital Tweezers

    LCR/ESR Meter, Multimeter, SMD Tester with built-in Micro Signal Generator The Miniware DT71 digital tweezers are a truly 'smart' buy for pro engineers and makers alike. The compact DT71 has a unique trinary structure which can be separated into the controller, testing arms, and tweezer tips. You can use the DT71 to take measurements and to automatically identify SMD components such as resistors, capacitors, and diodes. Highlights DT71 Mini Digital Tweezers is a tool for multi-function measurements with full differential input measurement. DT71 has a unique trinary structure, which can be separated into the controller, testing arms, and tweezer tips, flexible to be replaced and combined. It is compact and pocket-size for easy carrying. You can use it in laboratories, workbenches, warehouses, and in the field. It also has dual built-in rechargeable lithium batteries that can last 10 hours at a stretch with a single full charge that takes about 2 hours to charge. DT71 Mini Digital Tweezers have an OLED screen on the 360° rotatable controller, providing visibility at all angles. Smart gesture recognition will automatically identify left/right-hand operation and adjust screen display. It has various measurement types to fulfill all your needs. The test arms of DT71 Mini Digital Tweezers use magnetic elasticity to provide an easy clipping, ergonomic, and long-lasting structure. DT71 Mini Digital Tweezers features a pair of beautiful intensified gold-plated interchangeable tweezer tips, which enables higher measuring accuracy. DT71 Mini Digital Tweezers have manual and automatic Identification modes. In auto mode, DT71 can automatically identify SMDs including resistor, capacitor, inductor, and diode, showing both main and secondary parameters, very useful in fast distinguishing different components. Meanwhile, a built-in miniature waveform signal generator can output a variety of waveform signals. DT71 provides a perfect solution for debugging and maintenance of complex electronic systems and the classification and detection of discrete chip components. Different from other LCR testers, DT71 Mini Digital Tweezers have no physical buttons, instead, it has a hidden touch button on top of the controller, which makes it easy to operate with only a light touch. DT71 Mini Digital Tweezers has intelligent functions such as Automatic identification, Automatic shutdown, and also the firmware can be upgraded. Features Innovative trinary structure: separated into the controller, testing arms, and tweezer tips, which are flexible to be replaced and combined. 360° rotatable controller with OLED screen, with good viewing angles. Smart gesture recognition with automatic identification of left/right-hand operation and adjusting the screen orientation accordingly. Hidden touch button on top of the controller, which makes it easy to operate with only a light touch. Test arms use magnetic elasticity to provide an easy clipping, ergonomic, and long-lasting structure. Built-in dual lithium batteries in test arms, balancing both arms and providing a longer standby time. Several kinds of gold-plated interchangeable tweezer tips, enabling higher measurement accuracy in various usages. Automatically identify SMDs including resistor, capacitor, inductor, and diode, showing both main and secondary parameters. A built-in signal generator can output a variety of waveform signals. Specifications Product Specifications Operation time 10 hrs (in continuous operation) Charging time 2 hrs Display 96 x 16 OLED Size Controller 47 mm Test Arms 106 mm Weight 22 g Operation Hidden touch button Measurement Specifications Range Resolution Accuracy Resistance 0.1 Ω~1 KΩ 0.1 Ω 0.5%+2 1 KΩ~2000 KΩ 1 KΩ 0.5%+2 Capacitance 0.1 pF~1000 pF 0.1 pF 2%+3 0.001uF~400 uF 0.001 uF 2%+3 Inductance 1 uH~1000 uH 1 uH 5%+3 1 mH~50 mH 1 mH 5%+3 Voltage 1 mV~100 mV 1 mV 2%+5 0.1 V~40 V 0.1 V 1%+3 Frequency 10 Hz~1 KHz 10 Hz 0.1%+3 1 KHz~20000 KHz 1 KHz 0.1%+3 Diode Silicon diodes, Schottky diodes, LEDs (+0.1~3V) 0.1 V 1% Max input voltage -5 V~+50 V Source Impedance 1 MΩ Functions Automatic Identification Yes Designated Measurements Yes Continuity and Diode testing Yes Signal Generator SINE 10 KHz, 5 KHz, 2 KHz, 1 Khz, 500 Hz, 200 Hz NOISE 100 KHz USER 10 KHz, 5 KHz, 2 KHz, 1 Khz, 500 Hz, 200 Hz PULSE 100 KHz, 0 KHz, 20 Khz, 10 KHz, 5 KHz, 2 KHz, 1 Khz, 500 Hz, 200 Hz Included 1x DT71 Digital Tweezers 1x Test Arms 2x Tweezer Tips 1x Data Cable 1x Carrying Case 1x Safety Instructions Downloads Manual Firmware v1.15 Calibration v2.0

    € 109,95

    Members € 98,96

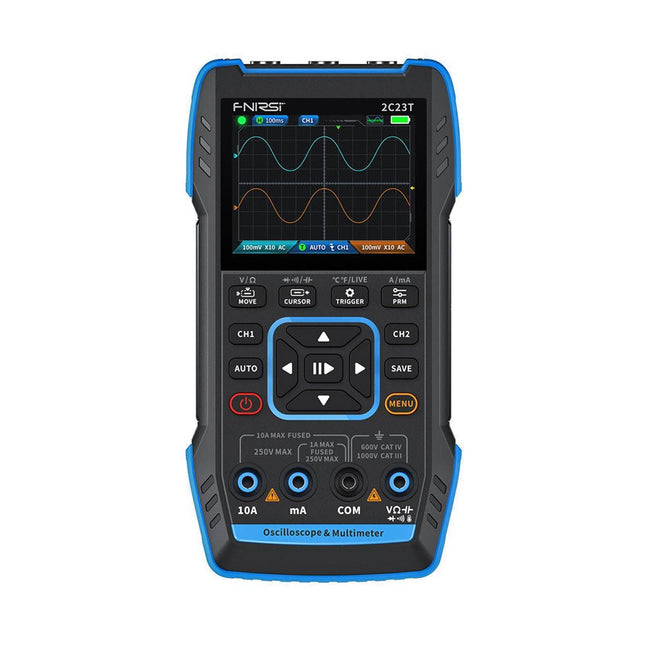

  •  -26% FNIRSI 2C23T (3 - in - 1) 2 - ch Oscilloscope (10 MHz) + Multimeter + Signal Generator - Elektor

    FNIRSI FNIRSI 2C23T (3-in-1) 2-ch Oscilloscope (10 MHz) + Multimeter + Signal Generator

    Out of stock

    The FNIRSI 2C23T is a fully functional, highly practical 3-in-1 dual channel digital oscilloscope with a high resolution 2.8-inch LCD display (320 x 240 pixels) designed for the maintenance and development industry. This device is equipped with 3 main functions: oscilloscope, multimeter and signal generator. The oscilloscope has an FPGA+MCU+ADC hardware architecture with a sampling rate of 50 MS/s, an analog bandwidth of 10 MHz and a built-in high-voltage protection module that supports the measurement of peak voltages of ±400 V maximum. The multimeter has a 4-digit 10000-point RMS value and supports AC/DC voltage and current measurements, as well as capacitance, resistance, diode, on/off and other measurement functions. Equipped with a built-in DDS function signal generator, it can output 7 kinds of function signals, with a maximum output of 2 MHz for all signals and a step of 1 Hz; the output frequency, amplitude and duty cycle are adjustable. The built-in 3000 mAh rechargeable lithium battery achieves a standby time of up to 6 hours. Features 2-ch oscilloscope 10 MHz bandwidth 50 MS/s real-time sampling rate 7 signal waveforms 10000 counts 2.8' HD color display (320 x 240 pixels) Dimensions: 167 x 89 x 35 mm Weight: 300 g Specifications Oscilloscope Dual channel, 2x 10 MHz bandwidth, 50 MS/s real-time sampling rate Maximum measured voltage: ±400 V FPGA+ADC+MCU high-performance hardware architecture, capturing waveform details without loss Equipped with complete triggering functions (auto, single, normal) Equipped with efficient automatic adjustment, the measured waveform can be displayed without complicated adjustment Save waveform screenshots, supports exporting images to a computer, facilitate secondary waveform analysis Multimeter 4-bit integer 9999 counting True RMS measurement Identification of voltage, current, capacitance, resistance, diode, on/off, and zero live wire Maximum input voltage: AC 750 V, DC 1000 V Automatic range, intelligent anti burning Data retention, color screen digital display Signal Generator 7 signal waveforms: sine wave, square wave, triangular wave, full wave, half wave, noise wave, DC Output frequency: 1 Hz-2 MHz Output amplituade: 0.1-3.3 V Output duty cycle: 0-100% Included 1x FNIRSI 2C23T (3-in-1) 2-ch Oscilloscope 1x P6100 oscilloscope probes (10X) 1x Multimeter probe 1x Crocodile clip probe 1x USB-C charging cable 1x Original Manual by FNIRSI (English, German, Spanish, Portuguese, Russian, Chinese) 1x Elektor Manual (English, French, German, Dutch) Downloads Manual

    Out of stock

    € 94,95€ 69,95

    Members identical

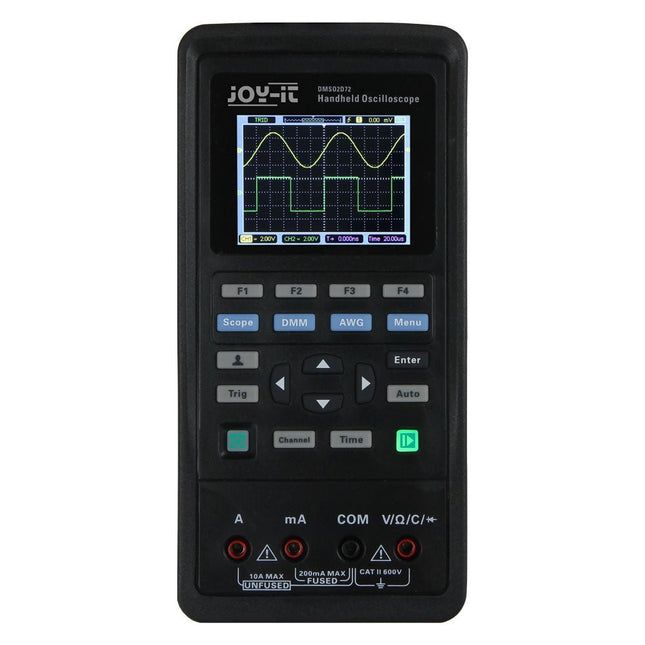

  •  -19% JOY - iT 3 - in - 1 Handheld Oscilloscope, Signal Generator and Multimeter (DMSO2D72) - Elektor

    JOY-iT JOY-iT (3-in-1) Handheld Oscilloscope, Signal Generator and Multimeter (DMSO2D72)

    The JOY-iT DMSO2D72 is your ideal companion for the workshop and outdoor use. It combines a 2-channel oscilloscope, a signal generator for any wave type as well as a multimeter with 6 different measurement types in one device and serves all functions you expect from individual devices. JOY-iT has placed particular emphasis on simple, clear and practical handling in order to make work as pleasant as possible for the user. For this the DMSOD72 is equipped with a 'one-button' auto measuring function and a 'one-button' page out. In addition, 2 signals can be compared directly on the 2.8' 65K colour LCD display. The power supply is provided by two 18650 lithium batteries, which are included in the scope of supply and allow a continuous operation of one day as well as a standby time of up to 8 weeks. Furthermore, operation via the USB-C interface is also possible, during which the batteries are charged simultaneously. In order to protect the device perfectly in 'outdoor use', the DMSO2D72 was equipped with a silicone sheath, which offers protection against shocks, dirt and heat. The extensive and very user-friendly software is available in English, German and French and can be switched easily on the device. You will also be impressed by the PC software, which provides you with a multitude of functions with very high ease of use. General Specifications Display type 2.8' 64K color TFT-LCD Display resolution 320 x 240 Display settings Adjustable background brightness, backlight duration, auto power off time Protective case Silicon cover, good impact resistance, outstanding heat resistance, easy to disassemble Special features Mobile use through battery operation, 3-in-1 device (oscilloscope, signal generator, multimeter), 3 languages (German, English, French) Assembly / Stand function 45° suspension bracket Interface USB Type C for power/data Rechargeable battery 2x 16850 Lithium Charging current 5 V / 2 A Battery life In use: A full dayIn standby: Up to 8 weeks PC software Windows 7 and higher Operating temperature 0-50°C Dimensions 199 x 98 x 40 mm Weight 624 g Oscilloscope Channels 2 + DMM + AWG Bandwidth 70 MHz Sampling Rate 250 MSa/s Single channel125 MSa/s Dual channel Vertical resolution 10 mV - 10 V Automatic measurement of Frequency and amplitude Manual cursor measurement Voltage and time Output impedance (DC) 25 pF ±3 pF; 1 MΩ ±2% Maximum input voltage 150 V RMS Signal Generator Sampling rate 250 MSa/s Vertical resolution 12 bits Waveforms Sine, square, triangle, trapezoid, and many more Sine 1 Hz - 25 MHz Square 1 Hz - 10 MHz Triangle 1 Hz - 1 MHz Trapezoid 1 Hz - 5 MHz Frequency resolution 1 Hz Output impedance 50 Ω Digital Multimeter 6 Multimeter measuring modes Voltage, current, resistance, capacity, diode, on-off Max. resolution 4000 Counts Ranges Voltage 0 µV - 600 V DC0 mV - 600 V AC, 40-400 Hz Current 0 µA - 10 A Resistance 0 mΩ - 40 MΩ Capacity 0 pF - 100 µF Diode 0-2 V On-off <50 Ω Included JOY-iT 3-in-1 Handheld DMSO2D72 2 rechargeable batteries (18650, 2600 mAh) Passive 80 MHz Probe + accessories 2x BNC to crocodile clip coaxial cable 2x DMM test lead USB to USB-C cable USB power supply (5 V, 2 A) Downloads Datasheet Manual PC Software 1.1.10 Flash Manual (28-07-2021) Flash Software Latest firmware version (13-01-2022)

    € 259,00€ 209,00

    Members identical

  • OWON XDM1141 Multimeter - Elektor

    OWON OWON XDM1141 True RMS Multimeter

    The OWON XDM1141 is a fast. high-precision digital True RMS benchtop multimeter with a high-resolution 3.5-inch LCD and 50.000 counts. Its DC voltage accuracy is up to 0.05% and it can measure up to 65 values per second. Features 3.5" high-resolution LCD (480x320 pixels) 55000 counts. DC voltage accuracy up to 0.05% Up to 65 readings per second Dual line display supported Trend analysis accessible in chart mode AC True RMS measurements (bandwidth: 20 Hz ? 1 kHz) SCPI support: Remote control the multimeter through PC software via USB port Data record function. you can record the measured data into internal memory. and then read and process the recorded data with your computer. Specifications Measurement Range Resolution Accuracy DC Voltage 50.000 mV 0.001 mV 0.1% +10 500.00 mV 0.01 mV 0.05% +5 5.0000 V 0.0001 V 0.05% +5 50.000 V 0.001 V 0.05% +5 500.00 V 0.01 V 0.1% +5 1000.0 V 0.1 V 0.1% +10 AC Voltage 500 mV?750 V 20 Hz?45 Hz 1% +30 45 Hz?65 Hz 0.5% +30 65 Hz?1 KHz 0.7% +30 DC Current 500 uA 0.01 uA 0.15% +20 5000 uA 0.1 uA 0.15% +10 50 mA 0.001 mA 0.15% +20 500 mA 0.01 mA 0.15% +10 5 A 0.0001 A 0.5% +10 10 A 0.001 A 0.5% +10 AC Current 500 uA?500 mA 20 Hz?1 KHz 0.5% +20 5 A-10 A 1.5% +20 Resistance 500 ? 0.01 ? 0.15% +10 5 K? 0.0001 K? 0.15% +5 50 K? 0.001 K? 0.15% +5 500 K? 0.01 K? 0.15% +5 5 M? 0.0001 M? 0.3% +5 50 M? 0.001 M? 1% +10 Frequency 10.000 Hz?60 MHz / ±(0.2% +10) Capacitance 50 nF?500 uF / 2.5% +10 5 mF?50 mF 5% +10 Diode 3.0000 V 0.0001 V / Continuity 1000 ? 0.1 ? Adjustable threshold Temperature K type. PT100 Max Display 55.000 counts Data-logging Function Logging Duration 15ms?9999.999s Logging Length 1.000 points Display 3.5' TFT LCD (480x320 pixels) Dimensions 200 x 88 x 150 mm Weight approx. 0.5 kg Included 1x OWON XDM1141 Multimeter 1x Power cord 2x Test leads 1x Fuse 1x USB cable 1x Manual Downloads Programming Manual PC Software

    € 124,95

    Members € 112,46

  • ZOYI ZT - 703S (3 - in - 1) 2 - ch Oscilloscope (50 MHz) + Multimeter + Signal Generator - Elektor

    ZOYI ZOYI ZT-703S (3-in-1) 2-ch Oscilloscope (50 MHz) + Multimeter + Signal Generator

    Out of stock

    The ZOYI ZT-703S combines the functionality of an oscilloscope, multimeter, and signal generator into one versatile tool, making it ideal for a wide range of applications. With a bandwidth of up to 50 MHz, the ZT-703S is capable of handling a broad range of electronic signal analyses. Its impressive sampling rate of 280 MSa/s ensures precise, high-resolution signal capture. Designed for efficiency and convenience, this handheld oscilloscope features a 3.5-inch IPS full-view color display and a durable, double-injection molded casing, ensuring both portability and user-friendly operation. Integrated Oscilloscope Capabilities The ZT-703S offers a vertical sensitivity range from 20 mV/div to 10 V/div, enabling precise observation of signals with varying amplitudes. Its horizontal time base, adjustable from 10 ns/div to 20 s/div, provides flexibility for analyzing a wide range of signal frequencies. Additionally, the device features automatic, normal, and single triggering modes, catering to diverse testing needs and scenarios. Signal Generator and Multimeter Features As a signal generator, the ZT-703S can output various waveforms, including sine, square, triangle, and sawtooth waves, making it suitable for a wide range of testing and calibration tasks. The multimeter function excels with its high-precision 25000-count display, enabling accurate measurements of AC/DC voltage, current, resistance, capacitance, and frequency. Additional features include diode testing and continuity checks, further enhancing its versatility. Enhanced Features for Accurate Measurement The ZT-703S features an XY display mode, ideal for waveform comparison and phase relationship analysis. Its cursor measurement function allows for precise time and voltage measurements within waveforms. Additionally, the device offers a variety of auxiliary functions, such as customizable language settings, auto shutdown, and adjustable backlight brightness, enabling a tailored user experience. As a dual-channel handheld oscilloscope, the ZT-703S is a powerful and versatile tool, suitable for both professionals and hobbyists. Its integration of oscilloscope, signal generator, and multimeter capabilities into a single, portable unit makes it indispensable in the electronics field, whether used in a laboratory or out in the field. With its comprehensive features and intuitive interface, the ZT-703S provides a reliable and efficient solution for a wide range of electronic measurement tasks. Features Dual-channel 50 MHz Bandwidth 4.5-digit High-precision Multimeter 280 MSa/s Sampling Rate 3.5" TFT HD Color Screen 128 k Storage Depth Built-in Signal Generator Persistence Mode General Specifications Display (IPS) 25000 Counts Display size 3.5-inch IPS color screen Range Automatic/Manual Power supply USB-C (5 V/2 A) Battery capacity Built-in 3400 mAh 18650 Lithium battery Functions Oscilloscope, Multimeter and Signal Generator Material ABS, TPE Dimensions 177 x 89 x 40 mm Weight 380 g Oscilloscope Specifications Bandwidth 50 Mhz Channels 2 Sampling method Real-time sampling Sampling rate 280 MSa/s Input coupling DC, AC Input impendance 1 MΩ @ 16 pF Attenuation X1, X10 Persistence mode Minimum, 500 ms 1 S, 10 S, Infinite Rate range 1.5 Sa/s-280 MSa/s Interpolation (sinx)x Sweep range 10 ns/div-20 s/div Time base Accuracy 20 ppm Record length Up to 128 KB Sensitivity 20 mV/div-10 V/div Offset range 4 grids Low frequency >10 Hz Rise time <10 ns DC gain accuracy ±3% Auto measurement Period, frequency, peak-to-peak value, maximum value, minimum value, RMS, duty cycle, pulse count Trigger modes Auto, normal, single Trigger edges Rising edge, falling edge Signal Generator output Sine wave, square wave, sawtooth wave, half wave, full wave Operating modes • Normal mode 200 MSa/s• High-speed mode 280 MSa/s Display modes YT, XY, Roll Multimeter Specifications DC voltage 1000.0 V/250.00 V/25.000 V/2.5000 V/250.00 mV/25.000 mV ±(0.05%+3) AC voltage 750.0 V/250.00 V/25.000 V/2.5000 V/250.00 mV/25.000 mV ±(0.5%+3) DC current 10.000 A/2.5000 A/250.00 mA/25.000 mA ±(0.5%+3) AC current 10.000 A/2.5000 A/250.00 mA/25.000 mA ±(0.8%+3) Resistance 250.00 Ω ±(0.5%+3) 250.00 KΩ/25.000 KΩ/2.5000 KΩ ±(0.2%+3) 25.00 MΩ/2.5000 MΩ ±(1%+3) 250.0 MΩ ±(5.0%+5) Capacitance 9.999 nF ±(5.0%+20) 999.9 µF/99.99 µF/9.999 µF/999.9 nF/99.99 nF ±(2.0%+5) 99.99 mF/9.999 mF ±(5.0%+5) Frequency 999.9 KHz/99.99 KHz/9.999 KHz/999.9 Hz/99.99 Hz ±(0.1%+2) Diode Yes Continuity Yes Included 1x ZT-703S (3-in-1) Oscilloscope + Multimeter + Signal Generator 2x Oscilloscope Probes 2x Test Leads 1x USB-C cable 1x Manual

    Out of stock

    € 109,95

    Members € 98,96

  •  -14% FNIRSI DMC - 100 True RMS Smart Clamp Meter (600 A) - Elektor

    FNIRSI FNIRSI DMC-100 True RMS Smart Clamp Multimeter (600 A)

    Pre-order

    The FNIRSI DMC-100 is a high-precision 10,000-count True RMS clamp multimeter for engineering, labs, vehicle repairs, and home diagnostics. It measures up to 750 V and 600 A with three modes (routine, waveform, and power) along with NCV detection for added safety. Its 2.0-inch color TFT display offers clear readings, data visualization, and adjustable brightness. A 1500 mAh rechargeable battery with auto power-off ensures long use, while a flashlight, backlight, and data storage enhance usability, making it a reliable tool for professionals and DIYers. Features 10,000-count smart True RMS clamp meter for accurate readings Supports up to 750 V voltage and 600 A current 2.0-inch full-color TFT screen (240 x 320) for clear visuals New UI with data curve display for easy reading at a glance Switch freely between general measurement, waveform display, and power measurement modes Non-contact voltage measurement and zero/fire line identification Measures temperatures from −55°C to 1300°C Built-in battery (3.7 V/1500 mAh) for extended usage Convenient charging and data transmission via USB-C port Includes an LED light, screen backlight, and data-saving capabilities Intelligent automatic shutdown to conserve battery life Easily switch between temperature units (°C/°F) Screen brightness is adjustable for various environments Supports firmware updates to enhance functionality Specifications DC Voltage 9.999V/99.99V/999.9V ±(0.5%+3) AC Voltage 9.999V/99.99V/750.0V ±(1%+3) DC Current 99.99A/600.0A ±(2.5%+10) AC Current 99.99A/600.0A ±(2.5%+10) Resistance 9.999MΩ/999.9KΩ/99.99KΩ/9.999KΩ/999.9Ω ±(1.5%+3) 99.99MΩ ±(1.5%+3) Capacitance 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF ±(2.0%+5) 9.999mF/99.99mF ±(5.0%+20) Frequency 9.999MHz/999.9KHz/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz ±(0.1%+2) Temperature −55~1300°C (−67~2372°F) ±(2.5%+5) Continuity Test Yes Diode Yes NCV Yes LIVE Yes Display 2.0" TFT Color Screen Power Supply 3.7 V/1500 mAh Lithium Battery Charging 5 V/1 A (USB-C) Maximum Jaw Size 25 mm Dimensions 193 x 74 x 32 mm Weight 194 g Included 1x FNIRSI DMC-100 Clamp Meter 1x Multimeter pen 1x Temperature probe 1x USB charging cable 1x Manual Downloads Manual Firmware V1.3

    Pre-order

    € 49,95€ 42,95

    Members identical

  • OWON XDM1041 Multimeter - Elektor

    OWON OWON XDM1041 True RMS Multimeter

    The OWON XDM1041 is a fast, high-precision digital True RMS benchtop multimeter with a high-resolution 3.5-inch LCD and 50,000 counts. Its DC voltage accuracy is up to 0.05% and it can measure up to 65 values per second. Features 3.5“ high-resolution LCD (480x320 pixels) 55000 counts, DC voltage accuracy up to 0.05% Up to 65 readings per second Dual line display supported Trend analysis accessible in chart mode AC True RMS measurements (bandwidth: 20 Hz – 1 kHz) SCPI support: Remote control the multimeter through PC software via USB port Data record function, you can record the measured data into internal memory, and then read and process the recorded data with your computer. Specifications Measurement Range Resolution Accuracy DC Voltage 50.000 mV 0.001 mV 0.1% +10 500.00 mV 0.01 mV 0.05% +5 5.0000 V 0.0001 V 0.05% +5 50.000 V 0.001 V 0.05% +5 500.00 V 0.01 V 0.1% +5 1000.0 V 0.1 V 0.1% +10 AC Voltage 500 mV~750 V 20 Hz~45 Hz 1% +30 45 Hz~65 Hz 0.5% +30 65 Hz~1 KHz 0.7% +30 DC Current 500 uA 0.01 uA 0.15% +20 5000 uA 0.1 uA 0.15% +10 50 mA 0.001 mA 0.15% +20 500 mA 0.01 mA 0.15% +10 5 A 0.0001 A 0.5% +10 10 A 0.001 A 0.5% +10 AC Current 500 uA~500 mA 20 Hz~1 KHz 0.5% +20 5 A-10 A 1.5% +20 Resistance 500 Ω 0.01 Ω 0.15% +10 5 KΩ 0.0001 KΩ 0.15% +5 50 KΩ 0.001 KΩ 0.15% +5 500 KΩ 0.01 KΩ 0.15% +5 5 MΩ 0.0001 MΩ 0.3% +5 50 MΩ 0.001 MΩ 1% +10 Frequency 10.000 Hz~60 MHz / ±(0.2% +10) Capacitance 50 nF~500 uF / 2.5% +10 5 mF~50 mF 5% +10 Diode 3.0000 V 0.0001 V / Continuity 1000 Ω 0.1 Ω Adjustable threshold Temperature K type, PT100 Max Display 55,000 counts Data-logging Function Logging Duration 15ms~9999.999s Logging Length 1,000 points Display 3.5“ TFT LCD (480x320 pixels) Power supply 230 V AC mains voltage Dimensions 200 x 88 x 150 mm Weight approx. 0.5 kg Included 1x OWON XDM1041 Multimeter 1x Power cord 2x Test leads 1x Fuse 1x USB cable 1x Manual Downloads Programming Manual PC Software

    € 114,95

    Members € 103,46

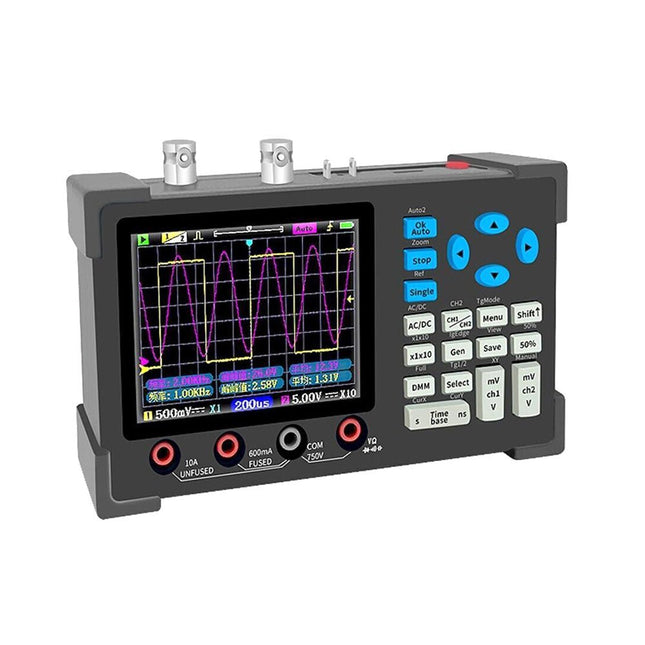

  • DSO3D12 (3 - in - 1) 2 - ch Oscilloscope (120 MHz) + Multimeter + Signal Generator - Elektor

    ZEEWEII DSO3D12 (3-in-1) 2-ch Oscilloscope (120 MHz) + Multimeter + Signal Generator

    The DSO3D12 is a portable dual-channel oscilloscope featuring a high-definition 3.2" display and a 120 MHz bandwidth, packed with powerful features. It integrates a high-precision True RMS multimeter that supports rapid software calibration. When measuring low voltage, resistance, or continuity, both the oscilloscope and multimeter functions can be used simultaneously. The built-in waveform generator can output various waveforms including sine, square, and triangle waves. The voltage amplitude is 2.5 V, the frequency is adjustable from 0 to 2 MHz, and the square wave duty cycle can be adjusted from 1% to 99%. Using MCU and FPGA chips, the DSO3D12 ensures high-speed signal acquisition and fast data processing, providing a smooth user experience with a wealth of functions. The DSO3D12 is widely used in various applications, including: Basic R&D Chip debugging Car repair and maintenance Home appliance repair DIY debugging Radio amateur activities Switching power supplies Frequency converters Welding machines Bus waveform analysis Crystal waveform analysis This versatility makes the DSO3D12 an invaluable tool for a wide range of technical and electronic tasks. Features Screen: 3.2" HD color display Bracket: Collapsible stand Key type: Soft silicone keys Charging: USB-C/5 V Built-in rechargeable battery for approx. 6 hours of operation Dimensions: 145 x 86 x 33 mm Weight: 266 g Specifications (Oscilloscope) Channels 2 Bandwidth 120 MHz (CH1 only)60 MHz (CH1+CH2) Sampling rate 250 MSa/S Equivalent sampling 500 M Rise time <3ns Storage 128 Kb Impedance 1 MΩ Time base 5ns - 10s Peak voltage ±400 V (10x) Trigger mode Auto/Normal/Single Triger type Rise/Fall Triger level Manual/Auto Triger source CH1/CH2 Display mode YT/XY/Roll Persistence None/1s/∞ Coupling AC/DC Auto mode OneKey auto/Fully auto Sensitivity X1: 10 mV/div~10 V/divX10: 100 mV/div~100 V/div Measure items 14 types DC offset ±2% XY mode Yes Screenshot Yes Frequency ±0.01% Zoom mode Yes FFT Yes Generator wave Sine/Square/Triangle Generator voltage 2.5 V ±0.05 Generator frequency 1 Hz~2 MHz Specifications (Multimeter) Function Range Precision DC Voltage 600 mV/6.00 V/60.0 V/600 V/750 V ±(0.5% +3) AC Voltage 600 mV/6.00 V/60.0 V/600 V ±(1% +3) DC Current 600 mA/10 A ±(2% +5) AC Current 600 mA/10 A ±(3% +5) Resistance 600.0 Ω ±(1.5% +3) 6.000 kΩ/60.00 kΩ/600.0 kΩ ±(1% +3) 6.000 MΩ ±(1.5% +5) 60.00 MΩ ±(3% +3) Capacitance 60.00 nF/600.0 nF/6.000 μF ±(10% +5) 60.00 μF/600.0 μF ±(15% +5) Diode 0.0~3.3 V, Display "OL" above 3.3 V Continuity Sound at 50 Ω and below Included 1x DSO3D12 Oscilloscope 2x P6100 oscilloscope probes 2x Test Leads 1x USB-C charging cable 1x Manual Downloads Manual

    € 149,95

    Members € 134,96

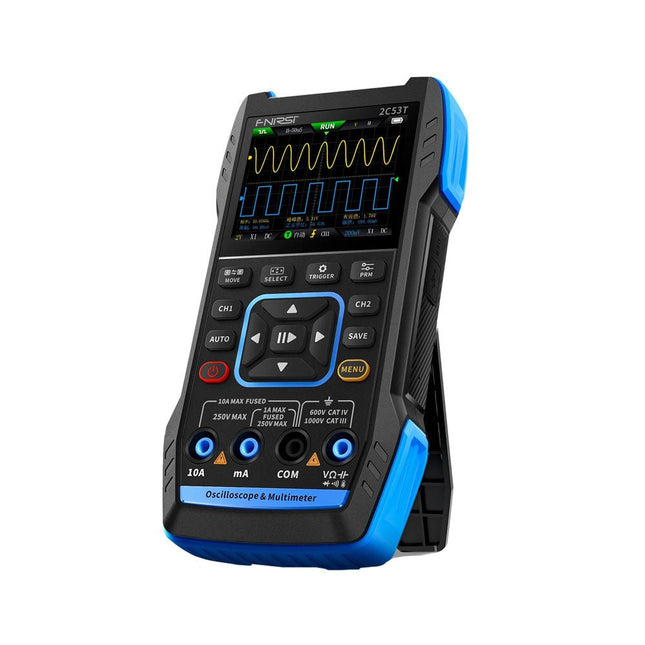

  • FNIRSI 2C53T Upgrade (3 - in - 1) 2 - ch Oscilloscope (50 MHz) + Multimeter + Signal Generator - Elektor

    FNIRSI FNIRSI 2C53T Upgrade (3-in-1) 2-ch Oscilloscope (50 MHz) + Multimeter + Signal Generator

    The updated FNIRSI 2C53T, an enhanced version of its 10 MHz predecessor, is a compact and versatile 3-in-1 device. It combines a dual-channel 50 MHz oscilloscope, a 4.5-digit True RMS multimeter, and a signal generator with 13 waveform types, making it an essential tool for maintenance and research professionals. Oscilloscope: Features 50 MHz bandwidth, 250 MS/s sampling rate, ±400 V protection, FPGA + ARM + ADC architecture, and waveform saving for analysis. Multimeter: 4.5-digit True RMS with 19999 counts, supports AC/DC voltage, current, capacitance, resistance, diode, and continuity measurements. Signal Generator: Outputs 13 signal types up to 50 KHz, with adjustable frequency, amplitude, and duty cycle. With a 2.8-inch LCD, 3000 mAh battery (6-hour runtime), and a portable design, it delivers powerful functionality in a user-friendly package. Specifications Oscilloscope Channels 2 Analog Bandwidth 50 MHz Real-time Sampling Rate 250 MS/s Storage Depth 1 Kpts Impedance 1 MΩ Time Base Range 10ns-20s Vertical Sensitivity 10 mV/div-10 V/div (x1) Maximum Measured Voltage ±400 V Trigger Mode Auto/Normal/Single Trigger Type Rising edge, Falling edge Display Mode Y-T/Rolling/X-Y Coupling Method AC/DC Persistence OFF, 500ms, 1s, ∞ Math 8 Basic Operations + FFT Supported Waveform Screenshot Save, Export Waveform Image, Cursor Measurement, Infinite Afterglow Multimeter DC Voltage 1.9999V/19.999V/199.99V/1000V ±(0.5%+3) AC Voltage 1.9999V/19.999V/199.99V/750.0V ±(1%+3) DC Current 19.999mA/199.99mA/1.9999A/9.999A ±(1.2%+3) AC Current 19.999mA/199.99mA/1.9999A/9.999A ±(1.5%+3) Resistance 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ ±(0.5%+3) 1.9999KΩ/199.99Ω ±(2.0%+3) Capacitance 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF ±(2.0%+5) 9.999mF/99.99mF ±(5.0%+20) Temperature −55~1300°C (−67~2372°F) ±(2.5%+5) Continuity Test Yes Diode Yes Signal Generator 13 Signal Waveforms Sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC, multi-audio, Sinker pulse, Lorentz wave Output Frequency 0-50 KHz Output Amplitude 0-3 V Output Duty Cycle 0-100% General Display 2.8" HD color screen Resolution 320 x 240 Charging USB-C (5 V/1 A) Battery 3000 mAh Lithium battery Standby Time 6 hours Languages English, Chinese Dimensions 167 x 89 x 35 mm Weight 300 g Differences New vs Old Version Model 2C53T Upgrade 2C53T Predecessor Bandwidth 50 MHz 10 MHz Display Mode Y-T/Rolling/X-Y Y-T/Rolling Math 8 Basic Operations + FFT N/A Cursor Function Yes N/A XY Lissau Graph Yes N/A Afterglow Function Yes N/A Multimeter Accuracy 19999 Counts 9999 Counts Signal Generator 50 KHz 2 MHz Included 1x FNIRSI 2C53T Upgrade Oscilloscope (50 MHz) 2x P6100 Oscilloscope probes (10X) 1x Multimeter probe 1x Alligator clip probe 1x USB-C charging cable 1x Storage bag 1x Manual Downloads Manual Firmware V1.0.3

    € 119,95

    Members € 107,96

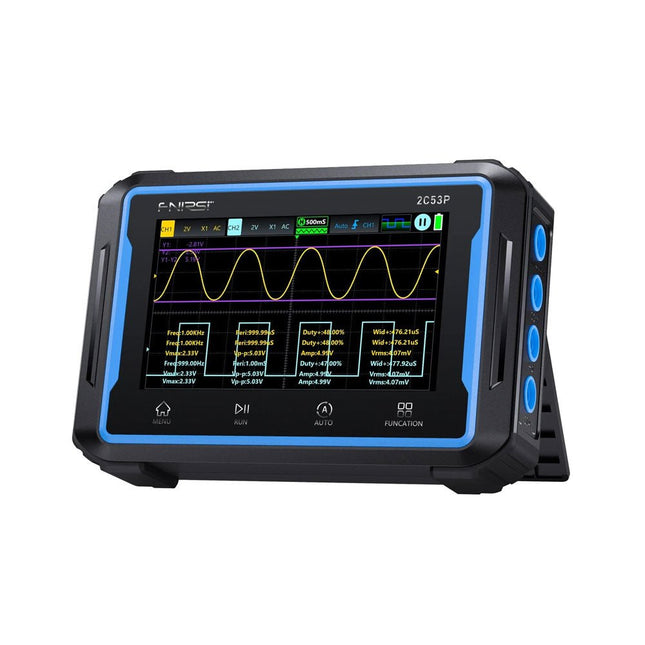

  • FNIRSI 2C53P (3 - in - 1) 2 - ch Oscilloscope (50 MHz) + Multimeter + Signal Generator - Elektor

    FNIRSI FNIRSI 2C53P (3-in-1) 2-ch Oscilloscope (50 MHz) + Multimeter + Signal Generator

    The FNIRSI 2C53P is a powerful 2-channel oscilloscope with a 50 MHz bandwidth and 250 MS/s sampling rate, ideal for electronics professionals, makers, and students. It offers precise measurements up to ±400 V, a 4.5-digit True RMS multimeter, and an integrated signal generator for versatile applications. With a 4.3-inch color touchscreen and a 4000 mAh battery providing up to 4 hours of use, the FNIRSI 2C53P combines functionality and convenience in one compact device. Specifications General Display 4.3" TFT Color Touch screen (480 x 272) Power Supply USB-C (5 V/2 A) Battery 4000 mAh Lithium battery Languages Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean Dimensions 145 x 98 x 35 mm Weight 360 g Oscilloscope Channels 2 Bandwidth 50 Mhz Real-time sampling rate 250 MSa/s Storage Depth Up to 64 kByte Time base range 10 ns/div – 10 s/div Vertical Sensitivity 10 mV/div – 10 V/div Waveform Display Mode YT/XY/scroll Vertical Resolution 8 bits Input Impedance 1 MΩ Bandwidth limit Support 20 MHz limit Probe Attenuation Coefficient 1x/10x Input Coupling AC/DC Trigger Type Rising/Falling edge Peak Voltage ±400 V Trigger Level Range 8 cells (positive/negative) Trigger Mode Auto/Normal/Single Storage Space 13 MB Measured Data Period, frequency, peak-to-peak value, maximum value, minimum value, average value, effective value, amplitude, duty cycle, pulse width Multimeter Function Range Accuracy DC Voltage 1.9999V/19.999V/199.99V/1000.0V ±(0.5%+3) AC Voltage 1.9999V/19.999V/199.99V/750.0V ±(1%+3) DC Current 19.999mA/199.99mA/1.9999A/9.999A ±(1.2%+3) AC Current 19.999mA/199.99mA/1.9999A/9.999A ±(1.5%+3) Resistance 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ ±(1.5%+3) 1.9999KΩ/199.99Ω ±(0.5%+3) Capacitance 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF ±(2.0%+5) 9.999mF/99.99mF ±(5.0%+20) Temperature −55~1300°C (−67~2372°F) ±(2.5%+5) Diode/ON-OFF Yes Signal Generator Different Waveform Output Frequencies Sine wave: 10 MHzOther waveforms: 5 MHz Waveform Frequency 0-10 MHz Waveform Amplitude 0.1-3.0 V Square Wave Duty Cycle 0-100% Included 1x FNIRSI 2C53P (3-in-1) 2-ch Oscilloscope 2x P6100 Probes (100 MHz) 1x Multimeter Probe 1x Alligator Clip Probe 1x USB Cable 1x Manual Downloads Manual Firmware V1.8

    € 134,95

    Members € 121,46

  • OWON XDM2041 Multimeter - Elektor

    OWON OWON XDM2041 True RMS Multimeter

    The OWON XDM2041 is a low-cost, high-precision benchtop multimeter. The meter has a True RMS function to measure the AC voltage and current and it has a reading speed of up to 65 values per second. Also, the XDM2041 is equipped with functions such as measuring 2-wire and 4-wire resistance. The XDM2041 is able to store data internally in the memory of the meter and display it on the 3.7" high-resolution LCD display. Up to 1000 points can be stored and the time interval can be varied from 15ms to 9999s. By means of the RS232 port on the back of the device, the meter can be programmed and controlled via SCPI. Specifications Measurement Range Resolution Accuracy ±(% of reading + LSB) DC Voltage 50.000mV 0.001mV 0.1%+10 500.00mV 0.01mV 0.025%+5 5.0000V 0.0001V 0.025%+5 50.000V 0.001V 0.03%+5 500.00V 0.01V 0.1%+5 1000.0V 0.1V 0.1%+5 AC Voltage 500mv-750v 20Hz~45Hz 1%+30 45Hz~65Hz 0.5%+30 65Hz~1KHz 0.7%+30 DC Current 500uA 0.01uA 0.15%+20 5000uA 0.1uA 0.15%+10 50mA 0.001mA 0.15%+20 500mA 0.01mA 0.15%+10 5A 0.0001A 0.5%+10 10A 0.001A 0.5%+10 AC Current 500uA-500mA 20 Hz-1 kHz 0.5%+20 5A-10A 1.5%+20 Resistance 500Ω 0.01Ω 0.1%+10 5KΩ 0.0001KΩ 0.1%+5 50KΩ 0.001KΩ 0.1%+5 500KΩ 0.01KΩ 0.1%+5 5MΩ 0.0001MΩ 0.25%+5 50MΩ 0.001MΩ 0.1%+10 Four-wire resistance 500Ω 0.01Ω 0.1%+10 5KΩ 0.0001KΩ 0.1%+5 50KΩ 0.001KΩ 0.1%+5   Measurement Range Resolution Accuracy ±(% of reading + % of range) Frequency 10.000Hz-60MHz / ±(0.2%+8) Capacitance 50nF-500uF / 2.5%+5 5mF-50mF 5%+8 Diode 3.0000 V 0.0001V / Continuity 1000 Ω 0.1Ω / Temperature K type,PT100 Display 55,000 Data-logging Function Logging Duration 15ms-9999s Logging Length 1,000 points Included 1x OWON XDM2041 Multimeter 2x Multimeter leads 2x Alligator clips 1x Fuse 1x Manual Downloads User manual Programming manual PC software

    € 164,95

    Members € 148,46

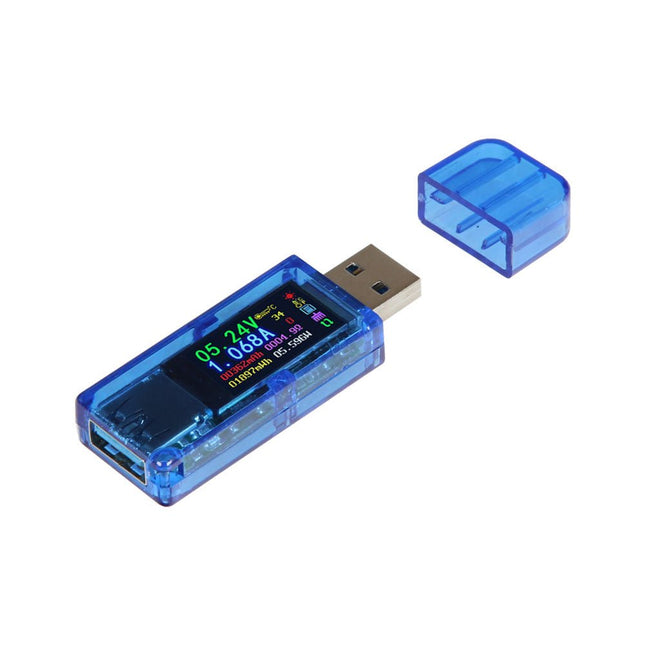

  • JOY - iT JT - AT34 USB Multimeter - Elektor

    JOY-iT JOY-iT AT34 USB Multimeter

    Out of stock

    The JOY-iT AT34 is a small but multifunctional USB Multimeter. By supporting current Quick Charge standards it can also easily be used in conjunction with current handheld hardware. Specifications Screen 0.96" IPS Display Refresh Rate 2 Hz Interface USB 3.0 (2.0 compatible) Quick Charge Recognition QC2.0, QC3.0, Apple 2.4 A / 2.1 A / 1 A / 0.5 A, Android DCP, Samsung Voltage Measurement Range 3.7-30 V Voltage Resolution 0.01 V Voltage Accuracy ±0,8% (+4 digits) Current Measurement Range 0-4 A Current Resolution 0.001 A Current Accuracy ±1% (+4 digits) Power Measurement Range 0-120 W Capacity Accumulation Range 0-99999 mAh Energy Accumulation Range 0-999,99 Wh Load Impedance Range 1-9999.9 Ω Temperature Measurement Range 0-80°C Operating Temperature Range 0-45°C Temperature Measurement Error ±3°C Dimensions 64 x 22 x 12 mm Weight 28 g Downloads Datasheet Manual

    Out of stock

    € 17,50

    Members € 15,75

  • OWON HDS160 (2 - in - 1) True RMS Multimeter & Oscilloscope - Elektor

    OWON OWON HDS160 (2-in-1) True RMS Multimeter & Oscilloscope

    The OWON HDS160 is a precise 4½-digit True RMS multimeter (60,000 counts), ideal for professionals, makers, and students. It offers intelligent probe detection, automatic waveform measurements (Vmax, Vmin, Vp-p, Vavg, Vrms, and frequency) and a fully featured handheld oscilloscope (1 MHz). Features Multifunctional Measuring Instrument: 4½-digit Multimeter + Oscilloscope Automatic Waveform Measurements: Including Vmax, Vmin, Vp-p, Vavg, Vrms, and frequency. User-Friendly Design: Clearly labeled keys for easy operation and increased device lifespan. Intelligent Probe Detection: Automatically switches measurement functions based on the probe insertion, effectively preventing instrument damage caused by incorrect operation. Efficient Energy Management: Powered by 18650 lithium batteries, ensuring longer operating time and enhanced reliability for extended measurement tasks. Safe High-Voltage Measurement: Complies with CAT Ⅲ 1000 V standards, allowing safe and direct measurement of high-voltage waveforms up to 1000 V, broadening application possibilities. High-Definition Display: Features a 2.8-inch IPS screen with a wide viewing angle, ensuring clear readability from any perspective. Adaptive Environmental Display: High-brightness and high-contrast dual-theme display modes provide optimal visibility under bright and low-light conditions, improving overall usability. Multimeter Specifications Measurement Range Accuracy DC Voltage (V) 60.000mV / 600.00mV / 6.0000V / 60.000V / 600.00V / 1000.0V ±(0.05%+5 dig) AC Voltage (V) 60.000mV / 600.00mV / 6.0000V / 60.000V / 600.00V / 750.00V ±(0.1%+30dig) DC Current (A) 600.00uA / 6000.0uA / 60.000mA / 600.00mA / 6.0000A / 10.000A ±(0.15%+10dig) AC Current (A) 600.00uA / 6000.0uA / 60.000mA / 600.00mA / 6.0000A / 10.000A ±(0.5%+20dig) Resistance (Ω) 600.00Ω / 6.0000kΩ / 60.000kΩ / 600.00KΩ / 6.0000MΩ / 60.000MΩ ±(0.15%+10dig) Capacitance (F) 6.000nF / 60.00nF / 600.0nF / 6.000μF / 60.00μF / 600.0μF / 6.000mF / 60.00mF ±(2.0%+20dig) Frequency (Hz) 60.00Hz / 600.00Hz / 6.0000kHz / 60.000kHz / 600.00kHz / 6.0000MHz / 60.000MHz ±(0.2%+10dig) Duty Cycle 0.1%~99.9% (typical value: Vrms=1V, f=100Hz) ±(1.2%+3dig) 0.1%~99.9% (≥1kHz) ±(2.5%+10dig) Diode 3.0000V ±(1.0%+10dig) On-Off 1000.0Ω Display 60000 Oscilloscope Specifications Analog bandwidth 1 MHz (only ACV scale) Channel 1 Time base range 2.5us~10s/grid Voltage vertical sensitivity range 30 mV~500 V/grid Vertical amplitude accuracy ±(5% + 0.2div) Maximum voltage limit 1000 V DC+AC Peak value Trigger mode Auto/Normal/Single Auto set Time base/Vertical amplitude/Trigger value Maximum sample 5.0 MSa/s Input impedance ≈10 MΩ Time base accuracy ±(0.01% + 0.1div) Current vertical sensitivity range 100 μA~5 A/grid Measurement function Vmax, Vmin, Vp-p, Vavg, Vrms, Hz Maximum current limit 15 A DC+AC Peak value Trigger edge Rise edge/Fall edge General Specifications Display 2.8" LCD (320 x 240) Low battery indication Yes Backlight Yes Sleep Mode Yes Input Protection Yes Relative Measurement Yes Input Impedance ≥10 MΩ Battery 18650 Lithium Safety Compliance CAT III 1000V Dimensions 93 x 41.5 x 188 mm Weight 0.35 kg Included 1x OWON HDS160 Multimeter & Oscilloscope 2x Multimeter leads 1x USB cable 1x Storage bag 1x Manual Downloads Datasheet Manual

    € 84,95

    Members € 76,46

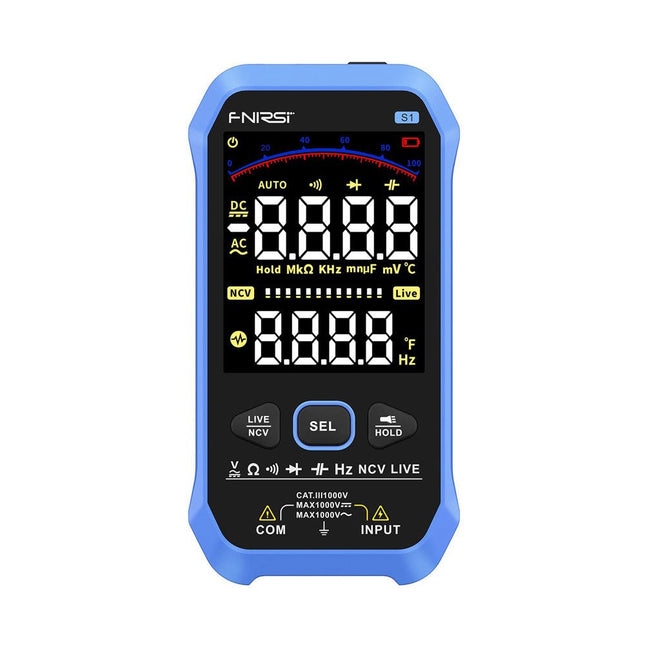

  • FNIRSI S1 Smart Multimeter - Elektor

    FNIRSI FNIRSI S1 True RMS Smart Multimeter

    The FNIRSI S1 portable digital multimeter can accurately measure AC/DC voltage, resistance, NCV, diode, continuity, capacitance, temperature, frequency and live wire. It is a really useful tool for solving electrical issues in industry and the home. It is suitable for household sockets, fuses, batteries (including vehicles), troubleshooting automotive circuits, charging systems, testing electronics in cars, etc. Smart Multimeter The multimeter can automatically detect AC/DC voltage, resistance and continuity, which is suitable for both beginners and professionals. Specifications AC voltage 0~1000 V ±(0.8% +3) DC voltage 0~1000 V ±(0.8% +3) Resistance 0~100 MΩ ±(1.2% +3) Capacitance 0 nF~10 mF ±(4.5% +5) Frequency 0 Hz~10 Mhz ±(0.1% +3) Temperature −20~1000°C ±(2% +5) Diode Yes Automatic OFF Yes Lighting Yes On-off buzzer Yes Auto range Yes NCV induced voltage Yes Live mode Yes Data hold Yes Analog Yes Low voltage indication Yes Max range 9999 counts Valid value 50 Hz~1 kHz Material ABS Display VA color screen Power supply via USB-C (1000 mA rechargeable lithium battery) Dimensions 143 x 75 x 19 mm Weight 135 g Included FNIRSI S1 Multimeter Tip table pen Temperature probe USB cable Manual Downloads Manual

    € 34,95

    Members € 31,46

  • Cleqee P1503E Multimeter Test Lead Kit - Elektor

    Cleqee Cleqee P1503E Multimeter Test Lead Kit

    The Cleqee P1503E Multimeter Test Lead Kit is a reliable tool that provides safe and accurate measurements of electrical performance. Compatible with multimeters, clamp meters and other test instruments, this kit ensures versatility and precision for a wide range of testing applications. With removable tips, banana plugs, crocodile clips and cable lugs, the kit offers extended testing capabilities and flexibility. The rubber-coated surfaces provide a secure and comfortable grip and improve stability even in slippery conditions. The kit includes 8 interchangeable test probes – 4 in nickel-plated copper and 4 in gold-plated copper – specially designed to access the tightest spots, making them ideal for SMD testing. In addition, the insulated, flexible silicone gripping hooks act as an extra hand during testing, allowing sequential testing of components. The powerful spring mechanism ensures a firm grip on tiny components and minimizes the risk of short circuits. Included 2x 1.4 mm Banana Plug Mutimeter Probe Test Leads, Length: 1 m (red & black) Replaceable Needles Kit 4x Gilded sharp needle 4x Standard needle 2x Protective Cap (red & black) 2x U-Type Insert (red & black) 2x 2 mm inner spring to 4 Mmm male banana plug adapter (red & black) 2x Crocodile Clips (red & black) 2x IC testing hook (red & black) 1x 4 mm banana plug testing clip

    € 24,95

    Members € 22,46

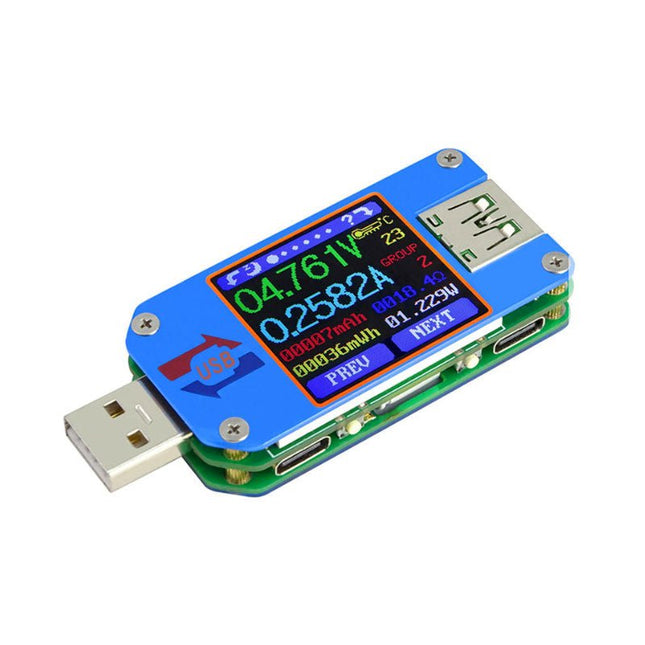

  • JOY - iT UM25C USB Measuring Instrument with Bluetooth - Elektor

    JOY-iT JOY-iT UM25C USB Measuring Device

    The UM25C is your indispensable partner when it comes to monitoring the quality and safety of USB connections. Whether at home or on the road, this compact and powerful measuring device gives you full control over your current and voltage values at all times. The UM25C supports a variety of fast charging protocols, including Quickcharge 2.0 and 3.0 as well as various Apple and Android standards. So your devices are always optimally supplied. The color 1.44-inch LCD display provides a clear and concise display of all important measurement data, such as current, voltage, energy and temperature. With a measuring range of 4 to 24 volts and up to 5 amps, the device is suitable for almost any application. The integrated Bluetooth interface is particularly practical, allowing you to conveniently transfer the recorded data to your PC or smartphone. This allows you to carry out detailed evaluations and ensure that your devices are always optimally and safely charged. Features Measuring device for USB applications Measured value output via LCD display Display of current, voltage, energy, power, voltage curve, internal resistance, temperature (int. sensor) Output via BT for evaluation on PC/Smartphone Supports: Quickcharge 2.0, QC 3.0, Apple 2.4 A/2.1 A/1 A/0.5 A Android DCP, Samsung Specifications USB Ports USB 2.0, Micro USB, USB-C Measuring range 4-24 VDC / 0-5 A / 0-99h 59min 59 sec / -10-100°C Measuring accuracy 0.001 V / 0.0001 A Refresh rate 2 Hz Display LCD Color-Display with 5 brightness levels Display size 1.44' Communication Bluetooth connection (for evaluation on Smartphone + PC) Dimensions 71.2 x 30.5 x 12.4 mm Weight 23.7 g Downloads Manual Android APK Windows Software

    € 39,95

    Members € 35,96

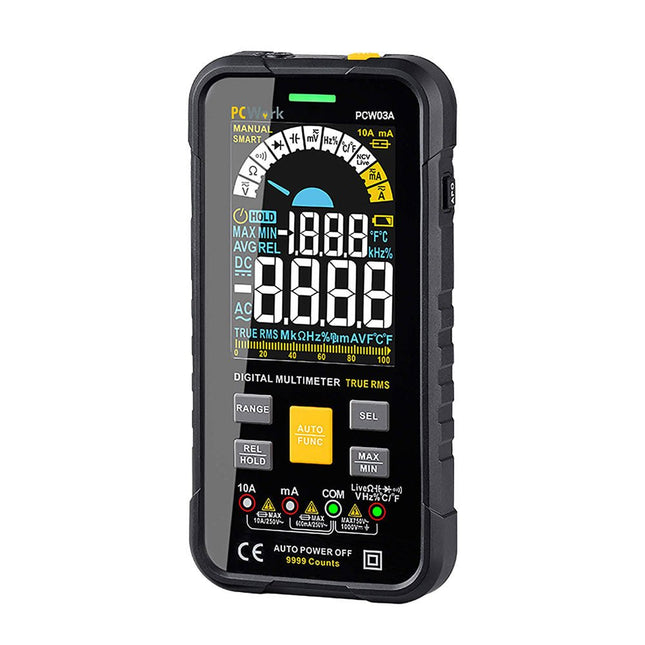

  • PCW03A True RMS Multimeter - Elektor

    PCWork PCW03A True RMS Smart Multimeter

    The PCW03A True RMS digital multimeter is an innovative tool for any electrician. technician. or ambitious hobbyist. It can measure AC/DC voltage. current. and resistance. as well as frequency. duty ratio. and temperature. Due to its smart measurement function. the PCW03A detects the inteded measurement (continuity. voltage. resistance) and chooses the correct measurement range/function for the user. making super easy to use and beginner-friendly. Another great feature of the device. especially for beginners. are the illuminated input sockets. Here the device indicates which input sockets to use for the chosen measurement function. This way it is almost impossible to connect the measurement leads to the wrong socket and it will prevent the device from damage. With its 9999 counts and bright colors. the HD display provides precise measurement read-outs. Additionally. the CAT III 1000V; CAT IV 600V rating ensures safety while in use for various applications. Its smartphone-like design is easy and intiutive to use. making it a joy for daily operations. The double insulation. ceramic fuse. and removable rubber casing provide durability and protection for device and the user. Features CAT III 1000 V; CAT IV 600 V 9999 counts & True RMS Auto Range & smart measurement function: device automatically recognizes intended measurement (continuity. voltage. resistance) and chooses correct measurement range/function LED illuminated input sockets ? the device shows you which input socket to use according to the measurement function chosen. Perfect for beginners to avoid damage to the device. AC/DC voltage. AC/DC current. resistance. capacitance. frequency. duty ratio. and temperature measurement NCV (non-contact voltage detection). live line. continuity. and diode test Double insulation & ceramic fuses Removable rubber casing with cushioning function for extra protection Large colour HD display with backlight Data hold with Min/Max function LED work light Innovative design and 5 button operating concept: like a smartphone Manual in various languages: EN. GER. ES. FR. PT. IT. GR Dimensions: 165 x 85 x 25 mm Weight: 255 g Included PCW03A Multimeter Batteries High-quality test leads K-type temp. probes Transport case Downloads Datasheets

    € 54,95

    Members € 49,46

  • OWON HDS242 2 - ch Oscilloscope (40 MHz) + Multimeter - Elektor

    OWON OWON HDS242 2-ch Oscilloscope (40 MHz) + Multimeter

    Out of stock

    The HDS242 is a portable 2-in-1 multifunctional tester, which can be used as a 2-ch oscilloscope and multimeter. It features a high-contrast 3.5-inch color display suitable for outdoor facility maintenance, rapid on-site measurement, automobile maintenance, power detection. etc. Features Oscilloscope + Multimeter 3.5-inch high-resolution, high-contrast color LCD display – suitable for outdoor use 18650 lithium battery – can work continuously for up to 6 hours USB Type-C interface – support power bank and PC connection Self-calibration function SCPI supported – facilitate secondary development Specifications Oscilloscope Bandwidth 40 MHz Channels 2-ch Oscilloscope Sample Rate 250 MSa/s Acquisition Model Normal, Peak detect Record Length 8K Display 3.5-inch LCD Waveform Refresh Rate 10,000 wfrms/s Input Coupling DC, AC, and Ground Input Impedance 1 MΩ ±2%, in parallel with 16pF ±10pF Probe Attenuation Factors 1X, 10X, 100X, 1000X, 10000X Max. Input Voltage 400 V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation) Bandwidth Limit (typical) 20 MHz Horizontal Scale 5ns/div - 1000s/div, step by 1 - 2 - 52ns/div - 1000s/div, step by 1 - 2 - 55ns/div - 1000s/div, step by 1 - 2 - 52ns/div - 1000s/div, step by 1 - 2 - 5 Vertical Sensitivity 10mV/div - 10V/div Vertical Resolution 8 bits Trigger Type Edge Trigger Modes Auto, Normal, single Automatic Measurement Frequency, Period, Amplitude, Max, Min, Mean, PK-PK Cursor Measurement ΔV, ΔT, ΔT & ΔV between cursors Multimeter Max. Resolution 20,000 counts Testing Mode Voltage, Current, Resistance, Capacitance, Diode, and Continuity test Input Impedance 10 MΩ Max Input Voltage AC: 750 V | DC: 1000 V Max Input Current DC: 10 A | AC: 10 A Diode 0-2 V Other Connectivity USB Type-C Dimensions 198 x 96 x 38 mm (7.68 x 3.74 x 1.5') Weight 600 g (without batteries) Included 1x OWON HDS242 Oscilloscope 1x Soft Bag 1x Probe 1x Power Cord 1x Probe Adjust 1x USB Cable 1x Power Adapter 1x Pair of Multimeter Probe Leads (red one and black one) 1x Pair of Oscilloscope Probe Leads (BNC to Alligator Clip) 1x User Manual (English) Downloads User Manual SCPI Protocol Quick Guide PC Software

    Out of stock

    € 129,95

    Members € 116,96

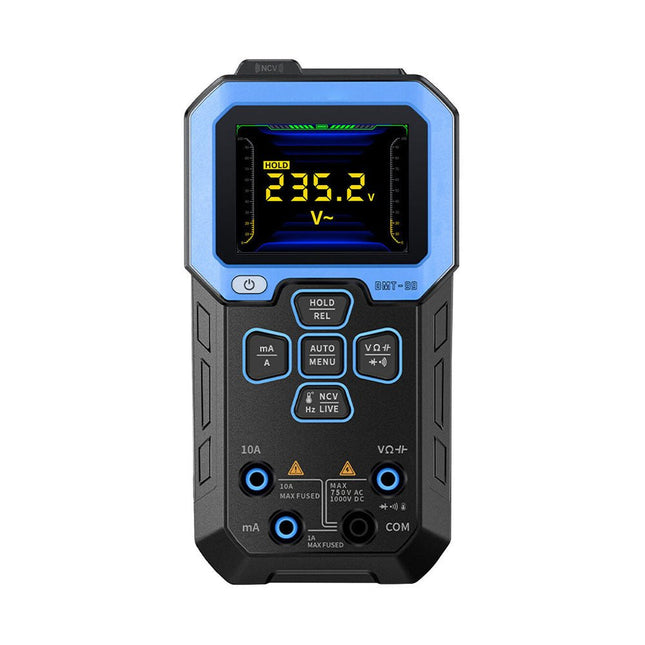

  • FNIRSI DMT - 99 Smart Multimeter - Elektor

    FNIRSI FNIRSI DMT-99 Smart Multimeter

    The FNIRSI DMT-99 is an intelligent digital multimeter with 10000 counts, which offers a high measuring range and high resolution. It can accurately measure AC/DC voltage, AC/DC current, 10 A current and can also be used to test conductivity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, live wire detection, etc. It is suitable for various electronic maintenance fields such as mechanical engineering, laboratories, automobiles and home appliances. It is equipped with a 1500 mAh lithium battery and a 2.4' TFT full-color display with a resolution of 240 x 320 pixels. Specifications Function Range Accuracy DC voltage 9.999 V/99.99 V/999.9 V ±(0.5%+3) AC voltage 9.999 V/99.99 V/750.0 V ±(1%+3) DC current 9999 uA/99.99 mA/999.9 mA/9.999 A ±(1.2%+3) AC current 9999 uA/99.99 mA/999.9 mA/9.999 A ±(1.5%+3) Resistance 9.999 MΩ/999.9 KΩ/99.99 KΩ/9.999 KΩ/999.9 Ω ±(1.5%+3) 99.99 MΩ ±(1.5%+3) Capacitance 999.9 µF/99.99 µF/9.999 µF/999.9 nF/99.99 nF/9.999 nF ±(2.0%+3) 9.999 mF/99.99 mF ±(5.0%+3) Frequency 9.999 MHz/999.9 KHz/9999 KHz/9.999 KHz/999.99 Hz/99.99 Hz/9.999 Hz ±(0.1%+3) Temperature -55~1300°C (-64~2372°F) ±(2.5%+3) Diode Yes Continuity test Yes NVC Yes Live wire detection Yes Max counts 10000 counts Battery capacity 1500 mAh Dimensions 155 x 80 x 36 mm Weight 191 g Included 1x FNIRSI DMT-99 Multimeter 2x Test pens 1x USB-C charging cable 1x Manual Downloads Manual Firmware V2.4

    € 44,95

    Members € 40,46

  • OWON OW18E Bluetooth Multimeter - Elektor

    OWON OWON OW18E True RMS Multimeter

    Features 4 1/2 bit resolution (20000 Counts) Data Logger Multimeter Thermometer True RMS test supported BLE 4.0 wireless transmission, more stable,less power consumption Build-in offline record function Chart and Diagram mode helps to analyze the data tendency Flashlight function lightens the darkness Support NCV non-contact voltage sense Widely supported on Android, iOS, Windows Included OWON OW18E Multimeter Quick Guide Multimeter Lead K-type Thermocouple Bolt Driver App Download The Bluetooth function of this multimeter is compatible with Android-app version 1.5.8.0 or newer. Use the QR code in the box or go to http://files.owon.com.cn/bluetooth.

    € 69,95

    Members € 62,96

  • Last Stock! PeakTech 1073 True RMS Smart Multimeter - Elektor

    PeakTech PeakTech 1073 True RMS Smart Multimeter

    1 in stock

    The PeakTech 1073 smart digital multimeter combines state-of-the-art technology with an impressive range of functions in a compact design. It measures voltages up to 600 V AC/DC, is CAT III certified and features True RMS for precise measurements with varying voltages. The integrated NCV voltage tester enables non-contact voltage detection, while the LIVE test reliably identifies phases and neutral conductors. Thanks to the automatic search of the measuring function, you no longer need a rotary selector switch. The multimeter automatically recognizes what is being measured and adjusts itself accordingly. The 4000-digit LCD display with blue backlighting ensures clear readability of the measured values and changes to red when measuring ranges are exceeded or the NCV voltage tester detects a voltage. In addition to the standard measurements for voltage, current (AC & DC), resistance, continuity, diode test and temperature, this multimeter also offers capacitance and frequency measurements. Features Smart True RMS multimeter with automatic function selection Manual function selection possible at the touch of a button 3¾ digit LCD display with 4,000 counts Backlight (blue/red) and LED light Continuity test and diode test function Capacitance, temperature & frequency measurement Live test and NCV voltage tester Auto-Power-Off and battery status indicator Sturdy ABS plastic housing Safety: EN 61010-1, CAT III 600 V Specifications Digital counts 4000 Basic Accuracy DC ±0.5% Over voltage category CAT III 600 V Display Type LCD Range selection Auto Auto-Scan Yes LED-lamp Yes NCV Yes True RMS Yes V DC max. 600 V A AC max. 10 A Hz max. 4 kHz Capacitance max. 1 mF OHM max. 40 MΩ Temp. max. 1200°C (2192°F) Temp. min. −200°C (−328°F) mA DC max. 4000 mA V AC max. 600 V A DC max. 10 A mA AC max. 4000 mA Power supply 2x 1.5 V AAA batteries Dimensions 130 x 63 x 35 mm Weight 116 g (incl. batteries) Included 1x PeakTech 1073 Multimeter 2x Test leads 1x Thermocouple 2x Batteries 1x Manual Downloads Manual

    1 in stock

    € 24,95

    Members € 22,46

  • OWON XDM1241 Multimeter - Elektor

    OWON OWON XDM1241 True RMS Multimeter

    The OWON XDM1241 is a fast, high-precision digital True RMS benchtop multimeter with a high-resolution 3.5-inch LCD and 50,000 counts. Its DC voltage accuracy is up to 0.05% and it can measure up to 65 values per second. Features 3.5' high-resolution LCD (480x320 pixels) 55000 counts, DC voltage accuracy up to 0.05% Up to 65 readings per second Dual line display supported Trend analysis accessible in chart mode AC True RMS measurements (bandwidth: 20 Hz – 1 kHz) SCPI support: Remote control the multimeter through PC software via USB port Data record function, you can record the measured data into internal memory, and then read and process the recorded data with your computer. Specifications Measurement Range Resolution Accuracy DC Voltage 50.000 mV 0.001 mV 0.1% +10 500.00 mV 0.01 mV 0.05% +5 5.0000 V 0.0001 V 0.05% +5 50.000 V 0.001 V 0.05% +5 500.00 V 0.01 V 0.1% +5 1000.0 V 0.1 V 0.1% +10 AC Voltage 500 mV~750 V 20 Hz~45 Hz 1% +30 45 Hz~65 Hz 0.5% +30 65 Hz~1 KHz 0.7% +30 DC Current 500 uA 0.01 uA 0.15% +20 5000 uA 0.1 uA 0.15% +10 50 mA 0.001 mA 0.15% +20 500 mA 0.01 mA 0.15% +10 5 A 0.0001 A 0.5% +10 10 A 0.001 A 0.5% +10 AC Current 500 uA~500 mA 20 Hz~1 KHz 0.5% +20 5 A-10 A 1.5% +20 Resistance 500 Ω 0.01 Ω 0.15% +10 5 KΩ 0.0001 KΩ 0.15% +5 50 KΩ 0.001 KΩ 0.15% +5 500 KΩ 0.01 KΩ 0.15% +5 5 MΩ 0.0001 MΩ 0.3% +5 50 MΩ 0.001 MΩ 1% +10 Frequency 10.000 Hz~60 MHz / ±(0.2% +10) Capacitance 50 nF~500 uF / 2.5% +10 5 mF~50 mF 5% +10 Diode 3.0000 V 0.0001 V / Continuity 1000 Ω 0.1 Ω Adjustable threshold Temperature K type, PT100 Max Display 55,000 counts Data-logging Function Logging Duration 15ms~9999.999s Logging Length 1,000 points Display 3.5' TFT LCD (480x320 pixels) Power supply Lithium battery via USB-C or 5 V DC input Dimensions 235 x 88 x 65 mm Weight approx. 0.5 kg Included 1x OWON XDM1241 Multimeter 2x Test leads 1x USB cable 1x USB to DC cord 1x Manual Downloads Programming Manual PC Software

    € 134,95

    Members € 121,46

  • Last Stock! PeakTech 3350 Multimeter - Elektor

    PeakTech PeakTech 3350 True RMS Multimeter

    2 in stock

    The PeakTech 3350 was specially developed for use in the craftsmanship and industry and offers a variety of useful functions that simplify daily work, especially in dark or noisy environments. The lighting of the large LCD display is automatically activated by a photodiode in dark surroundings. On the back of the device there is also a bright LED flashlight, which is used to illuminate the area where the measurement has to be taken. A multi-colored LED bar is located above the 6000-digit display. Depending on the active measuring function, it lights up green during the continuity test, red when a voltage is found in NCV mode, yellow when measuring large capacities or flashes red when the phase tester mode is active (LIVE). The PeakTech 3350 was manufactured according to the latest development aspects and has a double-insulated injection-molded housing with rubber coating, a tilt stand on the back, which can be removed to replace the batteries. The fuses are located underneath the stand as well, if it is neccessary to replace these. With this device the measuring range is selected automatically, which enable particularly fast response times. Features True RMS voltage up to 600 V and current up to 10 A AC/DC 6,000 LCD display with automatic backlight Multi-colored warning LED for various measuring functions Automatic range selection Manual range selection possible using selection buttons Integrated LED flashlight for lighting the area where the measurement has to be taken Auto off and battery status display Safety: EN 61010-1; CAT III 600 V Accessories: bag, test leads, temperature sensor, temperature adapter, batteries and user manual Specifications Basic Accuracy DC ±0.5% Battery 1.5 V AAA Capacitance max. 60 mF Digital counts 6000 Display Type LCD Info LEDs ■ LED lamp ■ NCV ■ Over voltage category CAT III 600 V Range selection Auto True RMS ■ V DC max. 600 V A AC max. 10 A Hz max. 10 MHz OHM max. 60 MΩ Temp. max. 1000°C Temp. min. -18°C mA DC max. 600 mA mV DC max. 600 mV µA DC max. 6000 µA V AC max. 600 V mV AC max. 600 mV A DC max. 10 A mA AC max. 600 mA µA AC max. 6000 µA Downloads Manual

    2 in stock

    € 59,95

    Members € 53,96

  • FeelElec FR01D (2 - in - 1) Thermal Imaging Camera & Multimeter - Elektor

    FeelElec FeelElec FR01D (2-in-1) Thermal Imaging Camera & Multimeter

    The FR01D (2-in-1) thermal imaging camera and multimeter is a compact and lightweight solution that simplifies diagnostic and maintenance tasks. The one-click function allows you to switch effortlessly between thermal imaging and multimeter mode, giving you two important tools in one portable device. The multimeter is capable of measuring DC and AC voltage, resistance, diode checks, continuity testing, and capacitance. The FR01D has a 2.8-inch touchscreen with a resolution of 320 x 480 pixels. The device is powered by an integrated rechargeable lithium battery and can be charged via USB. With the FR01D, you can inspect and maintain circuit boards, check power supplies, repair electronic devices, and overhaul household appliances. Its compact size, multifunctionality, and user-friendliness make the FR01D the ideal companion for electronics and maintenance technicians. General Specifications Display size 2.8" (320 x 480) Touchscreen Resistive Data transmission USB-C Image storage format BMP Battery Li-ion battery Storage temperature −20°C~60°C(−4°F~140°F) Operating temperature 0°C~50°C(32°F~122°F) Operating humidity <85% RH Dimensions 134 x 69 x 25 mm Weight 130 g Thermal Imaging Specifications Sensor Vanadium oxide (VOx) Image capture frequency 25 Hz Thermal imaging pixels 192 x 192 Field of View (FOV) 50.0°(H) x 50°(V) / 72.1°(D) Temperature range −20°C ~ +550°C (−4°F~1022°F) Gain mode Auto Accuracy ±2°C or ±2% Measurement resolution 0.1°C / 0.1°F Multimeter Specifications DC input voltage (max.) 1000 V AC input voltage (max.) 750 V Resistance (max.) 99.99 MΩ Capacitance (max.) 99.99 mF Duty cycle test range 0.1% ~ 99.9% Diode test range 0 V ~ 3 V Continuity test 999.9 Ω Display 9999 counts (Refreshes 3x per second) Accuracy Function Range Resolution Accuracy AC Voltage 400 mV 0.1 mV 2% +3 9.999 V 0.001 V 1.0% +3 99.99 V 0.01 V 999.9 V 0.1V DC Voltage 400 mV 0.1 mV 2% +3 9.999 V 0.001 V 1.0% +3 99.99 V 0.01 V 999.9 V 0.1 V Resistance 999.9 Ω 0.1 Ω 0.5% +3 9.999 KΩ 0.001 kΩ 99.99 KΩ 0.01 kΩ 999.9 KΩ 0.1 kΩ 9.999 MΩ 0.001 MΩ 99.99 MΩ 0.01 MΩ 1.5% +3 Diode Test 3.000 V 0.001 V 10% Capacitance 9.999 nF 0.001 nF 2% +5 99.99 nF 0.01 nF 999.9 nF 0.1 nF 9.999 uF 0.001 uF 99.99 uF 0.01 uF 999.9 uF 0.1 uF 9.999 mF 0.001 mF 5% +5 99.99 mF 0.01 mF Included 1x FR01D IR-Camera and Multimeter 2x Test Leads 1x USB Cable 1x Manual

    € 239,00

    Members € 215,10

What is a multimeter? Why are multimeters necessary?

Multimeters are instruments used to measure multiple electrical properties. Just as you would use a ruler to measure distance, a stopwatch to measure time, or a scale to measure weight, you can use a multimeter to measure different things – all in one – like a multi-tool. This was the idea behind the first multimeter. British Post Office technician Donald Macadie was dissatisfied with the need to carry many separate instruments, so he invented an instrument that could measure amperes, volts, and ohms. The multifunctional meter was then given the name Avometer.

Multimeters mainly measure voltage (volts), current (amps) and resistance (ohms). Some also allow you to measure other properties, such as temperature and capacity. The multimeter is a standard diagnostic instrument for technicians in the electrical/electronics industry.

Analog and digital multimeters: what are the differences?

An analog multimeter consists of a meter with a moving coil and a pointer that indicates the reading on the scale. This multimeter has a scale with bars to indicate the change in reading over time. The analog multimeter can display abrupt variations in the electrical current well, because it has a changing display.

For comparison, a digital multimeter is a device that displays accurate measurement results on an LCD screen. A digital multimeter with auto-range automatically changes the scale display, so that the measuring circuits can use the maximum precision of the A/D converter. Digital multimeters are generally the best multimeters because they are easier to read and give more accurate results. Many experts will opt for a digital multimeter instead of its analog version.

  • The measurement results are recorded and stored in memory and synchronized via a PC.
  • Resistant to mechanical damage
  • Multifunctionality
  • The measurement accuracy is high
  • Measuring ranges can be selected manually or automatically

On the other hand, it is expensive compared to the analog multimeter and a fluctuating measurement is difficult to read.

Looking for multimeters? What does Elektor have to offer?

A multimeter is an essential tool for detecting faults and defects in electrical systems. Elektor offers multimeters in various sizes, functions and prices – from portable models with wireless Bluetooth transmission to extremely cheap, highly accurate table-top models. There is a solution for every electrical engineer, maker, and electronics enthusiast.

What accessories are available for a multimeter?

Elektor offers a range of accessories for test and measuring tools, including multimeters. Accessories for multimeters include test leads, banana plugs, back probe pins, alligator clips, and test hooks that can further improve quality.

Why should you buy a multimeter from Elektor?

Thousands of electrical engineers, makers and electronics enthusiasts trust Elektor for affordable, high-quality test and measurement equipment, such as multimeters and multimeter accessories. We stock a wide variety of multimeters to meet the different needs of a wide range of customers.
