This is a kit for a pan-tilt mechanism explicitly designed for Pixy2. After assembling the kit and connecting it to Pixy2, you'll be able to follow colored objects using the Pan/Tilt demo. It includes two laser-cut plastic pieces for the base, two different servos for the pan and tilt axes, and all the mounting hardware and cable ties you will need to assemble. Features The pan-tilt mechanism for Pixy2 is redesigned, making it smaller and faster than the pan-tilt for the original Pixy. All necessary hardware is included. The pan-tilt base is attached directly to an Arduino with Arduino-compatible hole-pattern and includes stand-offs and fasteners. Several pan-tilt demos are provided that can run using either Arduino, Raspberry Pi or stand-alone (no controller). Downloads Manual

Read more less

The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer, baroceptor, and uses I²C bus for communication. Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation. Features Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 5 V Accelerometer Resolution: 16-bitMeasuring range (configurable): ±2, ±4, ±8, ±16gOperating current: 68.9uA Gyroscope Resolution: 16-bitMeasuring range (configurable): ±250, ±500, ±1000, ±2000°/secOperating current: 1.23mA Magnetometer Resolution: 16-bitMeasuring range: ±4900µTOperating current: 90uA Baroceptor Measuring range: 260 ~ 1260hPaMeasuring accuracy (ordinary temperature): ±0.025hPaMeasuring speed: 1Hz - 75Hz

Read more less

If you are searching for a possibility to keep your Raspberry Pi cool, than this mini fan is the perfect possibility for this. The active cooler is ready to use right after pluging in the two GPIO pins into the 5V and GND GPI-O port. The cooler is compatible to all Raspberry Pis and is perfect to keep them cool, even under full load. Voltage: 5 V Current: 0.2 A Dimensions: 30 x 30 x 7 mm

Read more less

The Speaker Kit for Raspberry Pi is a small amplified speaker designed for the Raspberry Pi. Included MonkMakes Amplified Speaker Set of 10 female to female header wires Short stereo audio lead Raspberry Leaf GPIO template Downloads Instructions Datasheet

Read more less

You could use Pirate Audio Headphone Amp to build a tidy, pocket-sized player for local audio files (MP3, FLAC, etc) or for streaming music from online services like Spotify. To help get you started, Pimoroni has built plugins for Mopidy that will let you display gorgeous album art, play/pause your tracks and adjust the volume. The DAC and headphone amp will give you crisp digital amplified audio through your wired headphones. Pirate Audio is a range of all-in-one audio boards for Raspberry Pi, with high-quality digital audio, beautifully-crisp IPS displays for album art, tactile buttons for playback control, and a custom Pirate Audio software and installer to make setting it all up a breeze. Features Amplified digital audio (24-bit / 192KHz) over I2S PAM8908 headphone amplifier chip Low-gain / high-gain switch (high-gain boosts by 12dB) PCM5100A DAC chip 3.5mm stereo jack 1.3' IPS colour LCD (240x240px) (ST7789 driver) Four tactile buttons Mini HAT-format board Fully-assembled Compatible with all 40-pin header Raspberry Pi models Dimensions: 65x30.5x9.5mm Software The Pirate Audio software and installer installs the Python library for the LCD, configures the I2S audio and SPI, and then installs Mopidy and the custom Pirate Audio plugins to display album art and track info, and to use the buttons for playback control. Here's how to get started: Set an SD card up with the latest version of Raspberry Pi OS. Connect to Wi-Fi or a wired network. Open a terminal and type the following:git clone https://github.com/pimoroni/pirate-audiocd pirate-audio/mopidysudo ./install.sh Reboot your Pi Downloads PAM8908 Datasheet PCM5100A Datasheet Pirate Audio software

Read more less

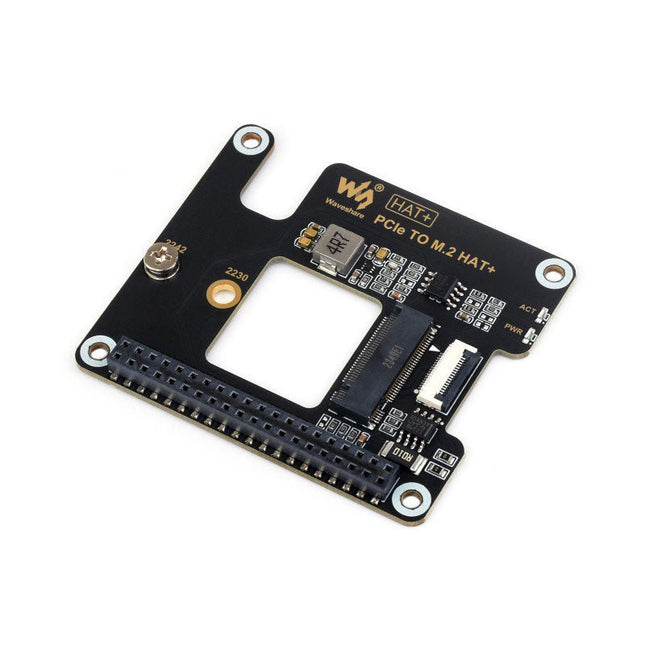

This PCIe to M.2 adapter is specifically designed for the Raspberry Pi 5. It supports the NVMe protocol for M.2 SSDs, enabling fast read and write operations, and adheres to the HAT+ standard. The adapter is compatible with M.2 SSDs in the 2230 and 2242 sizes. Included 1x PCIe to M.2 HAT+ Adapter 1x 2x20 Pin header 1x 16P cable (40 mm) 1x Standoff pack Downloads Wiki

Read more less

SHIM is an old Yorkshire term meaning 'Shove Hardware In Middle' - we use it for Raspberry Pi add-ons that are designed to be sandwiched between your Pi and a HAT or mini HAT. This one has a clever friction fit header that slips handily over your GPIO pins, doesn't need soldering*, and is easily removable. The MAX98357A combined DAC / amplifier chip takes high-quality digital audio from your Pi and amplifies it so it can be used with an unpowered speaker. The push-fit connectors make it straightforward to connect up your speaker, whether it's a bookshelf or floor-standing speaker, the speaker in an old radio, or any other speaker you might have laying around. Because Audio Amp SHIM adds no extra bulk to your Pi it's perfect for building into a compact enclosure - you could use it to make a tiny MP3 player to play local files or stream from services like Spotify, give a vintage radio the ability to play digital radio streams or incorporate bleepy noises into your very own retro handheld. It's also a handy way to add audio output to your Pi Zero or Pi 400! Please note: Raspberry Pi and speakers are not included with this board. Features MAX98357A DAC / amplifier chip Mono 3W audio out Push-fit speaker terminals SHIM-format board with friction-fit connectors 2x mounting holes (M2.5) for if you want to secure everything together with bolts Fully-assembled No soldering required (*unless you're using a Pi that comes without a header) Compatible with all 40-pin header Raspberry Pi models Software The easiest way to get everything set up is to use Pimoroni's Pirate Audio software and installer which configures I2S audio, as well as installing Mopidy and our custom Pirate Audio plugins which will let you stream Spotify and play local files. Here's how to get started: Set an SD card up with the latest version of Raspberry Pi OS. Connect to Wi-Fi or a wired network. Open a terminal and type the following:git clone https://github.com/pimoroni/pirate-audiocd pirate-audio/mopidysudo ./install.sh Reboot your Pi Downloads MAX98357A Datasheet Pirate Audio software Schematic

Read more less

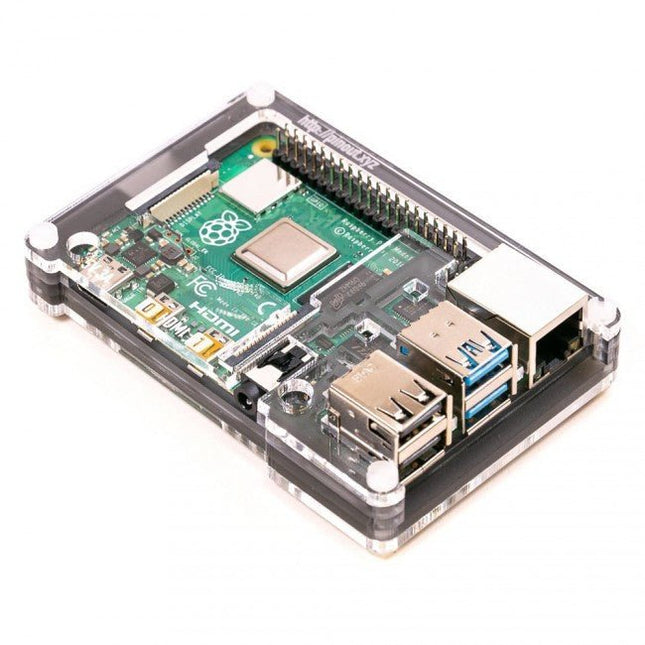

Features Compatible with Raspberry Pi 4 only Cutout in lid for 40x30mm heatsink or Fan SHIM Super-slimline profile Fully HAT-compatible Protects your beloved Pi Clear top and base leave Raspberry Pi 4 visible GPIO cut-out Handy laser-etched port labels Leaves all ports accessible Made from lightweight, high-quality, cast acrylic Great for hacking and tinkering! Made in Sheffield, UK Weighing just over 50 grams, the case is lightweight and ideal for mounting to any surface. No tools are required for assembly or disassembly. The dimensions are: 99 × 66 × 15 mm. In the video below you can see a quick assembly guide.

Read more less

Raspberry Pi cooling is a must. From the simplest passive heat sink, through elaborate fan blowers and even to an exotic water-cooled idea, many options are available. Sequent Microsystems Smart Fan has the form factor of the Raspberry Pi HAT. Its own tinny 32-bit processor receives commands from Raspberry Pi through the I²C interface. A step-up power supply converts the 5 V provided by Raspberry Pi to 12 V, ensuring precise speed control. Using pulse width modulation, it powers the fan just enough to maintain a constant temperature of the Raspberry Pi processor. The Smart Fan preserves all the GPIO pins, allowing any number of cards to be stacked on top of Raspberry Pi. If another add-on card has to dissipate power, a secondary Smart Fan can be added to the stack. DIN-Rail Mounting Together with multiple add-on cards, the Smart Fan can be installed on the DIN-Rail, for sturdy industrial applications. Stack Level Jumper Two Smart Fans can be installed on top of each Raspberry Pi. The assumption is that you have one more card in the stack which requires cooling. The bottom side of the Smart Fan has a jumper which needs to be installed on the second fan, in order for the Raspberry Pi to differentiate the two I²C addresses. Features 40 x 40 x 10 mm fan with 6 CFM airflow Step-up 12 V power supply for precise fan speed control PWM Controller modulates the fan to keep constant Pi temperature Draws less than 100 mA of power Stackable to itself, 2 fans can be added to Raspberry Pi Fully stackable allows adding other cards to Raspberry Pi Uses only I²C interface, leaves full use of all GPIO pins Super quiet and efficient Included Smart Fan HAT 40 x 40 x 10 mm Fan with mounting Screws Mounting Hardware Downloads User's Guide Open Source Hardware Schematic 2D CAD Drawing Command line Python Libraries Node-Red Nodes

Read more less

Features Jack: 1x Micro USB power plug + 1x RJ45 output port Input Voltage: 36~57 V (standard PoE voltage 48 V, 52 V) Output Voltage: DC 5 V Output Current: 2 A Transmission Distance: 10~100 m PoE Protocol: IEEE802.3af Network Bandwidth: 10/100 Mbps Weight: 40 g Product Dimension: 82 x 28 x 23 mm Cable Length: 205 mm Operation Temperature: -50 °C up to +75 °C

Read more less

The Explorer Board is the easy and efficient way to develop your Raspberry Pi Pico projects. Since the most important components are already integrated, you save time and effort on wiring. The Explorer Board has a wide range of interface connectors so you can connect your projects to a variety of modules and devices. With the integrated breadboard, you can quickly build and realize your own projects. Thanks to the possibility to connect or disconnect all modules individually, you can use your pins, which are additionally led separately to the outside, for other projects or experiment on the integrated breadboard at any time. Features Fast and efficient experimenting with the Raspberry Pi Pico Raspberry Pi Pico can be plugged in directly All modules can be switched on and off individually Additional integrated breadboard for own development Specifications Integrated modules: 4 RGB LEDs, buzzer, relay, 1.8“ TFT display, DHT11 temperature sensor, 4 buttons, breadboard Interfaces: 4x servo motor, SPI, I²C, UART, 5x crocodile clip connector Power supply: 5 V USB-C Dimensions: 219 x 110 x 27 mm Downloads Manual Examples and libraries

Read more less

Grove - Time of Flight Distance Sensor-VL53L0X is a high speed, high accuracy and long range distance sensor based on VL53L0X. The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module and it is one of the smallest on the market today. It provides accurate distance measurement independent of the target reflectances, making it superior to other conventional technologies. It can measure absolute distances up to 2 m, raising the standards in ranging performance levels and allowing various new applications. The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second generation Flight SenseTM patented technology. The VL53L0X’s 940 nm VCSEL emitter (Vertical-Cavity Surface-Emitting Laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distances, higher immunity to ambient light, and better robustness to cover glass optical crosstalk. Features VCSEL driver Ranging sensor with advanced embedded microcontroller Advanced embedded optical cross-talk compensation to simplify cover glass selection Safe for eyes: Class 1 laser device compliant with latest standard IEC 60825-1:2014 - 3rd edition Single power supply I²C interface for device control and data transfer Xshutdown (reset) and interrupt GPIO Programmable I²C address Working voltage: 3.3 V / 5 V Working temperature: 20 ℃ - 70 ℃ Recommended measurement distance: 30 mm - 1000 mm Default I²C address: 0x52 Included 1x Grove - Time of Flight Distance Sensor-VL53L0X 1x Grove Cable

Read more less

The extension set adds 5 more sensors and modules to your experiment case. The required connections are provided by the Port-Doubler board.The set includes an ADC, a linear potentiometer, a joystick module, a magnetic sensor, a pressure and temperature sensor, the Port-Doubler board, a breadboard and a cable set.With the Port-Doubler board, you can now also connect your own projects with the Raspberry Pi and the Joy-Pi, thus extending the range of applications considerably.Specifications ADC (for connecting analog sensors): 4-channel 12-bit accuracy (ADS1115) Linear potentiometer: 10 kΩ Magnetic sensor: Linear magnetic Hall sensor (49E) Pressure and temperature sensor: BMP280 Joystick: Analog 2-axis joystick module with button Included Port-Doubler board Joystick module ADC Pressure and temperature sensor Linear potentiometer Magnetic sensor Cable set Breadboard

Read more less

This flash memory allows you to store and read data externally via the SPI interface of your microcontroller. The control of the module is exactly the same as with a conventional SD card and is therefore particularly simple. The module is especially suitable for mobile setups, where normal SD cards could slip out of the SD card slot. Specifications Special feature 3 V and 5 V operation due to the integrated voltage converter Supply voltage Vcc 3-5 V Logic level Vcc Interface SPI Memory size 512 MB Clock frequency Up to 50 MHz Dimensions 18 x 22 x 12 mm Weight 3 g

Read more less

The Pico Reset Button offers a direct and user-friendly solution for rebooting your Raspberry Pi Pico. With the Reset Button, you no longer need to disconnect your Raspberry Pi Pico from the power source to reboot. Instead, the button allows you to quickly reboot with just a simple push of a button. Its compact size and easy installation by soldering it to just three points make it a handy tool. The Reset Button is compatible with both the Raspberry Pi Pico and the newer Raspberry Pi Pico W and can be used regardless of model generation. Especially for hobbyists and developers the Pico Reset Button is a useful addition and allows an even easier and more efficient handling of the Raspberry Pi Pico. Features Ultra compact reset button Allows restarting with just a simple push of a button Reliable and permanent connection through soldering Mounting: Soldering on the pins GND, GP22 & RUN Dimensions: 9 x 7 x 4 mm

Read more less

Discover endless creativity with the Universal Maker Sensor Kit, designed for use with Raspberry Pi, Pico W, Arduino, and ESP32. This versatile kit offers compatibility across popular development platforms, including Arduino Uno R4 Minima/WiFi, Uno R3, Mega 2560, Raspberry Pi 5, 4, 3B+, 3B, Zero, Pico W, and ESP32. Featuring over 35 sensors, actuators, and displays, it's perfect for projects ranging from environmental monitoring and smart home automation to robotics and interactive gaming. Step-by-step tutorials in C/C++, Python, and MicroPython guide beginners and experienced makers alike through 169 exciting projects. Features Wide Compatibility: Fully supports Arduino (Uno R3, Uno R4 Minima/WiFi, Mega 2560), Raspberry Pi (5, 4, 3B+, 3B, Zero, Pico W), and ESP32, enabling extensive flexibility across numerous development platforms. Includes instructions for building 169 projects. Comprehensive Components: Features more than 35 sensors, actuators, and display modules suitable for diverse projects such as environmental monitoring, smart home automation, robotics, and interactive game controllers. Detailed Tutorials: Provides clear, step-by-step tutorials covering Arduino, Raspberry Pi, Pico W, ESP32, and each included component. Tutorials are available in C/C++, Python, and MicroPython, catering effectively to both beginners and experienced makers. Suitable for All Skill Levels: Offers structured projects designed to guide users seamlessly from beginner to advanced proficiency in electronics and programming, enhancing creativity and technical expertise. Included Breadboard Button Module Capacitive Soil Moisture Module Flame Sensor Module Gas/Smoke Sensor Module (MQ2) Gyroscope & Accelerometer Module (MPU6050) Hall Sensor Module Infrared Speed Sensor Module IR Obstacle Avoidance Sensor Module Joystick Module PCF8591 ADC DAC Converter Module Photoresistor Module PIR Motion Module (HC-SR501) Potentiometer Module Pulse Oximeter and Heart Rate Sensor Module (MAX30102) Raindrop Detection Module Real Time Clock Module (DS1302) Rotary Encoder Module Temperature Sensor Module (DS18B20) Temperature and Humidity Sensor Module (DHT11) Temperature, Humidity & Pressure Sensor (BMP280) Time of Flight Micro-LIDAR Distance Sensor (VL53L0X) Touch Sensor Module Ultrasonic Sensor Module (HC-SR04) Vibration Sensor Module (SW-420) Water Level Sensor Module I²C LCD 1602 OLED Display Module (SSD1306) RGB LED Module Traffic Light Module 5 V Relay Module Centrifugal Pump L9110 Motor Driver Module Passive Buzzer Module Servo Motor (SG90) TT Motor ESP8266 Module JDY-31 Bluetooth Module Power Supply Module Documentation Online Tutorial

Read more less

Add global GSM connectivity and GPS tracking to your project with a BerryGPS-GSM. This is an all in one module which can provide location tracking and GSM services such as data, text and SMS to your project. It comes in the same form factor as a Raspberry Pi Zero, which makes it nice and compact when used with a Raspberry Pi Zero. The two main components that make this board great are; uBlox CAM-M8 GPS module (Same GPS found on BerryGPS-IMU V3) uBlox SARA-U201 GSM for GSM connectivity, which has global coverage. Both of these modules working together results in obtaining a GPS fix in secs, using Assisted GPS. Typically, a GPS module can take a few minutes to get Time To First Fix(TTFF), or even longer if you are in built up areas. This is because the Almanac needs to be downloaded from satellites before a GPS fix can be acquired and only a small portion of the Almanac is sent in each GPS update. Assisted GPS speeds this up significantly by downloading ephemeris, almanac, accurate time and satellite status over the network, resulting in faster TTTF, in a few seconds. This is very similar how to GPS works on a smartphone. BerryGPS-GSM has been designed for the Raspberry Pi Zero, however it works with all versions of Raspberry Pi. We have created a USB-to-USB PCB connector to be used with a Raspberry Pi Zero, which is designed to make your project more compact. GPS Specific Datasheets CAM-M8-FW3_DataSheet_(UBX-15031574) CAM-M8-FW3_HardwareIntegrationManual_(UBX-15030063) GSM Specific Datasheets SARA-U201 DataSheet (UBX-13005287) SARA-U201 SysIntegrationManual_(UBX-13000995) u-blox CEL_ATCommands_(UBX-13002752)

Read more less

The Raspberry Pi AI HAT+ is an expansion board designed for the Raspberry Pi 5, featuring an integrated Hailo AI accelerator. This add-on offers a cost-effective, efficient, and accessible approach to incorporating high-performance AI capabilities, with applications spanning process control, security, home automation, and robotics. Available in models offering 13 or 26 tera-operations per second (TOPS), the AI HAT+ is based on the Hailo-8L and Hailo-8 neural network accelerators. This 13 TOPS model efficiently supports neural networks for tasks like object detection, semantic and instance segmentation, pose estimation, and more. The 26 TOPS variant accommodates larger networks, enables faster processing, and is optimized for running multiple networks simultaneously. The AI HAT+ connects via the Raspberry Pi 5’s PCIe Gen3 interface. When the Raspberry Pi 5 is running a current version of the Raspberry Pi OS, it automatically detects the onboard Hailo accelerator, making the neural processing unit (NPU) available for AI tasks. Additionally, the rpicam-apps camera applications included in Raspberry Pi OS seamlessly support the AI module, automatically using the NPU for compatible post-processing functions. Included Raspberry Pi AI HAT+ (13 TOPS) Mounting hardware kit (spacers, screws) 16 mm GPIO stacking header Downloads Datasheet

Read more less

The Waveshare PCIe to Gigabit Ethernet and USB 3.2 Gen 1 HAT+ is an expansion board designed specifically for the Raspberry Pi 5. It enhances the Raspberry Pi's connectivity by adding three high-speed USB 3.2 Gen 1 ports and a Gigabit Ethernet port, all in a driver-free, plug-and-play setup. Features Based on 16-pin PCIe Interface of Raspberry Pi 5 Equipped with RTL8153B high-performance Gigabit Ethernet chip Supports Raspberry Pi OS, Ubuntu, OpenWRT, etc. Stable and reliable network speed Real-time monitoring of power status Supports USB port power control via software Included 1x PCIe to Gigabit Ethernet USB 3.2 HAT+ 1x Network cable (1.5 m) 1x 16P Cable (40 mm) 1x Standoff pack Downloads Wiki
