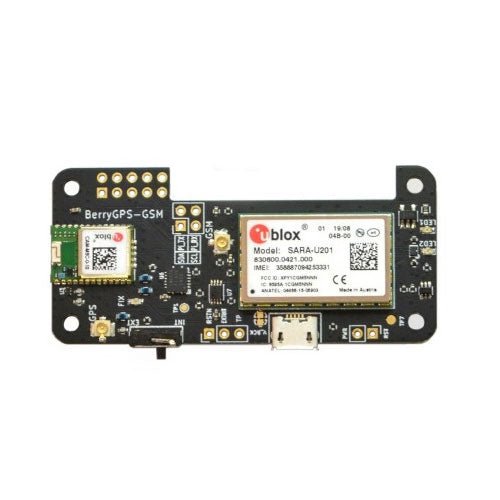

OzzMaker BerryGPS-GSM for Raspberry Pi

  • BrandOzzMaker

Description

Add global GSM connectivity and GPS tracking to your project with a BerryGPS-GSM.

This is an all in one module which can provide location tracking and GSM services such as data, text and SMS to your project. It comes in the same form factor as a Raspberry Pi Zero, which makes it nice and compact when used with a Raspberry Pi Zero.

The two main components that make this board great are;

  • uBlox CAM-M8 GPS module (Same GPS found on BerryGPS-IMU V3)
  • uBlox SARA-U201 GSM for GSM connectivity, which has global coverage.

Both of these modules working together results in obtaining a GPS fix in secs, using Assisted GPS.

Typically, a GPS module can take a few minutes to get Time To First Fix(TTFF), or even longer if you are in built up areas. This is because the Almanac needs to be downloaded from satellites before a GPS fix can be acquired and only a small portion of the Almanac is sent in each GPS update.

Assisted GPS speeds this up significantly by downloading ephemeris, almanac, accurate time and satellite status over the network, resulting in faster TTTF, in a few seconds. This is very similar how to GPS works on a smartphone.

BerryGPS-GSM has been designed for the Raspberry Pi Zero, however it works with all versions of Raspberry Pi.

We have created a USB-to-USB PCB connector to be used with a Raspberry Pi Zero, which is designed to make your project more compact.

GPS Specific Datasheets

GSM Specific Datasheets

Product form

Add global GSM connectivity and GPS tracking to your project with a BerryGPS-GSM. This is an all in one module... Read more

€ 99,95 incl. VAT
Members € 89,96

    • Ship today? Order within Nov 11, 2024 17:00:00 +0100

    Details

    SKU: 19326
    EAN: X0028JOCWT

    Description

    Add global GSM connectivity and GPS tracking to your project with a BerryGPS-GSM.

    This is an all in one module which can provide location tracking and GSM services such as data, text and SMS to your project. It comes in the same form factor as a Raspberry Pi Zero, which makes it nice and compact when used with a Raspberry Pi Zero.

    The two main components that make this board great are;

    • uBlox CAM-M8 GPS module (Same GPS found on BerryGPS-IMU V3)
    • uBlox SARA-U201 GSM for GSM connectivity, which has global coverage.

    Both of these modules working together results in obtaining a GPS fix in secs, using Assisted GPS.

    Typically, a GPS module can take a few minutes to get Time To First Fix(TTFF), or even longer if you are in built up areas. This is because the Almanac needs to be downloaded from satellites before a GPS fix can be acquired and only a small portion of the Almanac is sent in each GPS update.

    Assisted GPS speeds this up significantly by downloading ephemeris, almanac, accurate time and satellite status over the network, resulting in faster TTTF, in a few seconds. This is very similar how to GPS works on a smartphone.

    BerryGPS-GSM has been designed for the Raspberry Pi Zero, however it works with all versions of Raspberry Pi.

    We have created a USB-to-USB PCB connector to be used with a Raspberry Pi Zero, which is designed to make your project more compact.

    GPS Specific Datasheets

    GSM Specific Datasheets
