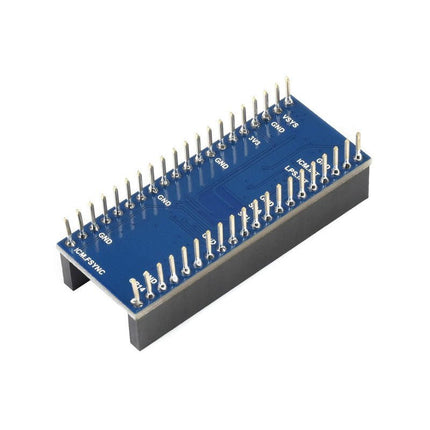

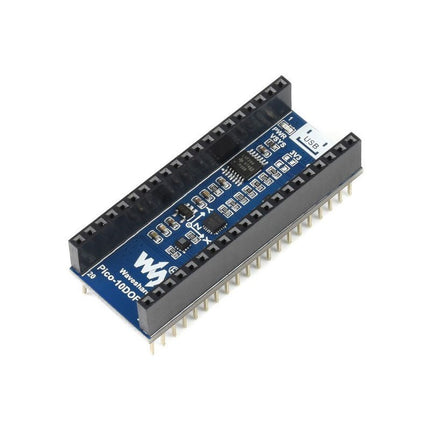

Waveshare 10-DOF IMU Sensor Module for Raspberry Pi Pico

  • BrandWaveshare

Description

The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer, baroceptor, and uses I²C bus for communication.

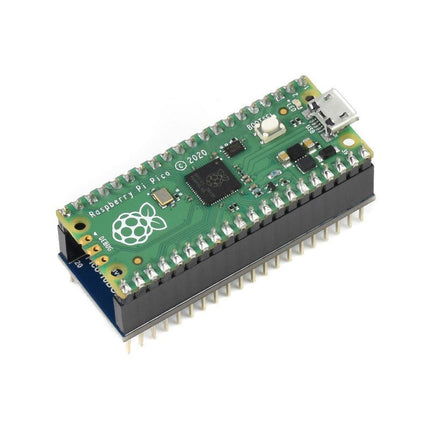

Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation.

Features

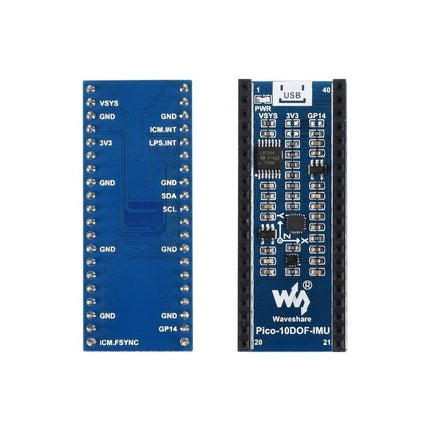

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  • Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field
  • Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage 5 V
Accelerometer Resolution: 16-bit
Measuring range (configurable): ±2, ±4, ±8, ±16g
Operating current: 68.9uA
Gyroscope Resolution: 16-bit
Measuring range (configurable): ±250, ±500, ±1000, ±2000°/sec
Operating current: 1.23mA
Magnetometer Resolution: 16-bit
Measuring range: ±4900µT
Operating current: 90uA
Baroceptor Measuring range: 260 ~ 1260hPa
Measuring accuracy (ordinary temperature): ±0.025hPa
Measuring speed: 1Hz - 75Hz
Product form

The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer,... Read more

No reviews

€ 19,95 incl. VAT
Members € 17,96

      Details

      SKU: 19842
      EAN: 019842

      Description

      The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer, baroceptor, and uses I²C bus for communication.

      Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation.

      Features

      • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
      • Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field
      • Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment
      • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

      Specifications

      Operating voltage 5 V
      Accelerometer Resolution: 16-bit
      Measuring range (configurable): ±2, ±4, ±8, ±16g
      Operating current: 68.9uA
      Gyroscope Resolution: 16-bit
      Measuring range (configurable): ±250, ±500, ±1000, ±2000°/sec
      Operating current: 1.23mA
      Magnetometer Resolution: 16-bit
      Measuring range: ±4900µT
      Operating current: 90uA
      Baroceptor Measuring range: 260 ~ 1260hPa
      Measuring accuracy (ordinary temperature): ±0.025hPa
      Measuring speed: 1Hz - 75Hz
