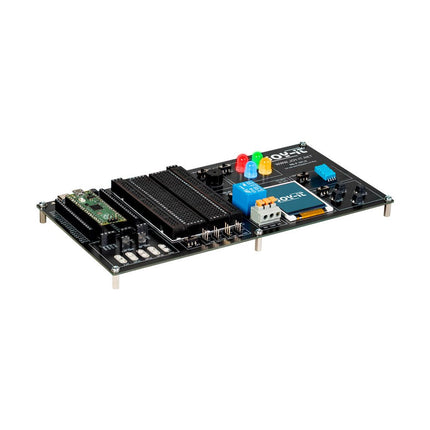

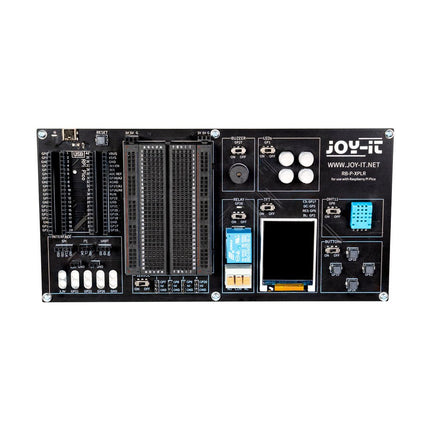

JOY-iT Explorer Board for Raspberry Pi Pico

  • BrandJOY-iT

Description

The Explorer Board is the easy and efficient way to develop your Raspberry Pi Pico projects.

Since the most important components are already integrated, you save time and effort on wiring. The Explorer Board has a wide range of interface connectors so you can connect your projects to a variety of modules and devices. With the integrated breadboard, you can quickly build and realize your own projects.

Thanks to the possibility to connect or disconnect all modules individually, you can use your pins, which are additionally led separately to the outside, for other projects or experiment on the integrated breadboard at any time.

Features

  • Fast and efficient experimenting with the Raspberry Pi Pico
  • Raspberry Pi Pico can be plugged in directly
  • All modules can be switched on and off individually
  • Additional integrated breadboard for own development

Specifications

  • Integrated modules: 4 RGB LEDs, buzzer, relay, 1.8“ TFT display, DHT11 temperature sensor, 4 buttons, breadboard
  • Interfaces: 4x servo motor, SPI, I²C, UART, 5x crocodile clip connector
  • Power supply: 5 V USB-C
  • Dimensions: 219 x 110 x 27 mm

Downloads


Product form

The Explorer Board is the easy and efficient way to develop your Raspberry Pi Pico projects. Since the most important components are... Read more

€ 27,95 incl. VAT
Members € 25,16

      Details

      SKU: 20567
      EAN: 4250236825878

      Description

      The Explorer Board is the easy and efficient way to develop your Raspberry Pi Pico projects.

      Since the most important components are already integrated, you save time and effort on wiring. The Explorer Board has a wide range of interface connectors so you can connect your projects to a variety of modules and devices. With the integrated breadboard, you can quickly build and realize your own projects.

      Thanks to the possibility to connect or disconnect all modules individually, you can use your pins, which are additionally led separately to the outside, for other projects or experiment on the integrated breadboard at any time.

      Features

      • Fast and efficient experimenting with the Raspberry Pi Pico
      • Raspberry Pi Pico can be plugged in directly
      • All modules can be switched on and off individually
      • Additional integrated breadboard for own development

      Specifications

      • Integrated modules: 4 RGB LEDs, buzzer, relay, 1.8“ TFT display, DHT11 temperature sensor, 4 buttons, breadboard
      • Interfaces: 4x servo motor, SPI, I²C, UART, 5x crocodile clip connector
      • Power supply: 5 V USB-C
      • Dimensions: 219 x 110 x 27 mm
