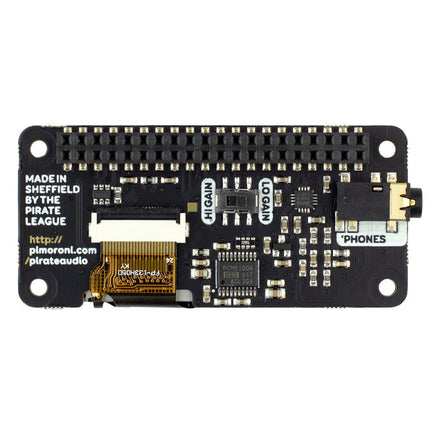

Pimoroni Pirate Audio: Headphone Amp for Raspberry Pi

  • BrandPimoroni

Description

You could use Pirate Audio Headphone Amp to build a tidy, pocket-sized player for local audio files (MP3, FLAC, etc) or for streaming music from online services like Spotify. To help get you started, Pimoroni has built plugins for Mopidy that will let you display gorgeous album art, play/pause your tracks and adjust the volume. The DAC and headphone amp will give you crisp digital amplified audio through your wired headphones.

Pirate Audio is a range of all-in-one audio boards for Raspberry Pi, with high-quality digital audio, beautifully-crisp IPS displays for album art, tactile buttons for playback control, and a custom Pirate Audio software and installer to make setting it all up a breeze.

Features

  • Amplified digital audio (24-bit / 192KHz) over I2S
  • PAM8908 headphone amplifier chip
  • Low-gain / high-gain switch (high-gain boosts by 12dB)
  • PCM5100A DAC chip
  • 3.5mm stereo jack
  • 1.3' IPS colour LCD (240x240px) (ST7789 driver)
  • Four tactile buttons
  • Mini HAT-format board
  • Fully-assembled
  • Compatible with all 40-pin header Raspberry Pi models
  • Dimensions: 65x30.5x9.5mm

Software

The Pirate Audio software and installer installs the Python library for the LCD, configures the I2S audio and SPI, and then installs Mopidy and the custom Pirate Audio plugins to display album art and track info, and to use the buttons for playback control.

Here's how to get started:

  1. Set an SD card up with the latest version of Raspberry Pi OS.
  2. Connect to Wi-Fi or a wired network.
  3. Open a terminal and type the following:
    git clone https://github.com/pimoroni/pirate-audio
    cd pirate-audio/mopidy
    sudo ./install.sh
  4. Reboot your Pi

Downloads
