Power Supplies

The lab power supply JT-RD6006 provides up to 60 V and 6 A in combination with the powerful DC power source. Due to the keypad and a push and rotary encoder, the operation of the power supply unit is very comfortable. In addition, you can easily save and reload up to nine settings using the keypad. The high-resolution 2.4-inch colour display clearly shows all important information. The USB interface and an optional wireless network interface enable the device to be operated via PC or with an app from mobile devices. Moreover, the device has different protection and limit functions like constant voltage operation, constant current operation, overvoltage protection, overcurrent protection and replaceable fuses on the board itself (backside of the power supply). Specifications Input voltage 6-70 V Output voltage 0-60 V Output current 0-6 A Output power 0-360 W Voltage resolution 0.01 V Current resolution 0.001 A Capacity measuring range 0-9999.99 Ah Energy measuring range 0-9999.99 Wh Residual ripple 100 mV(pp) at maximal capacity Display 2.4 inch LCD Dimensions (housing) 172 x 86 x 310 mm Weight (incl. device, power supply and housing) 3 kg Included JT-RD6006 DC Power Supply Power Supply for JT-RD6006 (RD6006-NT) Large aluminium housing for JT-RD6006 (Case02) ESP-12F WiFi Module Downloads Datasheet JT-RD6006 Manual JT-RD6006 PC Software Windows driver Mac driver Linux driver

Read more less

EU Power Supply for Arduino Uno (9 V, 1 A)

Read more less

With this 65 W USB-C PD power supply (with GaN technology) and the included USB-C cable you can start using the FNIRSI HS-01 soldering iron straight away. Of course, you can also use this charger to fast charge your tablets and smartphones via USB-C and USB-A. Included 65 W USB-C PD GaN Power Supply (EU) USB-C cable (1.2 m)

Read more less

With the JOY-iT PS1440-C you get a programmable laboratory power supply, which provides you with DC voltages between 0.01 to 60 V and DC currents between 0.01 to 24 A at the voltage output. With the help of the intuitive control panel up to 9 different DC voltages can be programmed, stored and recalled, even individual settings of various protection and limiting functions (e.g. overvoltage protection) are programmable. The corresponding values can be set very conveniently via the keypad and/or the rotary control and are clearly displayed thanks to the high-resolution 2.4" color display. Features Complete device ready for immediate use Battery charging function Values can be entered conveniently via keypad Over current & over voltage protection adjustable Integrated RTC, NTC temperature sensor Included detailed documentation in English, German & French Specifications Input voltage 230 V Output voltage 0-60 V Output current 0-24 A Output power 0-1440 W Input voltage accuracy ±1% +5 digits Output voltage accuracy ±0.3% +3 digits Output current accuracy ±0.5% +5 digits Battery voltage ±0.5% +3 digits Input voltage measurement resolution 0.01 V Output voltage measurement resolution 0.01 V Current measurement resolution 0.01 V Battery voltage measurement resolution 0.01 V Response time in constant voltage mode 2 ms @ 0.1-5 A Load regulation in constant voltage mode ±0.1% +2 digits Load regulation in constant current mode ±0.1% +3 digits Measuring range electric charge 0-9999.99 Ah Measuring range energy 0-9999.99 Wh Statistical errors in electric charge & energy ±2% Output ripple 100 mV VPP @ 12 V150 mV VPP @ 24 V Sensor temperature detection range −10~100°C (0-200°F) Sensor temperature detection accuracy ±3°C (±6°F) Working mode Step-down operation Screen brightness setting Level 0-5, 6 levels in total Permissible working temperature −10~40°C (0-104°F) Dimensions 170 x 93 x 340 mm Included JT-PS1440-C power supply Power cord Manual Downloads Manual

Read more less

The JOY-iT DPH5005 meets many requirements of a lab power supply. This power supply combines analog and digital technologies in an advanced design with outstanding precision and accuracy. The adjustable output reaches up to 50 V or 5 A and can be precisely configured in 10 mV or 1 mA steps. The power supply unit is additionally equipped with a switch-off parameter memory and ten programmable data memories. The operation of the unit has been optimized for particularly easy operation and the colour display offers particularly detailed and comprehensive information. Among other things, the current voltage and current values, presettings and output powers can be displayed here. Dynamic notification symbols also facilitate clarity. The additional settings menu offers maximum control of overcurrent and overvoltage values as well as other parameters. The DPH5005 offers modern design and advanced technology in a compact package, making it the ideal power supply. In addition, you can supplement the laboratory power supply with the optionally available housing. Specifications Display Type LCD Input Voltage 6-50 V (DC) Output Voltage 0-50 V Output Current 0-5 A Output Power 0-250 W Voltage Resaolution 0.01 V Current Resolution 0.001 A Special Features Programmable, slim Ripple 100 mVpp Size (Display Module) 43 x 79 x 38 mm Size (Power Module) 93 x 35 x 72 mm Display Size 1.5' (3.8 cm) Weight 202 g Items Shipped Display and power module, 2 connection wires Downloads Datasheet Manual PC Software / Android APK

Read more less

The PCW07D laboratory power supply is a high quality DC switching power supply designed specifically for laboratory applications. With an output voltage of 0-50 V and an output current of 0-6 A, it offers a maximum power of 150 W to handle even the most demanding tasks. Whether you are a student working on projects or a professional user who needs precise results, this power supply will meet your needs. Stable and accurate output for precise measurements and experiments The PCW07D laboratory power supply features stable and precise output. Thanks to innovative technology, it delivers a constant voltage or current regardless of load changes or fluctuating input voltages. This stability ensures accurate measurements and precise experiments. The power supply has high setting accuracy, so you can target your desired values. Intuitive operation and convenient functions The PCW07D laboratory power supply offers you intuitive operation and practical functions. The large, 4-digit LED display makes it easy to read the set values. The 3 memory buttons allow you to save your favorite settings and recall them at any time. The ability to set over-voltage and over-current protection functions provides additional safety. The innovative design of the laboratory power supply is not only visually impressive, but also offers practical advantages. The compact dimensions allow space-saving installation in the laboratory. The USB interface allows you to connect to other devices and the lock function provides additional protection against unauthorized operation. In addition, the power supply features short-circuit, overload, overheat and current-limit protection to keep your equipment and applications safe. Specifications Regulated output voltage 0-50 V Regulated output current 0-6 A (max output 150 W) Input voltage 104~127 V AC (60 Hz)207~253 V AC (50 Hz) Line regulation CV ≤0.1% +3 mV CC ≤0.2% +3 mA Load regulation CV ≤0.1% +3 mV CC ≤0.5% +10 mA Ripple and noise CV ≤5 mVr.m.s CC ≤20 mAr.m.s Protection Current limiting and short-circuit protection, over current protection, over voltage protection Voltage indication accuracy LED ±0.5％ +5 digits Current indication accuracy LED ±0.5％ +5 digits Environment 0~+40°C relative humidity <90％

Read more less

This laboratory power supply offers a controllable 0...60 V or 0...6 A DC main output with a maximum continuous power of 150 W. For developers, this laboratory power supply offers two switchable USB outputs with their own LCD display with voltage and current values.If you use a load up to 2.5 A, you can set the output voltage up to 60 V. If you want to use a higher current up to 6 A, set the load to a maximum of 25 V. Of course, all stages are also adjustable in between, e.g. 30 V/5 A, 40 V/3.7 A or 50 V/3 A.The current and voltage setting also can be done when the output is switched off. By pressing the knob for current or voltage, the setting resolution can be fine/coarse switched from 1 mA to 100 mA or 10 mV to 1 V.Due to the high range of functions and the simple operation with the best price-performance ratio, this laboratory power supply is ideal for the education, hobby, development and service sector. Blue LCD display showing the output voltage and current values Green LCD display showing the USB output voltage and current values 150 W constant output power Adjustable voltage range: 0~60 V at 0~2.5 A and 0~25 V at 2.5~6 A Voltage and current pre-selection with switchable output C.C. (Constant Current) and C.V. (Constant Voltage) mode with connected load Protection against short circuit, overload and overtemperature Accessories: Power cable, Connection Leads and Manual Output Voltage 0 ~ 60 V DC (@2,5 A) Output Current 0 ~ 6 A DC (@ 25 V) Output Power 150 W Display Resolution (V) 10 mV Display Resolution (A) 1 mA Setting Resolution (V) 10 mV / 1 V switchable Setting Resolution (A) 1 mA / 100 mA switchable Ripple & noise ≤ 5 mV RMS; ≤ 20 mA RMS Load regulation ≤ 0.05% + 5 mV, ≤ 0.5% + 5 mA Line regulation ≤ 0.1% + 3 mV, ≤ 0.2% + 3 mA Display accuracy +/- 0,5% + 5 dgt. Protection Overload, overtemperature, short circuit Operating voltage 115 / 240 V AC; 50/60 Hz Dimensions (WxHxD) 80 x 160 x 260 mm Weight 1.6 kg

Read more less

This solar panel is made of single-crystal material that transforms solar energy at an efficiency rate of 17%. Its resin surface and sturdy back make it suitable for outdoor environments. A 2 mm JST connector is attached to the penal, which makes it perfect for teaming up with most boards that support the use of solar power supply. The typical open circuit voltage is around 5 V, depending on light intensity. In bright summer days with a clear sky, the peak open-circuit voltage can rush up to 10 V. To prevent any damage to a connected board that accepts a narrow range of input voltage; you should check whether the open-circuit voltage is safe before any connection. Features Dimensions: 160 x 138 x 2.5 mm Typical voltage: 5.5 V Typical current: 540 mA Open-circuit voltage: 8.2 V Maximum load voltage: 6.4 V

Read more less

The Power Delivery Board is essentially a sink controller board. It negotiates with the USB PD charger to obtain the desired voltage and current according to the specified configuration. The USB-C PD Power Delivery Board can be used in various applications where USB-C is utilized to power a product or project. It features a user-friendly DIP switch that allows you to select the desired output voltage or current from your USB PD charger. Additionally, it has an on-board DC-DC converter capable of generating either 5 V or 3.3 V, depending on the jumper setting. It can easily provide around 3.3 W of power.Note: More power can be drawn from the DC-DC converter if the USB PD voltage is lower (e.g., 9 V, 12 V) or if an external heatsink is used. Voltage and current selection or monitoring is possible through the I²C interface available on the 4-pin header. Specifications USB-C Input Power delivery up to 65 W via DIP switch and 100 W via I²C command (I²C pullups are not on the board). Please note that the 3.25 A setting (via DIP Switch) may not work with many USB-C PD chargers. We have also observed this during testing. An additional DC-DC Converter(TPS54302) is onboard to generate 3.3 V, 1 A/5 V, 0.65 A output so that you need fewer components on your application board. 4x Mounting holes for easy mounting LED indication for USB-C input, USB PD output and DC-DC converter output A 2-pin power terminal is provided for easy connection A 4-pin 2.54 mm header connector is provided for the I²C connection Both connectors will come unsoldered Dimensions: 50 x 35 mm

Read more less

SPECIFICATIONS WIRELESS TRANSMISSION METHOD radiofrequency transmission RANGE up to 10 meters COMMUNICATION ADRESS 0 - 99 COMMUNICATION CHANNEL 0 - 30 BATTERY OF CONTROL PANEL 3.7 V 2000 mAh DISPLAY SIZE 2.4 Inch (6.35cm) DIMENSIONS 120 x 80 x 25mm WEIGHT 108 g ITEMS SHIPPED Control panel, cables

Read more less

MDP-P906 has a built-in cooling fan, and maximum output power of up to 300 W, which meets a wider range of testing needs and application scenarios. Through 2.4 GHz wireless communication, it can be connected to MDP-M01 Smart Digital Monitor module to realize the free combination of multiple channels of 300 W per channel. MDP-P906 has the index, stability and reliability comparable to a professional power supply. It can output pure current, and provide powerful functions such as programmable output, timing output, timing control, automatic compensation, boost mode, etc., making itself a real cost-effective, smart and customized programmable linear DC power supply. MDP-P906 adopts a precision CNC machined aluminum alloy shell, with fine workmanship, novel, mini and beautiful appearance, it completely subverts the rigid image of traditional desktop power supply. With stackable modular design and wireless communication function, MDP-P906 can work independently or paired, both on the workbench, and be carried out for on-site maintenance. MDP-P906 is a perfect solution for electronic engineer, especially field application engineers to meet different needs of power sources. Built-in silent cooling fan, instant cooling, ensure a stable and efficient output! Smart linear compensation, constant voltage & constant current Positive & negative output, series boost, parallel current sharing Applications Universal tests and teaching experiments in R&D laboratory Maintenance of digital products Property verification and fault diagnosis of devices and circuits Emergency power supply for model airplanes and vehicles Power supply testing of RF and microwave circuits or modules Quality control and quality inspection Supply purified power for high-accuracy digital-analog hybrid circuits and Hi-Fi audio devices Specifications Input DC 4.2-30 V/14 A (Max)QC 3.0/PD2.0, 20 V/5 A (Max) Output 0-30 V/0-10 A, 300 W (Max) Conversion efficiency 95% Output resolution 10 mV/2 mA, up to 1 mV/1 mA via Display Control module Output accuracy 0.03%+5 mV0.05%+2 mV Adjustment rate Load adjustment rate <±0.01%Power adjustment rate <±0.01% Ripple and noise <250 uVrms, 3 mVpp; 2 mArms Transient response <4 uS Safety protections Input over-voltage, under-voltage, reverse connection protection, output over-current, back-flow protection and over-temperature protection Others Automatically shut-down and enter micro-power modeSupport USB firmware upgrade Dimensions 112 x 66 x 20 mm Weight 181 g Included 1x MDP-P906 Digital Power Supply 2x Output Cable 1x User Manual Downloads User Manual v1.1 Firmware v1.32

Read more less

The siru.box is a compact and intelligent miniature laboratory power supply designed for precision and ease of use. It is only operated via a USB 2.0 connection and provides an adjustable output voltage of 0 to 15 V and an output current of up to 600 mA, with a maximum output power of 2.5 W. Features Power is supplied via the USB 2.0 port Controllable with web browser or REST-API Output voltage adjustable 0~15 V Output current adjustable 0~600 mA (2.5 W max) For Linux, Windows, macOS, Raspberry Pi No driver installation necessary Dimensions: 100 x 100 x 10 mm Included 1x siru.box USB Power Supply 1x Micro USB cable 2x Connection terminals (red/black) Downloads Manual Firmware v5.0.4

Read more less

The OWON SPS6051 Fanless Programmable DC Power Supply (150 W) delivers ultra-quiet, high-precision performance with 10 mV/1 mA accuracy and advanced heat dissipation for long-term reliability. Featuring comprehensive protection, a USB interface with SCPI support for remote control, and a 2.8-inch TFT LCD screen, it is the perfect choice for laboratories, electronics testing, and research. Features Fanless design: Ultra-quiet operation, reducing vibration noise and minimizing the potential failure risks associated with traditional cooling fans. Excellent heat dissipation design: Ensures a controlled temperature rise, allowing long-term operation under full load conditions and extending internal component longevity. Lightweight and ultra-thin design. Output accuracy up to 10 mV/1 mA. Supports List waveform editing and output, with four memory shortcut parameters for quick and convenient access. Integrated protection features include overvoltage, overcurrent, overtemperature, and input undervoltage protection for enhanced safety. Built-in discharge circuit prevents residual high voltage risks when the power is turned off. USB communication interface with SCPI protocol support, enabling PC programming and remote control for simplified user management. 2.8-inch TFT LCD screen Specifications Model SPS6051 SPS3081 Rated Output (0°C-40°C) Voltage 0-61 V 0-31 V Current 0-5.1 A 0-8.1 A Power 150 W 120 W Load Regulation Voltage ≤30 mV Current ≤20 mA Power Regulation Voltage ≤30 mV Current ≤20 mA Setting Resolution Voltage 10 mV Current 1 mA Readback Resolution Voltage 10 mV Current 1 mA Seting Accuracy (25°C ±5°C) Voltage ≤0.05% ±20 mV ≤0.1% ±20 mV Current ≤0.05% ±20 mA ≤0.2% ±20 mA Readback Accuracy (25°C ±5°C) Current ≤0.05% ±20 mV ≤0.1% ±20 mV Voltage ≤0.05% ±20 mV ≤0.2% ±20 mA Ripple/Noise Voltage ≤30 mVp-p ≤30 mVp-p Voltage ≤4 mVrms ≤5 mVrms Current ≤10 mAp-p ≤30 mAp-p Output temperature coefficient (0°C-40°C) Voltage 100 ppm/°C Current 200 ppm/°C Readback temperature coefficient Voltage 100 ppm/°C Current 200 ppm/°C Response Time (50-100% rated load) ≤1.0 ms Storage 4 groups of data Working Temperature 0-40°C Display 2.8-inch color LCD display Interface USB Dimensions (W x H x D) 82 x 142 x 226 mm Weight 1.8 kg Included 1x OWON SPS6051 Power Supply 2x Test leads 1x Power cord 1x Manual Downloads Datasheet User Manual Programming Manual PC Software

Read more less

The ZK-DP3D CNC USB-C DC-DC Converter is a versatile, high-precision voltage and current regulator designed for a wide range of applications. Featuring a digital control interface with adjustable voltage (1-30 V) and current (0-2 A), it offers a precision LCD display for monitoring input/output voltage, current, power, and more. Equipped with intelligent fast-charge protocol support (QC2.0/3.0, FCP, SCP, AFC) and multiple safety protections, it is ideal for powering devices such as USB fans, routers, and batteries. Its compact design includes push-type terminals for easy connectivity and a high power output of up to 15 W, ensuring reliability and convenience for both hobbyists and professionals. Specifications Input voltage 4-13 V (3 input interfaces: USB, MicroUSB and USB-C) Output voltage 1-30 V Output current 0-2 A Output power Less than 15 W Voltage display Resolution 0.01 V, Accuracy ±(0.5% + 3 digits) Current display Resolution 0.001 A, Range 0-2 A, Accuracy ±(0.5% + 3 digits) Power display 0.00-15.00 W Operating current approx. 30 mA Dimensions 92 x 40 x 16 mm Weight 41 g

Read more less

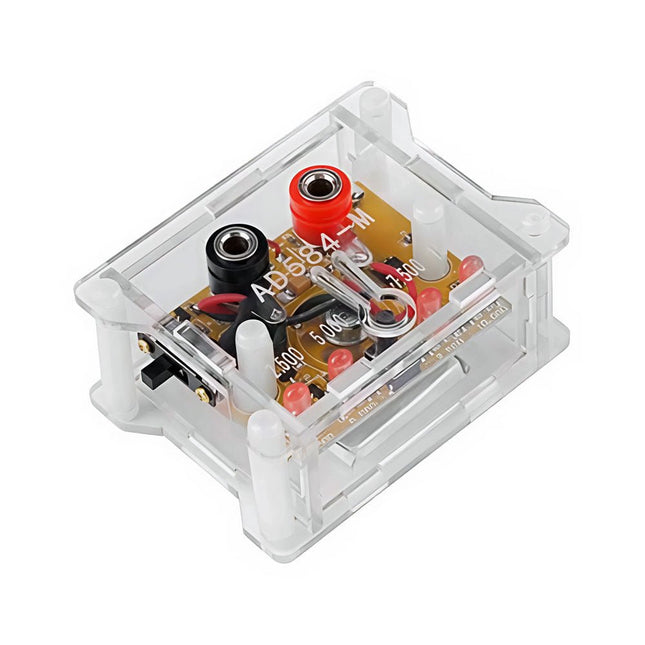

The AD584 4-ch Voltage Reference Module is designed to provide stable and accurate reference voltages of 2.5 V, 5 V, 7.5 V, and 10 V. It incorporates the AD584 integrated circuit, known for its high accuracy and stability. Features Multiple Output Voltages: The module can output four different reference voltages (2.5 V, 5 V, 7.5 V, and 10 V) accessible through a single port. Microcontroller-based Switching: An onboard microcontroller facilitates switching between the four voltage outputs, with LED indicators displaying the active selection. User-Friendly Operation: A single button allows for easy cycling through the available reference voltages. Transparent Housing: The module is encased in a transparent housing, offering protection while allowing users to view the internal components. Power Supply Options: It can be powered via a built-in lithium battery (not included) or through a 5 V DC input. A charging indicator provides status updates during charging. Output Interface: Equipped with 4mm banana sockets for secure and reliable connections. Included 1x AD584 4-ch Voltage Reference Module with Housing Downloads Datasheet

Read more less
