Description
MDP-P906 has a built-in cooling fan, and maximum output power of up to 300 W, which meets a wider range of testing needs and application scenarios. Through 2.4 GHz wireless communication, it can be connected to MDP-M01 Smart Digital Monitor module to realize the free combination of multiple channels of 300 W per channel.
MDP-P906 has the index, stability and reliability comparable to a professional power supply. It can output pure current, and provide powerful functions such as programmable output, timing output, timing control, automatic compensation, boost mode, etc., making itself a real cost-effective, smart and customized programmable linear DC power supply.

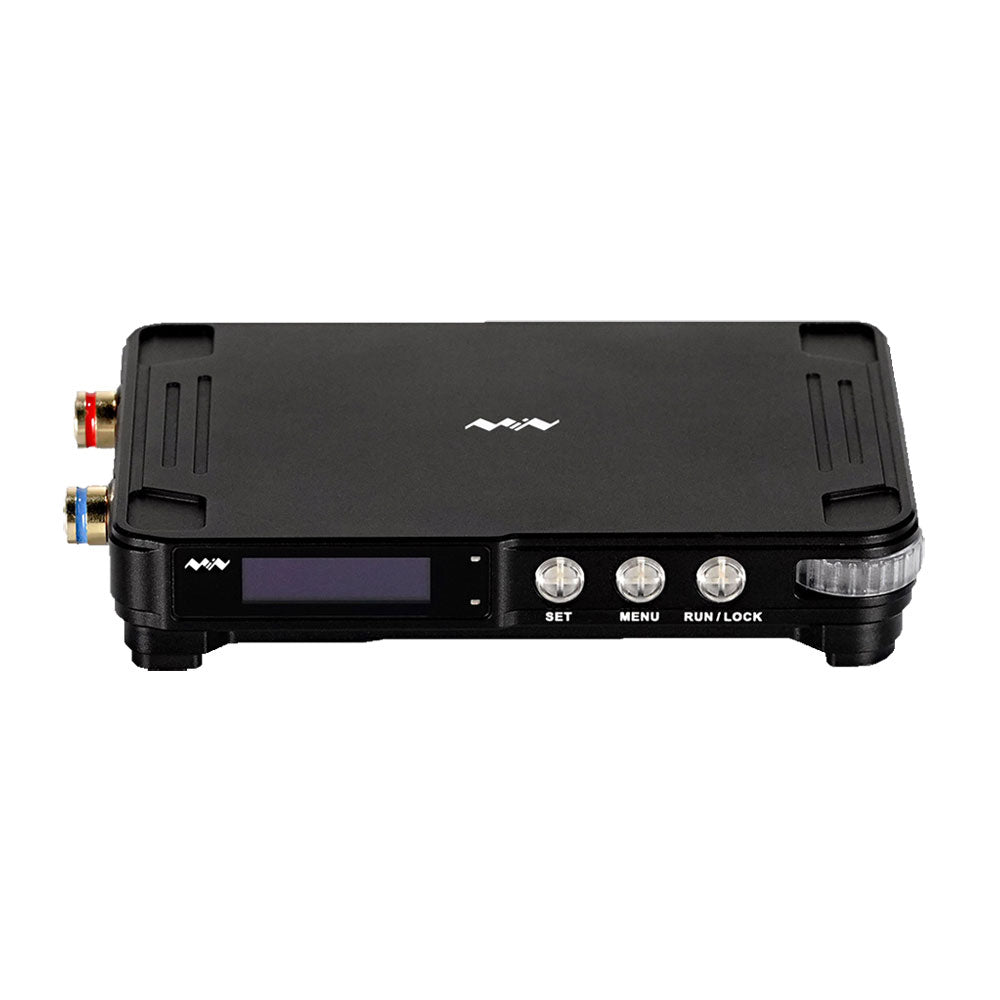

MDP-P906 adopts a precision CNC machined aluminum alloy shell, with fine workmanship, novel, mini and beautiful appearance, it completely subverts the rigid image of traditional desktop power supply. With stackable modular design and wireless communication function, MDP-P906 can work independently or paired, both on the workbench, and be carried out for on-site maintenance. MDP-P906 is a perfect solution for electronic engineer, especially field application engineers to meet different needs of power sources.

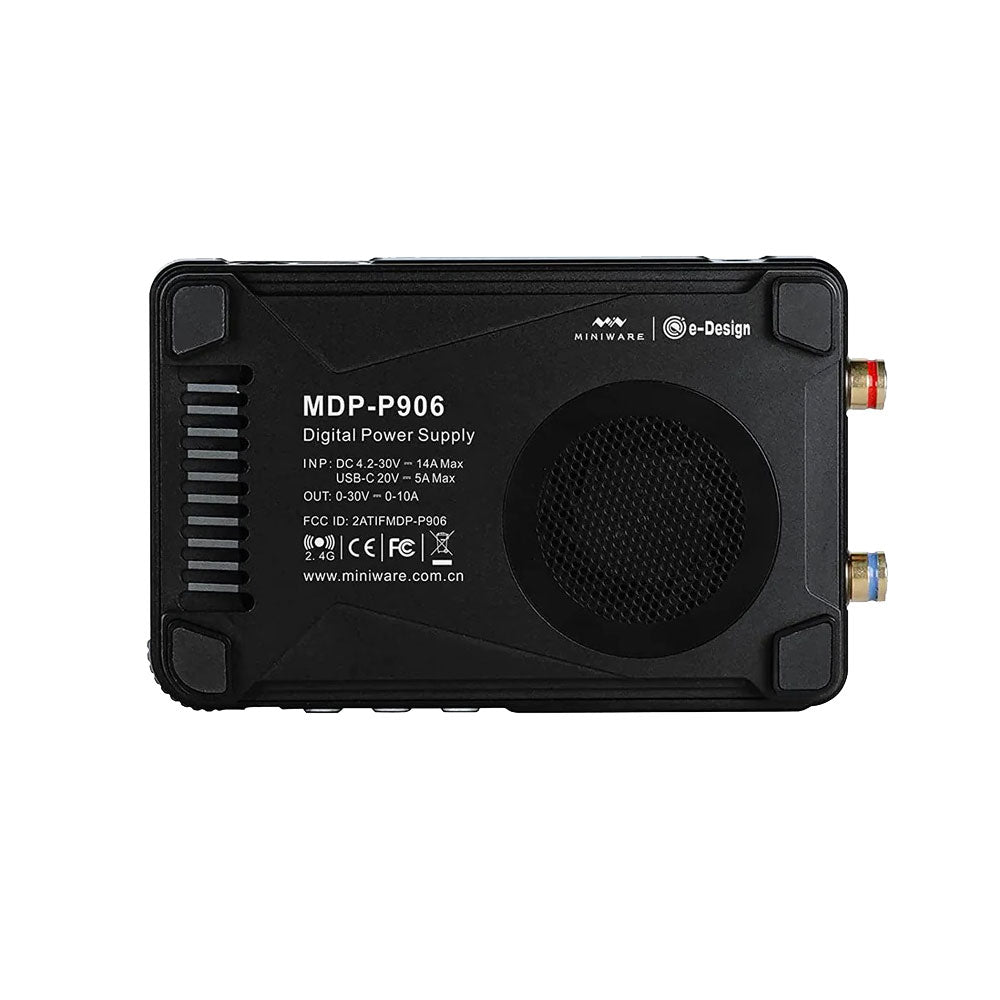

- Built-in silent cooling fan, instant cooling, ensure a stable and efficient output!
- Smart linear compensation, constant voltage & constant current
- Positive & negative output, series boost, parallel current sharing
Applications
- Universal tests and teaching experiments in R&D laboratory
- Maintenance of digital products
- Property verification and fault diagnosis of devices and circuits
- Emergency power supply for model airplanes and vehicles
- Power supply testing of RF and microwave circuits or modules
- Quality control and quality inspection
- Supply purified power for high-accuracy digital-analog hybrid circuits and Hi-Fi audio devices
Specifications
| Input |
DC 4.2-30 V/14 A (Max)
QC 3.0/PD2.0, 20 V/5 A (Max) |
| Output |
0-30 V/0-10 A, 300 W (Max) |
| Conversion efficiency |
95% |
| Output resolution |
10 mV/2 mA, up to 1 mV/1 mA via Display Control module |
| Output accuracy |
0.03%+5 mV
0.05%+2 mV |
| Adjustment rate |
Load adjustment rate <±0.01%
Power adjustment rate <±0.01% |
| Ripple and noise |
<250 uVrms, 3 mVpp; 2 mArms |
| Transient response |
<4 uS |
| Safety protections |
Input over-voltage, under-voltage, reverse connection protection, output over-current, back-flow protection and over-temperature protection |
| Others |
Automatically shut-down and enter micro-power mode
Support USB firmware upgrade |
| Dimensions |
112 x 66 x 20 mm |
| Weight |
181 g |
Included
- 1x MDP-P906 Digital Power Supply
- 2x Output Cable
- 1x User Manual
