Siglent SPD4306X 4-ch DC Power Supply (400 W)

BrandSiglent

Description

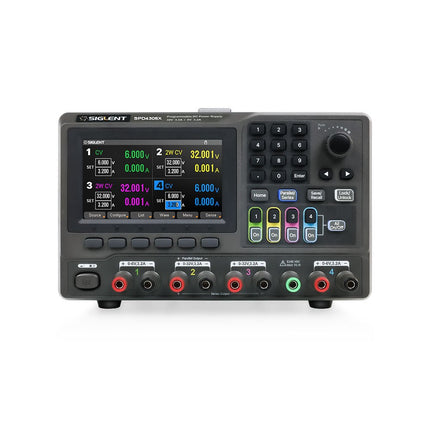

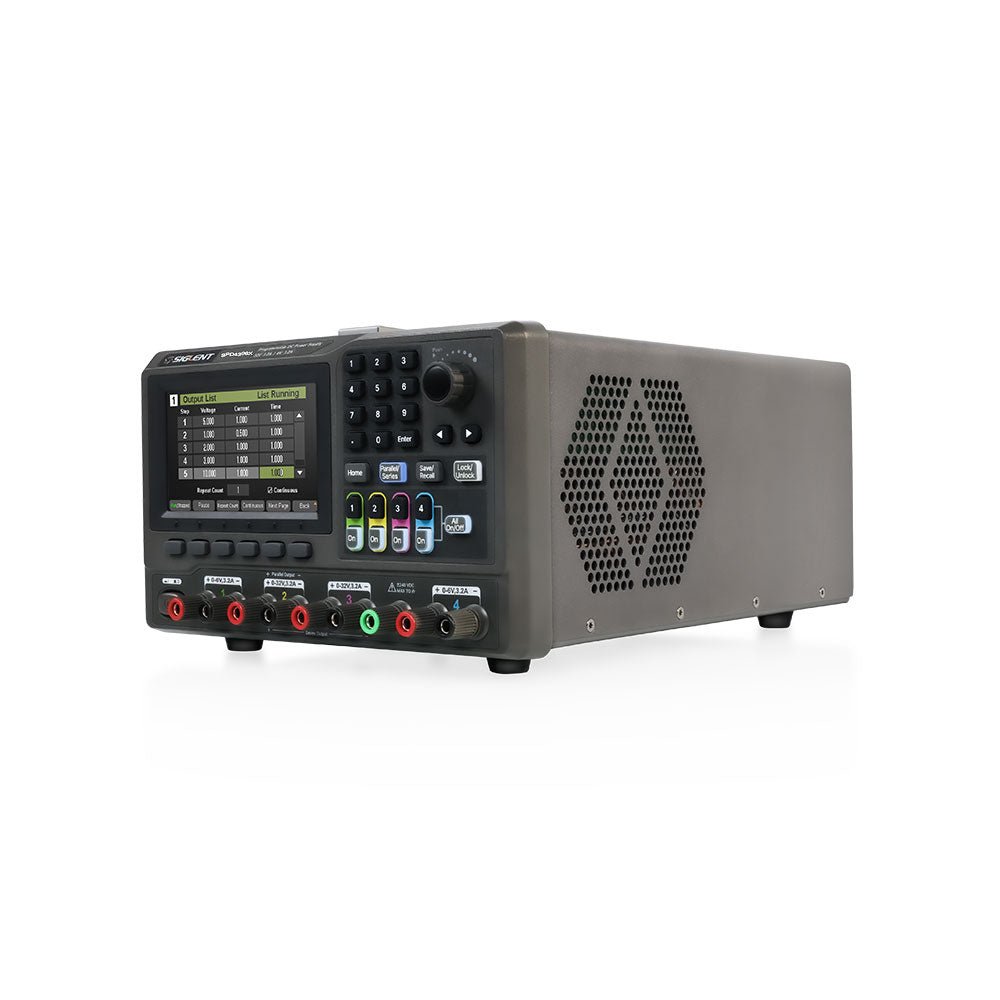

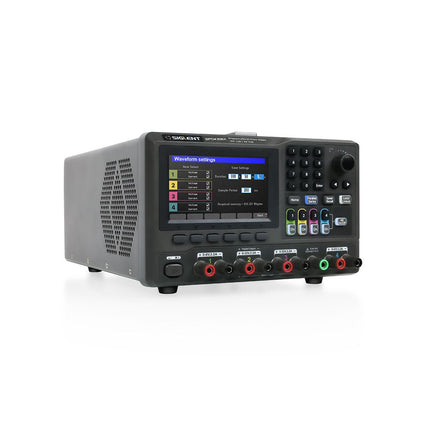

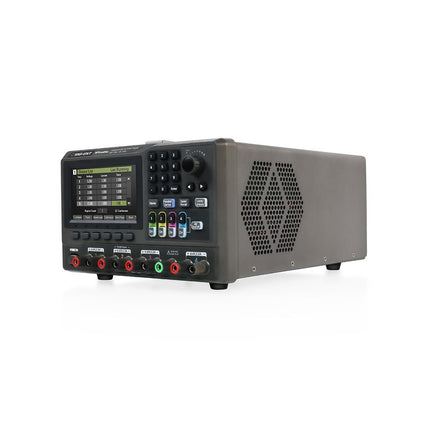

The Siglent SPD4306X is a 4-channel DC Linear Programmable Power Supply equipped with a 4.3-inch TFT-LCD display, friendly human-machine interface, and excellent performance indicators. Real-time waveform display provides engineers with an informative user interface.

SPD4306X offers a total output power of 400 W with a resolution of 1 mV/1 mA. The maximum voltage and current for each channel are as follows:

CH1: 15 V/1.5 A
CH2: 30 V/6 A
CH3: 30 V/6 A
CH4: 15 V/1 A

Features

Rated output power: 400 W
Rated voltage: 32 V, 12 V, 30 V
Up to four high-precision power supplies with independent controllable outputs, supporting CH2 and CH3 series and parallel connections
Clear graphical interface with waveform and timer display modes
5-digit voltage and current display with minimum resolution of 1 mV, 1 mA
Fast output response time: <50us
The high current channel support remote voltage compensation sense function. The maximum compensation voltage is 0.6 V
Overvoltage protection and overcurrent protection or safe and accurate operation
Equipped with a 4.3-inch TFT-LCD display (480 x 272 resolution)
USB and LAN standard communication
USB-GPIB module is optional
Excellent channel density with up to 4 channels in a 3U half rack package
Internal data storage for setups and parameters
Embedded Web Server with instrument communication that doesn’t require software installation
Fully SCPI programming command set support as well as a LabView driver for remote control and system automation

Specifications

	SPD4323X	SPD4121X	SPD4306X
Channel Output	CH1: Voltage 0 to 6 V Current 0 to 3.2 A CH2: Voltage 0 to 32 V Current 0 to 3.2 A CH3: Voltage 0 to 32 V Current 0 to 3.2 A CH4: Voltage 0 to 6 V Current 0 to 3.2 A	CH1: Voltage 0 to 15 V Current 0 to 1.5 A CH2: Voltage 0 to 12 V Current 0 to 10 A CH3: Voltage 0 to 12 V Current 0 to 10 A CH4: Voltage 0 to 15 V Current 0 to 1.5 A	CH1: Voltage 0 to 15 V Current 0 to 1.5 A CH2: Voltage 0 to 30 V Current 0 to 6 A CH3: Voltage 0 to 30 V Current 0 to 6 A CH4: Voltage 0 to 15 V Current 0 to 1 A
Resolution	1 mV, 1 mA	1 mV, 1 mA	1 mV, 1 mA
Setting Accuracy	Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA	Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA	Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA
Readback Accuracy	Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA	Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA	Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA
Display	4.3" TFT-LCD 5-digit voltage and current display	4.3" TFT-LCD 5-digit voltage and current display	4.3" TFT-LCD 5-digit voltage and current display
Output power	240 W	285 W	400 W

Included

1x Siglent SPD4306X Power Supply
1x Power cord (EU)
1x Output test cord (3 A)
1x USB cable
1x Quick start guide
