USB-C PD Power Delivery Board (65 W)

Description

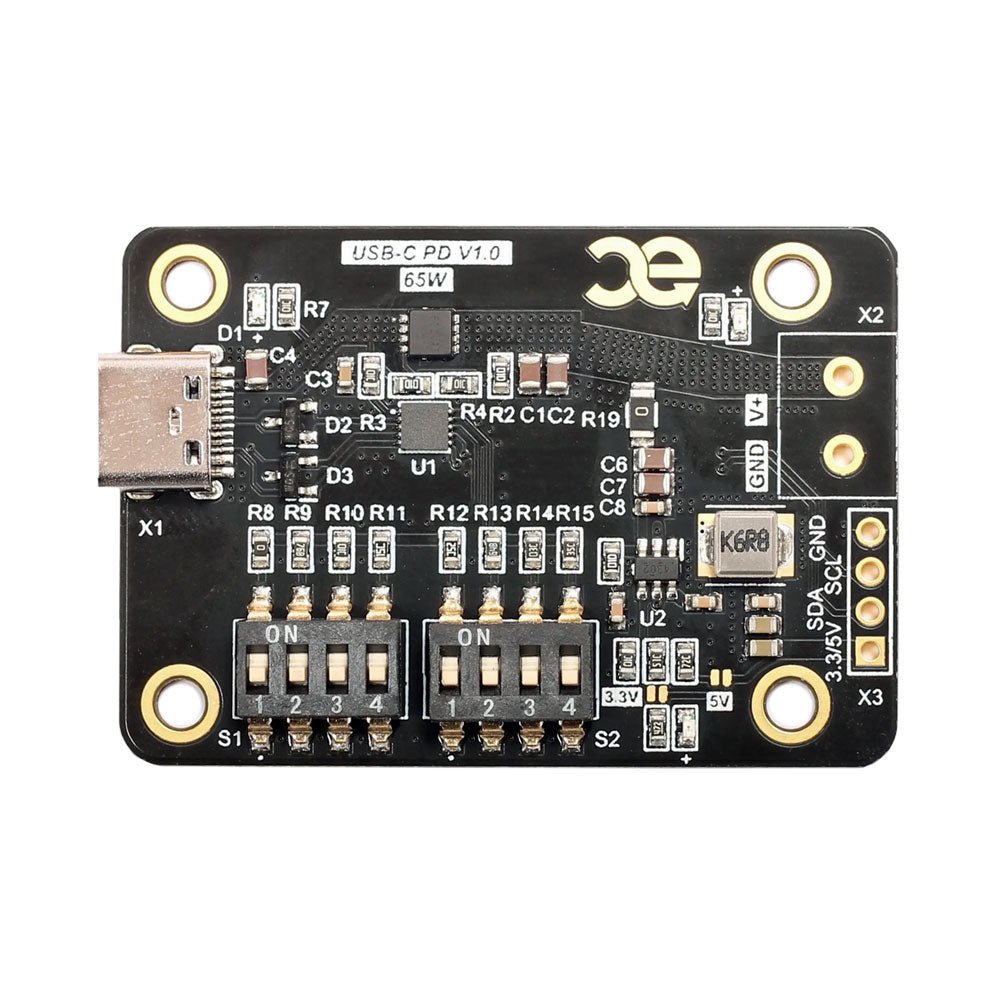

The Power Delivery Board is essentially a sink controller board. It negotiates with the USB PD charger to obtain the desired voltage and current according to the specified configuration.

The USB-C PD Power Delivery Board can be used in various applications where USB-C is utilized to power a product or project. It features a user-friendly DIP switch that allows you to select the desired output voltage or current from your USB PD charger.

Additionally, it has an on-board DC-DC converter capable of generating either 5 V or 3.3 V, depending on the jumper setting. It can easily provide around 3.3 W of power.
Note: More power can be drawn from the DC-DC converter if the USB PD voltage is lower (e.g., 9 V, 12 V) or if an external heatsink is used.

Voltage and current selection or monitoring is possible through the I²C interface available on the 4-pin header.

Specifications

  • USB-C Input
  • Power delivery up to 65 W via DIP switch and 100 W via I²C command (I²C pullups are not on the board). Please note that the 3.25 A setting (via DIP Switch) may not work with many USB-C PD chargers. We have also observed this during testing.
  • An additional DC-DC Converter(TPS54302) is onboard to generate 3.3 V, 1 A/5 V, 0.65 A output so that you need fewer components on your application board.
  • 4x Mounting holes for easy mounting
  • LED indication for USB-C input, USB PD output and DC-DC converter output
  • A 2-pin power terminal is provided for easy connection
  • A 4-pin 2.54 mm header connector is provided for the I²C connection
  • Both connectors will come unsoldered
  • Dimensions: 50 x 35 mm
Product form

The Power Delivery Board is essentially a sink controller board. It negotiates with the USB PD charger to obtain the... Read more

€ 19,95 incl. VAT
Members € 17,96

    • Ship today? Order within Jul 15, 2024 17:00:00 +0200

    Details

    SKU: 20779
    EAN: 020779

    Description

    The Power Delivery Board is essentially a sink controller board. It negotiates with the USB PD charger to obtain the desired voltage and current according to the specified configuration.

    The USB-C PD Power Delivery Board can be used in various applications where USB-C is utilized to power a product or project. It features a user-friendly DIP switch that allows you to select the desired output voltage or current from your USB PD charger.

    Additionally, it has an on-board DC-DC converter capable of generating either 5 V or 3.3 V, depending on the jumper setting. It can easily provide around 3.3 W of power.
    Note: More power can be drawn from the DC-DC converter if the USB PD voltage is lower (e.g., 9 V, 12 V) or if an external heatsink is used.

    Voltage and current selection or monitoring is possible through the I²C interface available on the 4-pin header.

    Specifications

    • USB-C Input
    • Power delivery up to 65 W via DIP switch and 100 W via I²C command (I²C pullups are not on the board). Please note that the 3.25 A setting (via DIP Switch) may not work with many USB-C PD chargers. We have also observed this during testing.
    • An additional DC-DC Converter(TPS54302) is onboard to generate 3.3 V, 1 A/5 V, 0.65 A output so that you need fewer components on your application board.
    • 4x Mounting holes for easy mounting
    • LED indication for USB-C input, USB PD output and DC-DC converter output
    • A 2-pin power terminal is provided for easy connection
    • A 4-pin 2.54 mm header connector is provided for the I²C connection
    • Both connectors will come unsoldered
    • Dimensions: 50 x 35 mm
