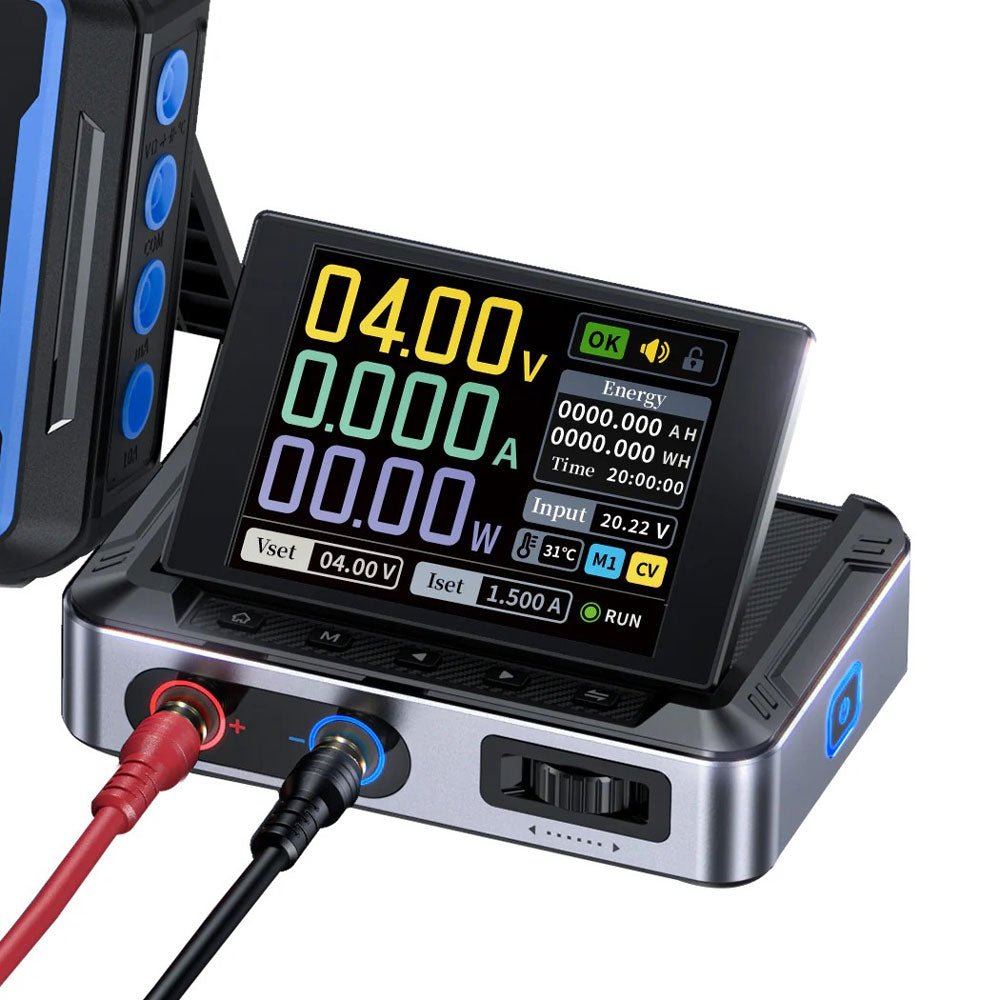

FNIRSI DPS150PD DC Power Supply (150 W)

Description

The FNIRSI DPS150 is a high-performance adjustable DC power supply that features a USB-C input interface and multiple power supply modes, allowing precise adjustment of output voltage (0-30 V) and current (0-5 A).

It provides efficient, low-consumption, and stable output, equipped with multiple safety protection functions including overvoltage, overcurrent, overload, overheating, and reverse connection. It can be flexibly applied to serial connection of multiple devices, with rich and user-friendly display and operation, compact and portable design, meeting various application needs.

Features

  • 30 V, 5 A, 150 W variable DC power with 0.01 V, 0.001 A precision, CC/CV modes, and <20 mV ripple to protect sensitive electronics.
  • Supports PC, QC, and DC inputs with programmable outputs and 6 preset voltage/current settings.
  • Compatible with 4 mm banana plugs, U-shaped terminals, and copper wires for various equipment.
  • 8 safety mechanisms including overvoltage, current, short circuit, and overheating protection.
  • 2.8-inch HD IPS screen with 90° flip, numerical and curve displays for easy monitoring.
  • Small, space-saving design for use in labs, repairs, and DIY projects.

Specifications

Input Voltage 5~32 V DC
Input Current 100 mA-5 A
Output Voltage 0-30 V
Output Current 0~5 A
Output Power 0-150 W
Input Way PD fast charger
QC fast charger
Power bank
DC power adapters
Operating Environment 0-40°C
Load Regulation 0.49%
Full Load Efficiency 96.30%
Display 2.8 inch (320 x 240)
Dimensions 106 x 76 x 28 mm
Weight 178 g

Included

  • 1x DPS150 Power Supply
  • 2x Alligator clip wires (black & red)
  • 1x C2C PD charging cable
  • 1x 100 W PD GaN Adapter (EU)
  • 1x Micro USB cable
  • 1x Manual

Downloads

Product form

The FNIRSI DPS150 is a high-performance adjustable DC power supply that features a USB-C input interface and multiple power supply... Read more

Out of stock

€ 109,95 € 89,95 (incl. VAT)
Members identical

    Details

    SKU: 21003
    EAN: 021003

    Description

    The FNIRSI DPS150 is a high-performance adjustable DC power supply that features a USB-C input interface and multiple power supply modes, allowing precise adjustment of output voltage (0-30 V) and current (0-5 A).

    It provides efficient, low-consumption, and stable output, equipped with multiple safety protection functions including overvoltage, overcurrent, overload, overheating, and reverse connection. It can be flexibly applied to serial connection of multiple devices, with rich and user-friendly display and operation, compact and portable design, meeting various application needs.

    Features

    • 30 V, 5 A, 150 W variable DC power with 0.01 V, 0.001 A precision, CC/CV modes, and <20 mV ripple to protect sensitive electronics.
    • Supports PC, QC, and DC inputs with programmable outputs and 6 preset voltage/current settings.
    • Compatible with 4 mm banana plugs, U-shaped terminals, and copper wires for various equipment.
    • 8 safety mechanisms including overvoltage, current, short circuit, and overheating protection.
    • 2.8-inch HD IPS screen with 90° flip, numerical and curve displays for easy monitoring.
    • Small, space-saving design for use in labs, repairs, and DIY projects.

    Specifications

    Input Voltage 5~32 V DC
    Input Current 100 mA-5 A
    Output Voltage 0-30 V
    Output Current 0~5 A
    Output Power 0-150 W
    Input Way PD fast charger
    QC fast charger
    Power bank
    DC power adapters
    Operating Environment 0-40°C
    Load Regulation 0.49%
    Full Load Efficiency 96.30%
    Display 2.8 inch (320 x 240)
    Dimensions 106 x 76 x 28 mm
    Weight 178 g

    Included

    • 1x DPS150 Power Supply
    • 2x Alligator clip wires (black & red)
    • 1x C2C PD charging cable
    • 1x 100 W PD GaN Adapter (EU)
    • 1x Micro USB cable
    • 1x Manual

    Downloads

    Customer Reviews

    Based on 2 reviews
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    F
    Fedor B.
    Power supply

    Stromversorgung.

    Ich brauchte eine Ergänzung für meine Experimente. Diese ist kompakt und von ausgezeichneter Verarbeitung. Ein sehr guter Kauf.

    F
    Franz
    Power Supply.

    J'avais besoin d'une alimentation pour mes expérimentations. Celle-ci est compacte et d'excellente facture. Un très bon achat.
