Description

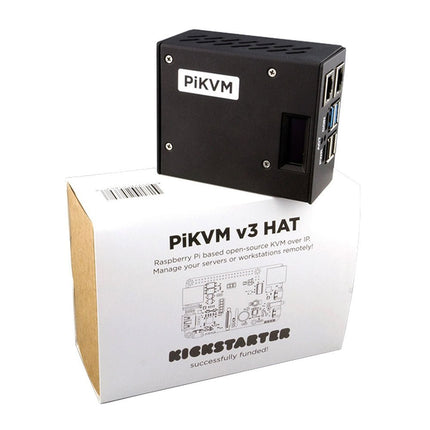

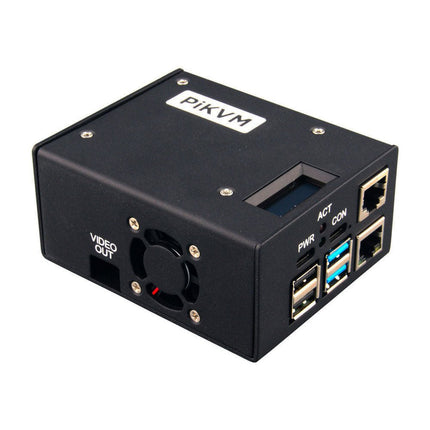

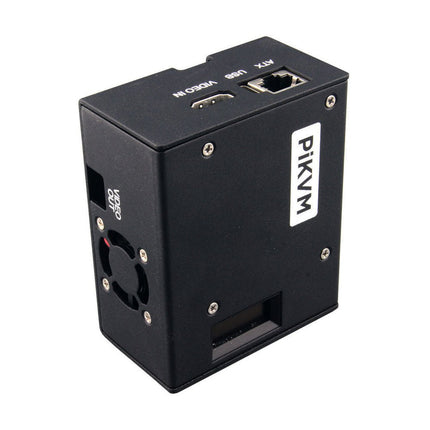

PiKVM V3 HAT pre-assembled, in steel case with display and fan incl. Raspberry Pi 4 (2 GB) and 32-GB microSD card (pre-installed with PiKVM OS)
PiKVM V3 is an open-source Raspberry Pi-based KVM over IP device. It will help you to manage servers or workstations remotely, whatever the state of the operating system or whether one is installed.
PiKVM V3 allows you to turn on/off or restart your computer, configure the UEFI/BIOS, and even reinstall the OS using the virtual CD-ROM or flash drive. You can use your remote keyboard and mouse or PiKVM can simulate a keyboard, mouse, and a monitor, which are then presented in a web browser as if you were working on a remote system directly.
Features
- HDMI Full HD capture based on the TC358743 chip (extra low latency ~100 ms and many features like compression control).
- OTG Keyboard & mouse; Mass Storage Drive emulation.
- Ability to simulate 'removal and insertion' for USB.
- Onboard ATX power control
- Onboard fan controller
- Real-time clock (RTC)
- RJ-45 and USB serial console port (to manage PiKVM OS or to connect with the server).
- Optional AVR-based HID (for some rare and strange motherboards whose BIOS doesn't understand the OTG emulated keyboard).

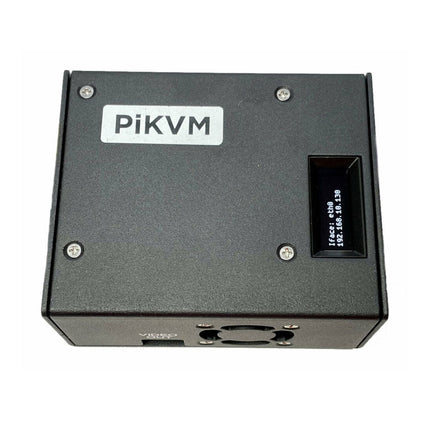

- Optional OLED screen to display network status or other desired information.
- Ready-made board. No need for soldering or breadboarding.
- PiKVM OS – the software is fully open.
Specifications
- Video/Resolution: 1920x1080p at 50 Hz or lower
- Power: USB-C 5.1 V, 3 A power supply required (not included)
- Real-time clock with rechargeable Super Capacitor
- Enclosure: robust 1.6 mm (1/16') steel case
- Dimensions: 92 x 75 x 45 mm (4 x 3 x 2')
- Weight: 410 g (14.5 oz.)
Connectors
| Front | Back | Side |
| Power: USB-C | ATX Control | Video Out: micro HDMI |
Serial Console: USB-C + RJ45
(one active at a time) | OTG Host USB (USB-C) | |
| 2x USB 2.0, 2x USB 3.0 | HDMI Video input & output | |
| Gigabit Ethernet | |
Included
- PiKVM V3 HAT for Raspberry Pi 4
- PiKVM Steel Case incl. Display and Fan
- Raspberry Pi 4 with 2 GB RAM
- MicroSD card (32 GB, pre-installed with the PiKVM OS)
- USB-C bridge board – to connect the HAT with Pi over USB-C
- ATX controller adapter board and wiring – to connect the HAT to the motherboard (if you want to manage power supply through hardware).
- 2 flat CSI cables
- Screws and brass standoffs
Required
- USB-C to USB-A cable
- HDMI cable
- Straight Ethernet cable (for the ATX expansion board connection)
- Power supply unit (5.1 V/3 A USB-C, officiel RPi power supply is recommended)
