MaTouch ESP32-S3 Rotary 2.1" Touch Display (ST7701)

  • BrandMakerfabs

Description

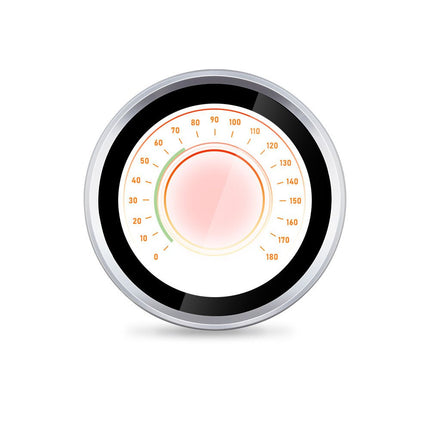

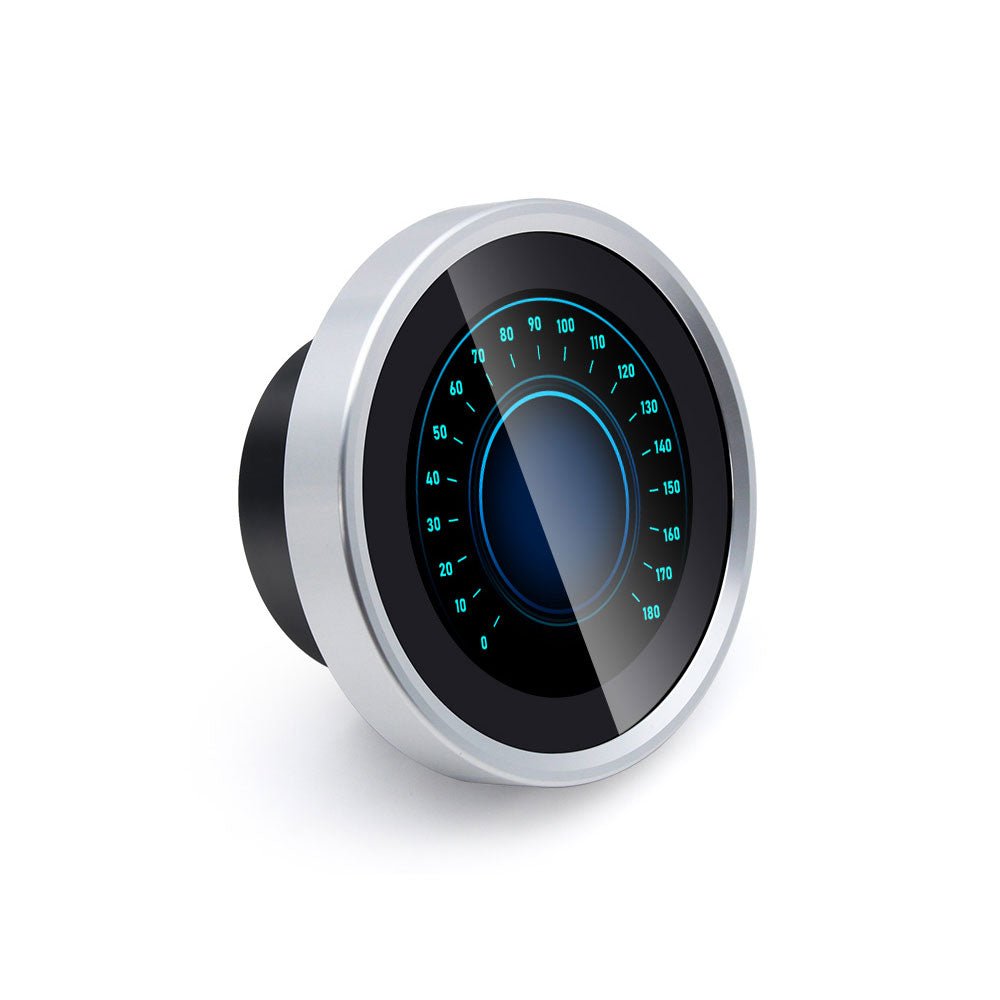

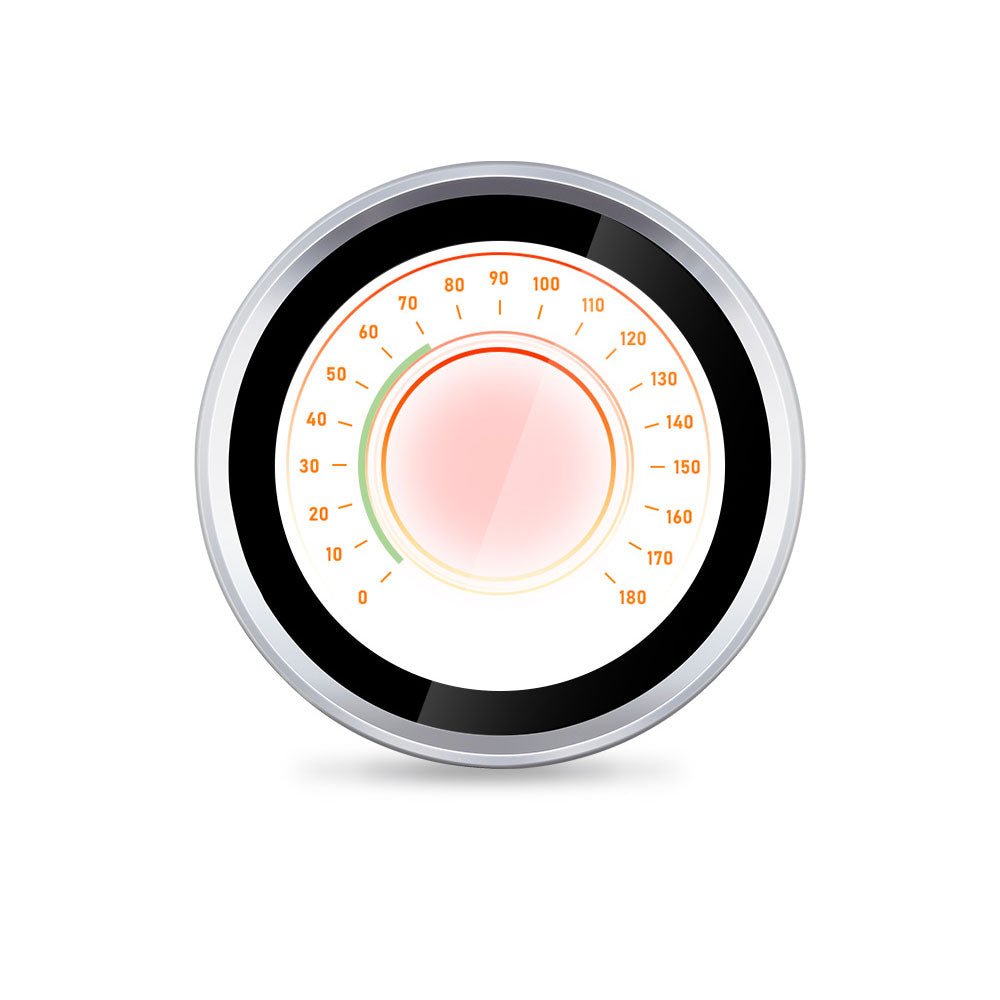

This display features an IPS resolution of 480x480 with capacitive touch and a frame rate of up to 75 FPS. It is very bright and has 65,000 colors. The mechanical rotary encoder supports clockwise/counterclockwise rotation and also supports the entire pressing process, which can usually be used to confirm the process.

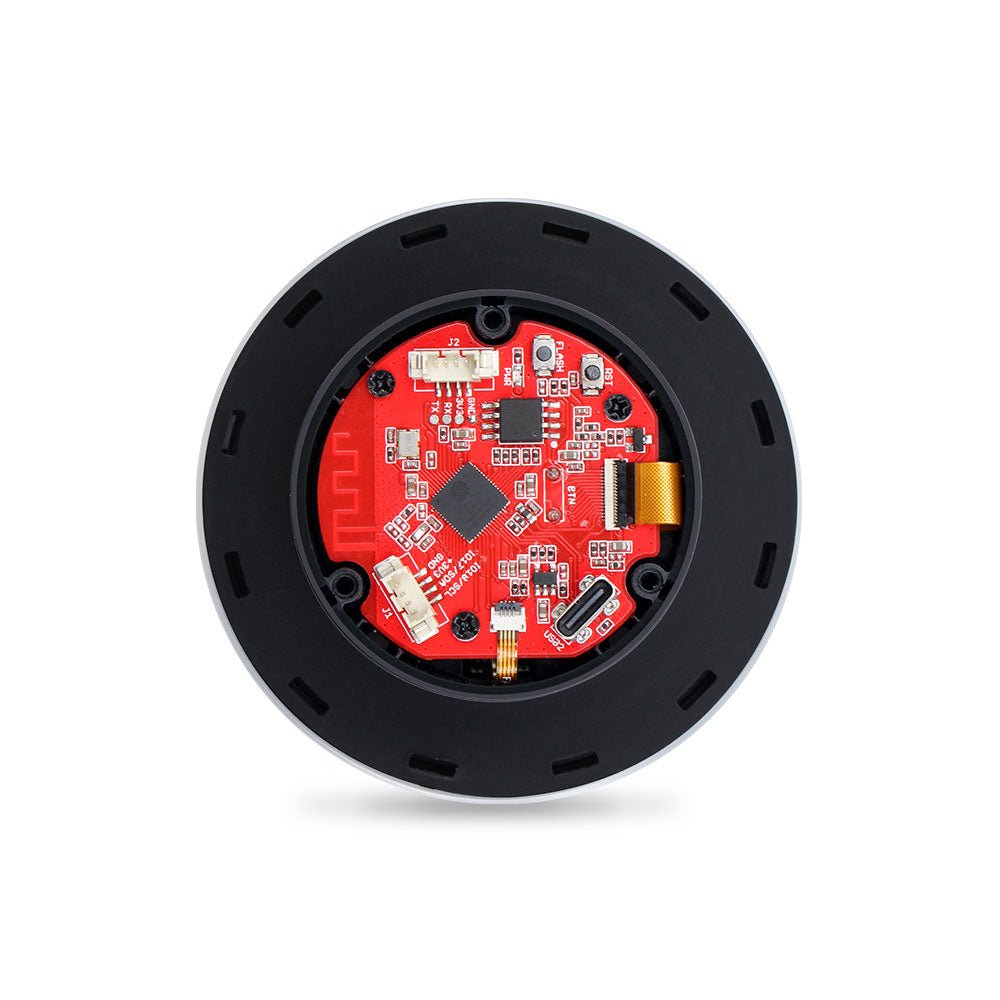

The display module is based on ESP32-S3 with WiFi & Bluetooth 5.0 to easily connect to the Internet for IoT projects. It can be powered and programmed directly via the USB port. It also has two expansion ports, I²C and UART.

Specifications

Controller ESP32-S3 WROOM-1-N16R8 (16 MB Flash, 8 MB PSRAM, PCB antenna)
Wireless WiFi & Bluetooth 5.0
Resolution 480x480
LCD 2.1' IPS LCD, 65K color
LCD driver ST7701S
Frame rate >70 FPS
LCD interface RGB 565
Touch panel 5-points capacitive touch
Touch panel driver CST8266
USB USB-C native
Interfaces 1x I²C, 1x UART (1.25 mm, 4-pin connector)
Arduino support Yes

Downloads

Product form

This display features an IPS resolution of 480x480 with capacitive touch and a frame rate of up to 75 FPS. It... Read more

No reviews

Out of stock

€ 64,95 incl. VAT
Members € 58,46

    • Ship today? Order within Apr 21, 2024 17:00:00 +0200

    Details

    SKU: 20646
    EAN: 020646

    Description

    This display features an IPS resolution of 480x480 with capacitive touch and a frame rate of up to 75 FPS. It is very bright and has 65,000 colors. The mechanical rotary encoder supports clockwise/counterclockwise rotation and also supports the entire pressing process, which can usually be used to confirm the process.

    The display module is based on ESP32-S3 with WiFi & Bluetooth 5.0 to easily connect to the Internet for IoT projects. It can be powered and programmed directly via the USB port. It also has two expansion ports, I²C and UART.

    Specifications

    Controller ESP32-S3 WROOM-1-N16R8 (16 MB Flash, 8 MB PSRAM, PCB antenna)
    Wireless WiFi & Bluetooth 5.0
    Resolution 480x480
    LCD 2.1' IPS LCD, 65K color
    LCD driver ST7701S
    Frame rate >70 FPS
    LCD interface RGB 565
    Touch panel 5-points capacitive touch
    Touch panel driver CST8266
    USB USB-C native
    Interfaces 1x I²C, 1x UART (1.25 mm, 4-pin connector)
    Arduino support Yes
