The T-Deck is a pocket-sized gadget featuring a 2.8-inch IPS LCD display (320 x 240), a mini keyboard, and an ESP32 dual-core processor. While it’s not quite a smartphone, it offers plenty of potential for tech enthusiasts. With some programming know-how, you can transform it into a standalone messaging device or a portable coding platform. Specifications Microcontroller ESP32-S3FN16R8 Dual-core LX7 microprocessor Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE) Development Arduino, PlatformlO, MicroPython Flash 16 MB PSRAM 8 MB Battery ADC Pin IO04 Onboard functions Trackball, Microphone, Speaker Display 2.8" ST7789 SPI Interface IPS Resolution 320 x 240 (Full viewing angle) Transmit power +22 dBm SX1262 LoRa Transceiver (Frequency) 868 Mhz Dimensions 100 x 68 x 11 mm Included 1x T-Deck ESP32-S3 LoRa 1x FPC antenna (868 MHz) 1x Male pin (6-pin) 1x Power cable Downloads GitHub

Read more less

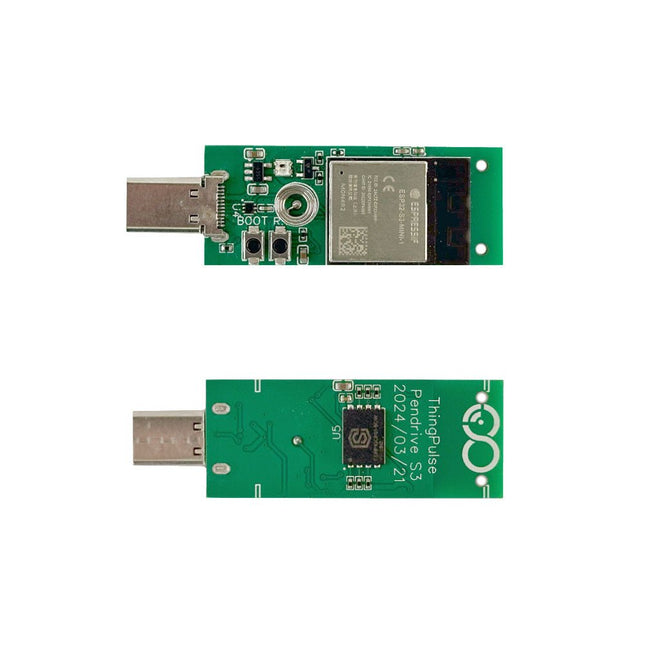

The ThingPulse Pendrive S3 is an ESP32-S3 device with USB-C plug, WS2812B RGB LED and 128 MB of flash. With the help of TinyUSB the ESP32-S3 can pretend to be many USB devices, such as: USB Memory Stick USB Keyboard USB Mouse Audio device Video device Networking device Applications As BadUSB Device with SuperWiFiDuck it can do KeyStroke injections As WiFiDisk it can be mounted by any regular computer like a memory stick and synchronize the files on the disk to the cloud As WiFiDongle it can add an additional WiFi networking device to any computer/phone Included ESP32-S3 PCB with WS2812B RGB Led Capacitive Touch Button (Spring) USB Drive Plastic Enclosure Downloads CircuitPython

Read more less

The Soldered CONNECT Programmer is designed to make programming boards based on ESP8266 and ESP32 microcontrollers extremely simple. It contains all the necessary electronics and logic, allowing programming to be done by simply plugging a USB cable into the CONNECT Programmer and connecting it to the programming header. The onboard circuitry handles timing and signal sequencing automatically, placing the ESP microcontroller into bootloader mode without the need for manual intervention. Features IC: CH340 Pin layout: GPIO0, RESET, RX, TX, 3V3, GND LEDs: RX, TX, power Interface: USB-C Dimensions: 38 x 22 mm Downloads Datasheet GitHub

Read more less

Take control of your smart environment with the compact and powerful 4-inch ESP32-S3 IPS Touchscreen Control Panel. Designed for high performance and versatility, this sleek 86-box format panel integrates advanced connectivity, intuitive touch control, and real-time environmental sensing. Features Powerful Core Module WT32-S3-WROVER-N16R8 4-inch IPS full-screen display Resolution: 480 x 480 pixels (RGB565 format) Screen Driver IC: GC9503V Touch Controller IC: FT6336U Equipped with an SHT20 Temperature and Humidity Sensor for real-time monitoring of environmental conditions. RS485 Interface using an automatic transceiver circuit Built-in WiFi and Bluetooth Applications Smart Home Control Panels Industrial Automation Interfaces Environmental Monitoring Systems IoT Projects and Custom Smart Solutions

Read more less

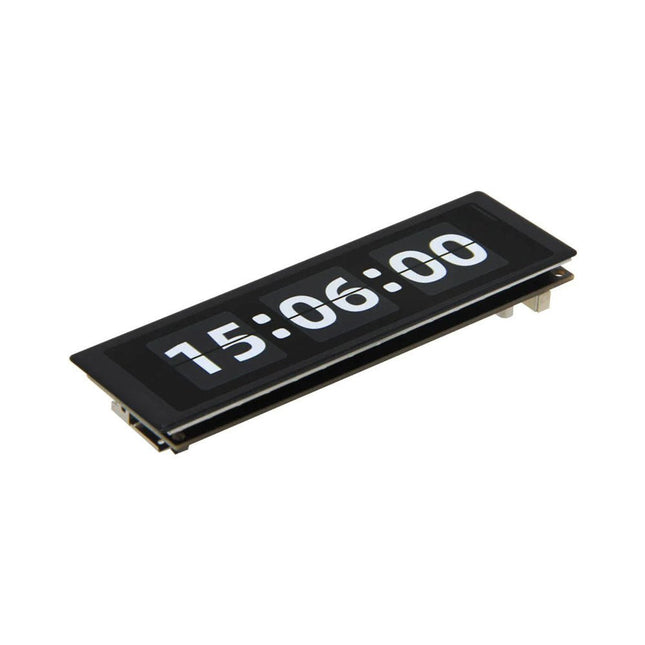

The LILYGO T-Display-S3 Long is a versatile development board powered by the ESP32-S3R8 dual-core LX7 microprocessor. It features a 3.4-inch capacitive touch TFT LCD with a resolution of 180x640 pixels, providing a responsive interface for various applications. This board is ideal for developers seeking a compact yet powerful solution for projects requiring touch input and wireless communication. Its compatibility with popular programming environments ensures a smooth development experience. Specifications MCU ESP32-S3R8 Dual-core LX7 microprocessor Wireless Connectivity Wi-Fi 802.11, BLE 5 + BT Mesh Programming Platform Arduino IDE, VS Code Flash 16 MB PSRAM 8 MB Bat voltage detection IO02 Onboard functions Boot + Reset Button, Battery Switch Display 3.4" Capacitive Touch TFT LCD Color depth 565, 666 Resolution 180 x 640 (RGB) Working power supply 3.3 V Interface QSPI Included 1x T-Display S3 Long 1x Power cable 2x STEMMA QT/Qwiic interface cable (P352) 1x Female pin (double row) Downloads GitHub

Read more less

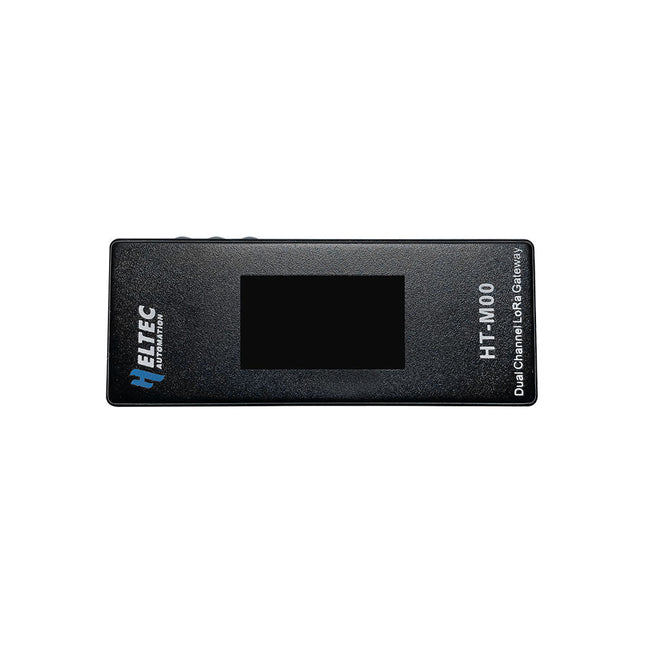

The HT-M00 is a dual-channel gateway that is specifically designed to cater to smart family LoRa applications that work with less than 30 LoRa nodes. The gateway has been built around two SX1276 chips that are driven by ESP32. To enable monitoring of 125 KHz SF7~SF12 spreading factor, a software mixer has been developed, which is commonly referred to as a baseband simulation program. The software mixer is a critical component that enables the HT-M00 gateway to operate with high efficiency. It is designed to simulate baseband signals, which are then mixed with the radio frequency signals to produce the desired output. The software mixer has been developed with great care and precision, and has undergone rigorous testing to ensure that it is capable of delivering accurate and reliable results. Features ESP32 + SX1276 Emulates LoRa demodulators Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional Maximum output: 18 ±1dBm Support for LoRaWAN Class A, Class C protocol Specifications MCU ESP32-D0WDQ6 LoRa Chipset SX1276 LoRa Band 863~870 MHz Power Supply Voltage 5 V Receiving Sensitivity -110 dBm @ 300 bps Interface USB-C Max. TX Power 17dB ±1dB Operating Temperature −20~70°C Dimensions 30 x 76 x 14 mm Included 1x HT-M00 Dual Channel LoRa Gateway 1x Wall bracket 1x USB-C cable Downloads Manual Software Documentation

Read more less

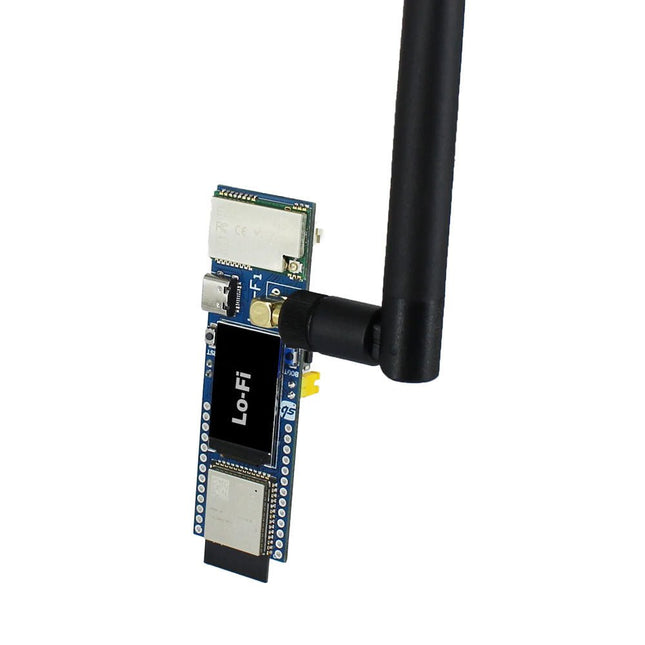

Lo-Fi (ESP32 + LoRa combination) is the perfect solution for anyone looking to establish long-range wireless communication in a variety of applications with WiFi capabilities. LoRa offers exceptional range and easy connectivity, it allows you to seamlessly communicate with devices up to 5 km away. Devices provide an efficient and trustworthy choice for long-range wireless communication in addition to WiFi access to link internet clouds best suited for Internet of Things applications, enabling connectivity in remote and challenging settings. Features Device powered by powerful ESP32 S3 WROOM-1 which is having Xtensa dual-core 32-bit LX7 microprocessor, up to 240 MHz Inbuilt Wi-Fi & Bluetooth LE for wireless connectivity Type C interface for Programming/Power 1.14" TFT display for visual interactions GPIO breakouts for interfacing additional peripherals Breadboard compatible for easy DIY breadboarding projects 2 separate user programmable buttons along with Reset and Boot buttons 3.7 V Lithium Battery connector for a portable use case with an onboard charging option Use new generation LoRa spread spectrum to ensure stable communication For LoRa, faster speed and a longer data transmission range of up to 5 km Applications Internet of Things (IoT) Smart Home Automation Agricultural Automation Emergency Services Environmental Monitoring Industrial Automation Specifications Microcontroller: ESP32 S3 WROOM-1 Wireless Interface: WiFi, BLE, LoRa Protocol: 802.11b/g/n, Bluetooth 5.0 Memory Size: 16 MB Flash, 384 kB ROM, 8 MB SRAM Supply Voltage: 5 V Operating Voltage: 3.3 V Display Size: 1.14” Display Type: TFT Display resolution: 135 x 240 pixels Display driver: ST7789V Display Appearance: RGB Display color: 4k/65k/252k Display Luminance: 400 Cd/m² Operating Temperature: -20 to 70°C Storage Temperature: -30 to 80°C LoRa Module Specs: Carrier Frequency (License Free ISM): 868 MHz Chip: Based on SX1262 RF chip Range: 5Km Transmitting Power: 22 dBm Receiving Sensitivity: -147 dbm Data Rate: Up to 62.5 kbps Communication Port: UART serial Downloads Getting started guide Hardware design files Included 1x Lo-Fi Board 1x Antenna (868 MHz)

Read more less

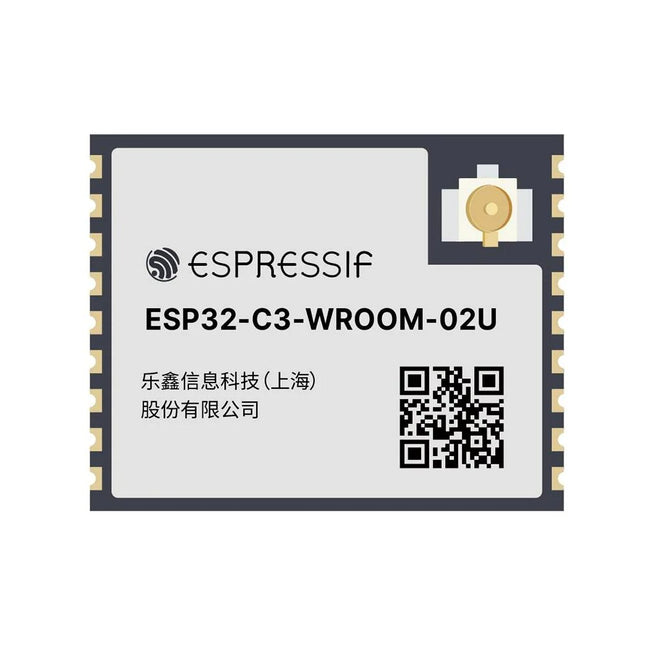

ESP32-C3-WROOM-02U is a general-purpose Wi-Fi and Bluetooth LE module. The rich set of peripherals and high performance make the module an ideal choice for smart homes, industrial automation, health care, consumer electronics, etc. ESP32-C3-WROOM-02U features an external SPI flash and comes with a connector for an external antenna. ESP32-C3-WROOM-02U has an operating ambient temperature option of –40∼85°C, embedded with the ESP32-C3 chip. ESP32-C3 has a 32-bit RISC-V single-core processor. It integrates a rich set of peripherals, ranging from UART, I²C, I²S, remote control peripheral, LED PWM controller, general DMA controller, TWAI controller, USB Serial/JTAG controller, temperature sensor, ADC, etc. It also includes SPI, Dual SPI and Quad SPI interfaces. Features Flash: 4 MB (Quad SPI) Dimensions: 18.0 x 20.0 x 3.2 mm Downloads Datasheet

Read more less

The unPhone is an open-source IoT development platform powered by the ESP32S3 microcontroller. It features integrated LoRa, Wi-Fi, and Bluetooth connectivity, a touchscreen, and a LiPo battery, offering a robust and versatile solution for IoT development. Its compatibility with Adafruit's FeatherWing standard enables easy expansion, making it an ideal choice for educators, makers, and developers seeking a flexible and user-friendly platform. Features ESP32S3 microcontroller (with 8 MB flash and 8 MB PSRAM) LoRaWAN licence-free radio communication (plus the ESP32's excellent wifi and bluetooth support) 3.5" (320 x 480) LCD capacitive touchscreen for easy debugging and UI creation IR LEDs for surreptitiously switching the cafe TV off 1200 mAh LiPo battery with USB-C charging Vibration motor for notifications Compass/Accelorometer A robust case SD card slot Power and reset buttons Programmable in C++ or CircuitPython Expander board that supports two Featherwing sockets and a prototyping area Open source firmware compatible with the Arduino IDE, PlatformIO and Espressif's IDF development framework Included unPhone (assembled) Expander board FPC cable (to link the expander board to unPhone) Self adhesive mounts for the expander board Code Examples C++ library Kick the tyres on everything in the box The main LVGL demo CircuitPython Support forum Textbook (especially chapter 11)

Read more less
