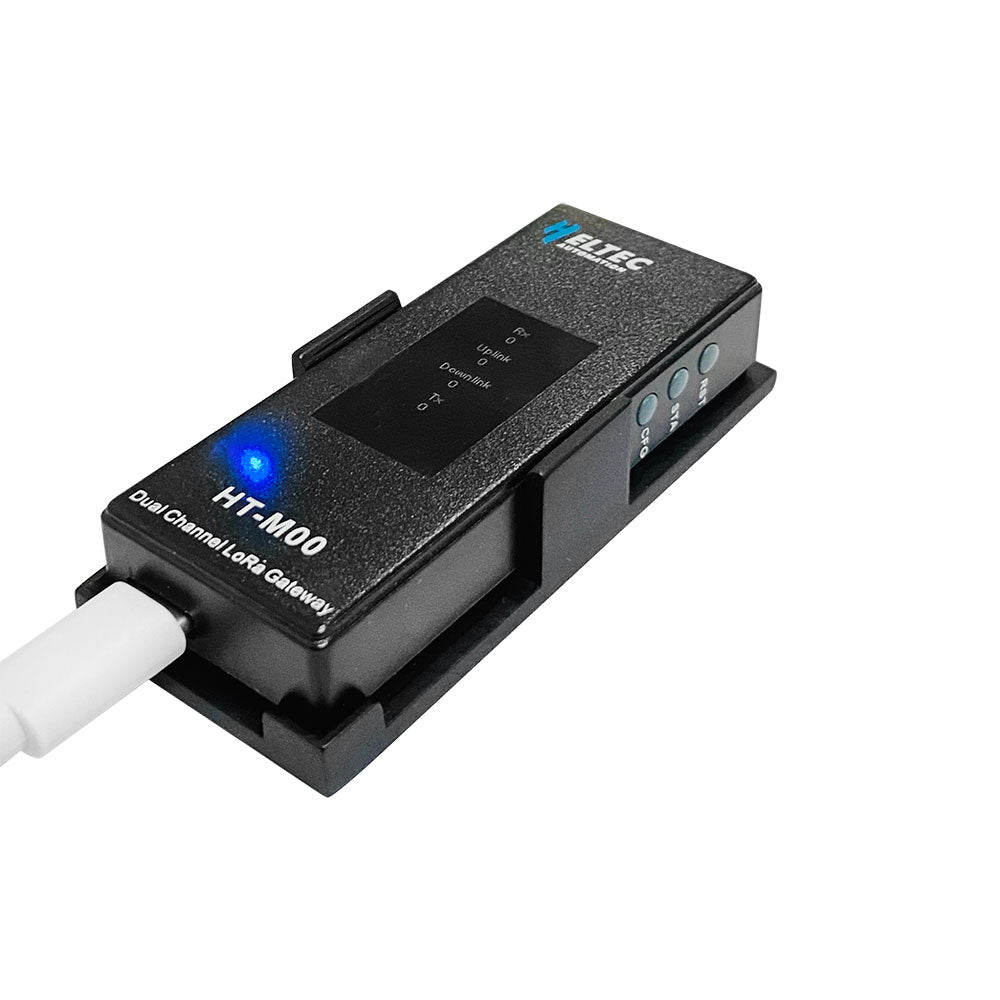

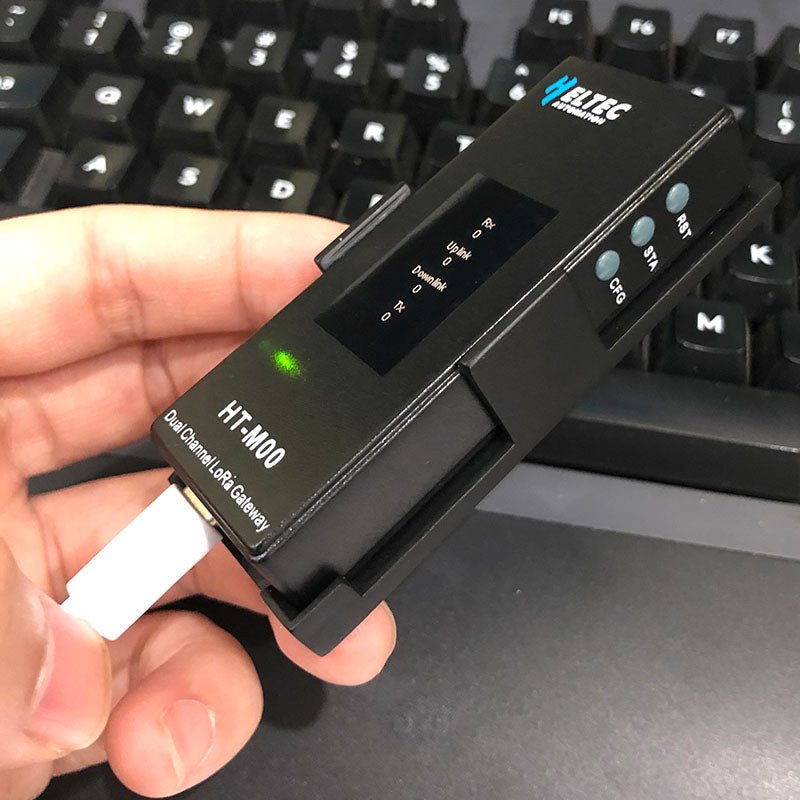

Description
The HT-M00 is a dual-channel gateway that is specifically designed to cater to smart family LoRa applications that work with less than 30 LoRa nodes. The gateway has been built around two SX1276 chips that are driven by ESP32. To enable monitoring of 125 KHz SF7~SF12 spreading factor, a software mixer has been developed, which is commonly referred to as a baseband simulation program.
The software mixer is a critical component that enables the HT-M00 gateway to operate with high efficiency. It is designed to simulate baseband signals, which are then mixed with the radio frequency signals to produce the desired output. The software mixer has been developed with great care and precision, and has undergone rigorous testing to ensure that it is capable of delivering accurate and reliable results.
Features
- ESP32 + SX1276
- Emulates LoRa demodulators
- Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional
- Maximum output: 18 ±1dBm
- Support for LoRaWAN Class A, Class C protocol
Specifications
| MCU |
ESP32-D0WDQ6 |
| LoRa Chipset |
SX1276 |
| LoRa Band |
863~870 MHz |
| Power Supply Voltage |
5 V |
| Receiving Sensitivity |
-110 dBm @ 300 bps |
| Interface |
USB-C |
| Max. TX Power |
17dB ±1dB |
| Operating Temperature |
−20~70°C |
| Dimensions |
30 x 76 x 14 mm |

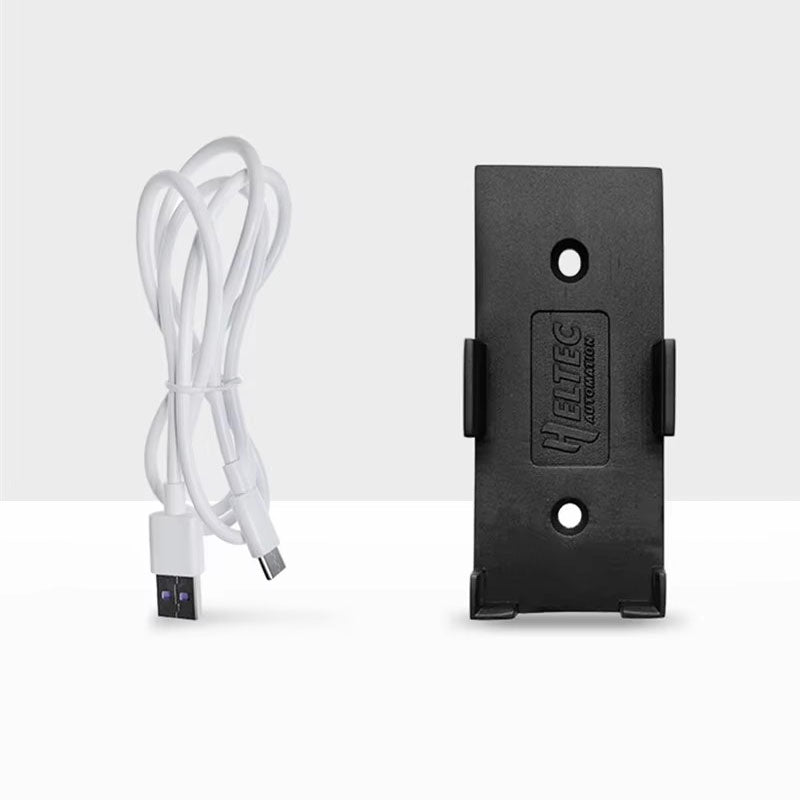

Included
- 1x HT-M00 Dual Channel LoRa Gateway
- 1x Wall bracket
- 1x USB-C cable
