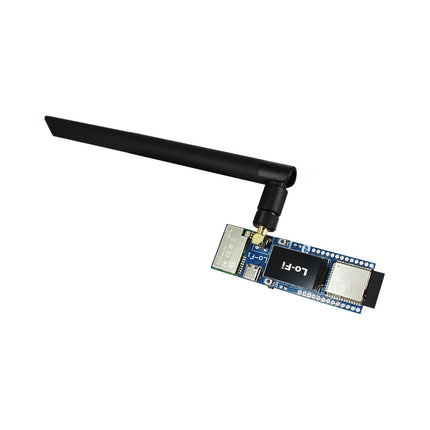

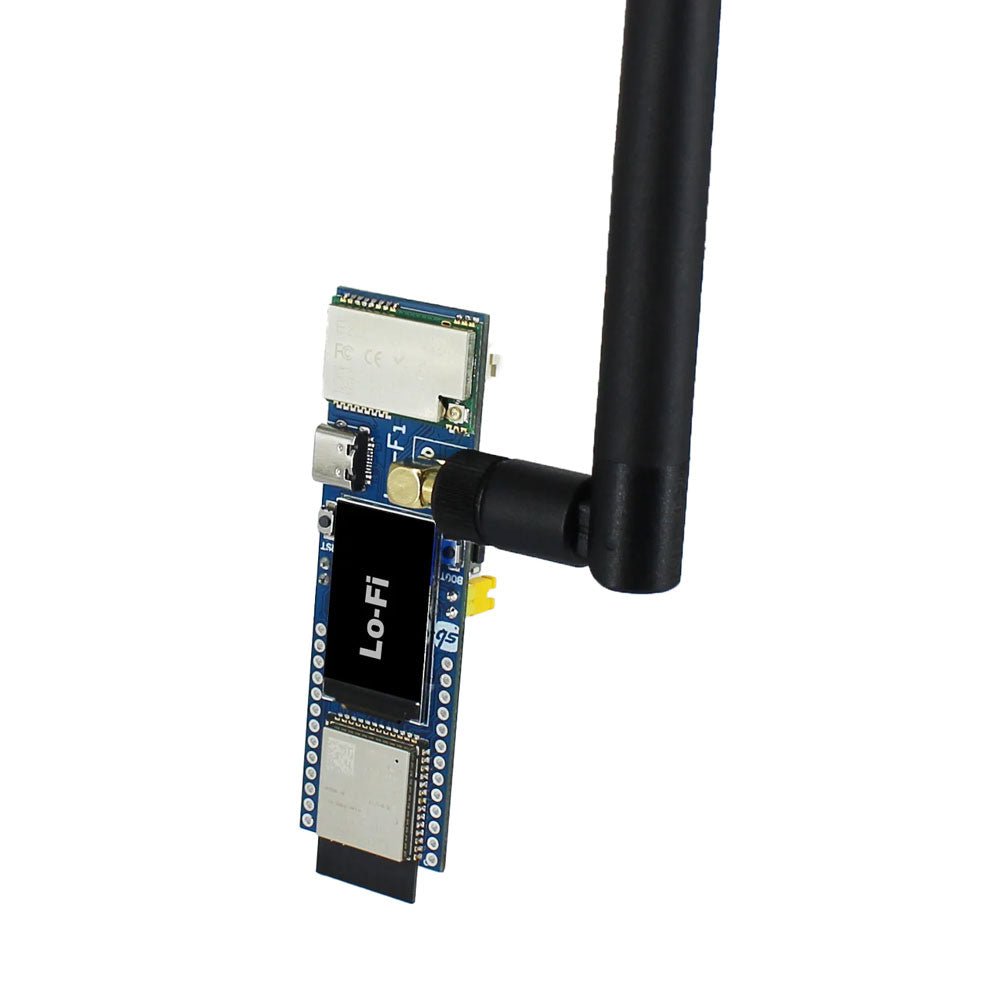

Lo-Fi - ESP32 based LoRa Wireless Communication Device (EU868)

  • BrandSB Components

Description

Lo-Fi (ESP32 + LoRa combination) is the perfect solution for anyone looking to establish long-range wireless communication in a variety of applications with WiFi capabilities. LoRa offers exceptional range and easy connectivity, it allows you to seamlessly communicate with devices up to 5 km away.

Devices provide an efficient and trustworthy choice for long-range wireless communication in addition to WiFi access to link internet clouds best suited for Internet of Things applications, enabling connectivity in remote and challenging settings.

Features

  • Device powered by powerful ESP32 S3 WROOM-1 which is having Xtensa dual-core 32-bit LX7 microprocessor, up to 240 MHz
  • Inbuilt Wi-Fi & Bluetooth LE for wireless connectivity
  • Type C interface for Programming/Power
  • 1.14" TFT display for visual interactions
  • GPIO breakouts for interfacing additional peripherals
  • Breadboard compatible for easy DIY breadboarding projects
  • 2 separate user programmable buttons along with Reset and Boot buttons
  • 3.7 V Lithium Battery connector for a portable use case with an onboard charging option
  • Use new generation LoRa spread spectrum to ensure stable communication
  • For LoRa, faster speed and a longer data transmission range of up to 5 km

Applications

  • Internet of Things (IoT)
  • Smart Home Automation
  • Agricultural Automation
  • Emergency Services
  • Environmental Monitoring
  • Industrial Automation

Specifications

  • Microcontroller: ESP32 S3 WROOM-1
  • Wireless Interface: WiFi, BLE, LoRa
  • Protocol: 802.11b/g/n, Bluetooth 5.0
  • Memory Size: 16 MB Flash, 384 kB ROM, 8 MB SRAM
  • Supply Voltage: 5 V
  • Operating Voltage: 3.3 V
  • Display Size: 1.14”
  • Display Type: TFT
  • Display resolution: 135 x 240 pixels
  • Display driver: ST7789V
  • Display Appearance: RGB
  • Display color: 4k/65k/252k
  • Display Luminance: 400 Cd/m²
  • Operating Temperature: -20 to 70°C
  • Storage Temperature: -30 to 80°C
  • LoRa Module Specs:
    • Carrier Frequency (License Free ISM): 868 MHz
    • Chip: Based on SX1262 RF chip
    • Range: 5Km
    • Transmitting Power: 22 dBm
    • Receiving Sensitivity: -147 dbm
    • Data Rate: Up to 62.5 kbps
    • Communication Port: UART serial

Downloads

Included

  • 1x Lo-Fi Board
  • 1x Antenna (868 MHz)
Product form

Lo-Fi (ESP32 + LoRa combination) is the perfect solution for anyone looking to establish long-range wireless communication in a variety... Read more

€ 49,95 incl. VAT
Members € 44,96

      Details

      SKU: 20637
      EAN: 4050556529280

      Description

      Lo-Fi (ESP32 + LoRa combination) is the perfect solution for anyone looking to establish long-range wireless communication in a variety of applications with WiFi capabilities. LoRa offers exceptional range and easy connectivity, it allows you to seamlessly communicate with devices up to 5 km away.

      Devices provide an efficient and trustworthy choice for long-range wireless communication in addition to WiFi access to link internet clouds best suited for Internet of Things applications, enabling connectivity in remote and challenging settings.

      Features

      • Device powered by powerful ESP32 S3 WROOM-1 which is having Xtensa dual-core 32-bit LX7 microprocessor, up to 240 MHz
      • Inbuilt Wi-Fi & Bluetooth LE for wireless connectivity
      • Type C interface for Programming/Power
      • 1.14" TFT display for visual interactions
      • GPIO breakouts for interfacing additional peripherals
      • Breadboard compatible for easy DIY breadboarding projects
      • 2 separate user programmable buttons along with Reset and Boot buttons
      • 3.7 V Lithium Battery connector for a portable use case with an onboard charging option
      • Use new generation LoRa spread spectrum to ensure stable communication
      • For LoRa, faster speed and a longer data transmission range of up to 5 km

      Applications

      • Internet of Things (IoT)
      • Smart Home Automation
      • Agricultural Automation
      • Emergency Services
      • Environmental Monitoring
      • Industrial Automation

      Specifications

      • Microcontroller: ESP32 S3 WROOM-1
      • Wireless Interface: WiFi, BLE, LoRa
      • Protocol: 802.11b/g/n, Bluetooth 5.0
      • Memory Size: 16 MB Flash, 384 kB ROM, 8 MB SRAM
      • Supply Voltage: 5 V
      • Operating Voltage: 3.3 V
      • Display Size: 1.14”
      • Display Type: TFT
      • Display resolution: 135 x 240 pixels
      • Display driver: ST7789V
      • Display Appearance: RGB
      • Display color: 4k/65k/252k
      • Display Luminance: 400 Cd/m²
      • Operating Temperature: -20 to 70°C
      • Storage Temperature: -30 to 80°C
      • LoRa Module Specs:
        • Carrier Frequency (License Free ISM): 868 MHz
        • Chip: Based on SX1262 RF chip
        • Range: 5Km
        • Transmitting Power: 22 dBm
        • Receiving Sensitivity: -147 dbm
        • Data Rate: Up to 62.5 kbps
        • Communication Port: UART serial

      Downloads

      Included

      • 1x Lo-Fi Board
      • 1x Antenna (868 MHz)
