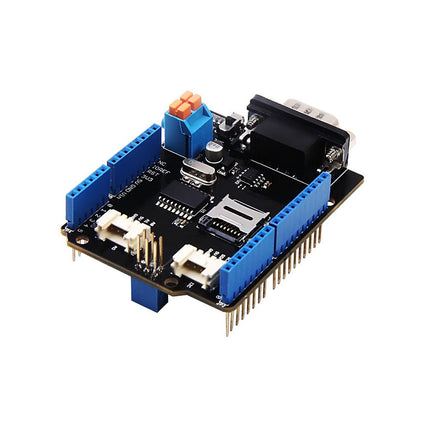

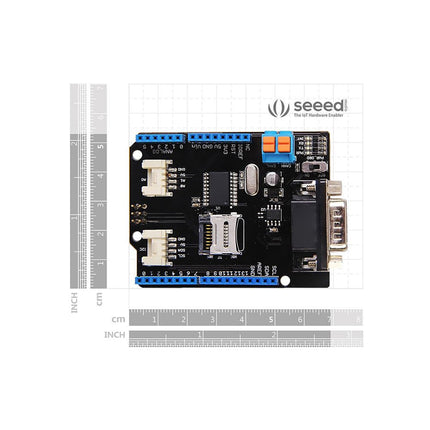

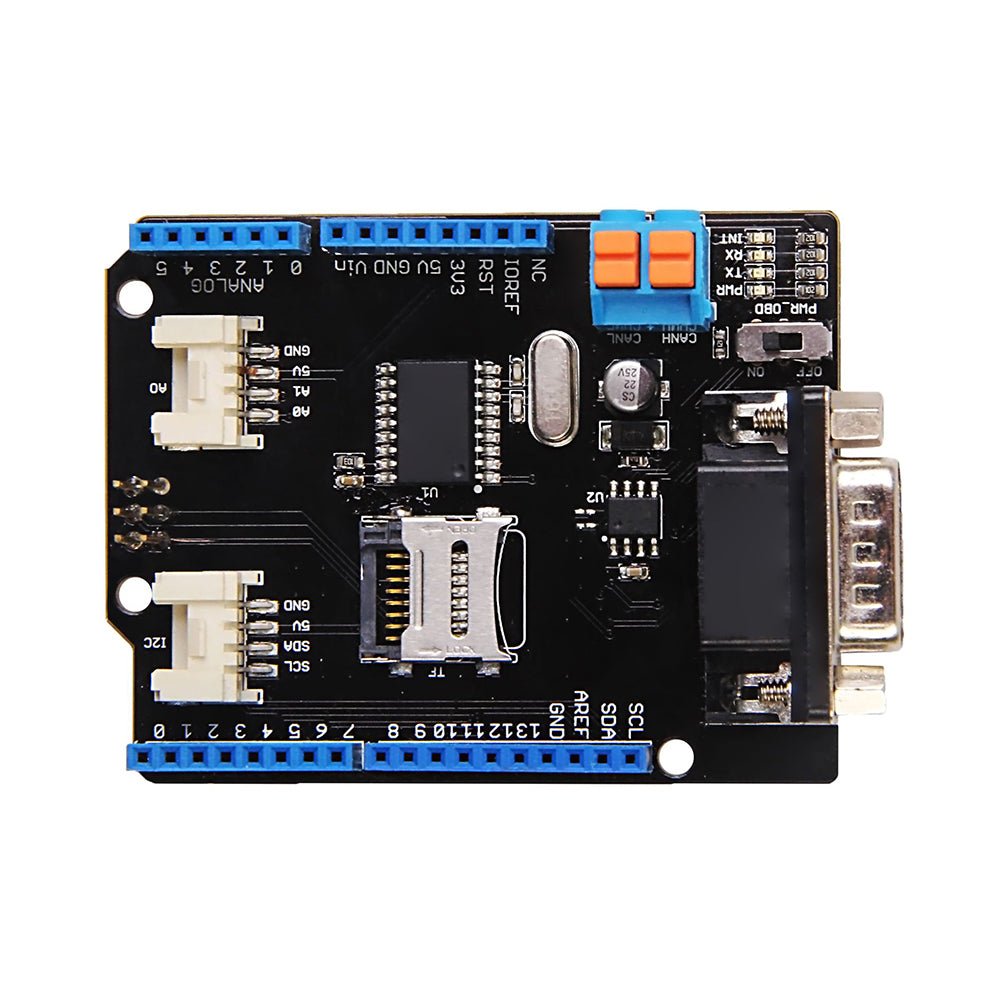

Seeed Studio CAN-BUS Shield V2 adopts MCP2515 and MCP2551

  • BrandSeeed Studio

Description

Features

  • Implements CAN V2.0B at up to 1 Mb/s
  • Industrial standard 9 pin sub-D connector
  • OBD-II and CAN standard pinout selectable.
  • Changeable chip select pin
  • Changeable CS pin for TF card slot
  • Changeable INT pin
  • Screw terminal that easily to connect CAN_H and CAN_L
  • Arduino Uno pin headers
  • Micro SD card holder
  • 2 Grove connectors (I2C and UART)
  • SPI Interface up to 10 MHz
  • Standard (11 bit) and extended (29 bit) data and remote frames
  • Two receive buffers with prioritized message storage
Product form

Features Implements CAN V2.0B at up to 1 Mb/s Industrial standard 9 pin sub-D connector OBD-II and CAN standard pinout... Read more

€ 32,95 € 13,18 (incl. VAT)
Members identical

    Details

    SKU: 20067
    EAN: 103030215

    Description

    Features

    • Implements CAN V2.0B at up to 1 Mb/s
    • Industrial standard 9 pin sub-D connector
    • OBD-II and CAN standard pinout selectable.
    • Changeable chip select pin
    • Changeable CS pin for TF card slot
    • Changeable INT pin
    • Screw terminal that easily to connect CAN_H and CAN_L
    • Arduino Uno pin headers
    • Micro SD card holder
    • 2 Grove connectors (I2C and UART)
    • SPI Interface up to 10 MHz
    • Standard (11 bit) and extended (29 bit) data and remote frames
    • Two receive buffers with prioritized message storage
