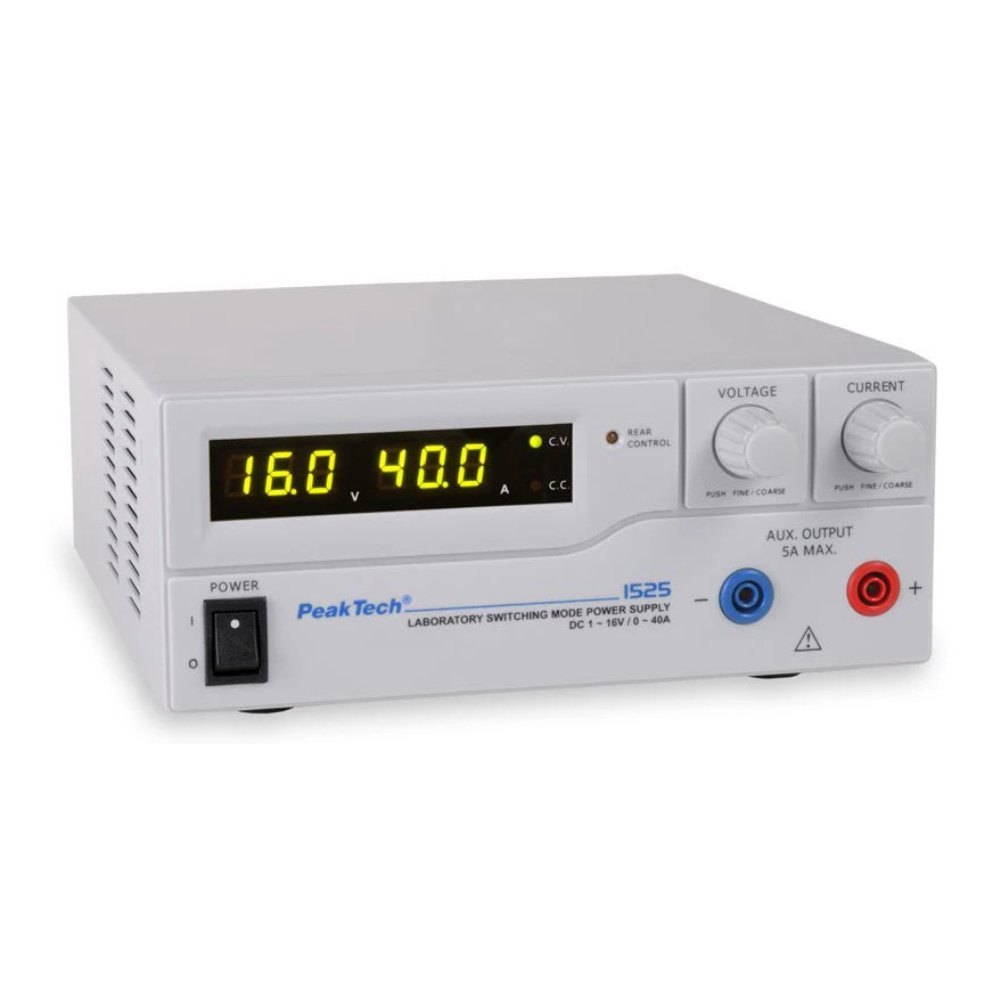

PeakTech 1525 DC Power Supply (16 V, 40 A)

  • BrandPeakTech

Description

This high graded Switching Mode Power Supply is designed for a wide range of applications for telecommunications, laboratory and industry. The power efficient circuit designs allow units to have small form factor with low profile and small footprint casing. The intelligent fan speed control program checks the fan at power on and adapts the right speed to ensure a quiet and safe operation of the power supply at different ambient temperatures and power output levels. The dual action (coarse and fine set) control knobs make tuning the voltage and current level ever so smooth, precise and fast, due to the rotary encoder and microprocessor control. Setting the CC current limiting can be done in open circuit at output poles. The three user defined presets of voltage and current limiting levels facilitate quick access to frequently used Volt/Ampere settings. The full remote control functionality offer a wide range of operation possibilities for the industrial and more sophisticated users.

  • High RFI immunity and excellent EMI
  • Over load, Over Temperature and Tracking Over Voltage protections
  • 3 user defined, recallable settings for voltage and current values
  • Full Remote control of voltage and current and output control on and off
  • Isolated ground, Active PFC and high power efficiency, Intelligent fans control from zero to full speed
  • Rotary Encoder Control Knob with coarse and fine tuning
  • Safety: EN 61010-1, EN 60950-1
  • Accessories: power cable and manual
Display 3-digit 15 mm green LED-display
Output voltage 1 ~ 16 V DC adjustable

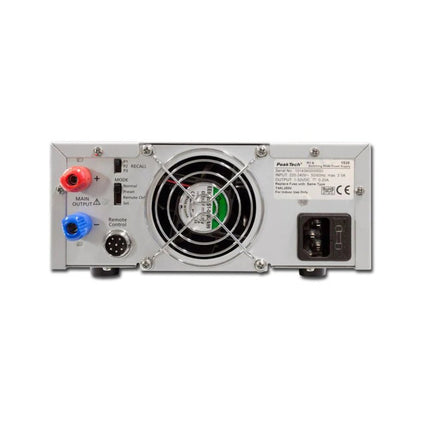

Output current 40 A / 5 A (main output (rear panel) / front output)
Output power 640 W
Residual ripple 5 mV rms
Efficiency > 85,5 %
Operation voltage 200 ~ 240 V AC; 50/60 Hz
Dimension (WxHxD) 200 x 90 x 255 mm
Weight 2.6 kg
Product form

This high graded Switching Mode Power Supply is designed for a wide range of applications for telecommunications, laboratory and industry.... Read more

1 in stock

€ 349,00 incl. VAT
Members € 314,10

      Details

      SKU: 18159
      EAN: 4250569400261

      Description

      This high graded Switching Mode Power Supply is designed for a wide range of applications for telecommunications, laboratory and industry. The power efficient circuit designs allow units to have small form factor with low profile and small footprint casing. The intelligent fan speed control program checks the fan at power on and adapts the right speed to ensure a quiet and safe operation of the power supply at different ambient temperatures and power output levels. The dual action (coarse and fine set) control knobs make tuning the voltage and current level ever so smooth, precise and fast, due to the rotary encoder and microprocessor control. Setting the CC current limiting can be done in open circuit at output poles. The three user defined presets of voltage and current limiting levels facilitate quick access to frequently used Volt/Ampere settings. The full remote control functionality offer a wide range of operation possibilities for the industrial and more sophisticated users.

      • High RFI immunity and excellent EMI
      • Over load, Over Temperature and Tracking Over Voltage protections
      • 3 user defined, recallable settings for voltage and current values
      • Full Remote control of voltage and current and output control on and off
      • Isolated ground, Active PFC and high power efficiency, Intelligent fans control from zero to full speed
      • Rotary Encoder Control Knob with coarse and fine tuning
      • Safety: EN 61010-1, EN 60950-1
      • Accessories: power cable and manual
      Display 3-digit 15 mm green LED-display
      Output voltage 1 ~ 16 V DC adjustable
      Output current 40 A / 5 A (main output (rear panel) / front output)
      Output power 640 W
      Residual ripple 5 mV rms
      Efficiency > 85,5 %
      Operation voltage 200 ~ 240 V AC; 50/60 Hz
      Dimension (WxHxD) 200 x 90 x 255 mm
      Weight 2.6 kg
