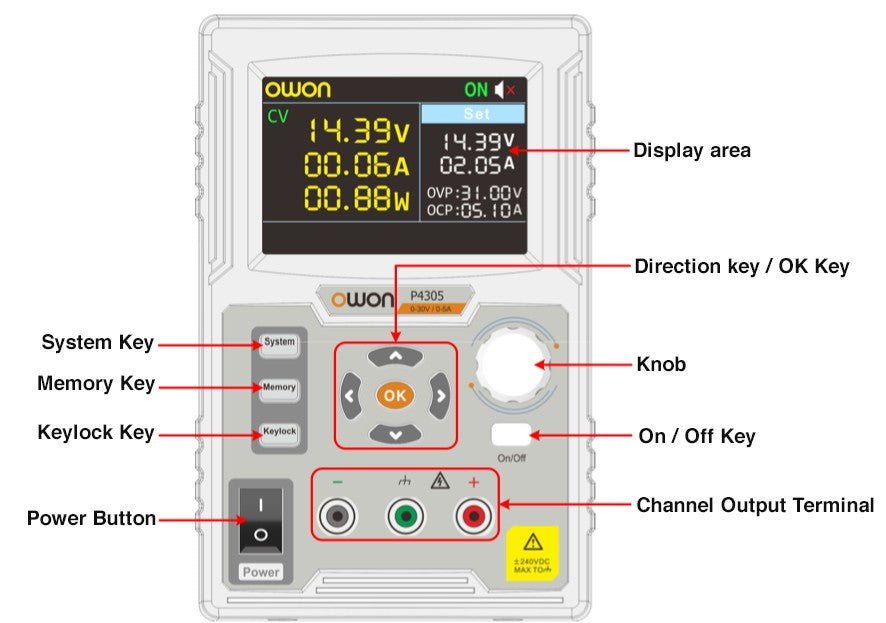

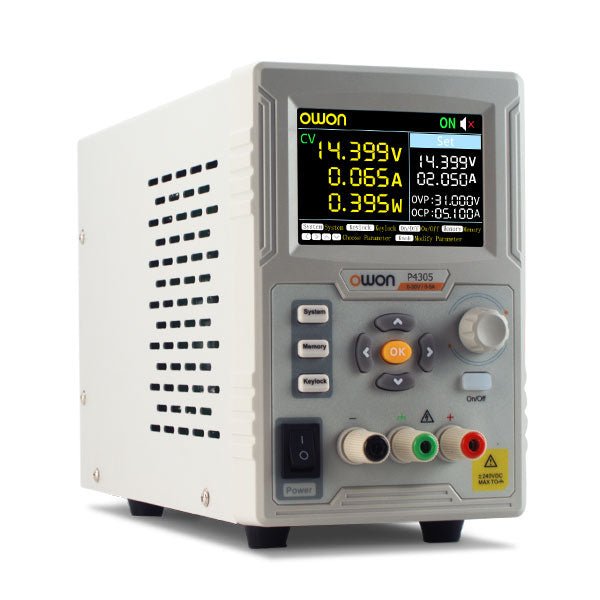

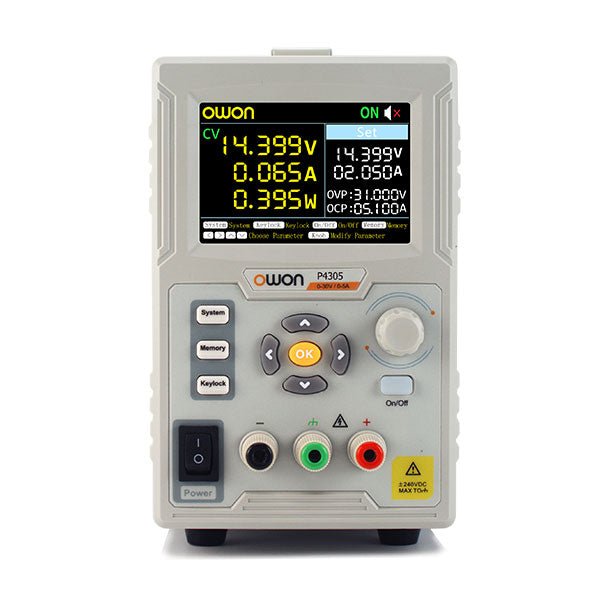

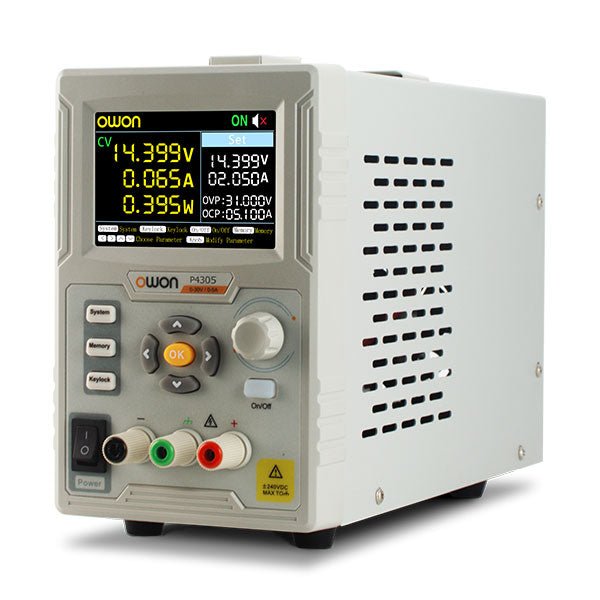

OWON P4603 DC Power Supply (180 W)

  • BrandOWON

Description

Features

Channel Single Channel Output
Total Output Power 180 W
Channel Output 0 - 60 V / 0 - 3 A × 1-CH
Display 3.7' color LCD display
Dimension 117 mm(L) × 194 mm(H) × 295 mm(D)
Weight Approx. 5.8 kg
Interface RS232

Specifications

Rated Output (0 ℃ - 40 ℃) Voltage 0 - 60 V
Current 3 A
Load Regulation Voltage ≤ 0.01% + 3 mV
Current ≤ 0.01% + 3 mA
Power Regulation Voltage ≤ 0.01% + 3 mV
Current ≤ 0.01% + 3 mA
Setting Resolution Voltage 1 mV
Current 1 mA
Readback Resolution Voltage 1 mV
Current 1 mA
Setpoint accuracy
(within 12 months)
(25 ℃ ± 5 ℃)
Voltage ≤ 0.03% + 10 mV
Current ≤ 0.1% + 5 mA
Readback Resolution
(25 ℃ ± 5 ℃)
Voltage ≤ 0.03% + 10 mV
Current ≤ 0.1% + 5 mA
Ripple/Noise
(20 Hz - 20 MHz)
Voltage (Vp-p) ≤ 4 mVp-p
Voltage (Vrms) ≤ 1 mVrms
Current (rms) ≤ 4 mArms
Output temperature coefficient
(0 ℃ - 40 ℃)
Voltage ≤ 0.03% + 10 mV
Current ≤ 0.1% + 5 mA
Readback temperature coefficient Voltage ≤ 0.03% + 10 mV
Current ≤ 0.1% + 5 mA
Response Time 100 μs
Storage 5 groups of data
Working Temperature 0 - 40 ℃
Product form

Features Channel Single Channel Output Total Output Power 180 W Channel Output 0 - 60 V / 0 - 3... Read more

€ 169,95 incl. VAT
Members € 152,96

      Details

      SKU: 18902
      EAN: P46032017184

      Description

      Features

      Channel Single Channel Output
      Total Output Power 180 W
      Channel Output 0 - 60 V / 0 - 3 A × 1-CH
      Display 3.7' color LCD display
      Dimension 117 mm(L) × 194 mm(H) × 295 mm(D)
      Weight Approx. 5.8 kg
      Interface RS232

      Specifications

      Rated Output (0 ℃ - 40 ℃) Voltage 0 - 60 V
      Current 3 A
      Load Regulation Voltage ≤ 0.01% + 3 mV
      Current ≤ 0.01% + 3 mA
      Power Regulation Voltage ≤ 0.01% + 3 mV
      Current ≤ 0.01% + 3 mA
      Setting Resolution Voltage 1 mV
      Current 1 mA
      Readback Resolution Voltage 1 mV
      Current 1 mA
      Setpoint accuracy
      (within 12 months)
      (25 ℃ ± 5 ℃)
      Voltage ≤ 0.03% + 10 mV
      Current ≤ 0.1% + 5 mA
      Readback Resolution
      (25 ℃ ± 5 ℃)
      Voltage ≤ 0.03% + 10 mV
      Current ≤ 0.1% + 5 mA
      Ripple/Noise
      (20 Hz - 20 MHz)
      Voltage (Vp-p) ≤ 4 mVp-p
      Voltage (Vrms) ≤ 1 mVrms
      Current (rms) ≤ 4 mArms
      Output temperature coefficient
      (0 ℃ - 40 ℃)
      Voltage ≤ 0.03% + 10 mV
      Current ≤ 0.1% + 5 mA
      Readback temperature coefficient Voltage ≤ 0.03% + 10 mV
      Current ≤ 0.1% + 5 mA
      Response Time 100 μs
      Storage 5 groups of data
      Working Temperature 0 - 40 ℃

      Customer Reviews

      Based on 1 review
      0%
      (0)
      0%
      (0)
      100%
      (1)
      0%
      (0)
      0%
      (0)
      R
      Ralph D.
      18902

      Also das Netzteil sieht nur gut aus. Praxistauglich nur bedingt. Für mich mal nicht. Die Spannung hinkt dem Drehgeber deutlich hinterher, hat zur Folge wenn man die Spannung von 0 bis Maximum duchfahren will, also analoges Verhalten, zuckelt der Ausgang langsam und wild hinterher, weil der Prozessor mit Rechnen beschäftigt ist. Ist ja ne irrsinnige Leistung die man da abverlagt
