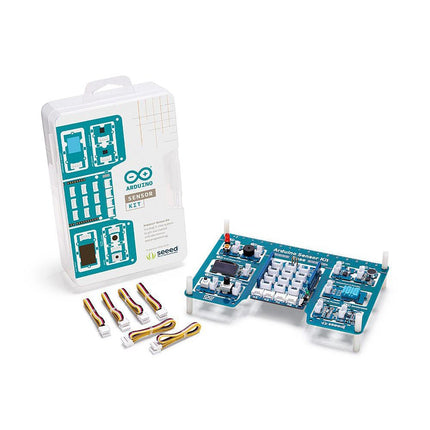

Arduino Sensor Kit Base

Description

Grove is an open-source, modulated, and ready-to-use toolset and takes a building block approach to assemble electronics. This Kit includes a Base Shield to which the various Grove modules can be connected both individually, or together in various combinations to create fun and exciting projects. All of the modules use a Grove connector, which connects each of the components to a Base Shield in just a few seconds. The Base Shield can then be mounted onto an Arduino UNO board and can be programmed using the Arduino IDE. Instructions for connecting and programming the different modules are also included in this kit.

This kit was elaborated in collaboration with Seeed Studio and provides the Arduino community with the opportunity to build projects with minimal effort of both wiring and coding. This kit acts as a bridge to the world of Grove and provides a flexible way for Makers to extend their projects to include other complex Grove modules.

The Kit comes includes access to an online platform with all the instructions required to plug, sketch and play with the different Grove Modules.

Please note: This kit does not include the Arduino Uno board.

Included

1 Base Shield that is designed to fit on top of an Arduino UNO board. It comes equipped with 16 grove connectors, which, when placed on top of the UNO, provides the functionality to various pins. It includes:

  • 7x digital connections
  • 4x analog connections
  • 4x I²C connections
  • 1x UART connection

10 Grove modules included can be connected to the base shield, either through the digital, analog, or I2C connectors on the shield. Let's take a quick look at them:

  • The LED - a simple LED that can be turned ON or OFF, or dimmed.
  • The button - pushbutton can either be in a HIGH or LOW state.
  • The potentiometer - a variable resistor that increases or decreases resistance when turning its knob.
  • The buzzer - a piezo speaker that is used to produce binary sounds.
  • The light sensor - a photoresistor that reads light intensity.
  • The sound sensor - a tiny microphone that measures sound vibrations.
  • The air pressure sensor - reads air pressure, using the I²C protocol.
  • The temperature sensor - reads temperature and humidity at the same time.
  • The accelerometer - a sensor used for orientation, used for detecting movement.
  • The OLED screen - a screen that values or messages can be printed to.

6 Grove cables allow you to easily connect the modules to the Base Shield without any soldering required.

The Arduino Sensor Kit Library is a wrapper that contains links to other libraries related to certain modules such as the accelerometer, air pressure sensor, temperature sensor, and OLED display. This library provides easy-to-use APIs that will help you build a clear mental model of the concepts you will be using.

Product form

Grove is an open-source, modulated, and ready-to-use toolset and takes a building block approach to assemble electronics. This Kit includes... Read more

€ 44,95 incl. VAT
Members € 40,46

    • Ship today? Order within Jul 13, 2024 17:00:00 +0200

    Details

    SKU: 19944
    EAN: 7630049202979

    Description

    Grove is an open-source, modulated, and ready-to-use toolset and takes a building block approach to assemble electronics. This Kit includes a Base Shield to which the various Grove modules can be connected both individually, or together in various combinations to create fun and exciting projects. All of the modules use a Grove connector, which connects each of the components to a Base Shield in just a few seconds. The Base Shield can then be mounted onto an Arduino UNO board and can be programmed using the Arduino IDE. Instructions for connecting and programming the different modules are also included in this kit.

    This kit was elaborated in collaboration with Seeed Studio and provides the Arduino community with the opportunity to build projects with minimal effort of both wiring and coding. This kit acts as a bridge to the world of Grove and provides a flexible way for Makers to extend their projects to include other complex Grove modules.

    The Kit comes includes access to an online platform with all the instructions required to plug, sketch and play with the different Grove Modules.

    Please note: This kit does not include the Arduino Uno board.

    Included

    1 Base Shield that is designed to fit on top of an Arduino UNO board. It comes equipped with 16 grove connectors, which, when placed on top of the UNO, provides the functionality to various pins. It includes:

    • 7x digital connections
    • 4x analog connections
    • 4x I²C connections
    • 1x UART connection

    10 Grove modules included can be connected to the base shield, either through the digital, analog, or I2C connectors on the shield. Let's take a quick look at them:

    • The LED - a simple LED that can be turned ON or OFF, or dimmed.
    • The button - pushbutton can either be in a HIGH or LOW state.
    • The potentiometer - a variable resistor that increases or decreases resistance when turning its knob.
    • The buzzer - a piezo speaker that is used to produce binary sounds.
    • The light sensor - a photoresistor that reads light intensity.
    • The sound sensor - a tiny microphone that measures sound vibrations.
    • The air pressure sensor - reads air pressure, using the I²C protocol.
    • The temperature sensor - reads temperature and humidity at the same time.
    • The accelerometer - a sensor used for orientation, used for detecting movement.
    • The OLED screen - a screen that values or messages can be printed to.

    6 Grove cables allow you to easily connect the modules to the Base Shield without any soldering required.

    The Arduino Sensor Kit Library is a wrapper that contains links to other libraries related to certain modules such as the accelerometer, air pressure sensor, temperature sensor, and OLED display. This library provides easy-to-use APIs that will help you build a clear mental model of the concepts you will be using.
