FNIRSI TMP-610S (3-in-1) Multimeter (60,000 Counts) + Oscilloscope + Signal Generator

Description

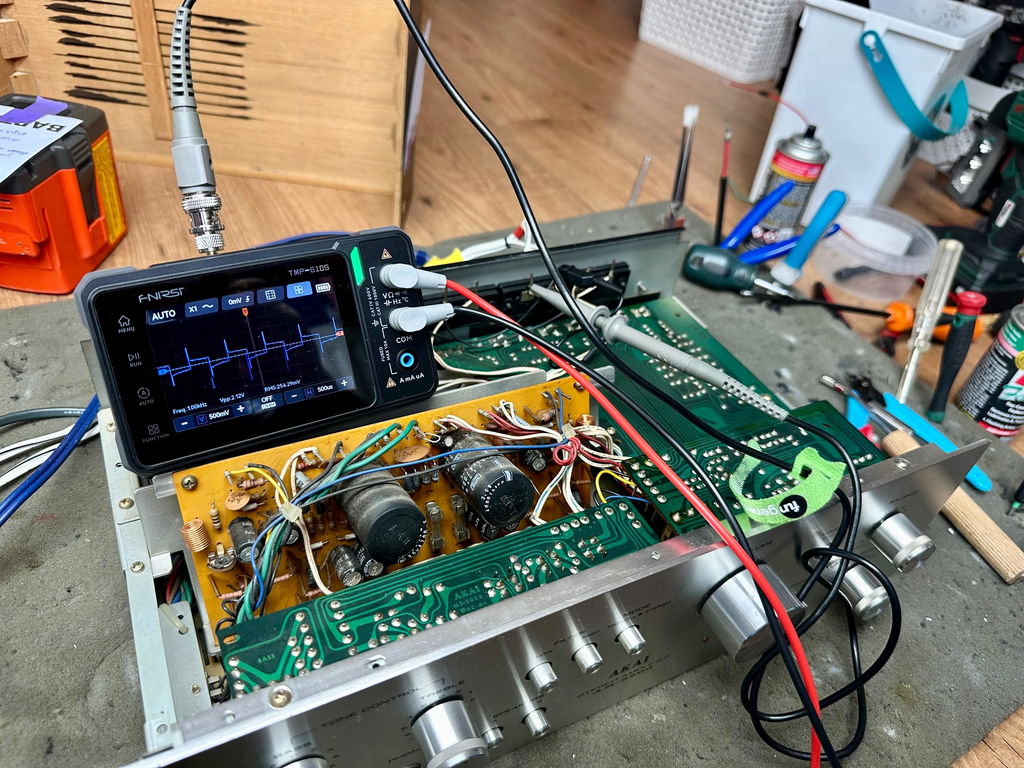

The FNIRSI TMP-610S is a compact 3-in-1 test instrument combining a True RMS multimeter, 10 MHz oscilloscope, and 50 kHz DDS signal generator. It is designed for electronics troubleshooting, circuit testing, and development in the lab or on the go.

The multimeter offers 60,000-count resolution and supports voltage, current, resistance, capacitance, frequency, temperature, diode, and continuity measurements. The integrated oscilloscope provides real-time waveform analysis at up to 48 MSa/s, while the signal generator supports 13 waveform types with adjustable frequency, amplitude, and duty cycle.

A 3.5-inch IPS touchscreen, smart auto-scan, Bluetooth connectivity for DMM functions, waveform storage, USB export, and a 3,000 mAh rechargeable battery make the TMP-610S a versatile all-in-one tool for electronics professionals and enthusiasts.

Features

  • 3-in-1 Design: DMM + Oscilloscope + Signal Generator
  • 60,000-Count True RMS High-Precision Measurement
  • 10 MHz Oscilloscope with 48 MSa/s Sampling Rate
  • Bluetooth App Sync (Multimeter Function Only)
  • 3.5-inch Smart Touchscreen with Multiple Display Modes
  • 50 kHz DDS Signal Generator with 13 Waveforms
  • Built-in Fuse for Easy Replacement

Specifications

Multimeter
Function Range Accuracy
DC voltage 600mV/6V/60V/600V/1000V ±(0.03%+5d)
AC voltage 600mV/6V/60V /600V/750V ±(0.3%+15d)
DC current 600uA/6000uA/60mA/600mA ±(0.15%+5d)
6A/10A ±(0.2%+5d)
AC current 600uA/6000uA/60mA/600mA ±(0.5%+15d)
6A/10A ±(0.75%+15d)
Resistance 600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±(0.1%+5d)
60MΩ ±(0.2%+10d)
Capacitance 60nF/600nF/6uF/60uF ±(2.5%+30d)
600uF/6mF/60mF ±(3.5%+30d
Frequency 10 Hz~60 MHz ±(0.01%+5d)
Temperature -40℃~1000℃ ±(1.0%+5℃)
Continuity 0Ω~1KΩ ±(0.2%+5d)
Diode 0V~3.0V, 0Ω~1 Ω ±(1%+5d)
AC frequency response 10KHz /
Oscilloscope
Real-time Sampling Rate 48 MSa/s
Analog Bandwidth 10 MHz
Input Impedance 1MΩ
Coupling Mode AC/DC
Test Voltage Range 1:1 Probe - 80Vpp (±40V）
10:1 Probe - 800Vpp (±400V）
Vertical Sensitivity 10mV/div~10V/div
Vertical Displacement  Adjustable with indication
Horizontal Time Base Range 50 ns ~ 20 s
Trigger Mode Auto, Normal, Single
Trigger Type Rising, Falling, 50%
Trigger Level Adjustable with indication
Measurement Parameters Freq, Period, +Duty, ‒Duty, +Width, ‒Width, Max, Min, P‒P, Amp, RMS, Avg
Persistence Off / 500ms / 1s / ∞
Cursor Measurement Yes
Waveform Screenshot Saving Yes
Signal Generator
Output Waveform Supports 13 waveform types
Frequency 0~50kHz
Amplitude 0.0V~3.0V
Duty Cycle 0~100%, adjustable for Square and Sawtooth waves

Included

  • 1x FNIRSI TMP-610S Multimeter + Oscilloscope + Signal Generator
  • 1x P6100 Probe
  • 1x Adapter
  • 2x Alligator Clips
  • 2x Multimeter Probes
  • Probe Accessories
  • 1x Storage Bag
  • 1x USB-C Cable
  • 1x Manual
