Description

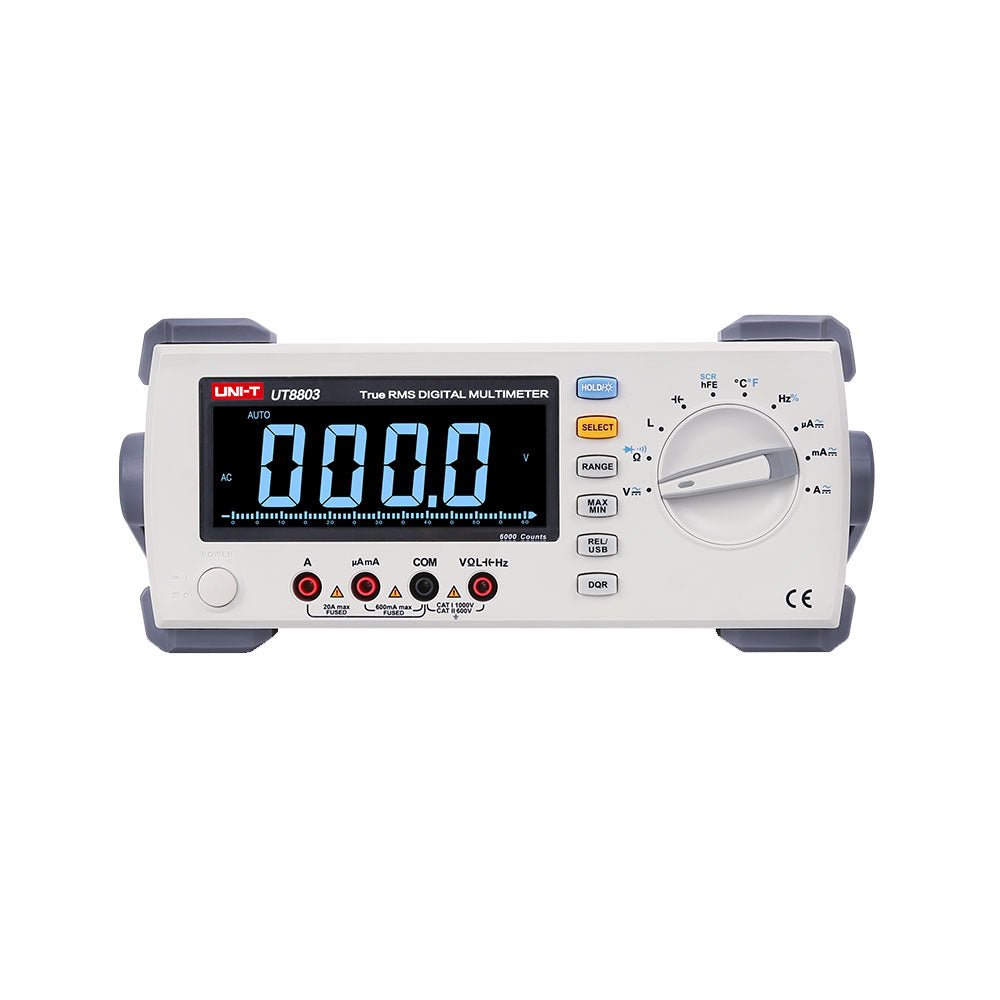

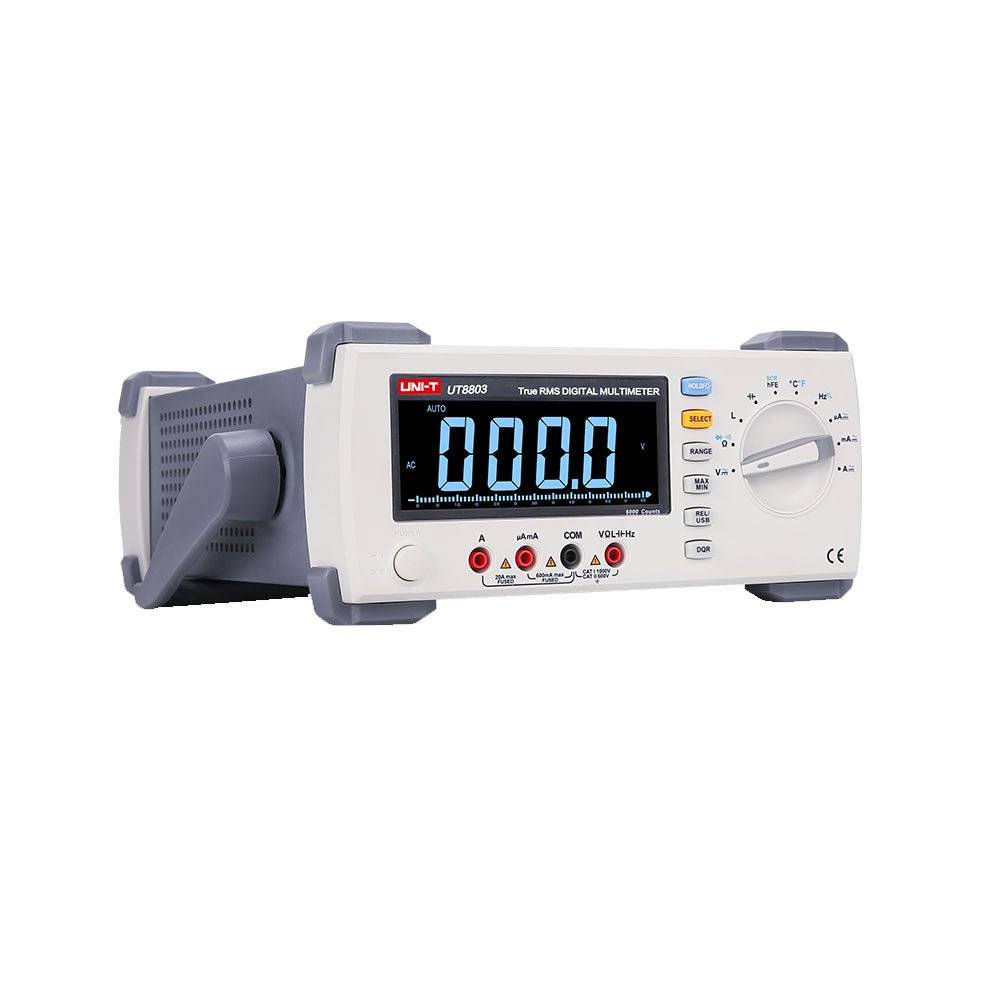

The UT8803E is a 6000 counts 3? digital. automatic range. portable desktop. AC powered digital multimeter. Large screen large character display with backlight. more clear and easy to read. UT8803E can be used to measure AC/DC voltage. AC/DC current. resistance. frequency. capacitance. inductance. triode HFE. diode (LED). thyristor (SCR) and circuit on-off.
Features
- Extreme value operation and reference value operation function. with analog bar
- Multiple measurement items optional
- D/Q parameters of capacitance and inductance can be measured
- Reading resolution 3?. maximum reading 5999
Specifications
| Reading resolution | 3?. maximum reading 5999 |
| Measuring rate | 2~3 reading/s |
| DC voltage range | 600 mV?1000 V |
| DC current range | 600 µA?20 A |
| AC voltage range | 600 mV?750 V (True-RMS) |
| AC current range | 600 µA?20 A (True-RMS) |
| Resistance range | 600 ??60 M? |
| Capacitance range | 6 nF?60 mF |
| Inductance range | 600 µH?100 H |
| Frequency measurement range | 600 Hz?20 MHz |
| Duty cycle measurement range | 5%~95% |
| Mathematical operation | Maximum. minimum. relative value. trend chart |
| Interface | USB device (it can be connected to the upper computer control software) |
| Frequency response | 100 KHz |
