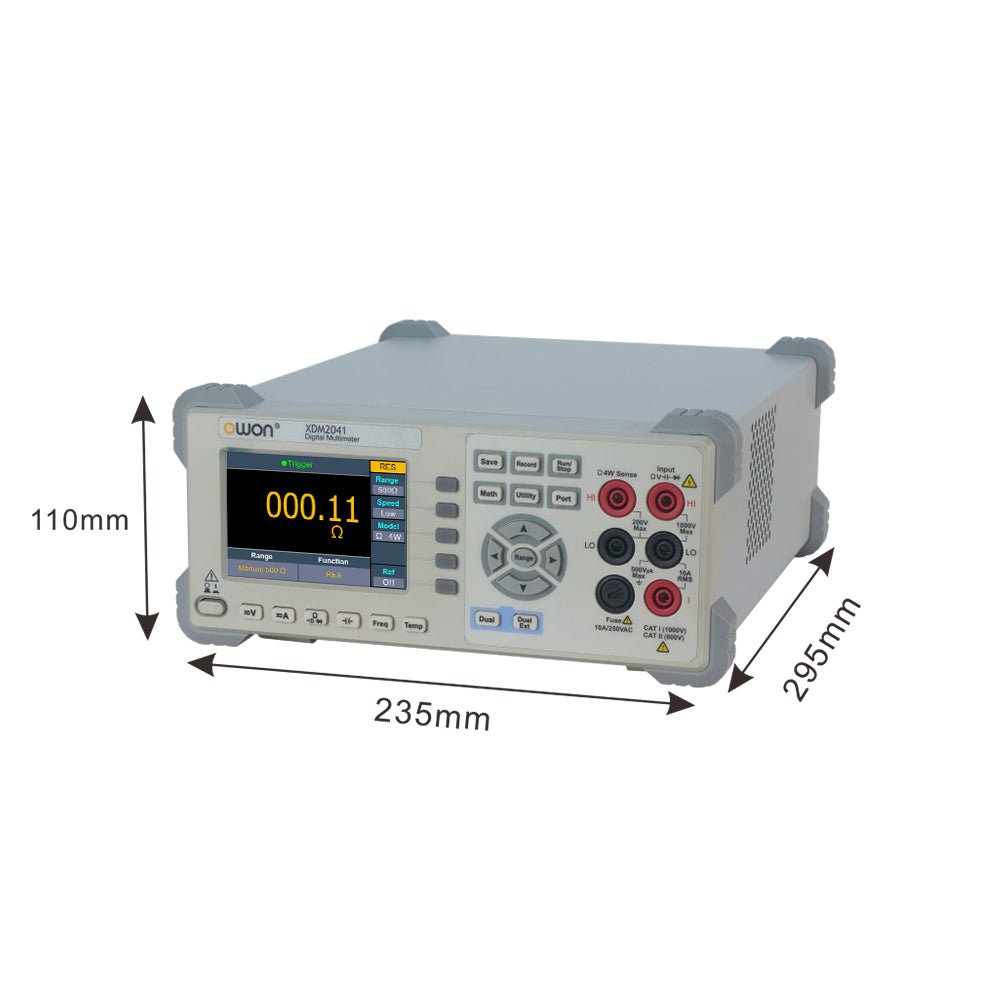

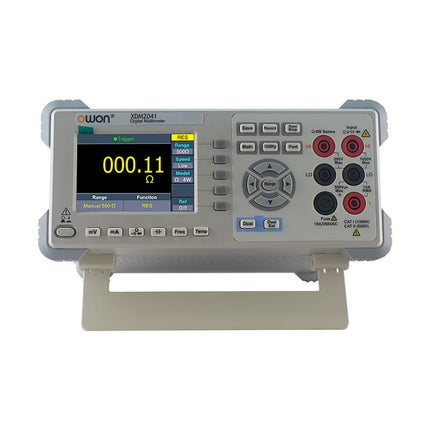

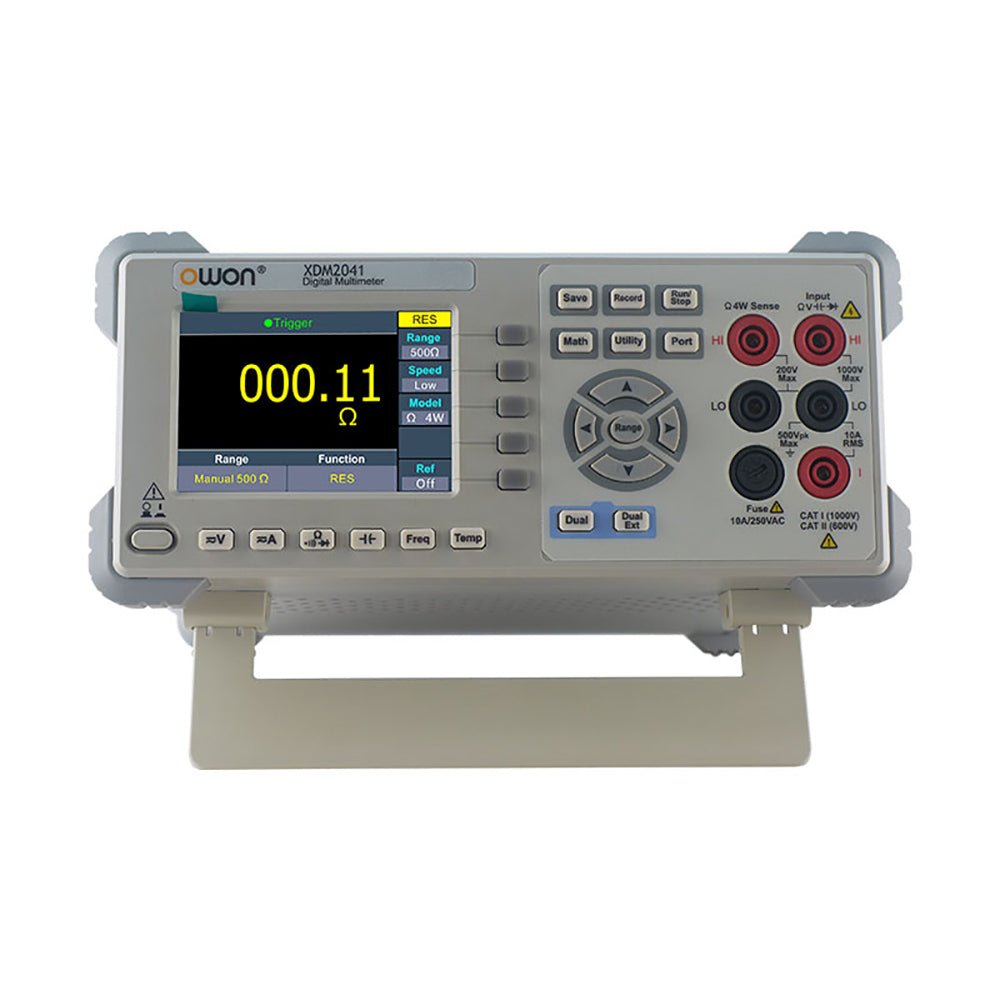

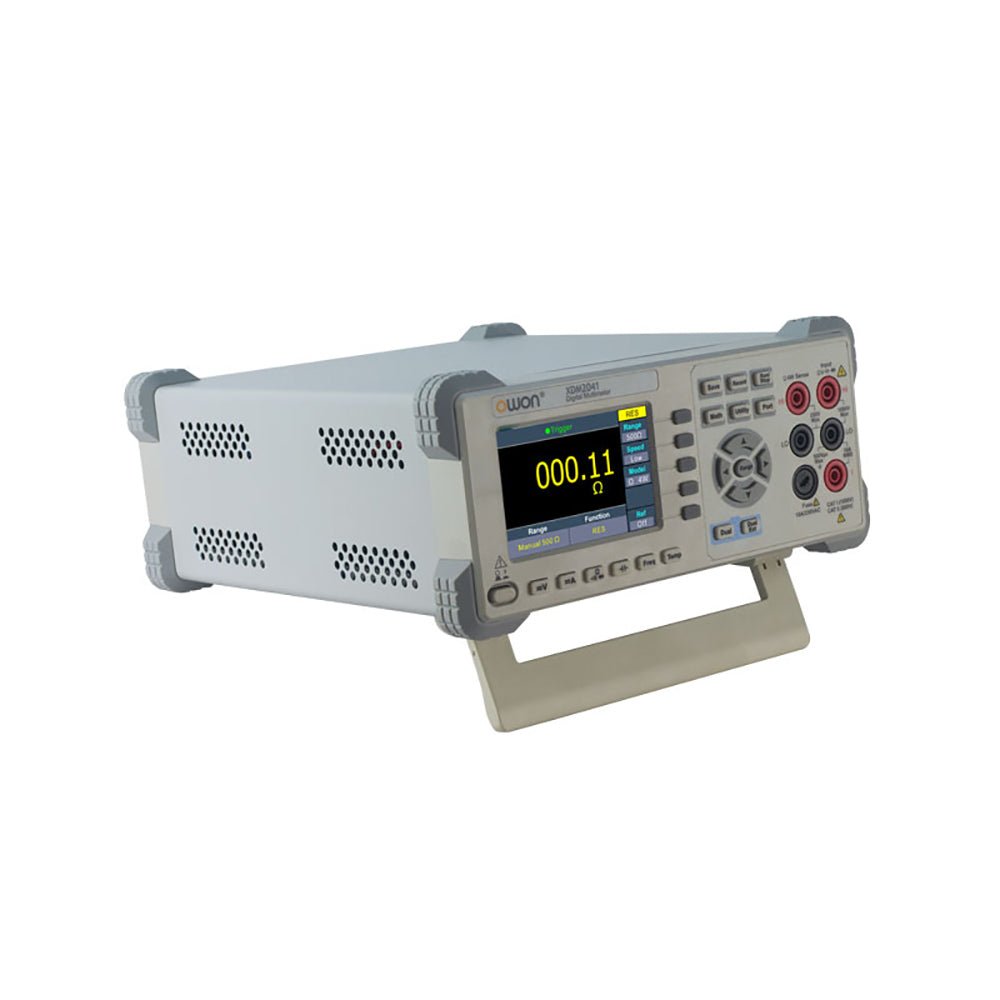

OWON XDM2041 True RMS Multimeter

BrandOWON

Product form

The OWON XDM2041 is a low-cost, high-precision benchtop multimeter. The meter has a True RMS function to measure the AC voltage... Read more

€ 164,95 incl. VAT

Members € 148,46

Ship today? Order within Mar 27, 2025 17:00:00 +0100

Details

SKU: 19312

EAN: XDM20412014068

OWON XDM2041 Multimeter

Nach den ersten Erfahrungen bin ich sehr zufrieden.

Prix très raisonnable pour ses qualités !

Un peut tôt pour donner un avis, j’en ai pris possession que depuis une semaine.
J avais un apriori, il me semble très correct face à l utilisation que j en ai fait jusque là.

	Measurement Range	Resolution	Accuracy ±(% of reading + LSB)
DC Voltage	50.000mV	0.001mV	0.1%+10
	500.00mV	0.01mV	0.025%+5
	5.0000V	0.0001V	0.025%+5
	50.000V	0.001V	0.03%+5
	500.00V	0.01V	0.1%+5
	1000.0V	0.1V	0.1%+5
AC Voltage	500mv-750v	20Hz~45Hz	1%+30
		45Hz~65Hz	0.5%+30
		65Hz~1KHz	0.7%+30
DC Current	500uA	0.01uA	0.15%+20
	5000uA	0.1uA	0.15%+10
	50mA	0.001mA	0.15%+20
	500mA	0.01mA	0.15%+10
	5A	0.0001A	0.5%+10
	10A	0.001A	0.5%+10
AC Current	500uA-500mA	20 Hz-1 kHz	0.5%+20
AC Current	5A-10A	20 Hz-1 kHz	1.5%+20
Resistance	500Ω	0.01Ω	0.1%+10
	5KΩ	0.0001KΩ	0.1%+5
	50KΩ	0.001KΩ	0.1%+5
	500KΩ	0.01KΩ	0.1%+5
	5MΩ	0.0001MΩ	0.25%+5
	50MΩ	0.001MΩ	0.1%+10
Four-wire resistance	500Ω	0.01Ω	0.1%+10
	5KΩ	0.0001KΩ	0.1%+5
	50KΩ	0.001KΩ	0.1%+5
	Measurement Range	Resolution	Accuracy ±(% of reading + % of range)
Frequency	10.000Hz-60MHz	/	±(0.2%+8)
Capacitance	50nF-500uF	/	2.5%+5
Capacitance	5mF-50mF	/	5%+8
Diode	3.0000 V	0.0001V	/
Continuity	1000 Ω	0.1Ω	/
Temperature	K type，PT100
Display	55,000
Data-logging Function
Logging Duration	15ms-9999s
Logging Length	1,000 points

	Measurement Range	Resolution	Accuracy ±(% of reading + LSB)
DC Voltage	50.000mV	0.001mV	0.1%+10
	500.00mV	0.01mV	0.025%+5
	5.0000V	0.0001V	0.025%+5
	50.000V	0.001V	0.03%+5
	500.00V	0.01V	0.1%+5
	1000.0V	0.1V	0.1%+5
AC Voltage	500mv-750v	20Hz~45Hz	1%+30
		45Hz~65Hz	0.5%+30
		65Hz~1KHz	0.7%+30
DC Current	500uA	0.01uA	0.15%+20
	5000uA	0.1uA	0.15%+10
	50mA	0.001mA	0.15%+20
	500mA	0.01mA	0.15%+10
	5A	0.0001A	0.5%+10
	10A	0.001A	0.5%+10
AC Current	500uA-500mA	20 Hz-1 kHz	0.5%+20
AC Current	5A-10A	20 Hz-1 kHz	1.5%+20
Resistance	500Ω	0.01Ω	0.1%+10
	5KΩ	0.0001KΩ	0.1%+5
	50KΩ	0.001KΩ	0.1%+5
	500KΩ	0.01KΩ	0.1%+5
	5MΩ	0.0001MΩ	0.25%+5
	50MΩ	0.001MΩ	0.1%+10
Four-wire resistance	500Ω	0.01Ω	0.1%+10
	5KΩ	0.0001KΩ	0.1%+5
	50KΩ	0.001KΩ	0.1%+5
	Measurement Range	Resolution	Accuracy ±(% of reading + % of range)
Frequency	10.000Hz-60MHz	/	±(0.2%+8)
Capacitance	50nF-500uF	/	2.5%+5
Capacitance	5mF-50mF	/	5%+8
Diode	3.0000 V	0.0001V	/
Continuity	1000 Ω	0.1Ω	/
Temperature	K type，PT100
Display	55,000
Data-logging Function
Logging Duration	15ms-9999s
Logging Length	1,000 points
