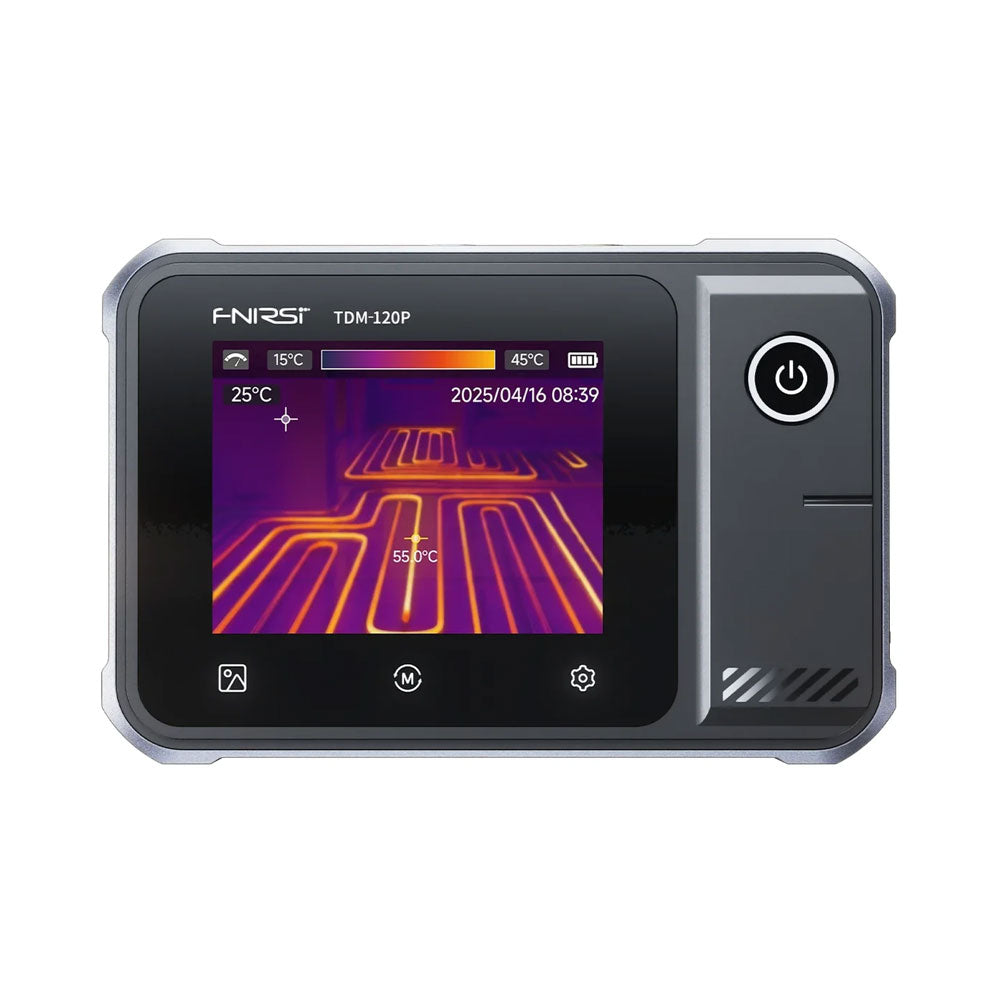

FNIRSI TDM-120P Thermal Imaging Multimeter

  • BrandFNIRSI

Description

The FNIRSI TDM-120P is a thermal imaging multimeter that combines thermal imaging technology with traditional multimeter functions, delivering more comprehensive and intuitive test results for electrical testing and related applications. It is widely used in fields such as electrical engineering, industrial manufacturing, construction, and security monitoring.

The TDM-120P provides reliable technical support for equipment testing, fault diagnosis, and maintenance management, helping to improve production efficiency, product quality, and overall safety.

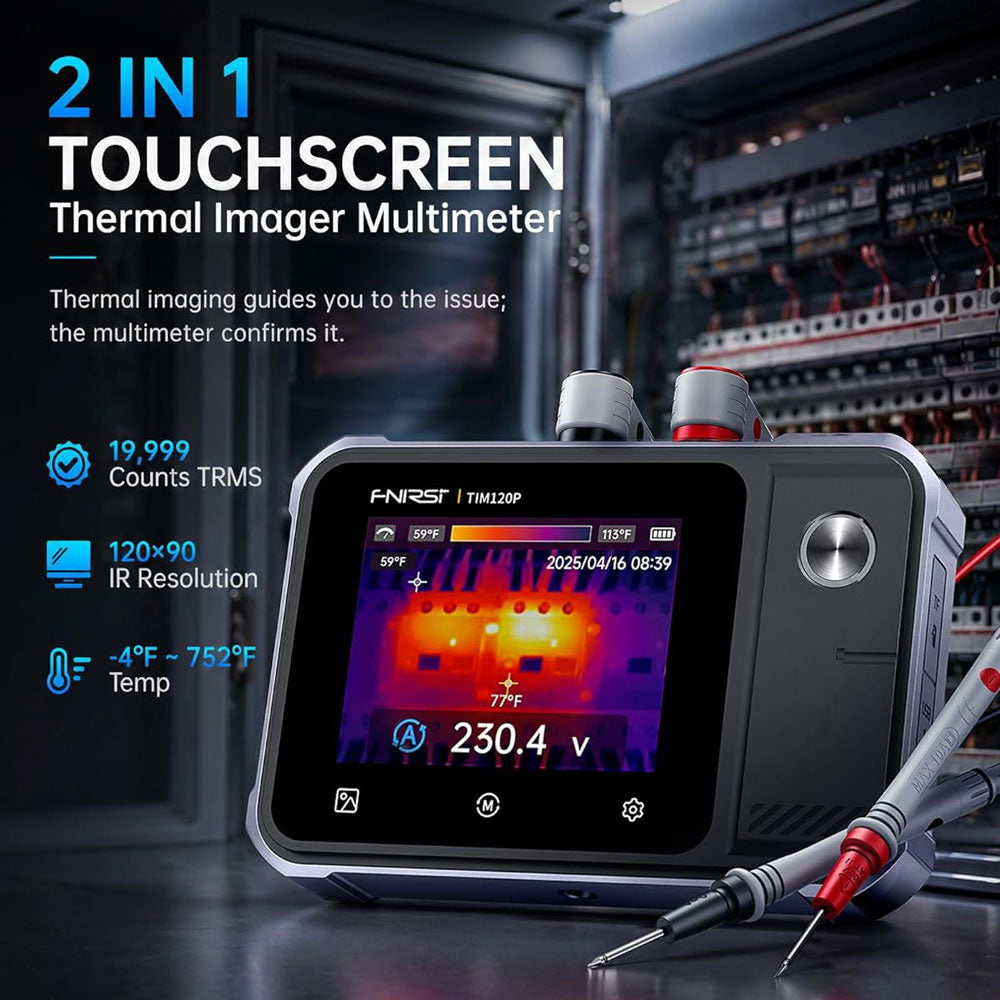

Features

  • 2-in-1: Thermal Imager + True RMS Multimeter (19,999 Counts)
  • 120 x 90 HD Imaging | <60 mK High Thermal Sensitivity
  • -20°C to 400°C (-4°F to 752°F) Temperature Range | 0.01–1.00 Adjustable Emissivity
  • 2.8" LCD Touch Screen | 7 Color Palettes | One-Click Save & USB Export
  • Full Multimeter Functions: AC/DC Voltage, Resistance, and Capacitance

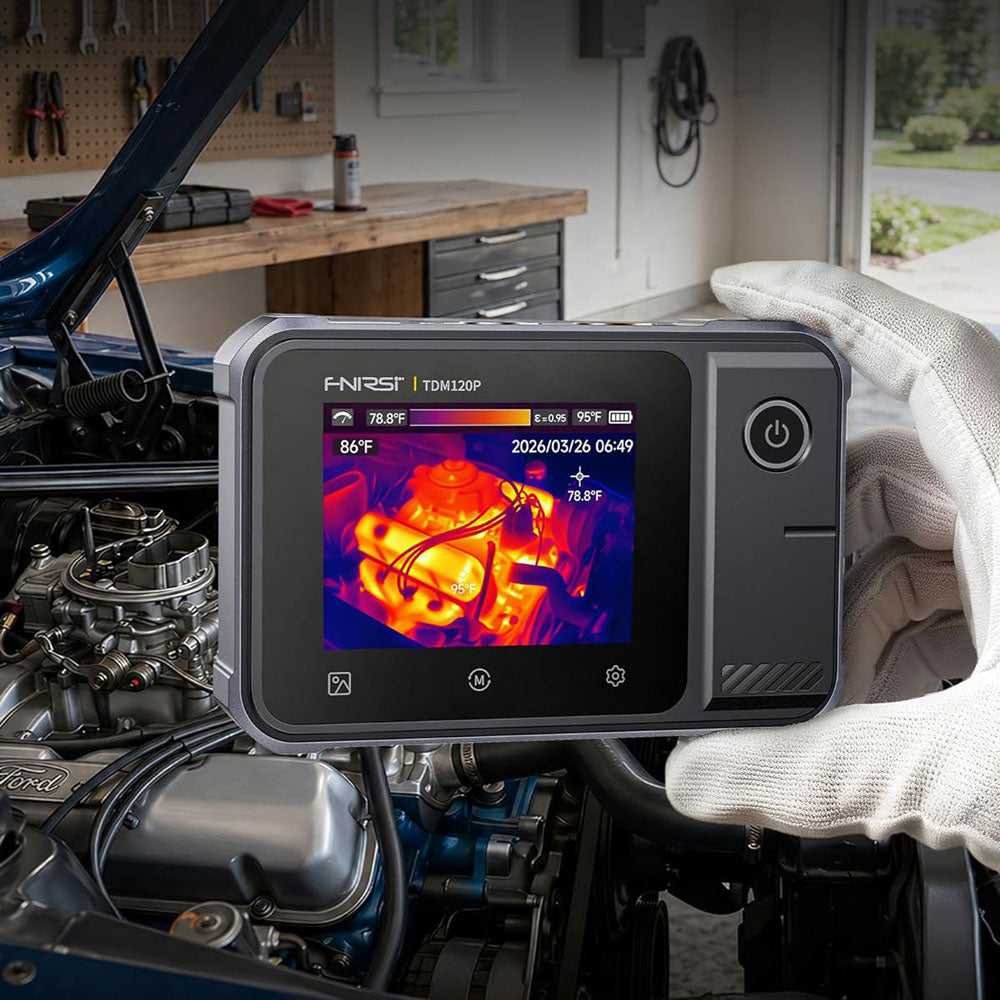

  • Wide Application: HVAC, Leak Detection, Electrical & Automotive Repair

Specifications

7 Color Palettes Arctic / Hot Iron / Iron Red / Rainbow / Lava / Black Hot / White Hot
Detector Type Vanadium oxide
Field of View 50°
Screen 2.8-inch LCD touchscreen
Frame Rate ≤25 Hz
Infrared Resolution 120 x 90
Temperature Measurement Display Center point, automatic high/low temperature tracking
Temperature Range -20°C ~ 400°C (-4°F ~ 752°F)
Temperature Unit °C / °F
Accuracy ±2°C or ±2% (maximum value measured)
High/Low Temperature Alarm Yes
Emissivity 0.01-1 adjustable
Languages English, Chinese

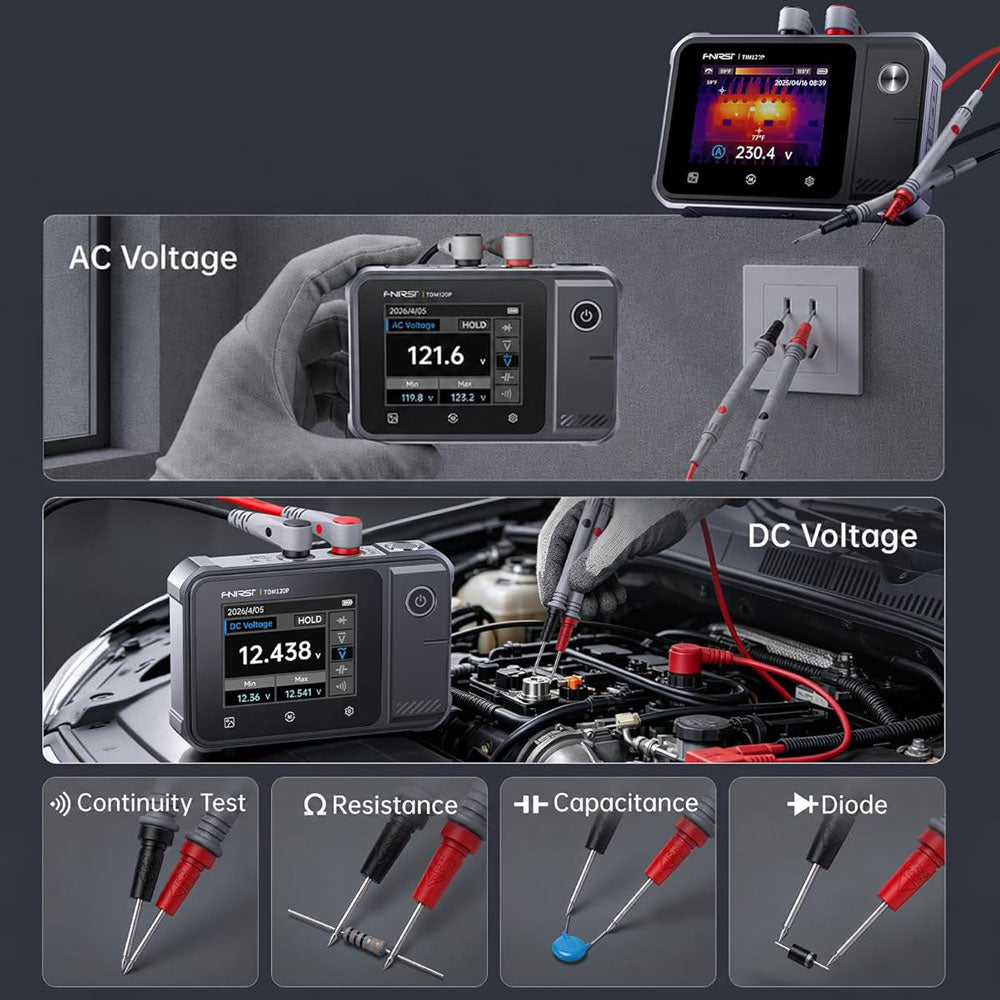

Multimeter
DC Voltage Range: 1.9999V / 19.999V / 199.99V / 1000V
Accuracy: ±(0.5% +3)
AC Voltage Range: 1.9999V / 19.999V / 199.99V / 750.0V
Accuracy: ±(1% +3)
Resistance Range: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ
Accuracy: ±(0.5% +3)
Range: 1.9999KΩ / 199.99Ω
Accuracy: ±(2.0% +3)
Capacitance Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Accuracy: ±(2.0% +5)
Range: 9.999mF / 99.99mF
Accuracy: ±(5.0% +20)
Diode Yes
Continuity Yes

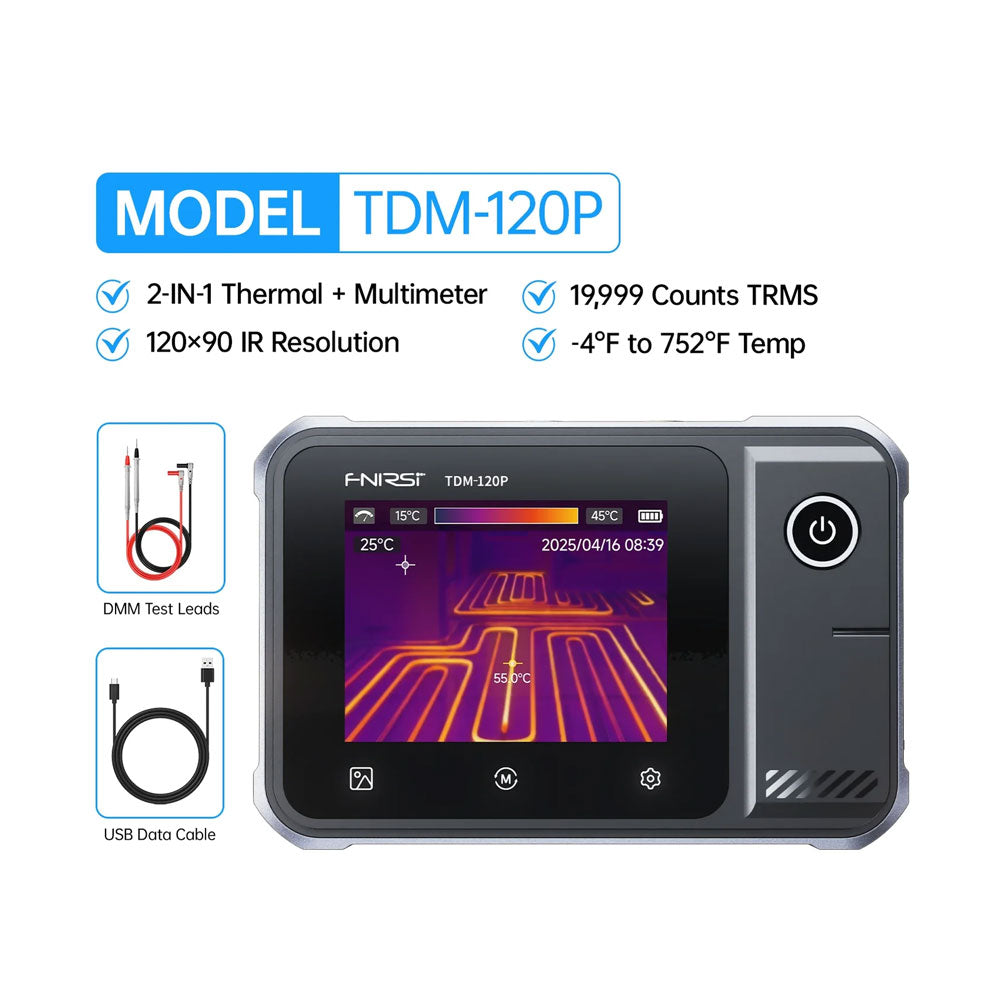

Included

  • 1x FNIRSI TDM-120P Thermal Imaging Multimeter
  • 2x Multimeter Test Leads
  • 1x Storage bag
  • 1x USB cable
  • 1x Manual
