Description

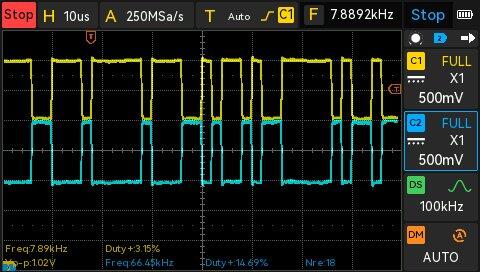

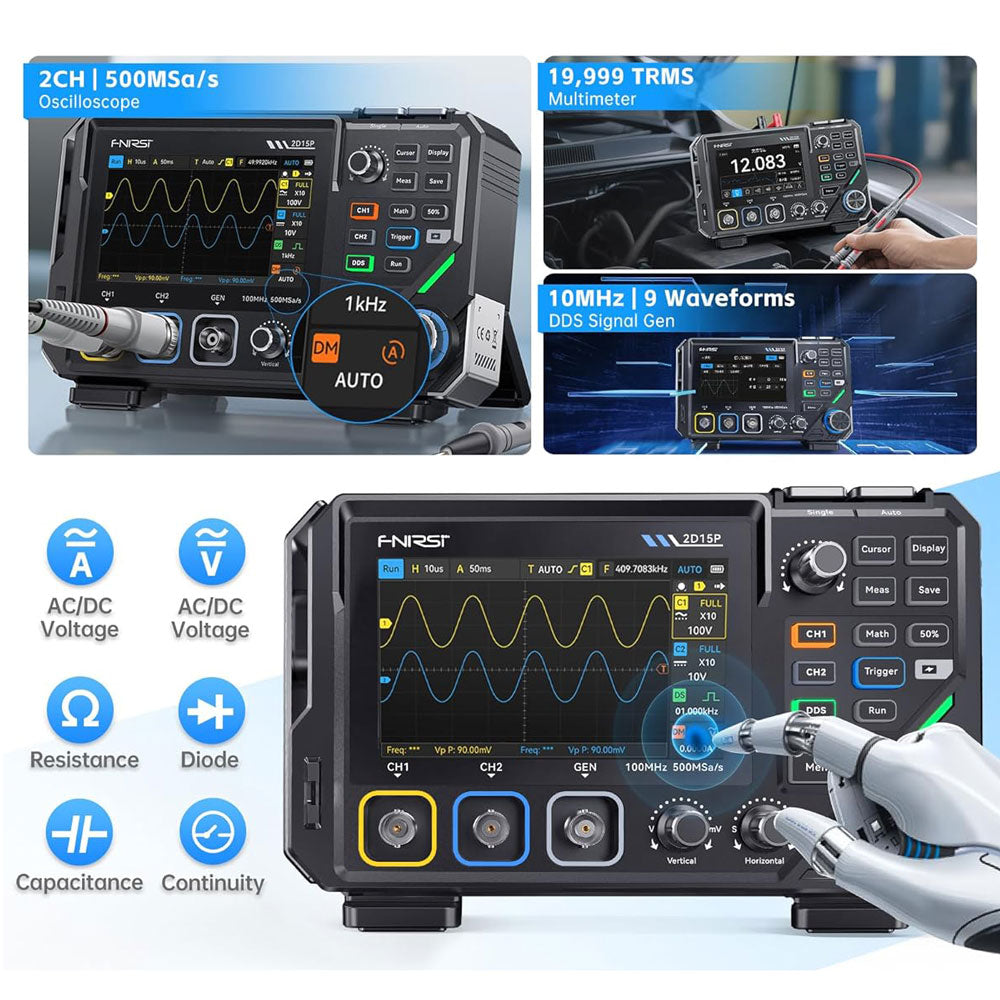

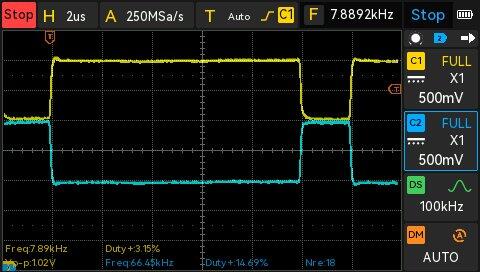

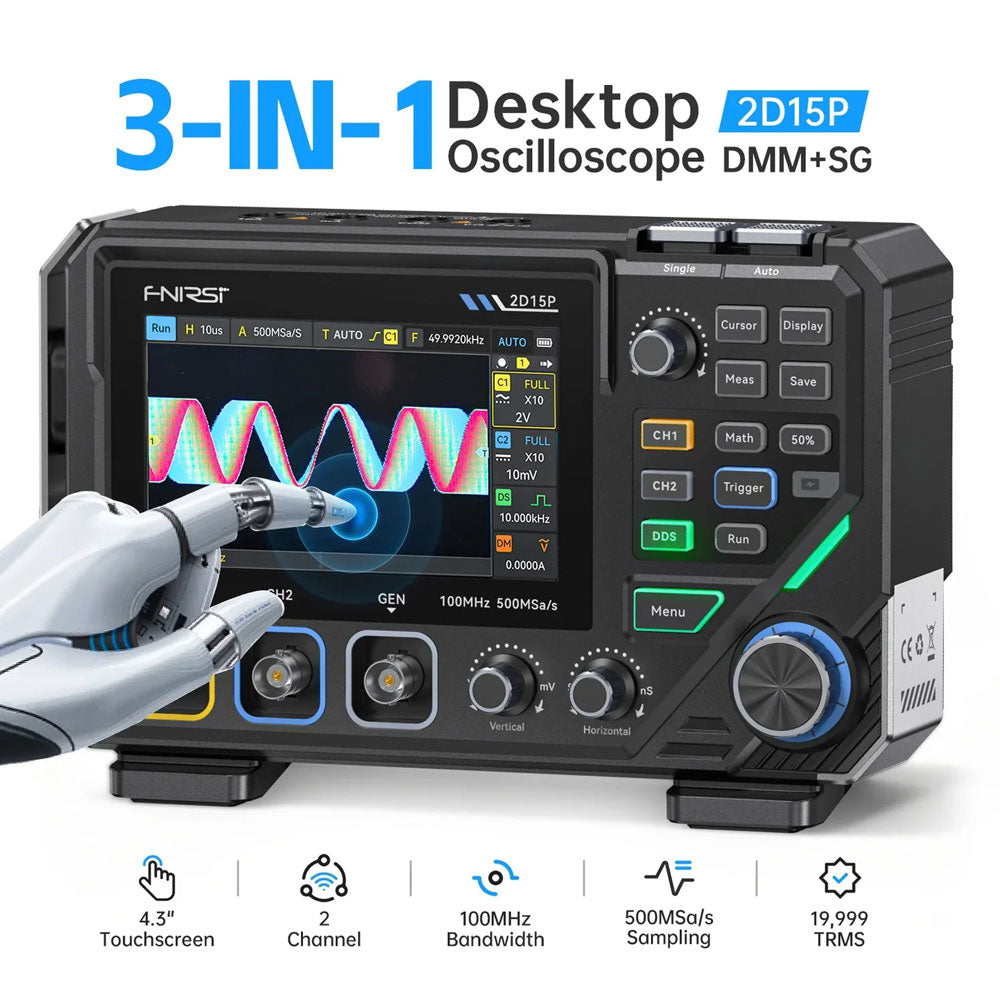

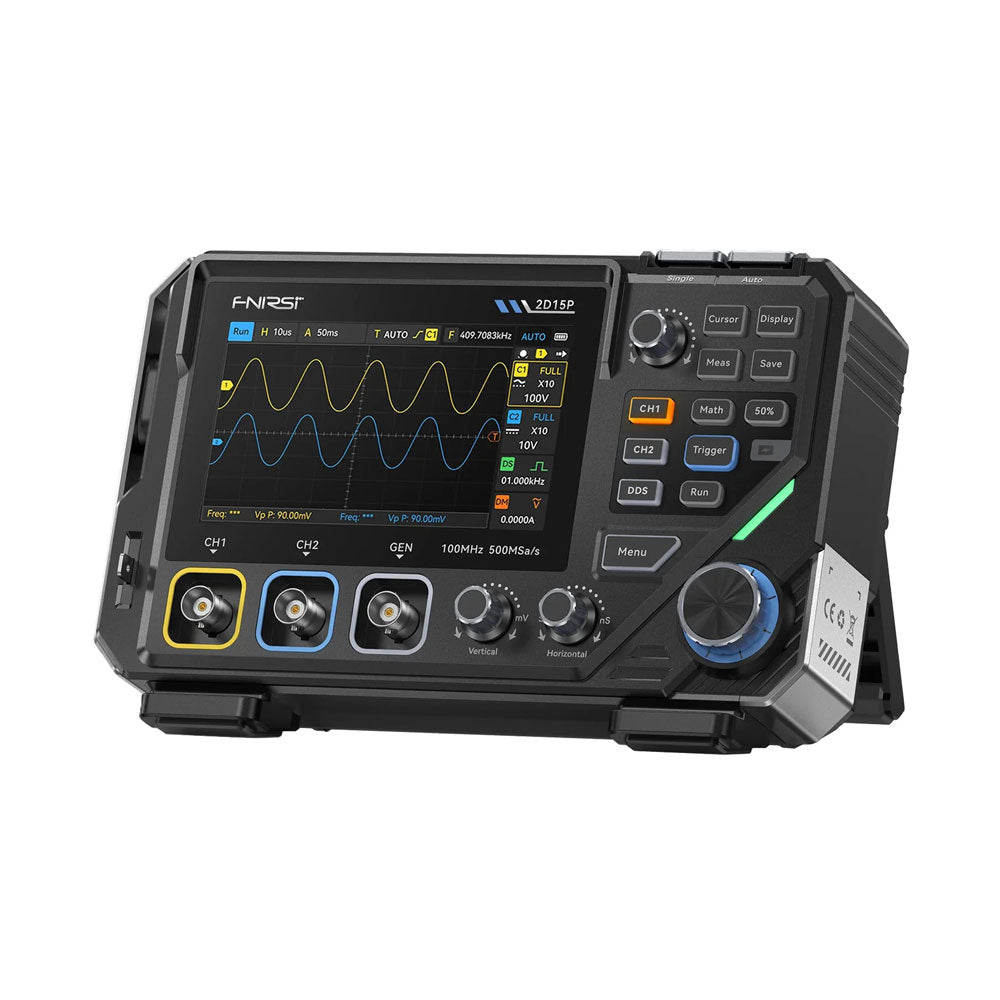

The FNIRSI 2D15P is a compact 3-in-1 test tool combining a 2-channel digital oscilloscope, True RMS multimeter, and waveform generator in one device. With a 4.3" capacitive touchscreen, 100 MHz bandwidth, 500 MSa/s sampling rate, and up to 1,200 fps capture speed, it’s ideal for fast troubleshooting, signal analysis, and electronics testing.
Features
- Dual-Channel Input (100 MHz single-channel, 50 MHz dual-channel operation)
- Selectable Memory Depths
- 20 MHz Bandwidth Limit
- Grayscale & Color Temperature Visualization
- Math Operations (Add, Subtract, Multiply, Divide, etc.)
- XY Mode & Infinite Persistence
- Cursor Function & 13 Auto Measurements
- Auto / Normal / Single Trigger Modes

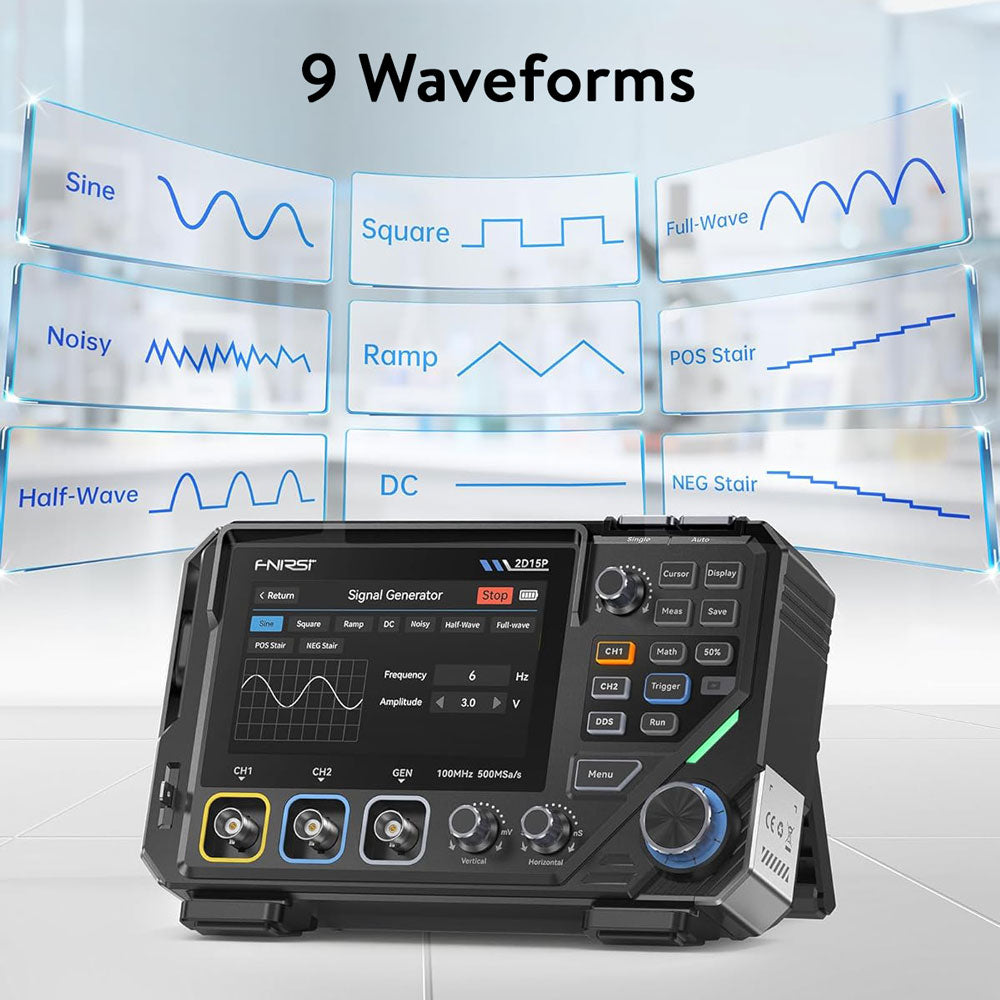

- 10 MHz DDS Signal Generator
- True RMS Multimeter (19,999 Counts)
Specifications
| General |
| Display |
4.3" IPS Capacitive Touchscreen |
| Operation |
Touch + Knob + Physical Buttons |
| Charging |
USB-C (12 V/1 A fast charging) |
| Battery |
5000 mAh Lithium battery |
| Dimensions |
19.6 x 12.9 x 5.7 cm |
| Weight |
1.1 kg |
| Oscilloscope |
| Channels |
2 |
| Analog Bandwidth |
100 MHz |
| Sample Rate |
500 MSa/s |
| Memory Depth |
10K, 100K, 1M |
| Input Impedance |
1 MΩ |
| Timebase Range |
5ns - 50s |
| Vertical Sensitivity |
10 mV - 10 V/div |
| Max Input Voltage |
800 V (x10 Probe) |
| Trigger Mode |
Auto, Normal, Single |
| Trigger Type |
Rising, Falling, Both Edges |
| Coupling |
AC/DC |
| Persistence |
min / 2s / 5s / 10s / 20s / 50s / ∞ |
| Math Operations |
Yes |
| Waveform Capture |
Yes |
| Waveform Export |
Yes |
| Cursor Measurement |
Yes |

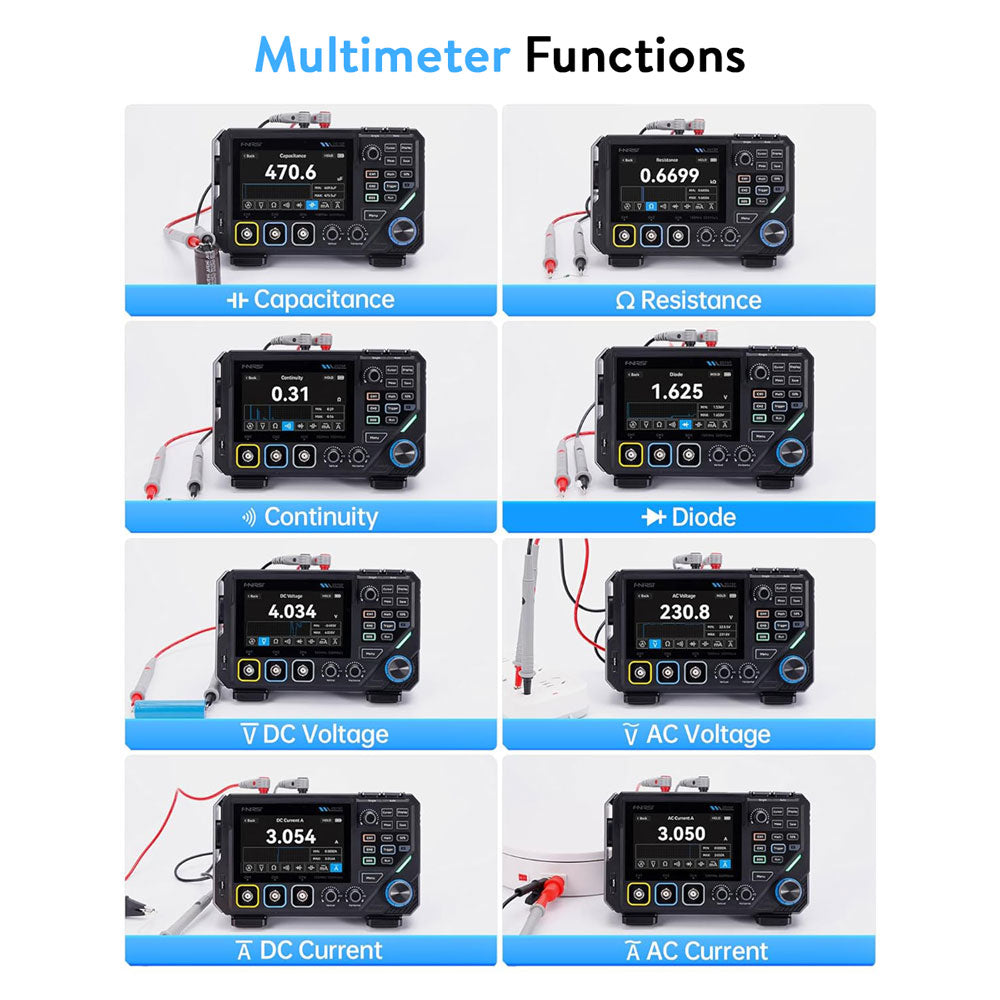

| Multimeter |
| DC Voltage |
1.9999V / 19.999V / 199.99V / 1000V |
| AC Voltage |
1.9999V / 19.999V / 199.99V / 750.0V |
| DC Current |
19.999mA / 199.99mA / 1.9999A / 9.999A |
| AC Current |
19.999mA / 199.99mA / 1.9999A / 9.999A |
| Resistance |
19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ / 1.9999KΩ / 199.99Ω |
| Capacitance |
999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF / 9.999mF / 99.99mF |
| Diode |
Yes |
| Continuity |
Yes |
| Signal Generator |
| Channels |
1 |
| Frequency |
0–10 MHz |
| Amplitude |
0.1–3.0 Vpp |
| Duty Cycle |
0–100% |

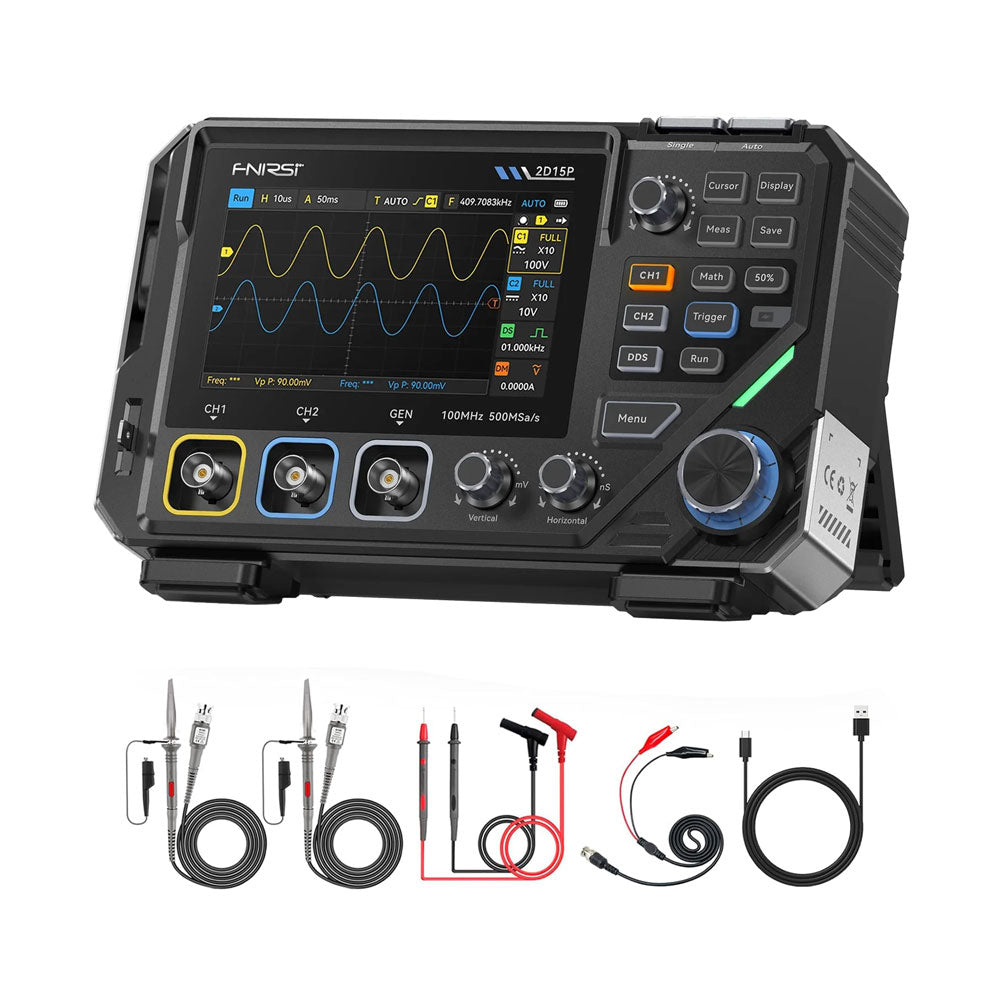

Included
- 1x FNIRSI 2D15P Oscilloscope
- 2x P6100 Oscilloscope Probes
- 1x Multimeter Probe
- 1x Alligator Clip Probe
- 1x USB Data Cable
- 1x Manual
