The DSO510 oscilloscope was designed for complex signal testing, research, and development. Ideal for professionals and educational use, it ensures precise measurements with ease. With a 48 MS/s real-time sampling rate and 10 MHz bandwidth, it supports both analog and digital signals. Its complete trigger modes (Single, Normal, Auto) and ±400 V voltage range deliver reliable accuracy. The one-click AUTO mode simplifies waveform display. A built-in 50 KHz signal generator adds versatility, while the 2.8-inch HD LCD screen and 1000 mAh battery provide clear visuals and up to 4 hours of use. Features Oscilloscope: 10 MHz bandwidth, 48 MS/s sampling rate, ±400 V voltage range. Signal Generator: 50 KHz Display: 2.8" HD TFT (320 x 240) Interface: USB-C Design: Fully assembled, lightweight, ideal for maintenance tasks. Trigger Functions: Single, normal, automatic modes. Signal Support: Handles periodic analog and non-periodic digital signals. One-Click AUTO Mode: Instantly displays waveforms without complex setup. Battery: Built-in 1000 mAh lithium battery with up to 4 hours of usage per charge. Language Support: English, German, Spanish, Portuguese, Russian, Chinese, Korean, Japanese. Specifications Channel 1 Bandwidth 10 MHz Sampling Rate 48 MS/s Vertical Sensitivity 10 mV/Div-20 V/Div Time Base Range 50 ns/Div-20 s/Div Measurement Values 22 kinds Trigger Mode Auto/Normal/Single Voltage Range X1: ±40 V (Vpp: 80 V)X10: ±400 V (Vpp: 800 V) Trigger Edge Rising/Falling Coupling AC/DC Frequency 0-50 KHz Duty Cycle 0-100% (rectangular and sawtooth waves) Amplitude 0.1-3.0 V Waveforms Sine, rectangular, sawtooth, half, full, step, anti step, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz. Display 2.8-inch (320 x 240 pixels) USB Charging 5 V/1 A Lithium Battery Capacity 1000 mAh Dimensions 99 x 68.3 x 19.5 mm Weight 104 g Included 1x FNIRSI DSO510 Oscilloscope 1x P6100 oscilloscope probe 1x Adapter 1x Alligator clip probe 1x USB charging cable 1x Lanyard 1x Manual Downloads Manual Firmware V1.0.4

Read more less

The nRSP-ST is a networked general coverage radio receiver for frequencies from 1 kHz to 2 GHz with up to 10 MHz of spectrum visibility. The nRSP-ST is your own personal remotely accessible SDR which can also be shared with a small number of trusted friends or colleagues. The nRSP-ST addresses the needs of radio enthusiasts who want a 'plug-and-play' solution for remote reception. As well as achieving this, we have addressed typical internet bandwidth limitations with the creation of a novel IQ Lite mode, which efficiently delivers channels of IQ data. We are also introducing the ability to control and store IQ recordings at the remote location. The nRSP-ST is ideal for anyone wanting a wideband remote receiver without needing computer skills and hours of set-up time and ongoing maintenance at the remote location. Features "Plug and play" integrated, networked general coverage receiver: Combines a receiver, a host computer and a whole lot more – all in one box! Apply power and connect to the internet (Ethernet or Wi-Fi) and the nRSP-ST is automatically accessible from anywhere Multi-platform SDRconnectTM software supports local operation or remote access on Windows, MacOS or Linux platforms The nRSP-ST & SDRconnect are configurable for available network bandwidth: In Full IQ mode, the nRSP-ST provides IQ data transfer of the visible spectrum bandwidth (e.g. for high-speed LAN or superfast internet connectivity) In IQ Lite mode, the nRSP-ST provides IQ data of channels up to 192 kHz wide (e.g. for digital decoding by the client) In Compact mode the nRSP-ST provides compressed audio (ideal for slower internet connections) Supports multiple client connections with a simultaneous mixture of connection modes – an admin tool allows you to assign usernames and timeouts to trusted friends or colleagues. All modes support visualization of up to 10 MHz spectrum bandwidth Two remote connection options: Use a remote SDRconnect client or Use the built-in web-server for remote access from any web browsing capable device, including Android/iOS tablets and phones The nRSP-ST offers the ability to record IQ and audio files to a NAS (network attached storage) device if available on the LAN. The 14-bit ADC full featured wideband SDR receiver covers all frequencies from 1 kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2 GHz, with no gaps Remotely monitor up to 10 MHz of spectrum at a time from a choice of 3 antennas Flash upgradable for future feature enhancements Included 1x nRSP-ST Receiver 1x WLAN antenna 1x Power supply 1x Manual Downloads Release notes Software

Read more less

The QA451 is designed for high-speed testing of amplifiers. If you are testing at the module level (with modules designed for single supply operation), the QA451 allows the on/off control and current measurement of the supply rail. The QA451 is a companion product to the QA403 Audio Analyzer. When combined, the products work together to ensure fast, repeatable automated measurements of audio power amplifiers up to several hundred watts. Features Programmable 4/8 Ω load Fully isolated from PC USB powered Up to 200 W for 220 mS DC Current Sensing Integrated 6th order LPF REST Interface The QA451 can be controlled manually from a PC application or controlled using a web-based REST interface. Measuring Current The QA451 allows low-cost external fixed-voltage supplies to be used to power your amplifier during test – dramatically reducing your investment per test bay. The QA451 integrates a high-side switch, enabling on/off control of the supply to the amplifier. When turning on the supply, a momentary soft-start circuit ensures the amplifier-under-test isn’t exposed to high currents that might overstress components. And during operation, the QA451 provides an isolated current measurement, allowing up to 15 A (peak) of DC current to be measured with 10-20 mA of resolution. This permits automated efficiency measurements to be easily made – a primary predictor of whether the amplifier was assembled correctly. 4 and 8 Ω Loads The QA451 provides both 4 and 8 ohm resistive loads. The loads are thermally protected using fast, high-accuracy digital thermal sensors ensuring that fault conditions won’t damage the QA451. Downloads Datasheet Wiki Software

Read more less

The PeakTech 3445 is a new developed digital multimeter for heavy duty use with a high variety of useful measurement functions. As unique function, this device has illuminated function buttons and rotary switch, so you can use this IP67 waterproof device even under worst conditions and in total darkness. In addition to the comprehensive measurement functions for current, voltage, capacity, resistance and many more, this device has a Temperature measutment function, MAX/MIN, Peak and Data-Hold, among many other things. Through these many technical qualities, this device is suitable for the outdoor use of every electrician, technician and engineer in the service, construction or industrial sector. Features Automatic illuminated functions keys and rotary switch Integrated powerful LED Flashlight Bleutooth 4.0 interface for data transfer to Android or iOS smartphones TrueRMS measurement ACV, ACV+DCV, DCV measurement and Low Impedance (Lo Z) 3 5/6-digits measurement value display (max. 5999) LCD-Display with Relative-value measurement and 42-segment bargraph Continuity with buzzer and diode-test Data-Hold, Min, Max, Peak function and Duty Cycle (Hz / %) Heavy Duty Case, IP67 dust- and waterproof Safety: EN 61010-1; CAT III 1000 V / CAT IV 600 V Accessories: Carrying case, Test Leads, K-type Specifications DCV 600 mV / 6 / 60 / 600 / 1000 V +/-0,8% + 5 dgt. ACV + DCV @ 10 MΩ 6 / 60 / 600 / 1000 V +/-1,5% + 20 dgt. ACV + DCV @ 3 kΩ (LO Z) 6 / 60 / 600 / 1000 V +/-3% + 30 dgt. ACV + DCV Frequency range 50 Hz … 400 Hz ACV 6 / 60 / 600 / 1000 V +/-1% + 5 dgt. ACV Frequency range 50 Hz … 1000 Hz DCA 600 / 6000 µA / 60 / 600 mA / 10 A +/-1% + 3 dgt. ACA 600 / 6000 µA / 60 / 600 mA / 10 A +/-1% + 3 dgt. ACA Frequency range 50 Hz … 400 Hz Ohm 600 Ω / 6 / 60 / 600 kΩ / 6 / 60 MΩ +/- 1,5% + 5 dgt. Capacitance 60 / 600 nF / 6 / 60 / 600 / 6000 µF +/-3% + 5 dgt. Frequency 10 Hz … 10 kHz +/- 1,0% + 5 dgt. Temperature 20.0 °C … +760 °C +/-1,0% + 5 °C Interface Bluetooth 4.0 Low Energy Operating Voltage 4 x 1,5 V AAA Batteries Dimensions (WxHxD) 75 x 170 x 50 mm Weight 400 g

Read more less

The DSO154Pro with advanced ARM+FPGA architecture is a portable oscilloscope with a bandwidth of 18 MHz and a sampling rate of 40 MSa/s. It has an integrated signal generator that can output adjustable waveforms with an amplitude of 3 V and a frequency range of 0-500 KHz. Features 18 MHz bandwidth 40 MSa/s sampling rate 500 KHz signal generator 2.4" display 14 measurement parameters Auto adjustment Probe support: X1, X10, X100 Auto shutdown Specifications Bandwidth 18 MHz Sampling rate 40 MSa/s Display 2.4" color TFT (320 x 240) Measurements 14 types Vertical precision ±2% Rise time <3ns Storage depth 16 Kb Impedance 1 MΩ Time base 50ns-10s Vertical sensitivity 20 mV/div-10 V/div Max voltage ±40 V (x1)±400 V (x10) Trigger mode Auto/Normal/Single Trigger type Rise/Fall Trigger level Manual/Auto Display mode YT/Roll Persistence None/1s/∞ Waveforms Sinus/Square/Triangle/Noise Frequency 0-500 KHz Power supply USB-C (5 V) Battery 1000 mAh Lithium battery Dimensions 87 x 58 x 18 mm Weight 80 g Included 1x DSO154Pro Oscilloscope 1x P6100 probe 1x USB cable 1x Ring-shaped bracket 1x Manual

Read more less

The OWON HDS120 is a precise 4½-digit True RMS multimeter (20,000 counts), ideal for professionals, makers, and students. It offers intelligent probe detection, automatic waveform measurements (Vmax, Vmin, Vp-p, Vavg, Vrms, and frequency) and a fully featured handheld oscilloscope (1 MHz). Features Multifunctional Measuring Instrument: 4½-digit Multimeter + Oscilloscope Automatic Waveform Measurements: Including Vmax, Vmin, Vp-p, Vavg, Vrms, and frequency. User-Friendly Design: Clearly labeled keys for easy operation and increased device lifespan. Intelligent Probe Detection: Automatically switches measurement functions based on the probe insertion, effectively preventing instrument damage caused by incorrect operation. Efficient Energy Management: Powered by 18650 lithium batteries, ensuring longer operating time and enhanced reliability for extended measurement tasks. Safe High-Voltage Measurement: Complies with CAT Ⅲ 1000 V standards, allowing safe and direct measurement of high-voltage waveforms up to 1000 V, broadening application possibilities. High-Definition Display: Features a 2.8-inch IPS screen with a wide viewing angle, ensuring clear readability from any perspective. Adaptive Environmental Display: High-brightness and high-contrast dual-theme display modes provide optimal visibility under bright and low-light conditions, improving overall usability. Multimeter Specifications Measurement Range Accuracy DC Voltage (V) 20.000mV / 200.00mV / 2.0000V / 20.000V / 200.00V / 1000.0V ±(0.1%+5dig） AC Voltage (V) 20.000mV / 200.00mV / 6.0000V / 60.000V / 600.00V / 750.00V ±(0.6%+10dig) DC Current (A) 200.00uA / 2000.0uA / 20.000mA / 200.00mA / 2.0000A / 10.000A ±(0.5%+10dig) AC Current (A) 200.00uA / 2000.0uA / 20.000mA / 200.00mA / 2.0000A / 10.000A ±(0.8%+10dig) Resistance (Ω) 200.00Ω / 2.0000kΩ / 20.000kΩ / 200.00KΩ / 2.0000MΩ / 20.000MΩ / 100.00MΩ ±(0.3%+5dig) Capacitance (F) 2.000nF / 20.00nF / 200.0nF / 2.000μF / 20.00μF / 200.0μF / 2.000mF / 20.00mF ±(3.0%+10dig) Frequency (Hz) 200.00Hz / 2.0000kHz / 20.000kHz / 200.00kHz / 2.0000MHz / 20.000MHz ±(0.1%+5dig) Duty Cycle 0.1%~99.9% (typical value: Vrms=1V, f=100Hz) ±(1.2%+3dig) 0.1%~99.9% (≥1kHz) ±(2.5%+10dig) Diode 3.0000V ±(1.0%+10dig) On-Off 1000.0Ω Display 20000 Oscilloscope Specifications Analog bandwidth 1 MHz (only ACV scale) Channel 1 Time base range 2.5us~10s/grid Voltage vertical sensitivity range 30 mV~500 V/grid Vertical amplitude accuracy ±(5% + 0.2div） Maximum voltage limit 1000 V DC+AC Peak value Trigger mode Auto/Normal/Single Auto set Time base/Vertical amplitude/Trigger value Maximum sample 5.0 MSa/s Input impedance ≈10 MΩ Time base accuracy ±(0.01% + 0.1div） Current vertical sensitivity range 100 μA~5 A/grid Measurement function Vmax, Vmin, Vp-p, Vavg, Vrms, Hz Maximum current limit 15 A DC+AC Peak value Trigger edge Rise edge/Fall edge General Specifications Display 2.8" LCD (320 x 240) Low battery indication Yes Backlight Yes Sleep Mode Yes Input Protection Yes Relative Measurement Yes Input Impedance ≥10 MΩ Battery 18650 Lithium Safety Compliance CAT III 1000V Dimensions 93 x 41.5 x 188 mm Weight 0.35 kg Included 1x OWON HDS120 Multimeter & Oscilloscope 2x Multimeter leads 1x USB cable 1x Storage bag 1x Manual Downloads Datasheet Manual

Read more less

The OWON SDS220S is a dual-channel digital oscilloscope with an integrated 25 MHz signal generator, offering a wide 200 MHz bandwidth and high-speed 1 GS/s real-time sampling rate. Features Digital Storage Oscilloscope (DSO) Dual-channel operation (two independent input channels) Built-in 25 MHz signal generator Bandwidth: 200 MHz Real-time sampling rate: 1 GS/s per channel Memory depth: 20M points Automatic measurements: Supports 30 automatic waveform measurements Built-in frequency counter: 6-digit, high-precision FFT Spectrum Analysis (Fast Fourier Transform) PC connectivity: Communicates with PC via USB interface Remote control & programming: Supports SCPI commands and LabVIEW integration Software included: Free PC software and programming development examples available for remote control and secondary development. 7-inch TFT LCD color display Oscilloscope Specifications Bandwidth 200 MHz Channels Dual Sample Rate Max 1 GS/s Acquisition Mode Normal, Peak detect, Averaging Input Coupling DC, AC, Ground Input Impedance 1 MΩ ±2%, in parallel with 20pF ±5pF Probe Attenuation Factor 1X, 10X, 100X, 1000X Record length 20M Horizontal Scale (s/div) 2 ns/div～1000 s/div, step by 1–2–5 Vertical Sensitivity 2 mV/div～10 V/div Automatic Measurement Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area. Waveform Math ＋, －, ×, ÷, FFT Waveform Storage 16 waveforms Trigger Type Edge, Video Communication Interface USB Host and Device Frequency Counter Yes Signal Generator Specifications Standard Waveforms Sine wave, square wave, ramp wave, pulse wave, arbitrary wave Arbitrary Waveforms Sinc, exponential rise, exponential decline, Gaussian more than 160 kinds Max Frequency Output 25 MHz Arbitrary Waveform 0.1 Hz～5 MHz Sample rate 125 MSa/s Amplitude (50 Ω) 0.005 Vpp～3 Vpp DC Offset Range ±3 V (high resistance) Channel 1 Waveform Length 8k Vertical Resolution 14 bit Load Impedance 50 Ω General Specifications Display 7 inch LCD (800 x 480) Dimensions (L x H x D) 301 x 152 x 70 mm Weight 1.1 kg Included OWON SDS220S Oscilloscope & Signal Generator Power Cord BNC Cable USB Cable Probe Probe Adjust Manual Downloads Datasheet User Manual Quick Guide Programming Manual PC Software

Read more less

The DSO1511G with advanced ARM+FPGA architecture delivers exceptional performance with a 120 MHz bandwidth and 500 MSa/s sampling rate, ensuring precision and stability for professionals and enthusiasts alike. Its versatility makes it ideal for MCU troubleshooting, vehicle repairs, appliance diagnostics, DIY electronics, power supply testing, and inverter analysis. The device also features an integrated signal generator, capable of outputting adjustable waveforms with a 2.5 V amplitude, a frequency range of 0-2 MHz, and an accuracy of 0.1 Hz. Features 120 MHz bandwidth 500 MSa/s sampling rate 2 MHz signal generator 14 measurements 10 mV vertical sensitivity Video output FFT spectrum PC connection Specifications Bandwidth 120 MHz Sampling rate 500 MSa/s Display 2.4" color TFT (320 x 240) Measurements 14 types Vertical precision ±2% Rise time <3ns Storage depth 128 Kb Impedance 1 MΩ Time base 5ns-10s Vertical sensitivity 10 mV/div-10 V/div Max voltage ±40 V (x1)±400 V (x10) Trigger mode Auto/Normal/Single Trigger type Rise/Fall Trigger level Manual/Auto Display mode YT/Roll Persistence None/1s/∞ Waveforms Sinus/Square/Triangle/Noise Frequency 0-2 Mhz Power supply USB-C (5 V) Battery 2500 mAh Lithium battery Dimensions 107 x 72 x 32 mm Weight 166 g Included 1x DSO1511G Oscilloscope 1x P6100 probe 1x Video cable 1x USB cable 1x Ring-shaped Stand 1x Storage bag 1x Manual Downloads Manual

Read more less

The DSO2512G dual-channel oscilloscope with advanced ARM+FPGA architecture delivers exceptional performance with a 120 MHz bandwidth and 500 MSa/s sampling rate, ensuring precision and stability for professionals and enthusiasts alike. Its versatility makes it ideal for MCU troubleshooting, vehicle repairs, appliance diagnostics, DIY electronics, power supply testing, and inverter analysis. The device also features an integrated signal generator, capable of outputting adjustable waveforms with a 2.5 V amplitude, a frequency range of 0-10 MHz (or 0-2 MHz), and an accuracy of 0.1 Hz. Features 120 MHz bandwidth 500 MSa/s sampling rate 10 MHz signal generator 2.8" display XY mode Video output Single trigger 10 mV sensitivity FFT spectrum Specifications Channels 2 Bandwidth 120 MHz Sampling rate 500 MSa/s Display 2.8" color TFT (320 x 240) Measurements 14 types Vertical precision ±2% Rise time <3ns Storage depth 128 Kb Impedance 1 MΩ Time base 5ns-10s Vertical sensitivity 10 mV/div-10 V/div Max voltage ±40 V (x1)±400 V (x10) Trigger mode Auto/Normal/Single Trigger type Rise/Fall Trigger level Manual/Auto Display mode YT/Roll Persistence None/1s/∞ Waveforms Sinus/Square/Triangle/Noise Frequency 0-10 MHz (sin)0-2 MHz (other) Power supply USB-C (5 V) Battery 4000 mAh Lithium battery Dimensions 137 x 82 x 38 mm Weight 286 g Included 1x DSO2512G Oscilloscope 2x P6100 probes 1x Video cable 1x USB cable 1x Ring-shaped Stand 1x Storage bag 1x Manual Downloads Manual

Read more less

In this lockable universal carrying case you can safely store your sensitive electronic devices while traveling and on the way to work. In order to adapt these sturdy cases universally to the respective equipment, each case is padded with a 1 cm thick foam insert and additionally designed with two 3 cm thick, removable cubic foam inserts, which can be easily adjusted without additional tools. Due to the double notch in the closing edge, these high-quality case offer a high level of safety against the ingress of dust or splash water and are therefore the ideal companion for daily work in the field. Features Integrated lock Stable carrying case for all kinds of work Including cube foam for easy adjustment of the desired shape Changeable cube foam available separately Specifications Material Aluminum Color Black Dimensions 460 x 150 x 330 mm Dimensions (inside) 445 x 130 x 315 mm Payload (max.) 16.1 kg Lock Snap lock (lockable) Cube foam insert Yes Design/Type Aluminum frame/Composite material Downloads Manual

Read more less

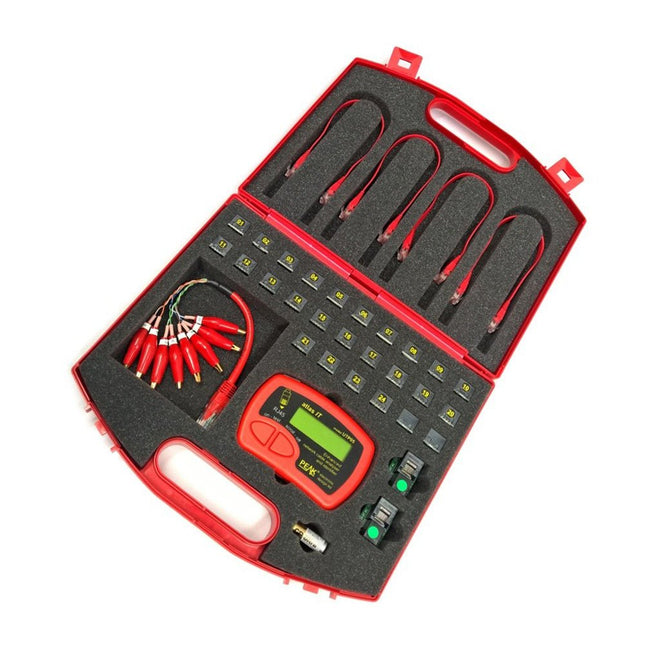

Peak UTP05E is a comprehensive CAT 5/5e/6 network cable analyzer with superb accessories. Easy to use and very fast. Automatically identifies cable type (Straight through, cross-over, token ring etc) and verifies all the connections. Faults are clearly displayed and explained on screen. The Atlas IT will even instruct you on making up standard and special cables, complete with wire colors. Display type is alphanumeric LCD (not backlit). Features Automatic connection pattern recognition. Rapid assessment of all 8 wires within your cable. Identifies missing connections, shorted connections or incorrect connections. Will display the identity number of the 'identified' terminators to allow for easy testing and identification of multiple cable runs. Can display common cable colour codes to help you make up cables. Included UTP05 instrument. 2 miniature terminators to plug into another end of the cable run. 4 short patch cables to enable testing of patch panels and wall sockets. 24 miniature identified terminators, great for testing and identifying multiple cable runs. Pair of RJ11-to-RJ45 adapters to allow for easy testing of RJ11 based cabling. RJ45 to 8 x gold plated crocodile adapter for testing unterminated cables. Detailed printed user guide, complete with full-colour Ethernet wiring chart for common cable configurations. Alkaline battery installed and a spare alkaline battery. All supplied in a durable padded carry case. Specifications Category Cat 5, 5e, 6 (UTP) Connection type RJ45 plug or socket (RJ11 using supplied adapter set) Lines tested 8 lines (shielding not tested) Max. cable length 150 metres (500 feet) Test voltage ±5 V Test current ±2.5 mA Temperature range 10°C to 50°C (50°F to 122°F) Battery operating range 7 V to 13 V Battery type GP23, L1128, MN21, V23 (12 V Alkaline) Instrument dimensions 103 x 70 x 20 mm (4.1 x 2.8 x 0.8") Terminator dimensions 18 x 15 x 14 mm (0.7 x 0.6 x 0.6") Downloads Datasheet User Guide Common Ethernet Wiring Diagrams Avoid socket damage

Read more less

The UT381 light meter measures light intensity and displays the results in Lux or FC. It has a high sampling rate of 100/s. The low power consumption enables continuous operation of up to 200 hours. The results can be stored in the device and transferred to a PC for further analysis, printing and saving. Features Auto/manual range, data hold Auto power off (cancelable) MAX/MIN modes 2044 sets data storage Displays time and adjustable record intervals (0.5~255s) Restore to default mode Lux/FC selectable Specifications Illuminance measurement (Lux) 20 Lux ±(3%+20) 200 Lux ±(3%+8) 2000 Lux ±(3%+8) 20000 Lux ±(3%+8) Display count 2000 Data storage 2044 Auto power off approx. 10 minutes Low battery indication approx. ≤7.1 V Auto range √ Data hold √ MAX/MIN mode √ Real-time clock √ Auto record time setup √ USB interface √ Power 9 V battery (6LF22) Display 22.5 x 32.5 mm Dimensions 195 x 45 x 26 mm Weight 185 g Downloads Datasheet Manual

Read more less

The DE-5050 Insulation Tester is a versatile instrument designed for measuring insulation resistance, low resistance, and AC/DC voltage. Its user-friendly features make it suitable for various electrical testing applications. Features Offers five selectable test voltages for different test requirements Automatically detects AC/DC voltage and displays frequency when AC voltage exceeds 10 V Stores up to 100 sets of test results with date and time Switches off automatically after 10 minutes of inactivity Equipped with a backlit display Enables zero adjustment for low resistance measurements Automatic calculation and display of the Dielectric Absorption Ratio (DAR) and Polarization Index (PI) during the insulation resistance test Specifications Test Voltages 50 V, 100 V/125 V, 250 V, 500 V, 1000 V Insulation Resistance Range Up to 20 GΩ at 500 VUp to 40 GΩ at 1000 V Voltage Measurement Accuracy ±1%rdg±4dgt (sine wave) Dimensions 160 x 100 x 46 mm Weight 380 g (excluding batteries) Downloads Datasheet

Read more less

The PeakTech 5002 is a highly practical component tester designed for LEDs and various other electronic components. It delivers an automatically adjustable DC output voltage ranging from 0 to 300 V, adapting to the connected load to prevent damage to sensitive components. This makes it particularly well-suited for use in service and repair workshops. Features Output of automatic test voltage from 0 V to 300 V Suitable for testing individual LEDs or LED panels Suitable for testing the withstand voltage of electrolytic capacitors Suitable for Zener voltage testing of Zener diodes Safety: EN 61010-1 Specifications Input Voltage AC 100-240 V (Fuse: 2 A/250 V) Frequency 50-60 Hz Power consumption 10 W Output Voltage DC 0-300 V Accuracy ±5% +10 digts. Output Current <25 mA Dimensions 126 x 77 x 36 mm Weight 141 g Included 1x PeakTech 5002 LED Tester 2x Test leads 1x Power cable 1x Carrying case 1x Manual Downloads Datasheet (English/Deutsch) Datasheet (Italiano)
