Description

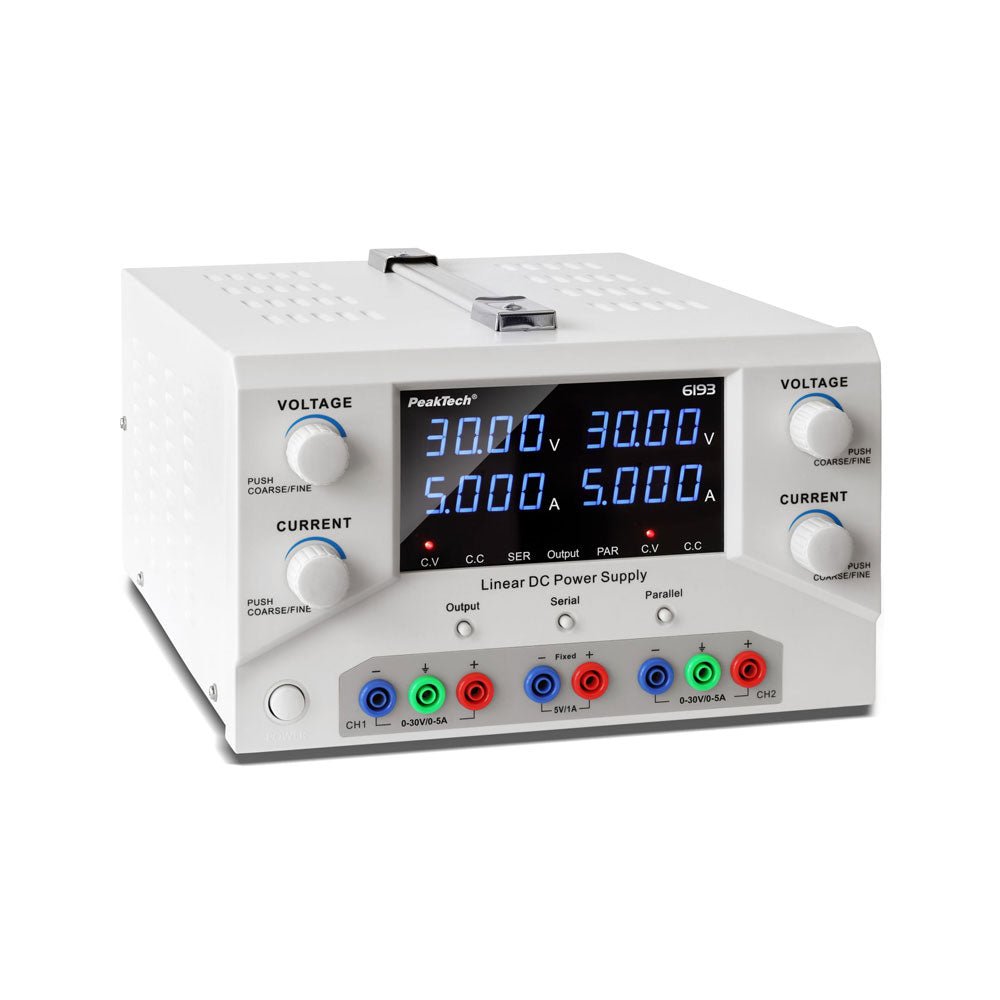

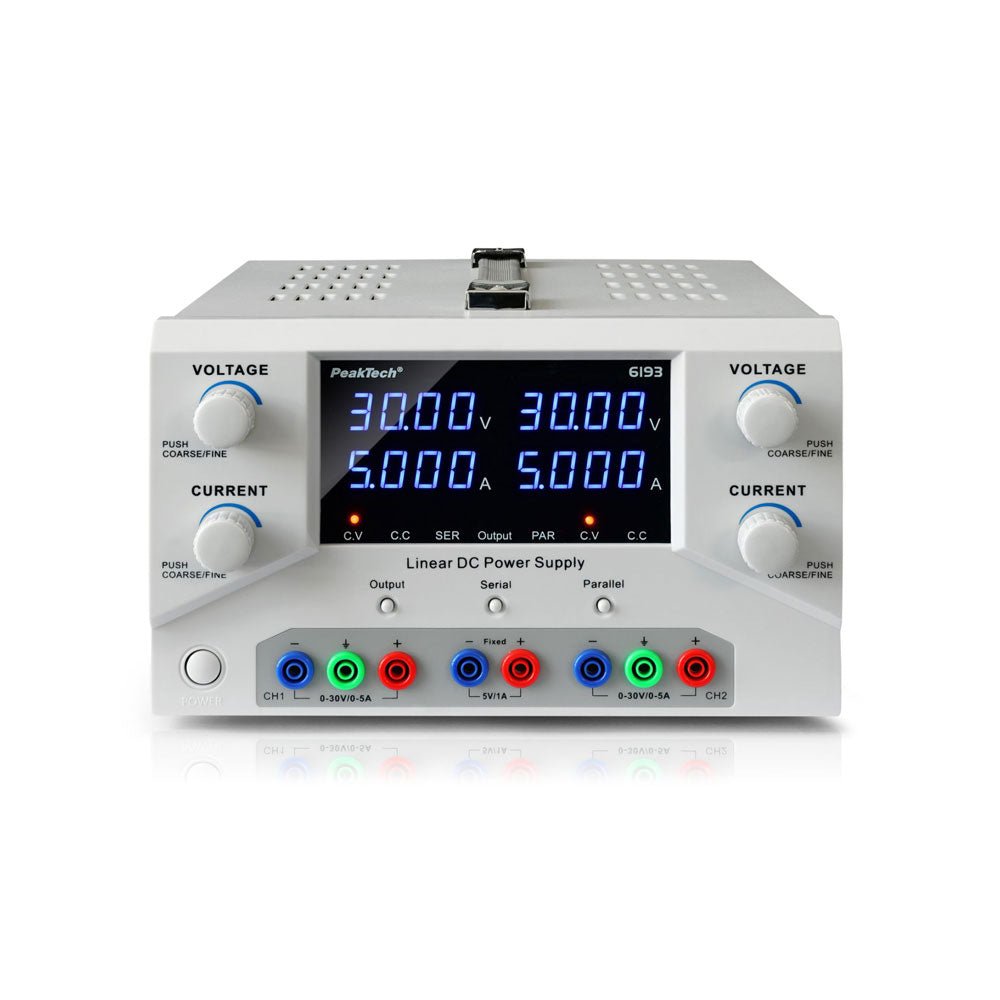

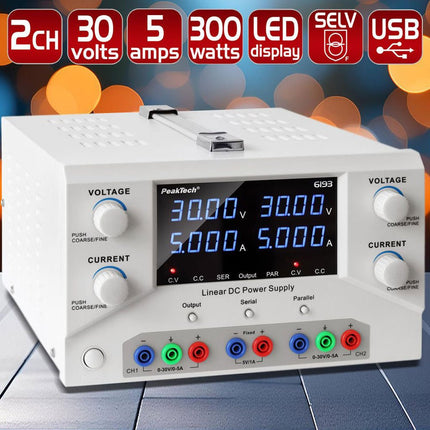

The PeakTech 6193 is a linear regulated 2-channel laboratory power supply with 0-30 V/0-5 A DC output. Its integrated safety transformer ensures reliable operation and high safety standards for lab and workshop use.
Key features include current preselection for safe setup, four-digit blue LED displays for voltage, current, and power, and an Output On/Off button to prevent accidental changes. The temperature-controlled fan provides efficient and quiet cooling.
With four precision potentiometers, output values can be adjusted quickly and accurately. A USB interface enables remote control and data readout via PC, making it ideal for versatile and automated applications.
Features
- Two outputs adjustable from 0-30 V and 0-5 A DC
- Fixed voltage output 5 V/1 A DC

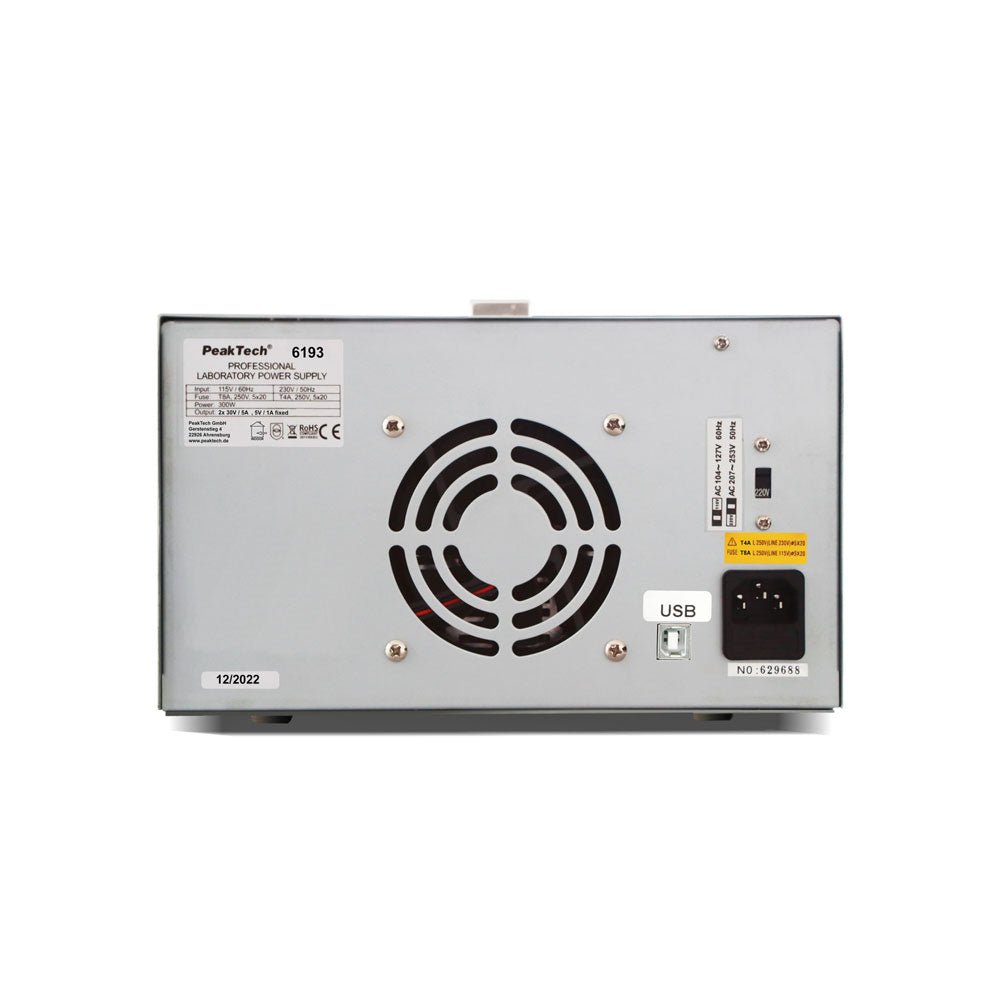

- With USB interface and PC software
- 4-digit segment displays for current and voltage
- Channels can be used independently, in series or in parallel
- Overload protection and short-circuit proof
- Temperature-controlled fan
- High load stability and low residual ripple
- Sturdy metal housing with carrying handle
- Output of safety extra-low voltage (SELV)
Specifications
| Channels |
2 |
| Display Type |
Segment |
| Output Voltage |
0-30 V DC |
| Output Current |
0-5 A |
| Input voltage |
115-230 VAC 50/60 Hz |
| Auxillary output |
5 V DC |
| Cooling |
Active |
Included
- 1x PeakTech 6193 DC Power Supply
- 1x Power cable
- 1x USB cable
- 1x CD-ROM
- 1x Manual
