Ynvisible Segment E-Paper Display Kit

Description

The Ynvisible Segment E-Paper Displays are thin & flexible, sunlight readable, very easy to operate, and that they are the most energy-efficient display technology on the market for most applications. Get started today!

Evaluate the ultra-low-power, thin and flexible Segment E-Paper Displays. The kit contains display designs and includes a manual display driver as well as a display driver with I²C interface.

Display parameters

White Reflectance 40%
Contrast Ratio (Yb/Yd) 1:3
Angle Dependency No, lambertian
Thickness 300 µm
Graphical layout Segments
Segment dimensions 1-100 mm
Response time 100-1000 ms

Power parameters

Driving voltage 1.5 V
Driving method Direct drive
Energy consumption 1 mJ/cm^2
Pulse energy 0.25 mJ/cm^2
Image retention w/o power 1-5 minutes
Operating conditions -20°C - +60°C
Activations/Cycles 1.000.000

Included

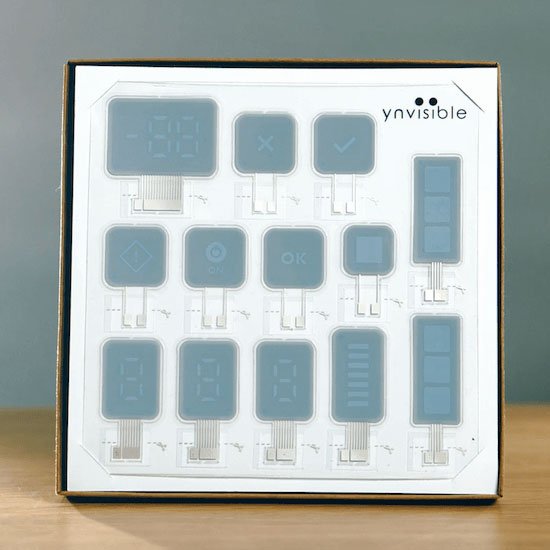

  • Ynvisible Segment Displays (‍Segmented e-paper displays with different layouts, shapes, and symbols, suitable for testing and evaluation.)
    • 3 single-digit display
    • 1 double-digit display
    • 5 single-segment/icon displays
    • 4 progress bars (7-segment and 3-segment)

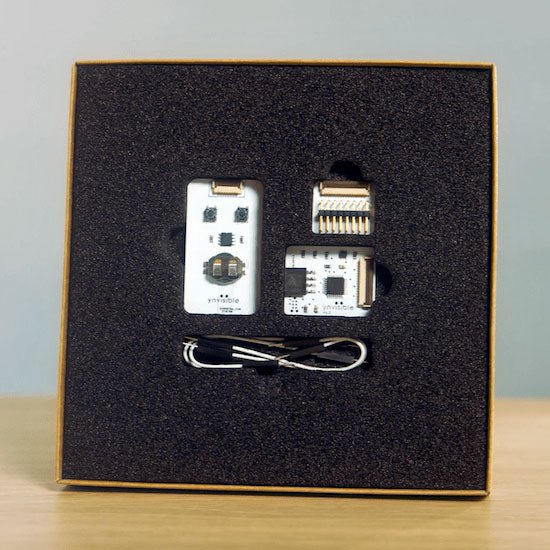

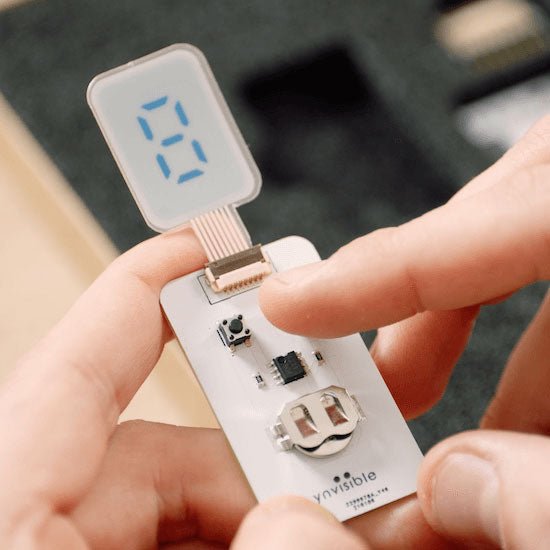

  • Manual Display Clicker (Manual display controller for ON/OFF operations)
  • Display Driver and Software Library (Dedicated display driver with I²C communication interface. Compatible with Arduino and other easy-to-use development boards.)
  • Flexible Display Adapter (‍For convenient connection of the flexible displays on a plastic substrate to rigid electronics (such as development boards), using a FFC/FPC connector.)

Downloads

Product form

The Ynvisible Segment E-Paper Displays are thin & flexible, sunlight readable, very easy to operate, and that they are the... Read more

€ 109,95 incl. VAT
Members € 98,96

    • Ship today? Order within Jul 21, 2024 17:00:00 +0200

    Details

    SKU: 20143
    EAN: 020143

    Description

    The Ynvisible Segment E-Paper Displays are thin & flexible, sunlight readable, very easy to operate, and that they are the most energy-efficient display technology on the market for most applications. Get started today!

    Evaluate the ultra-low-power, thin and flexible Segment E-Paper Displays. The kit contains display designs and includes a manual display driver as well as a display driver with I²C interface.

    Display parameters

    White Reflectance 40%
    Contrast Ratio (Yb/Yd) 1:3
    Angle Dependency No, lambertian
    Thickness 300 µm
    Graphical layout Segments
    Segment dimensions 1-100 mm
    Response time 100-1000 ms

    Power parameters

    Driving voltage 1.5 V
    Driving method Direct drive
    Energy consumption 1 mJ/cm^2
    Pulse energy 0.25 mJ/cm^2
    Image retention w/o power 1-5 minutes
    Operating conditions -20°C - +60°C
    Activations/Cycles 1.000.000

    Included

    • Ynvisible Segment Displays (‍Segmented e-paper displays with different layouts, shapes, and symbols, suitable for testing and evaluation.)
      • 3 single-digit display
      • 1 double-digit display
      • 5 single-segment/icon displays
      • 4 progress bars (7-segment and 3-segment)
    • Manual Display Clicker (Manual display controller for ON/OFF operations)
    • Display Driver and Software Library (Dedicated display driver with I²C communication interface. Compatible with Arduino and other easy-to-use development boards.)
    • Flexible Display Adapter (‍For convenient connection of the flexible displays on a plastic substrate to rigid electronics (such as development boards), using a FFC/FPC connector.)
