WIZnet WizFi360-EVB-Pico

  • BrandWIZnet

Description

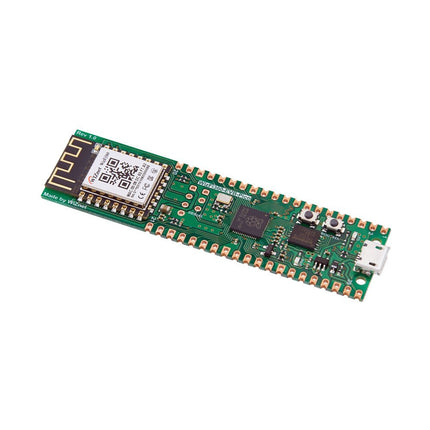

Raspberry Pi Pico EVB combined with the WizFi360-PA

WizFi360-EVB-Pico is based on Raspberry Pi RP2040 and adds Wi-Fi connectivity using WizFi360. It is pin-compatible with Raspberry Pi Pico board and can be used for IoT Solution development.

Specifications

  • RP2040 microcontroller with 2 MByte Flash
    • Dual-core cortex M0+ at up to 133 MHz
    • 264 kByte multi-bank high performance SRAM
    • External Quad-SPI Flash with eXecute In Place (XIP)
  • Includes WizFi360-PA
    • Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
    • WiFi 2.4G, 802.11 b/g/n
    • Support Station / SoftAP / SoftAP+Station operation modes
    • Support “Data pass-through” and “AT command data transfer” mode
    • Support serial AT command configuration
    • Support TCP Server / TCP Client / UDP operating mode
    • Support configuration of operating channel 0 ~ 13
    • Support auto 20 MHz / 40 MHz bandwidth
    • Support WPA_PSK / WPA2_PSK encryption
    • Support built-in unique MAC address and user configurable
    • Industrial grade (operating temperature range: -40°C ~ 85°C)
    • CE, FCC certification
  • Includes 16 Mbit Flash Memory
  • Micro-USB B port for power and data (and for reprogramming the Flash)
  • 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1' through-hole pins also with edge castellations
  • 3-pin ARM Serial Wire Debug (SWD) port
  • Built-in LDO

Downloads

Product form

Raspberry Pi Pico EVB combined with the WizFi360-PAWizFi360-EVB-Pico is based on Raspberry Pi RP2040 and adds Wi-Fi connectivity using WizFi360.... Read more

€ 12,95 (incl. VAT)
Members € 11,66

      Details

      SKU: 20261
      EAN: 020261

      Description

      Raspberry Pi Pico EVB combined with the WizFi360-PA

      WizFi360-EVB-Pico is based on Raspberry Pi RP2040 and adds Wi-Fi connectivity using WizFi360. It is pin-compatible with Raspberry Pi Pico board and can be used for IoT Solution development.

      Specifications

      • RP2040 microcontroller with 2 MByte Flash
        • Dual-core cortex M0+ at up to 133 MHz
        • 264 kByte multi-bank high performance SRAM
        • External Quad-SPI Flash with eXecute In Place (XIP)
      • Includes WizFi360-PA
        • Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
        • WiFi 2.4G, 802.11 b/g/n
        • Support Station / SoftAP / SoftAP+Station operation modes
        • Support “Data pass-through” and “AT command data transfer” mode
        • Support serial AT command configuration
        • Support TCP Server / TCP Client / UDP operating mode
        • Support configuration of operating channel 0 ~ 13
        • Support auto 20 MHz / 40 MHz bandwidth
        • Support WPA_PSK / WPA2_PSK encryption
        • Support built-in unique MAC address and user configurable
        • Industrial grade (operating temperature range: -40°C ~ 85°C)
        • CE, FCC certification
      • Includes 16 Mbit Flash Memory
      • Micro-USB B port for power and data (and for reprogramming the Flash)
      • 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1' through-hole pins also with edge castellations
      • 3-pin ARM Serial Wire Debug (SWD) port
      • Built-in LDO
