Waveshare Stack HAT for Raspberry Pi

  • BrandWaveshare

Description

This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to 'stack' multi different HATs together, and use them as a specific combination / project.

Features

  • Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable
  • 5 sets of 2x20 pinheaders, connect multi HATs together
  • USB external power port, provides enough power supply for multi HATs
  • Clear and descriptive pin labels for easy use
  • Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts

Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting.

Specifications

  • Dimensions: 183 × 65 mm
  • Mounting hole size: 3 mm

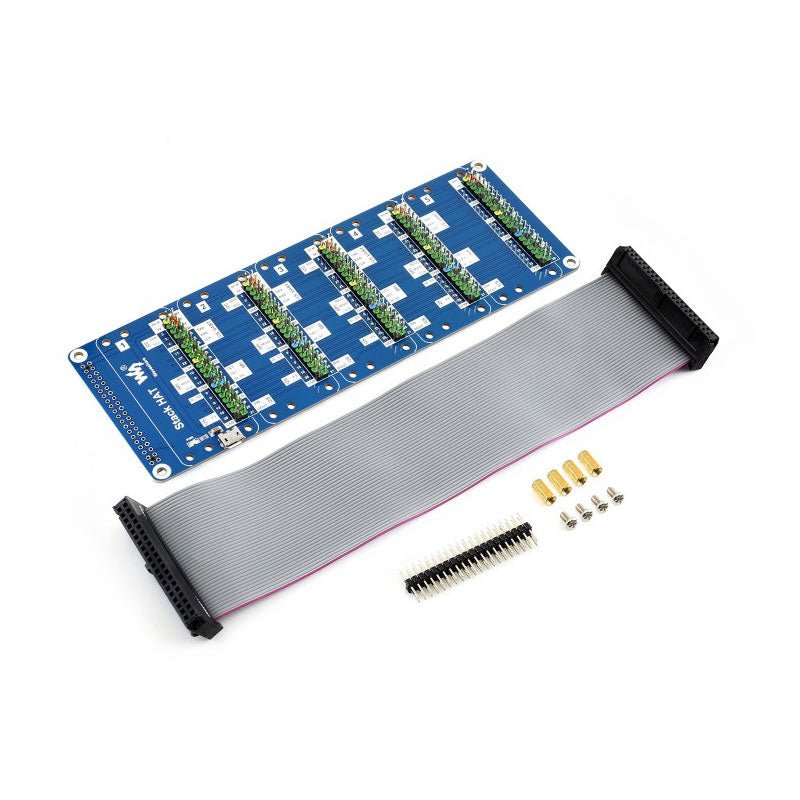

Included

  • 1x Stack HAT
  • 1x Ribbon cable 40-Pin
  • 1x 2x20 male pinheader
  • 1x RPi screws pack (4pcs) x1
Product form

This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a... Read more

€ 17,95 incl. VAT
Members € 16,16

    • Ship today? Order within Jul 15, 2024 17:00:00 +0200

    Details

    SKU: 19839
    EAN: 019839

    Description

    This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to 'stack' multi different HATs together, and use them as a specific combination / project.

    Features

    • Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable
    • 5 sets of 2x20 pinheaders, connect multi HATs together
    • USB external power port, provides enough power supply for multi HATs
    • Clear and descriptive pin labels for easy use
    • Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts

    Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting.

    Specifications

    • Dimensions: 183 × 65 mm
    • Mounting hole size: 3 mm

    Included

    • 1x Stack HAT
    • 1x Ribbon cable 40-Pin
    • 1x 2x20 male pinheader
    • 1x RPi screws pack (4pcs) x1
