Description

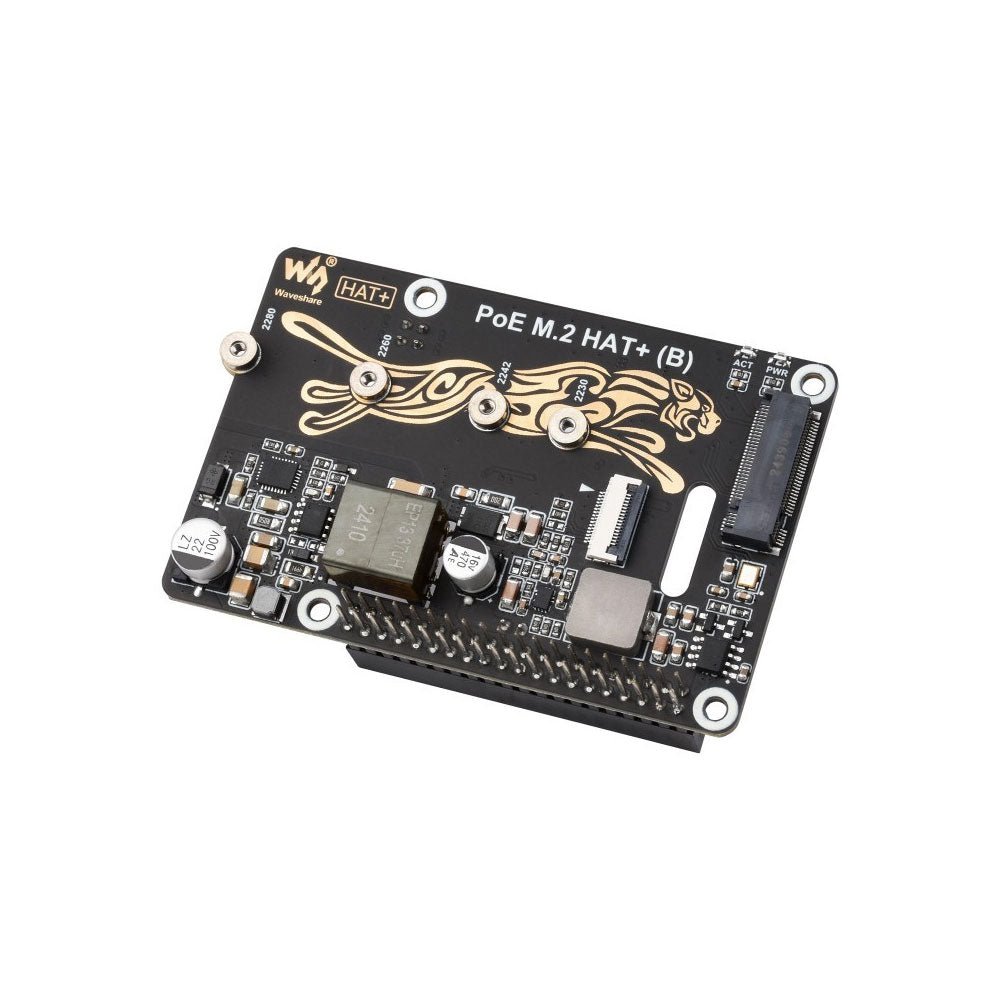

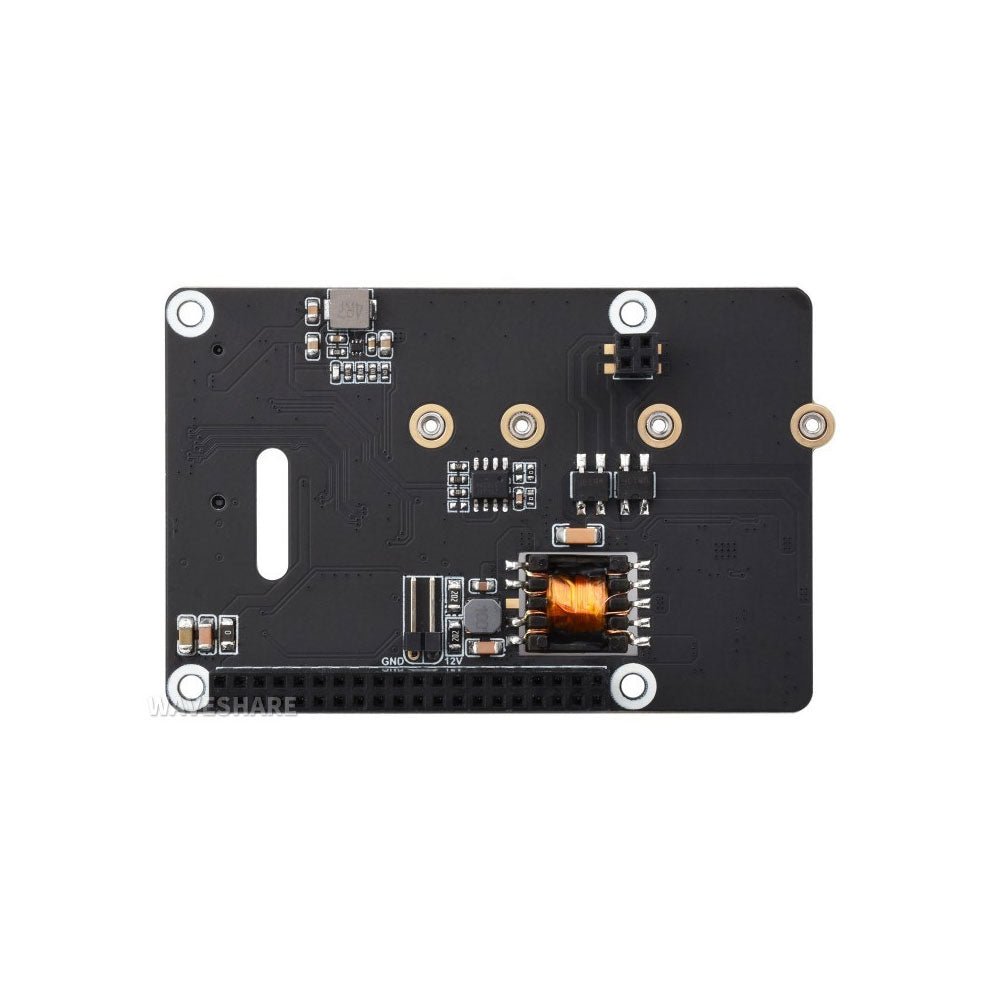

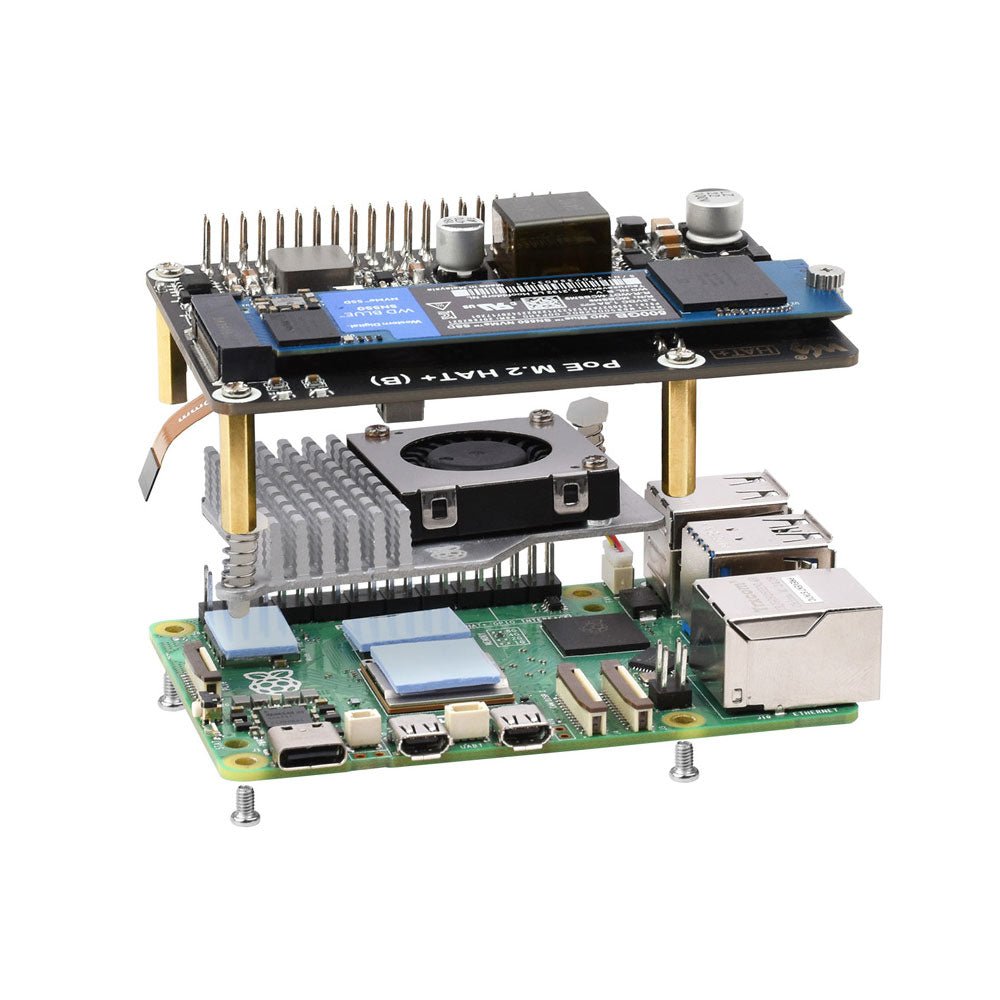

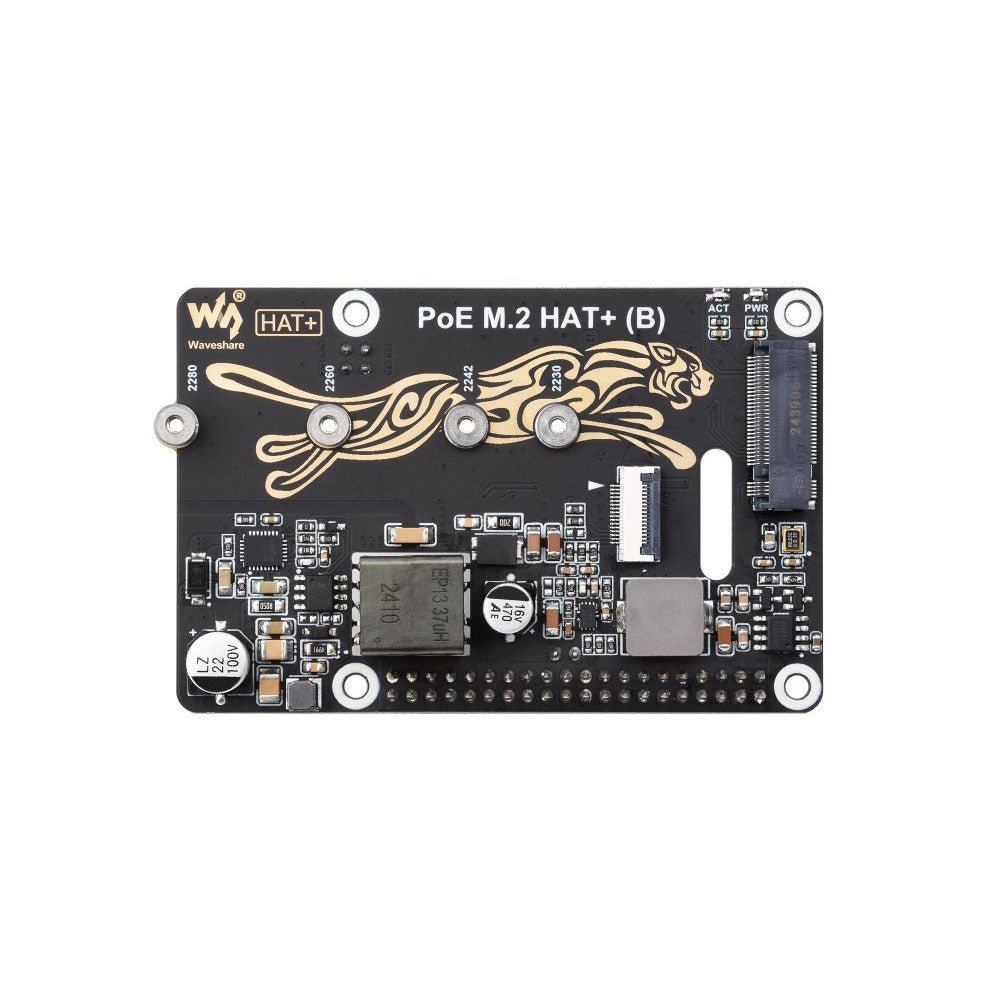

The Waveshare PoE M.2 HAT+ (B) combines Power over Ethernet (PoE) and PCIe-to-M.2 functionality for the Raspberry Pi 5. It supports the IEEE 802.3af/at networking standards and accommodates M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 form factors. Additionally, it enables SSD boot for the Raspberry Pi.
Features
- Standard Raspberry Pi 40-pin GPIO extension header, compatible with Raspberry Pi 5
- Supports Power over Ethernet (PoE) and complies with the IEEE 802.3af/at network standards
- Utilizes a fully isolated Switch Mode Power Supply (SMPS) for stable power delivery
- Supports NVMe protocol M.2 interface hard drives, offering high-speed read/write performance and high efficiency
- Provides 1x PCIe in Gen2 or Gen3 mode
- Specifically designed for the Raspberry Pi 5 only
- Compatible with M.2 SSDs in 2230, 2242, 2260, and 2280 form factors
Specifications
| PoE power input |
37~57 V DC |
| Power output |
GPIO header: 5 V/4.5 A (max.)
2P header: 12 V/2 A (max.) |
| Network standard |
IEEE 802.3af/at PoE |
| Dimensions |
56 x 85 mm |
Included
- 1x Waveshare PoE M.2 HAT+ (B)
- 1x 16-Pin PCIe cable
- 1x SSD mounting screw
- 1x Screws pack
