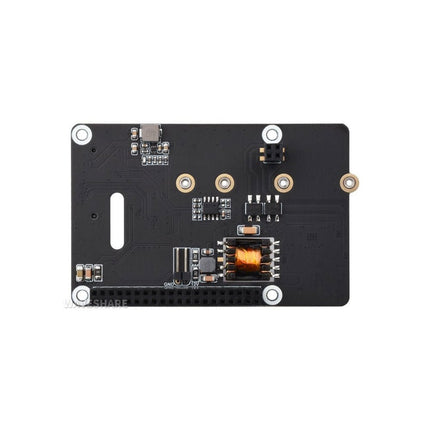

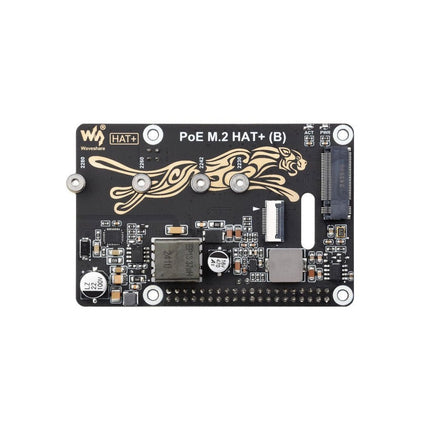

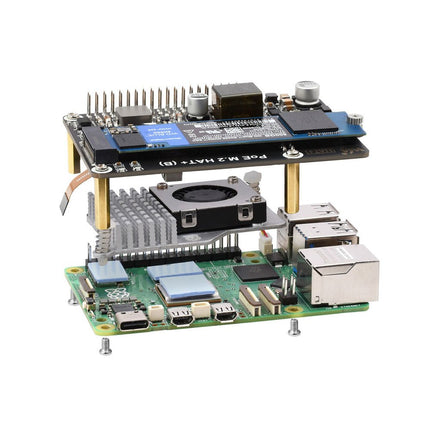

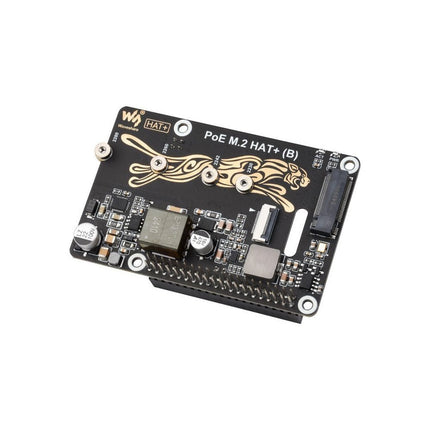

Waveshare PCIe to M.2 Adapter with PoE for Raspberry Pi 5

  • BrandWaveshare

Description

The Waveshare PoE M.2 HAT+ (B) combines Power over Ethernet (PoE) and PCIe-to-M.2 functionality for the Raspberry Pi 5. It supports the IEEE 802.3af/at networking standards and accommodates M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 form factors. Additionally, it enables SSD boot for the Raspberry Pi.

Features

  • Standard Raspberry Pi 40-pin GPIO extension header, compatible with Raspberry Pi 5
  • Supports Power over Ethernet (PoE) and complies with the IEEE 802.3af/at network standards
  • Utilizes a fully isolated Switch Mode Power Supply (SMPS) for stable power delivery
  • Supports NVMe protocol M.2 interface hard drives, offering high-speed read/write performance and high efficiency
  • Provides 1x PCIe in Gen2 or Gen3 mode
  • Specifically designed for the Raspberry Pi 5 only
  • Compatible with M.2 SSDs in 2230, 2242, 2260, and 2280 form factors

Specifications

PoE power input 37~57 V DC
Power output GPIO header: 5 V/4.5 A (max.)
2P header: 12 V/2 A (max.)
Network standard IEEE 802.3af/at PoE
Dimensions 56 x 85 mm

Included

  • 1x Waveshare PoE M.2 HAT+ (B)
  • 1x 16-Pin PCIe cable
  • 1x SSD mounting screw
  • 1x Screws pack

Downloads

Product form

The Waveshare PoE M.2 HAT+ (B) combines Power over Ethernet (PoE) and PCIe-to-M.2 functionality for the Raspberry Pi 5. It supports the... Read more

€ 29,95 incl. VAT
Members € 26,96

    • Ship today? Order within May 21, 2025 16:00:00 +0200

    Details

    SKU: 21122
    EAN: 29320

    Description

    The Waveshare PoE M.2 HAT+ (B) combines Power over Ethernet (PoE) and PCIe-to-M.2 functionality for the Raspberry Pi 5. It supports the IEEE 802.3af/at networking standards and accommodates M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 form factors. Additionally, it enables SSD boot for the Raspberry Pi.

    Features

    • Standard Raspberry Pi 40-pin GPIO extension header, compatible with Raspberry Pi 5
    • Supports Power over Ethernet (PoE) and complies with the IEEE 802.3af/at network standards
    • Utilizes a fully isolated Switch Mode Power Supply (SMPS) for stable power delivery
    • Supports NVMe protocol M.2 interface hard drives, offering high-speed read/write performance and high efficiency
    • Provides 1x PCIe in Gen2 or Gen3 mode
    • Specifically designed for the Raspberry Pi 5 only
    • Compatible with M.2 SSDs in 2230, 2242, 2260, and 2280 form factors

    Specifications

    PoE power input 37~57 V DC
    Power output GPIO header: 5 V/4.5 A (max.)
    2P header: 12 V/2 A (max.)
    Network standard IEEE 802.3af/at PoE
    Dimensions 56 x 85 mm

    Included

    • 1x Waveshare PoE M.2 HAT+ (B)
    • 1x 16-Pin PCIe cable
    • 1x SSD mounting screw
    • 1x Screws pack

    Downloads
