Description

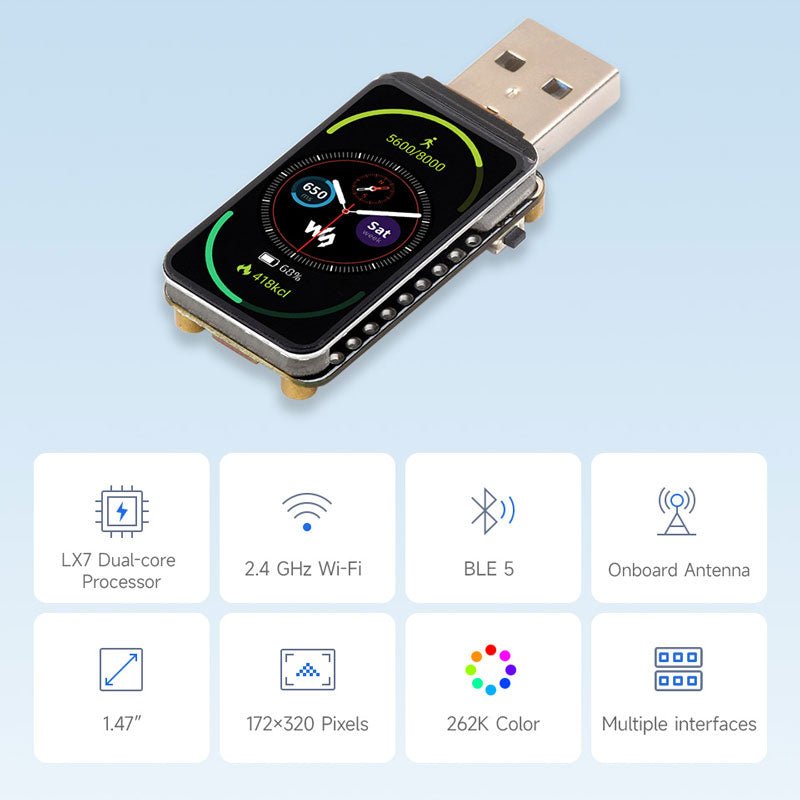

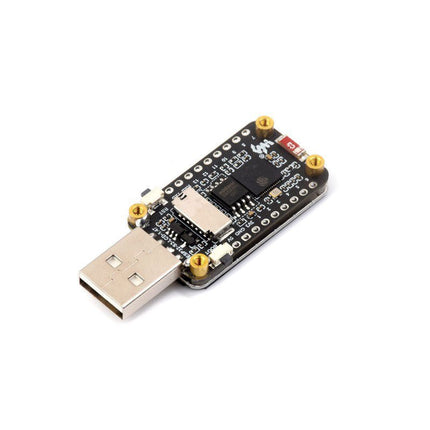

The Waveshare ESP32-S3 1.47" Display Development Board is a microcontroller platform featuring 2.4 GHz WiFi, Bluetooth BLE 5, high-capacity Flash, and PSRAM. Its 1.47-inch LCD screen supports smooth GUI development with LVGL, while multiple peripheral interfaces make it ideal for rapid prototyping of HMI and other ESP32-S3-based applications.
Features
-
Processor: Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor, running at up to 240 MHz.
-
Connectivity: Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an onboard antenna.
-
Memory: Built-in 512 KB SRAM, 384 KB ROM, 16 MB Flash, and 8 MB PSRAM for ample storage and performance.
-

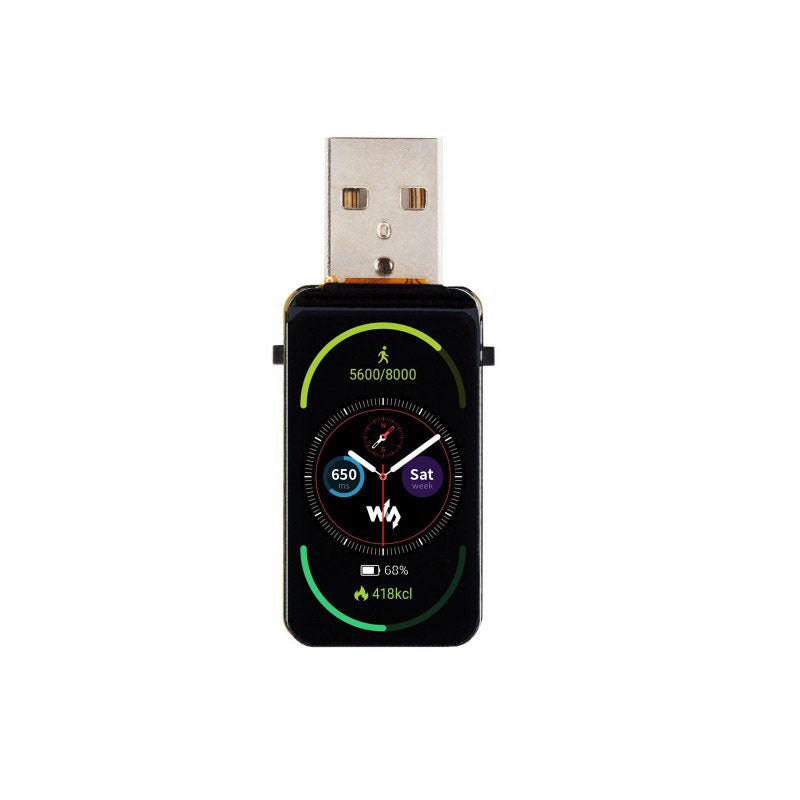

Display: Features a 1.47-inch LCD screen with a resolution of 172 x 320 and 262K colors, ideal for GUI applications.
-
Interfaces: Adapts multiple IO interfaces and integrates a full-speed USB port for versatile connectivity.
-
Storage: Includes a TF card slot for external storage of pictures and files.
-
Power Efficiency: Supports precise control with flexible clock settings and multiple power modes, enabling low power consumption across scenarios.
-
Lighting: Built-in RGB LED with a clear acrylic sandwich panel for customizable and stylish lighting effects.
Included
- 1x ESP32-S3 1.47" Display Development Board (ESP32-S3-LCD-1.47)
- 1x Header (black)
