Waveshare 5.83" E-Ink Display HAT for Raspberry Pi Pico (648x480)

  • BrandWaveshare

Description

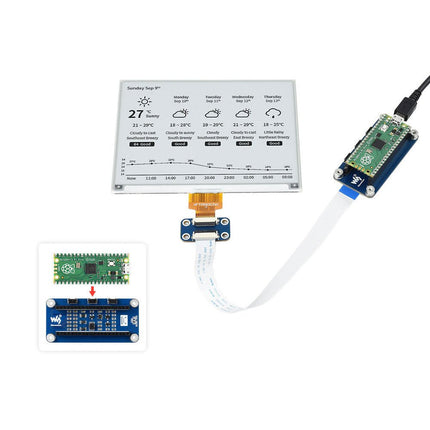

This 5.83-inch black/white e-paper e-ink display module for Raspberry Pi Pico offers a resolution of 648 × 480 pixels, an SPI interface, low power consumption, wide viewing angle and a paper-like effect without electricity.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal I/O pins
  • 2x user buttons and 1x reset button for easy interacting
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage 3.3 V
Display color Black, white
Resolution 648 × 480 pixels
Gray scale 2
Interface 3-wire SPI, 4-wire SPI
Viewing angle >170°
Partial refresh time N/A
Full refresh time 5s
Outline dimensions 125.4 × 99.5 mm
Display size 119.232 × 88.320 mm
Refresh power 26.4 mW (typ.)
Standby current <0.01 uA (almost none)
Dot pitch 0.184 × 0.184 mm

Applications

  • Suitable For Price Tags
  • Asset/Equipment Tags
  • Shelf Labels
  • Conference Name Tag

Included

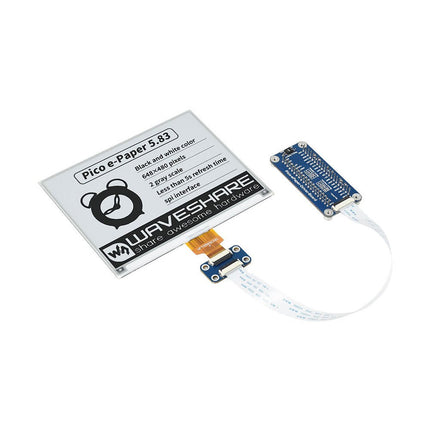

  • 1x 5.83-inch e-Paper

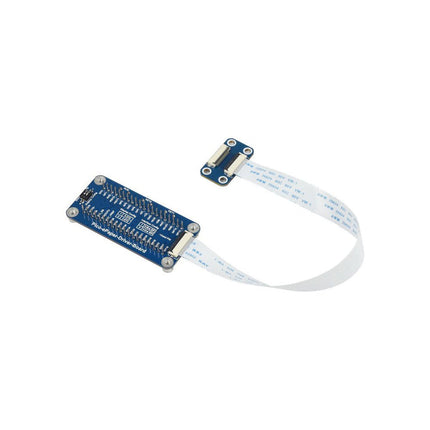

  • 1x Pico-ePaper-Driver-Board
  • 1x Standoff pack

Downloads

Product form

This 5.83-inch black/white e-paper e-ink display module for Raspberry Pi Pico offers a resolution of 648 × 480 pixels, an SPI interface, low... Read more

€ 54,95 incl. VAT
Members € 49,46

      Details

      SKU: 20722
      EAN: 20126

      Description

      This 5.83-inch black/white e-paper e-ink display module for Raspberry Pi Pico offers a resolution of 648 × 480 pixels, an SPI interface, low power consumption, wide viewing angle and a paper-like effect without electricity.

      Features

      • No backlight, keeps displaying last content for a long time even when power down
      • Ultra low power consumption, basically power is only required for refreshing
      • SPI interface, requires minimal I/O pins
      • 2x user buttons and 1x reset button for easy interacting
      • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

      Specifications

      Operating voltage 3.3 V
      Display color Black, white
      Resolution 648 × 480 pixels
      Gray scale 2
      Interface 3-wire SPI, 4-wire SPI
      Viewing angle >170°
      Partial refresh time N/A
      Full refresh time 5s
      Outline dimensions 125.4 × 99.5 mm
      Display size 119.232 × 88.320 mm
      Refresh power 26.4 mW (typ.)
      Standby current <0.01 uA (almost none)
      Dot pitch 0.184 × 0.184 mm

      Applications

      • Suitable For Price Tags
      • Asset/Equipment Tags
      • Shelf Labels
      • Conference Name Tag

      Included

      • 1x 5.83-inch e-Paper
      • 1x Pico-ePaper-Driver-Board
      • 1x Standoff pack

      Downloads
