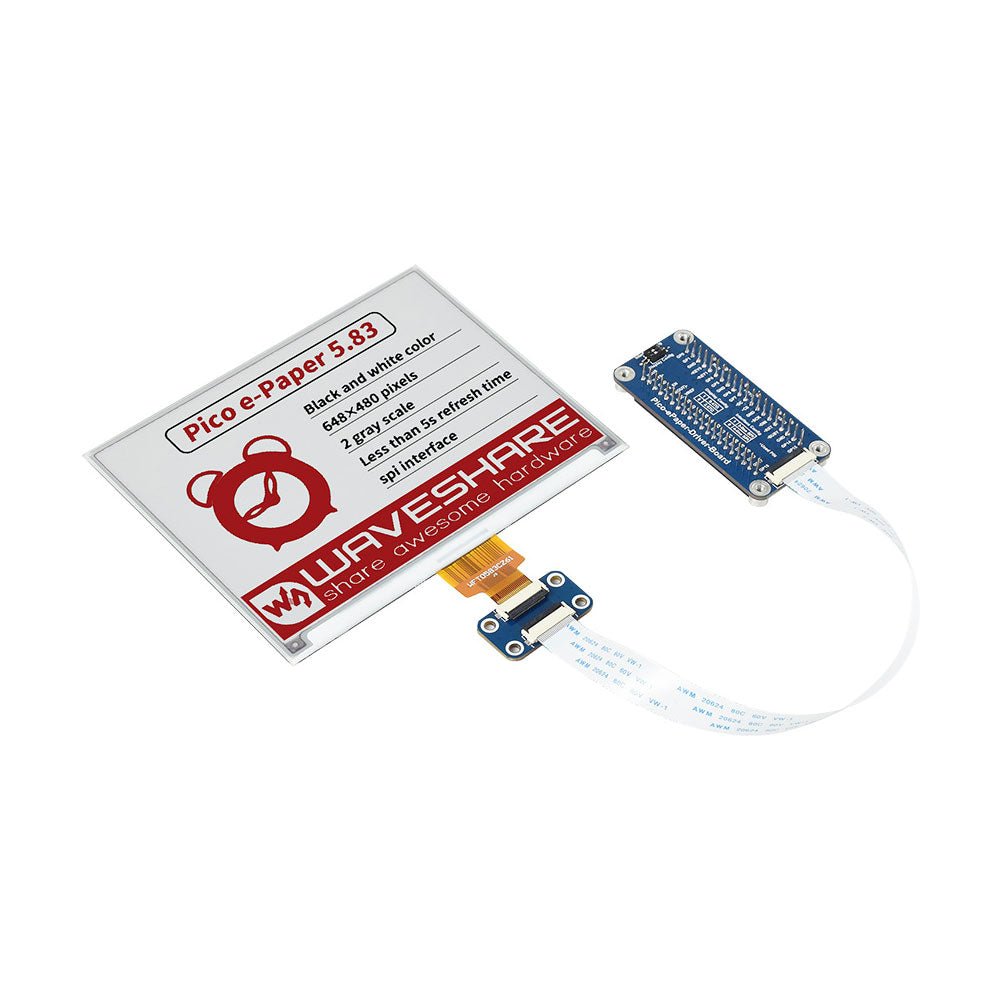

Waveshare 5.83" 3-color E-Ink Display HAT for Raspberry Pi Pico (648x480)

  • BrandWaveshare

Description

This 5.83-inch 3-color e-paper e-ink display module for Raspberry Pi Pico offers a resolution of 648 × 480 pixels, an SPI interface, low power consumption, wide viewing angle and a paper-like effect without electricity.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal I/O pins
  • 2x user buttons and 1x reset button for easy interacting
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage 3.3 V
Display color Red, black, white
Resolution 648 × 480 pixels
Gray scale 2
Interface 3-wire SPI, 4-wire SPI
Viewing angle >170°
Partial refresh time N/A
Full refresh time 5s

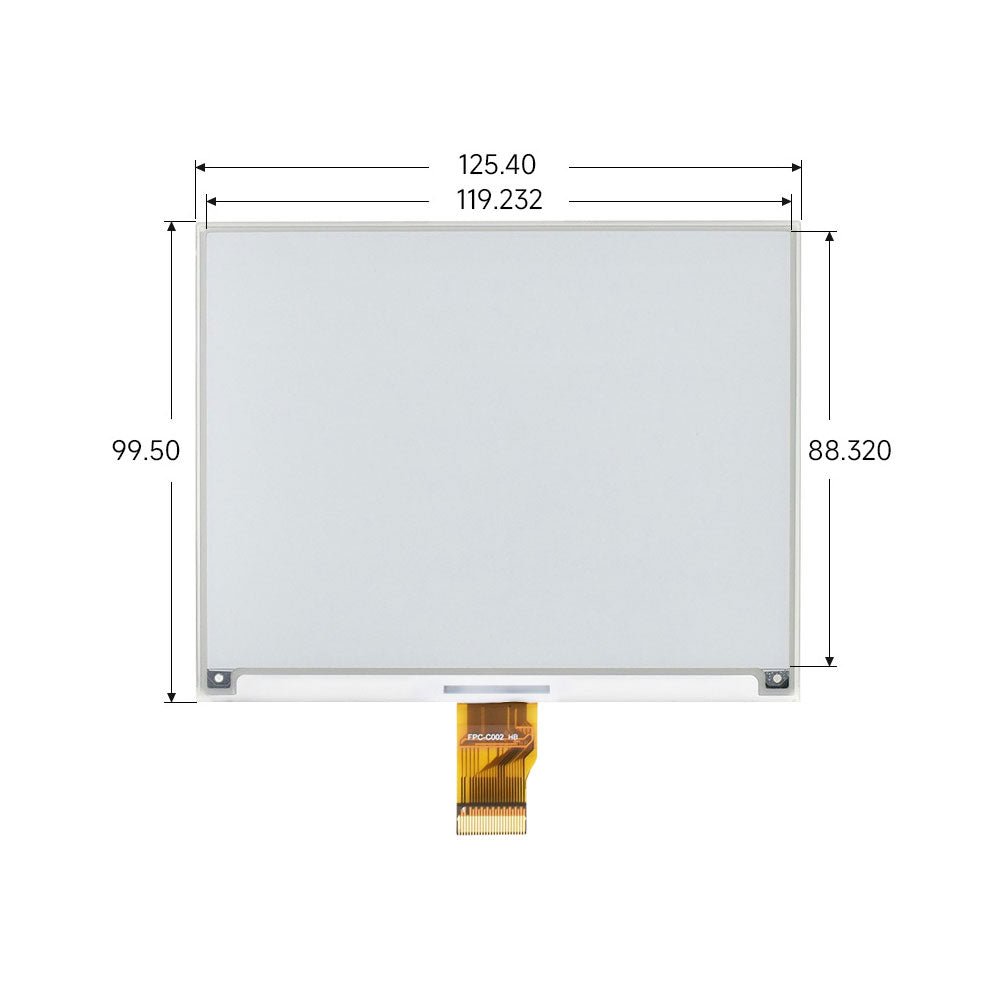

Outline dimensions 125.4 × 99.5 mm
Display size 119.232 × 88.320 mm
Refresh power 26.4 mW (typ.)
Standby current <0.01 uA (almost none)
Dot pitch 0.184 × 0.184 mm

Applications

  • Suitable For Price Tags
  • Asset/Equipment Tags
  • Shelf Labels
  • Conference Name Tag

Included

  • 1x 5.83-inch e-Paper (B)

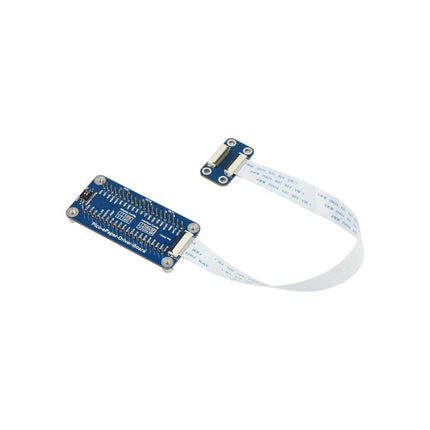

  • 1x Pico-ePaper-Driver-Board
  • 1x Standoff pack

Downloads

Product form

This 5.83-inch 3-color e-paper e-ink display module for Raspberry Pi Pico offers a resolution of 648 × 480 pixels, an SPI interface, low... Read more

€ 54,95 incl. VAT
Members € 49,46

    • Ship today? Order within May 26, 2024 17:00:00 +0200

    Details

    SKU: 20723
    EAN: 20127

    Description

    This 5.83-inch 3-color e-paper e-ink display module for Raspberry Pi Pico offers a resolution of 648 × 480 pixels, an SPI interface, low power consumption, wide viewing angle and a paper-like effect without electricity.

    Features

    • No backlight, keeps displaying last content for a long time even when power down
    • Ultra low power consumption, basically power is only required for refreshing
    • SPI interface, requires minimal I/O pins
    • 2x user buttons and 1x reset button for easy interacting
    • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

    Specifications

    Operating voltage 3.3 V
    Display color Red, black, white
    Resolution 648 × 480 pixels
    Gray scale 2
    Interface 3-wire SPI, 4-wire SPI
    Viewing angle >170°
    Partial refresh time N/A
    Full refresh time 5s
    Outline dimensions 125.4 × 99.5 mm
    Display size 119.232 × 88.320 mm
    Refresh power 26.4 mW (typ.)
    Standby current <0.01 uA (almost none)
    Dot pitch 0.184 × 0.184 mm

    Applications

    • Suitable For Price Tags
    • Asset/Equipment Tags
    • Shelf Labels
    • Conference Name Tag

    Included

    • 1x 5.83-inch e-Paper (B)
    • 1x Pico-ePaper-Driver-Board
    • 1x Standoff pack

    Downloads
