Description

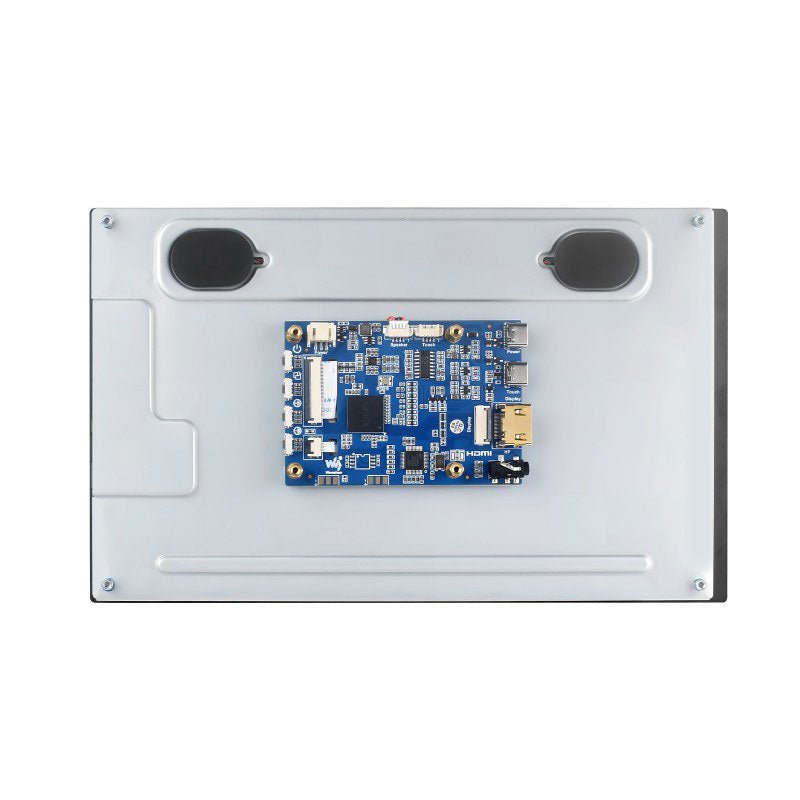

The Waveshare 10.1-inch High-Resolution Capacitive Touch Display is a universal touchscreen with 1920 x 1200 resolution, compatible with most standard HDMI devices. It features a thin and lightweight design, a rigid tempered glass cover for durability, excellent display performance, and a smooth multi-touch experience. Additionally, the built-in metal backplate provides stability, making it easier for users to integrate the display into all-in-one projects.
Features
- 10.1-inch IPS screen with 1920 x 1200 pixels
- 10-point capacitive touch with tempered glass panel offering up to 6H hardness
- Fully laminated panel technology for better display effect

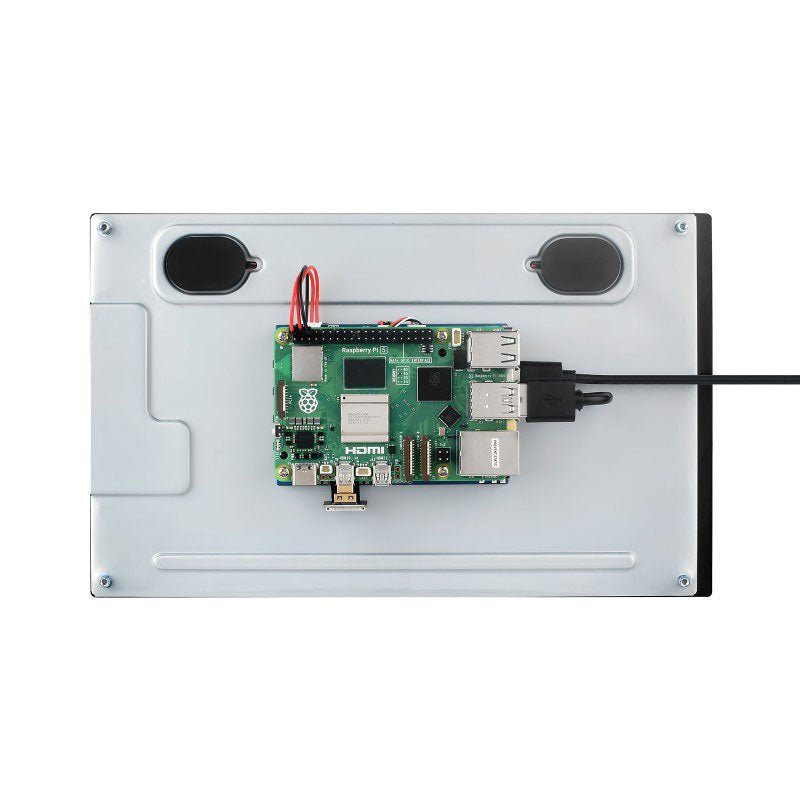

- When used with Raspberry Pi, it supports Raspberry Pi OS, Ubuntu, Kali, and RetroPie
- As a computer monitor, it supports Windows 7 and higher.
- OSD menu (can be used for power control, adjusting brightness/volume/picture rotation, etc.)
- HDMI audio output, onboard 3.5 mm headphone jack and 4-pin high-quality speakers
Specifications
| Display |
10.1 inch IPS |
| Viewing angle |
178° |
| Resolution |
1920 x 1200 pixels |
| Touchscreen area |
217.2 x 135.6 mm |
| Dimensions |
239 x 147 mm |
| Color gamut |
65% NTSC |
| Max brightness |
300 cd/m² |
| Contrast |
1000:1 |
| Backlight adjustment |
Button dimming |
| Refresh rate |
60 Hz |
| Display interface |
Standard HDMI |
| Power supply |
5 V (USB-C) |
| Max power consumption |
6 W |

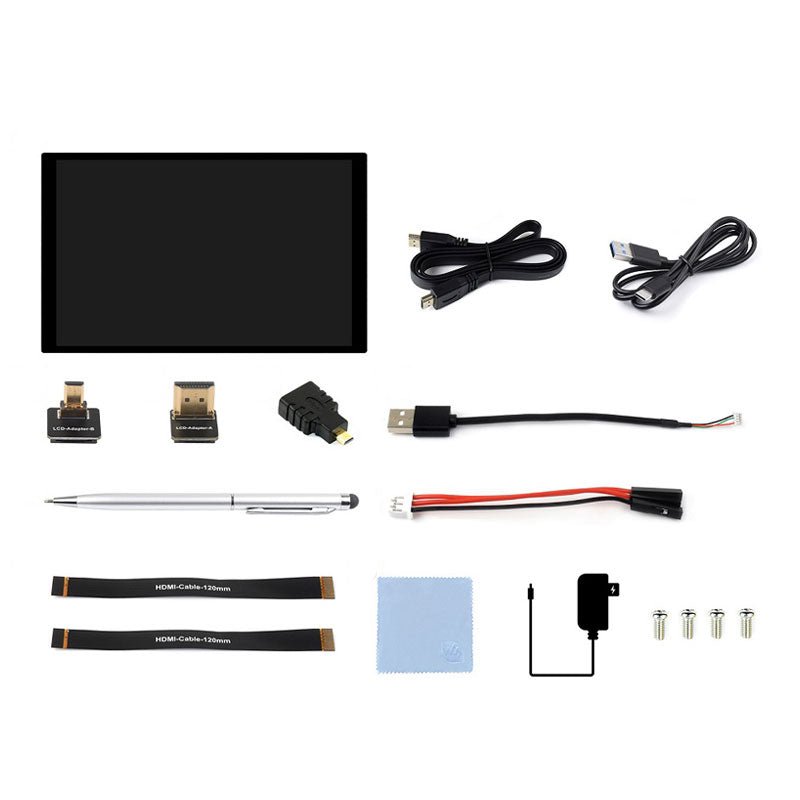

Included
- 1x 10.1" High-Res Capacitive Touch Display (10.1EP-CAPLCD)
- 1x HDMI flat cable (1 m)
- 1x USB-A to USB-C cable (1 m)
- 1x Micro HDMI Adapter
- 1x HDMI Adapter
- 1x HDMI to Micro HDMI Adapter
- 1x PH1.25 4-pin to Type-A cable
- 1x Capacitive touch pen
- 1x 3-pin cable
- 1x HDMI cable 120 mm (2pcs)
- 1x Cleaning cloth
- 1x 5 V/3A power supply (EU)
- 1x Screws pack
Downloads
