Upgraded T-962 v2.0 Reflow Soldering Oven (Elektor Version)

  • Brandpuhui

Description

This upgraded version 2.0 (available exclusively from Elektor) contains the following improvements:

  • Enhanced protective earthing (PE) for furnace chassis
  • Extra thermal insulation layer around furnace to reduce odors

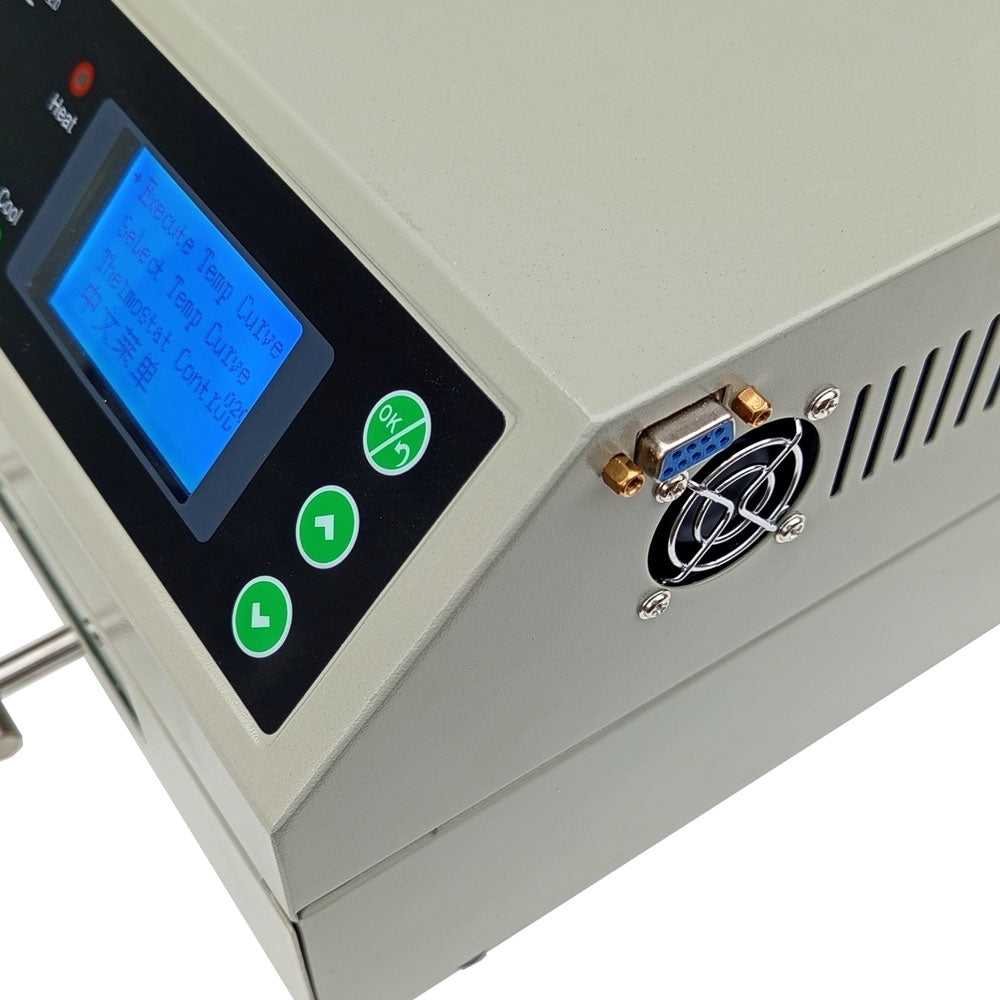

  • Connection to a computer, allowing curve editing on a PC
  • Features such as constant temperature control and timing functions

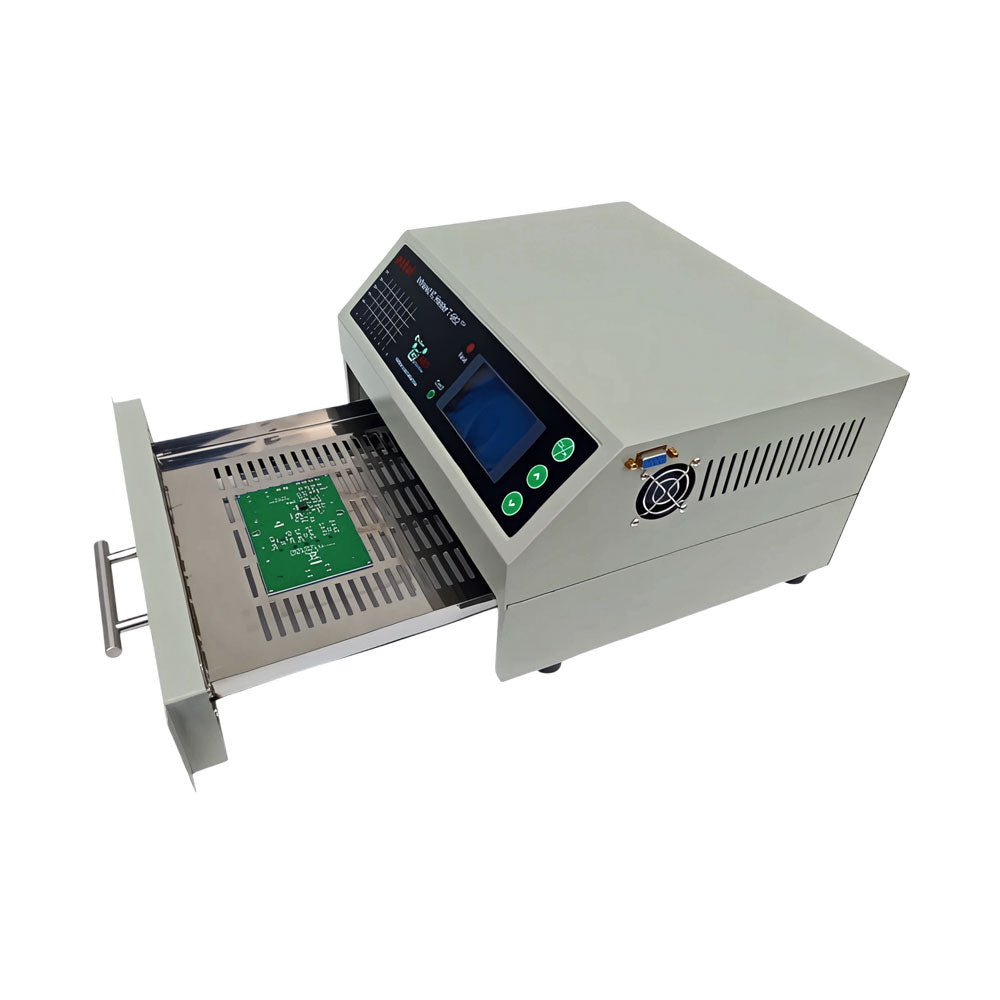

The infrared IC heater T-962 v2.0 is a microprocessor-controlled reflow oven that you can use for effectively soldering various SMD and BGA components. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed.

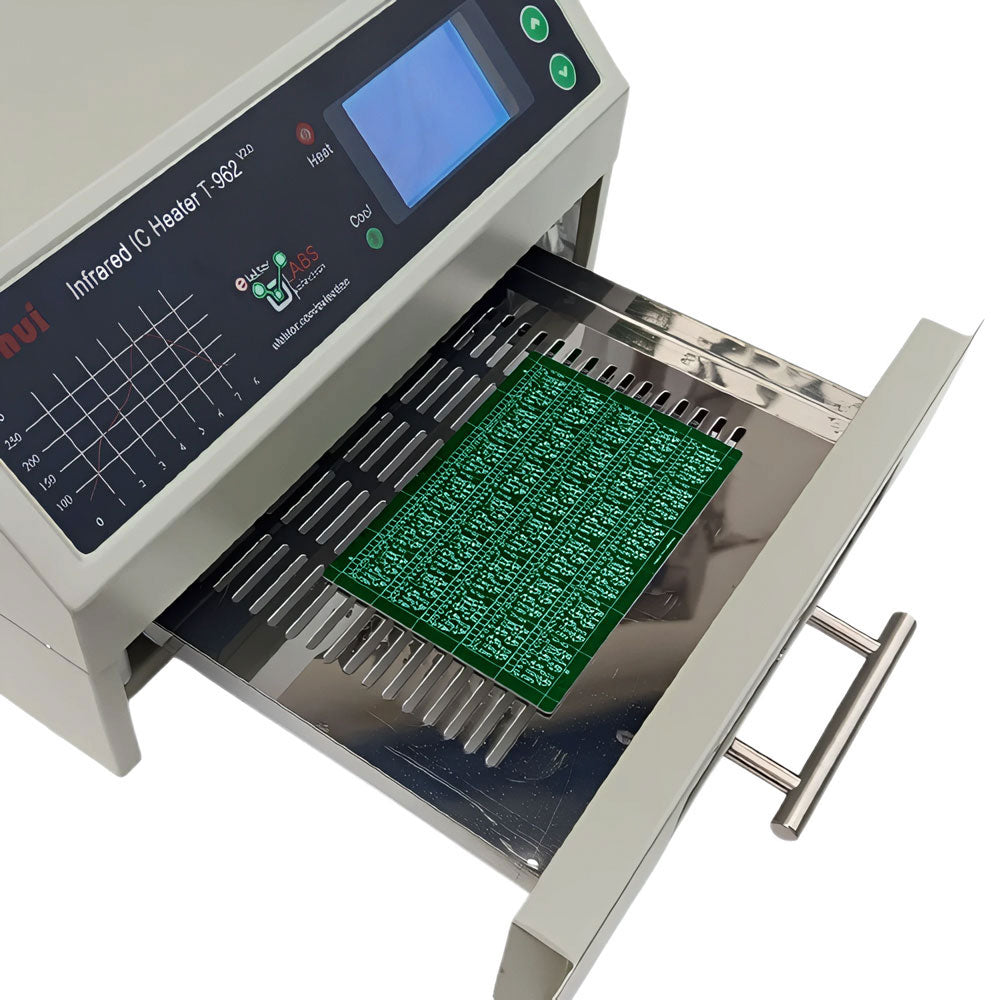

A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMDBGA and other small electronic parts mounted on a PCB assembly. The T-962 v2.0 may be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.

Features

Large infrared soldering area

Effective soldering area: 180 x 235 mm; this increases the usage range of this machine drastically and makes it an economical investment.

Choice of different soldering cycles

Parameters of eight soldering cycles are pre defined and the entire soldering process can completed automatically from Preheat, Soak and Reflow through to cool down.

Special heat up and temperature equalization with all designs

Uses up to 800 Watts of energy efficient Infrared heating and air circulation to re-flow solder.

Ergonomic design, practical and easily operated

Good build quality but at the same time light weight and a small footprint allows the T-962 v2.0 to be easily bench positioned transported or stored.

Large number of available funtions

The T-962 v2.0 can solder most small parts of PCB boards, for example CHIP, SOP, PLCC, QFP, BGA etc. It is the ideal rework solution from single runs to on-demand small batch production.

Specifications

Soldering area (max) 180 x 235 mm (7.1 x 9.3")
Power (max) 800 W
Temperature range 0-280°C (32-536°F)
Heating method Infrared
Processing time 1~8 minutes

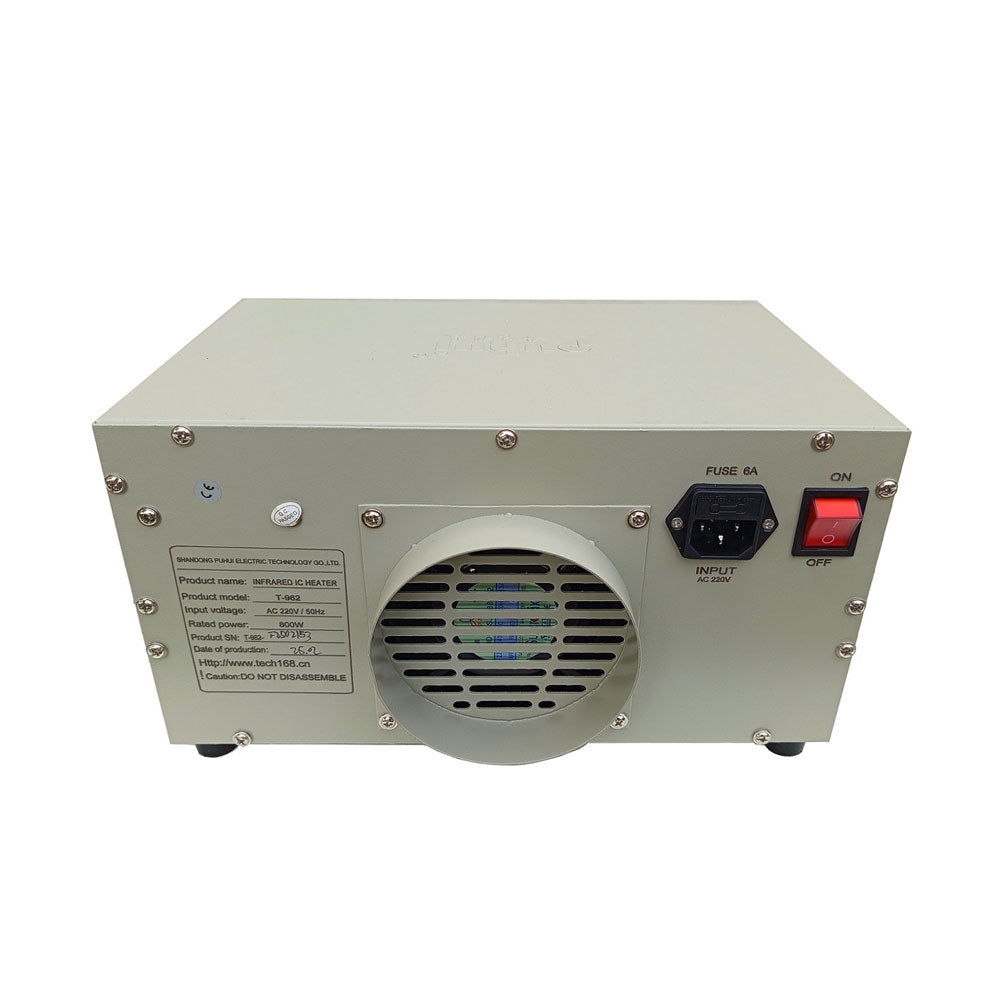

Power supply 220 V AC/50 Hz

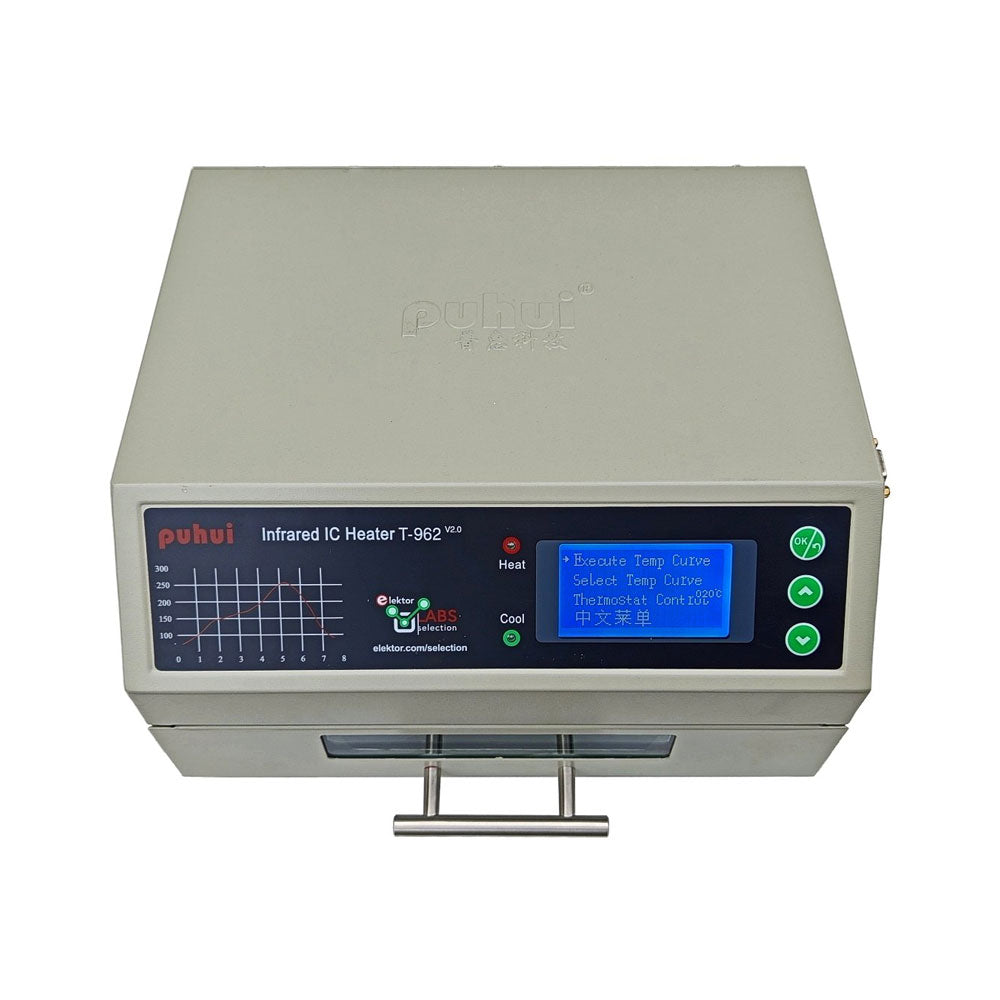

Display LCD with Backlight
Control mode 8 intelligent temperature curves
Dimensions 310 x 290 x 170 mm (12.2 x 11.4 x 6.7")
Weight 6.2 kg

Included

  • T-962 v2.0 Reflow Soldering Oven (Elektor Version)
  • Power cord
  • Manual

Downloads

Product form

This upgraded version 2.0 (available exclusively from Elektor) contains the following improvements: Enhanced protective earthing (PE) for furnace chassis Extra... Read more

Pre-order

€ 279,00€ 239,00 incl. VAT
Members identical

    Details

    SKU: 20346
    EAN: 020346

    Description

    This upgraded version 2.0 (available exclusively from Elektor) contains the following improvements:

    • Enhanced protective earthing (PE) for furnace chassis
    • Extra thermal insulation layer around furnace to reduce odors
    • Connection to a computer, allowing curve editing on a PC
    • Features such as constant temperature control and timing functions

    The infrared IC heater T-962 v2.0 is a microprocessor-controlled reflow oven that you can use for effectively soldering various SMD and BGA components. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed.

    A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMDBGA and other small electronic parts mounted on a PCB assembly. The T-962 v2.0 may be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.

    Features

    Large infrared soldering area

    Effective soldering area: 180 x 235 mm; this increases the usage range of this machine drastically and makes it an economical investment.

    Choice of different soldering cycles

    Parameters of eight soldering cycles are pre defined and the entire soldering process can completed automatically from Preheat, Soak and Reflow through to cool down.

    Special heat up and temperature equalization with all designs

    Uses up to 800 Watts of energy efficient Infrared heating and air circulation to re-flow solder.

    Ergonomic design, practical and easily operated

    Good build quality but at the same time light weight and a small footprint allows the T-962 v2.0 to be easily bench positioned transported or stored.

    Large number of available funtions

    The T-962 v2.0 can solder most small parts of PCB boards, for example CHIP, SOP, PLCC, QFP, BGA etc. It is the ideal rework solution from single runs to on-demand small batch production.

    Specifications

    Soldering area (max) 180 x 235 mm (7.1 x 9.3")
    Power (max) 800 W
    Temperature range 0-280°C (32-536°F)
    Heating method Infrared
    Processing time 1~8 minutes
    Power supply 220 V AC/50 Hz
    Display LCD with Backlight
    Control mode 8 intelligent temperature curves
    Dimensions 310 x 290 x 170 mm (12.2 x 11.4 x 6.7")
    Weight 6.2 kg

    Included

    • T-962 v2.0 Reflow Soldering Oven (Elektor Version)
    • Power cord
    • Manual

    Downloads

    Customer Reviews

    Based on 6 reviews
    83%
    (5)
    17%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    J
    Jean-Claude L.
    Bonne surprise...

    Passé en pré-commande avec une disponibilité annoncée fin janvier...
    Reçue le 21 janvier ...
    Testé, fonctionne directement out of the box :-)

    Merci Elektor !

    G
    Gerard B.
    Geweldig apparaat!

    Voor het eerst gebruik gemaakt van deze infrarood heater. De curve van de soldeerpasta erin geprogrammeerd en het resultaat is perfect!

    M
    M.C.

    Well am new to this and have been reading a few articles on reflow soldering but haven’t used it yet any suggestions on how to operate it would be great. But are happy with the T-962 and the delivery was very quick

    J
    Julien
    Tres bien

    Fonctionne très bien avec le firmware d`origine... je n`ai testé qu`avec de la sn63/pb37.
    Je vais quand même faire les modifications

    L
    Loic
    Des précisions ?

    Bonjour,
    Cette référence de four à refusion est connue depuis longtemps, ainsi que ses nombreux `petits inconvénients`. Il est néanmoins très largement capable de faire le travail pour un hobbyiste, et la caution d`Elektor sur les points les plus critiques (mise à la terre et protection thermique) est vraiment bienvenue. Mais quid des points restants, est-ce qu`ils ont aussi été intégrés ou est-ce que ce n`est pas considéré comme majeur et fera l`objet d`article de customisation par la suite ?
    - le problème de la soudure froide, ignorée par le firmware `par défaut` qui fait que la mesure de température du four n`est pas correcte, est corrigé aussi ?
    - les autres défauts du firmware et l`existence d`un firmware optimisé par la communauté qui corrige de nombreuses anomalies (notamment vérifie le point précédent) serait-il aussi pré-flashé ?
    - votre avis sur la grille du tiroir accusée d`empêcher une répartition correcte de la chaleur notamment pour des circuits double face ?
    Merci à vous en tout cas de vous pencher sur le problème épineux de l`usage du four à pizza familial pour la refusion, qui n`est ni bon pour la paix des ménages, ni pour l`hygiène alimentaire :-)

    O
    OLD-PAPA
    Funktioniert gut, aber die grüne LED ist nach nur 2 Tagen ausgefallen

    Die voreingestellten Kurven werden recht gut abgefahren, soweit gut.
    Wie schon geschrieben ist die grüne LED (Cooling) ausgefallen, gekühlt wird aber, der Lüfter ist ja unüberhörbar.
    Etwas komisch ist es im Jahre 2025 noch Geräte mit einer Seriellen Buchse auszuliefern, da gehört USB hin. Ich musste erstmal meinen Adapter suchen.
    Wenn Garantie raus ist, bau ich einen direkt ein.
    Die Software und das Handling um neue/veränderte Kurven zu erstellen ist auf dem Stand der 90er Jahre, funktioniert aber.
    Ich vermisse eine Innenbeleuchtung, mal sehen, was da noch geht.
