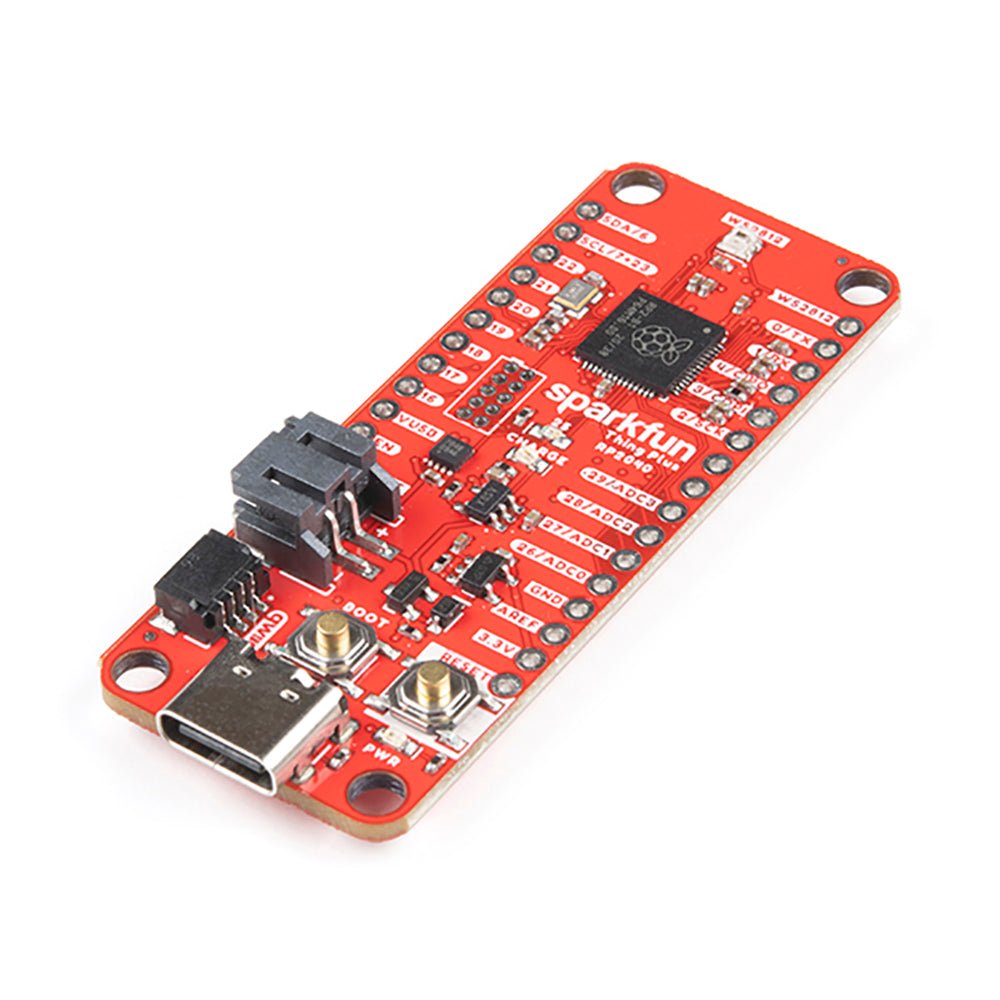

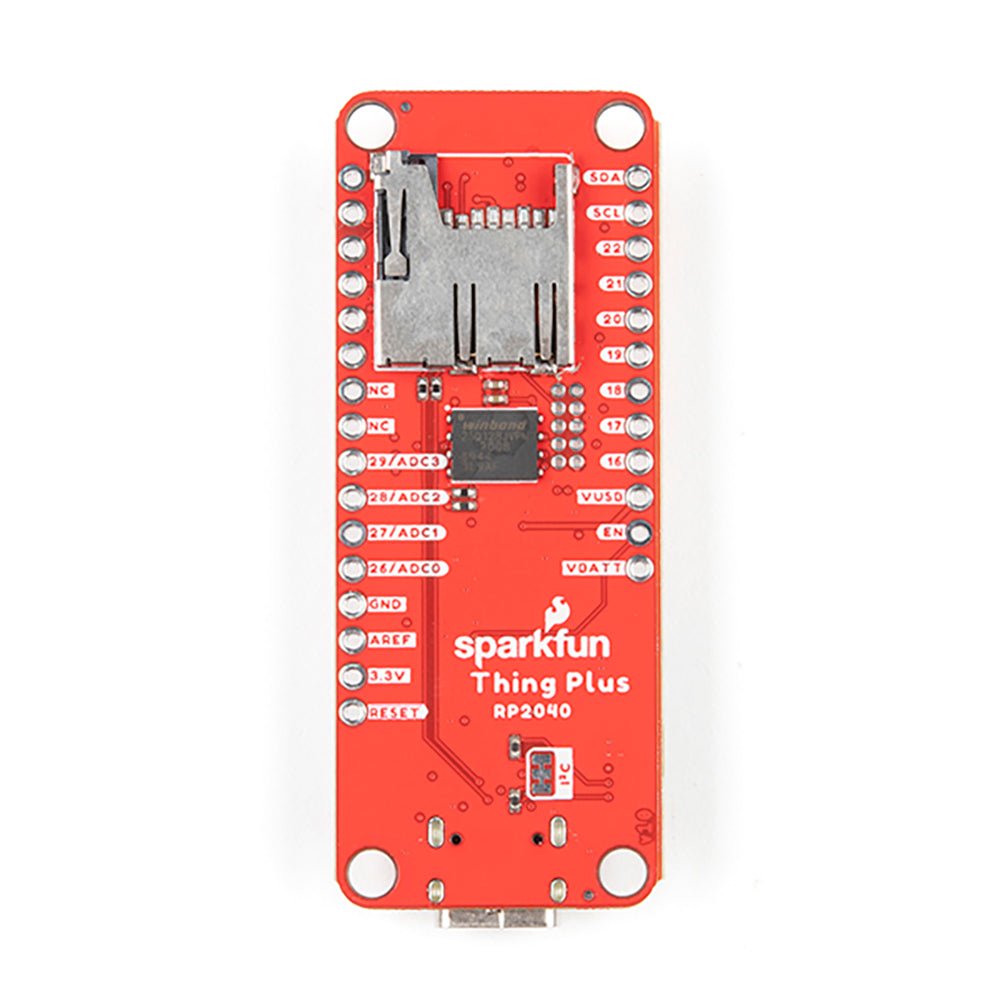

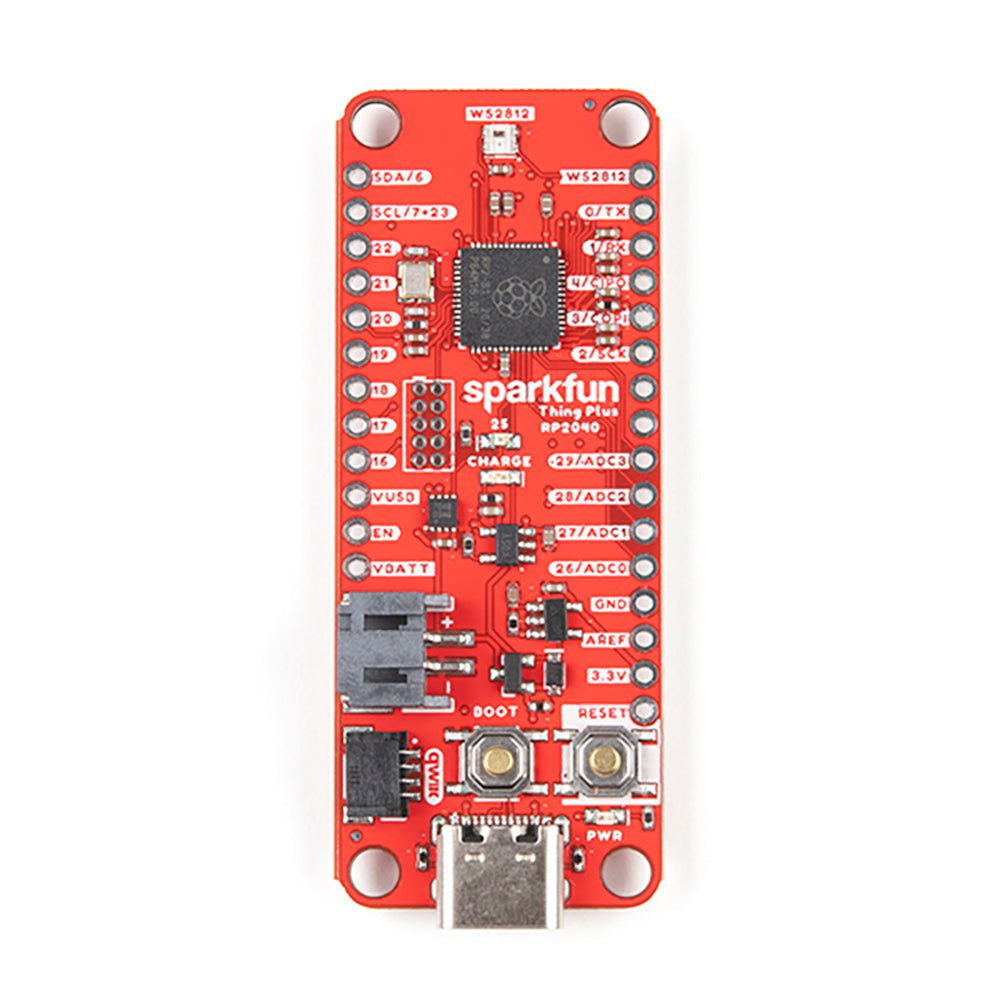

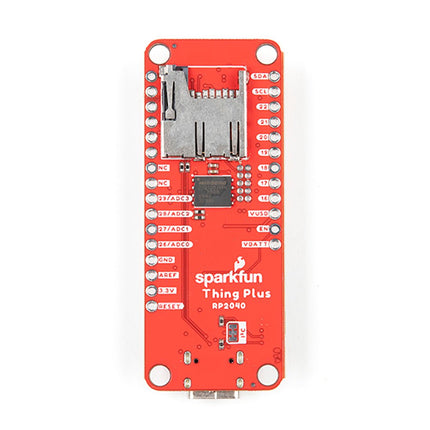

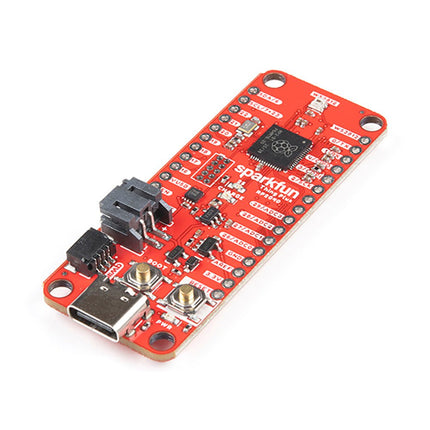

SparkFun Thing Plus (RP2040)

  • BrandSparkFun

Description

The RP2040 contains two ARM Cortex-M0+ processors (up to 133 MHz) and features:

  • 264 kB of embedded SRAM in six banks
  • 6 dedicated IO for SPI Flash (supporting XIP)
  • 30 multifunction GPIO:
    • Dedicated hardware for commonly used peripherals
    • Programmable IO for extended peripheral support
    • Four 12-bit ADC channels with internal temperature sensor (up to 0.5 MSa/s)
  • USB 1.1 Host/Device functionality

The RP2040 is supported with C/C++ and MicroPython cross-platform development environments, including easy access to runtime debugging. It has a UF2 boot and floating-point routines baked into the chip. While the chip has a large internal RAM, the board includes an additional 16 MB of external QSPI flash memory to store program code.

Features

  • Raspberry Pi Foundation's RP2040 microcontroller
  • 16MB QSPI Flash Memory
  • JTAG PTH Pins
  • Thing Plus (or Feather) Form-Factor:
    • 18x Multifunctional GPIO Pins
      • Four available 12-bit ADC channels with an internal temperature sensor (500 kSa/s)
      • Up to eight 2-channel PWM
      • Up to two UARTs
      • Up to two I²C buses
      • Up to two SPI buses
  • USB-C Connector:
    • USB 1.1 Host/Device functionality
  • 2-pin JST Connector for a LiPo Battery (not included):
    • 500 mA charging circuit
  • Qwiic Connector
  • Buttons:
    • Boot
    • Reset
  • LEDs:
    • PWR - Red 3.3 V power indicator
    • CHG - Yellow battery charging indicator
    • 25 - Blue status/test LED (GPIO 25)
    • WS2812 - Addressable RGB LED (GPIO 08)
  • Four Mounting Holes:
    • 4-40 screw compatible

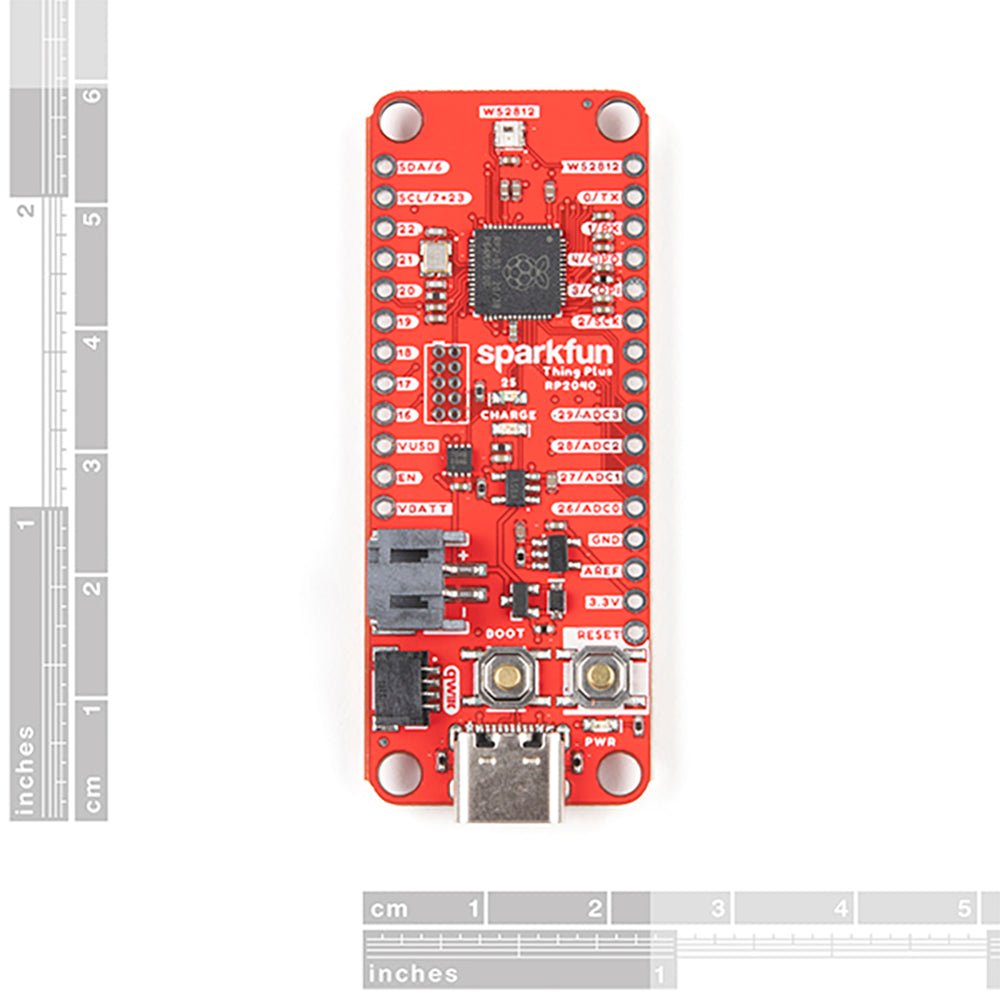

  • Dimensions: 2.3' x 0.9'

RP2040 Features

  • Dual Cortex M0+ processors, up to 133 MHz
  • 264 kB of embedded SRAM in 6 banks
  • 6 dedicated IO for QSPI flash, supporting execute in place (XIP)
  • 30 programmable IO for extended peripheral support
  • SWD interface
  • Timer with 4 alarms
  • Real-time counter (RTC)
  • USB 1.1 Host/Device functionality
  • Supported programming languages
    • MicroPython
    • C/C++
Product form

The RP2040 contains two ARM Cortex-M0+ processors (up to 133 MHz) and features: 264 kB of embedded SRAM in six... Read more

No reviews

€ 19,95 incl. VAT
Members € 17,96

    • Ship today? Order within Apr 14, 2024 17:00:00 +0200

    Details

    SKU: 19628
    EAN: DEV-17745

    Description

    The RP2040 contains two ARM Cortex-M0+ processors (up to 133 MHz) and features:

    • 264 kB of embedded SRAM in six banks
    • 6 dedicated IO for SPI Flash (supporting XIP)
    • 30 multifunction GPIO:
      • Dedicated hardware for commonly used peripherals
      • Programmable IO for extended peripheral support
      • Four 12-bit ADC channels with internal temperature sensor (up to 0.5 MSa/s)
    • USB 1.1 Host/Device functionality

    The RP2040 is supported with C/C++ and MicroPython cross-platform development environments, including easy access to runtime debugging. It has a UF2 boot and floating-point routines baked into the chip. While the chip has a large internal RAM, the board includes an additional 16 MB of external QSPI flash memory to store program code.

    Features

    • Raspberry Pi Foundation's RP2040 microcontroller
    • 16MB QSPI Flash Memory
    • JTAG PTH Pins
    • Thing Plus (or Feather) Form-Factor:
      • 18x Multifunctional GPIO Pins
        • Four available 12-bit ADC channels with an internal temperature sensor (500 kSa/s)
        • Up to eight 2-channel PWM
        • Up to two UARTs
        • Up to two I²C buses
        • Up to two SPI buses
    • USB-C Connector:
      • USB 1.1 Host/Device functionality
    • 2-pin JST Connector for a LiPo Battery (not included):
      • 500 mA charging circuit
    • Qwiic Connector
    • Buttons:
      • Boot
      • Reset
    • LEDs:
      • PWR - Red 3.3 V power indicator
      • CHG - Yellow battery charging indicator
      • 25 - Blue status/test LED (GPIO 25)
      • WS2812 - Addressable RGB LED (GPIO 08)
    • Four Mounting Holes:
      • 4-40 screw compatible
    • Dimensions: 2.3' x 0.9'

    RP2040 Features

    • Dual Cortex M0+ processors, up to 133 MHz
    • 264 kB of embedded SRAM in 6 banks
    • 6 dedicated IO for QSPI flash, supporting execute in place (XIP)
    • 30 programmable IO for extended peripheral support
    • SWD interface
    • Timer with 4 alarms
    • Real-time counter (RTC)
    • USB 1.1 Host/Device functionality
    • Supported programming languages
      • MicroPython
      • C/C++
