SparkFun RedBoard Artemis Nano

  • BrandSparkFun

Description

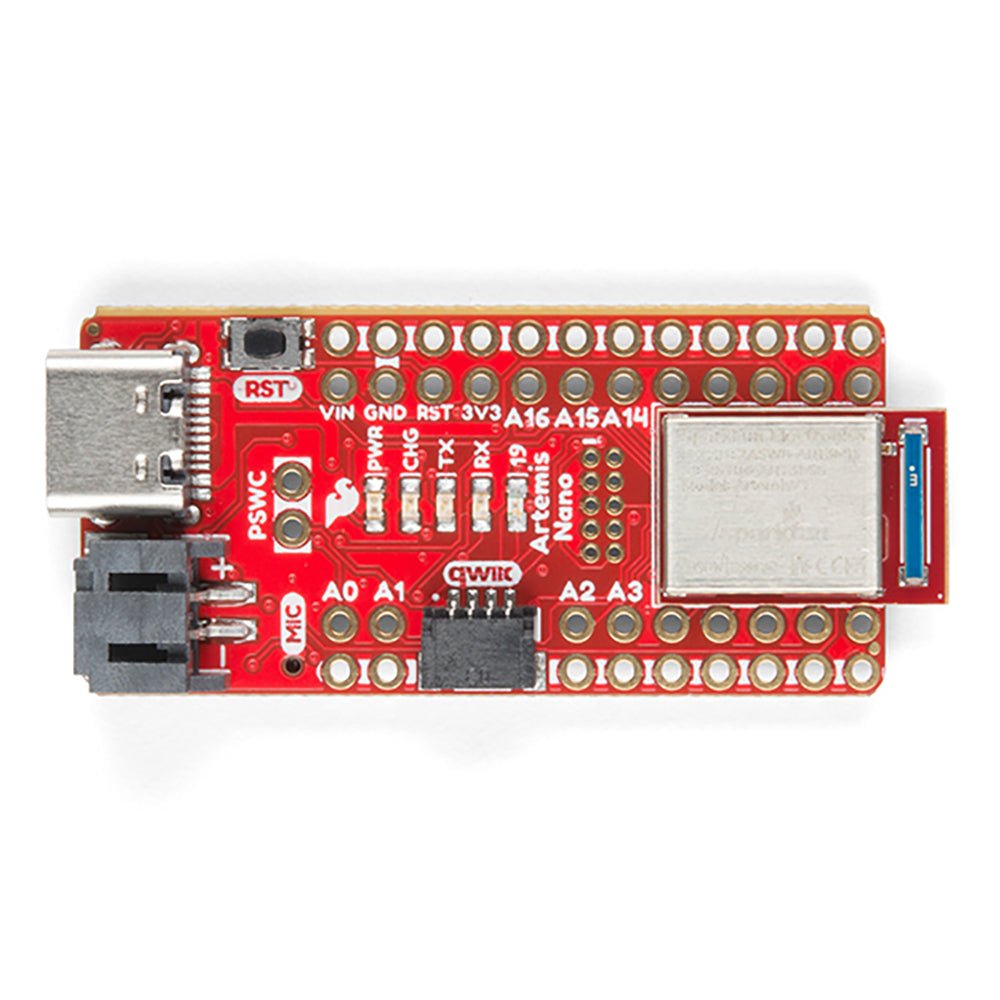

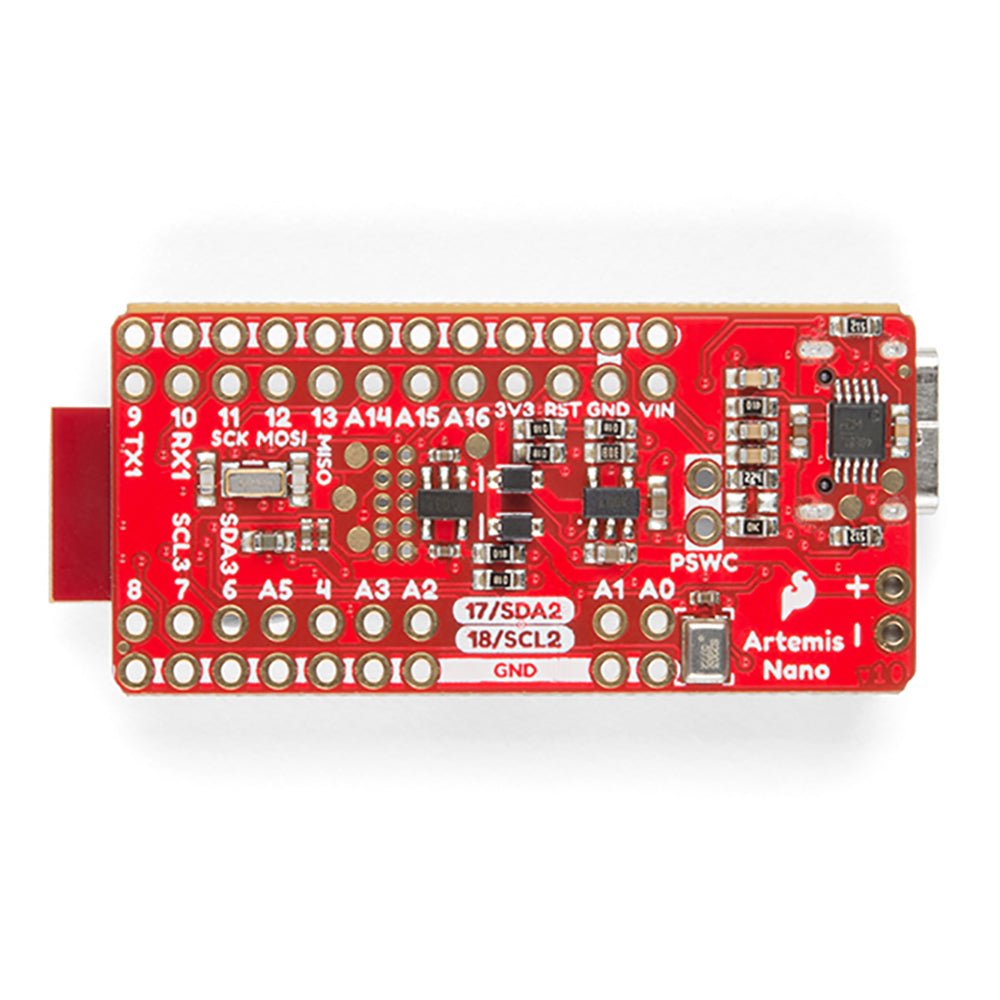

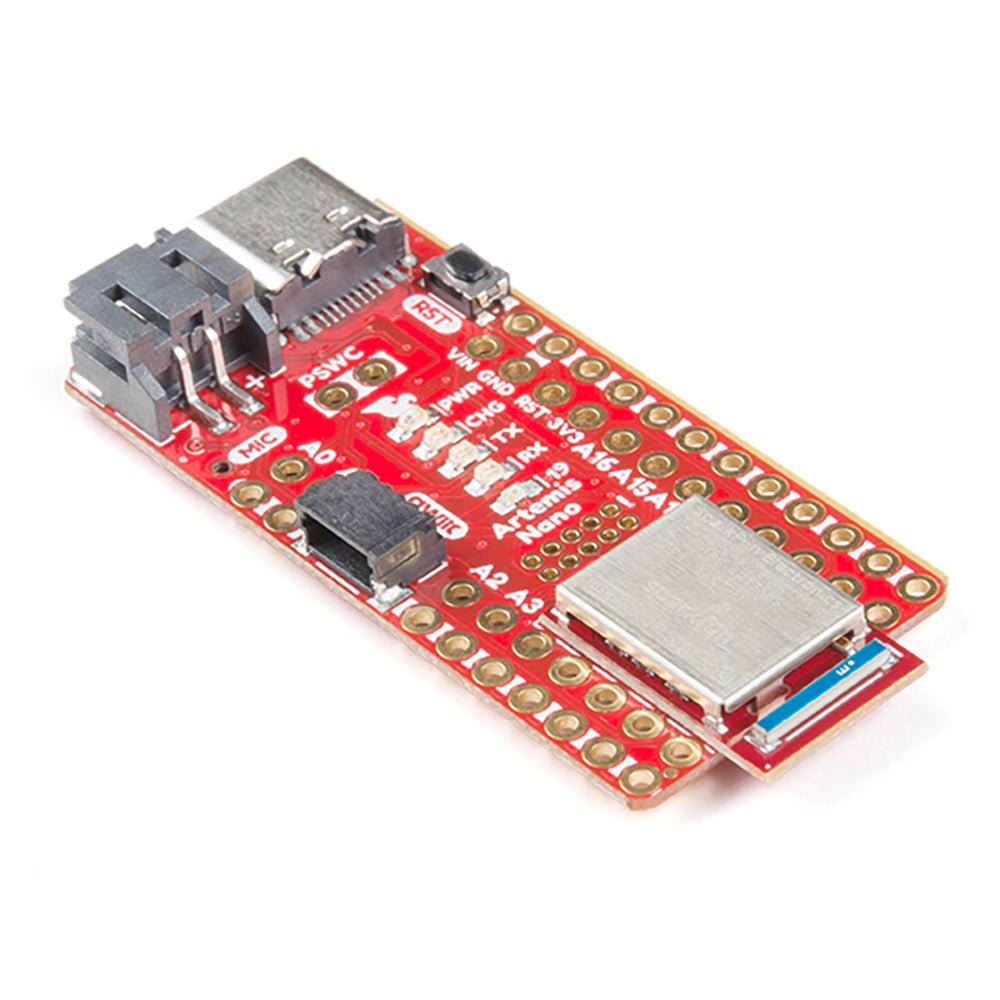

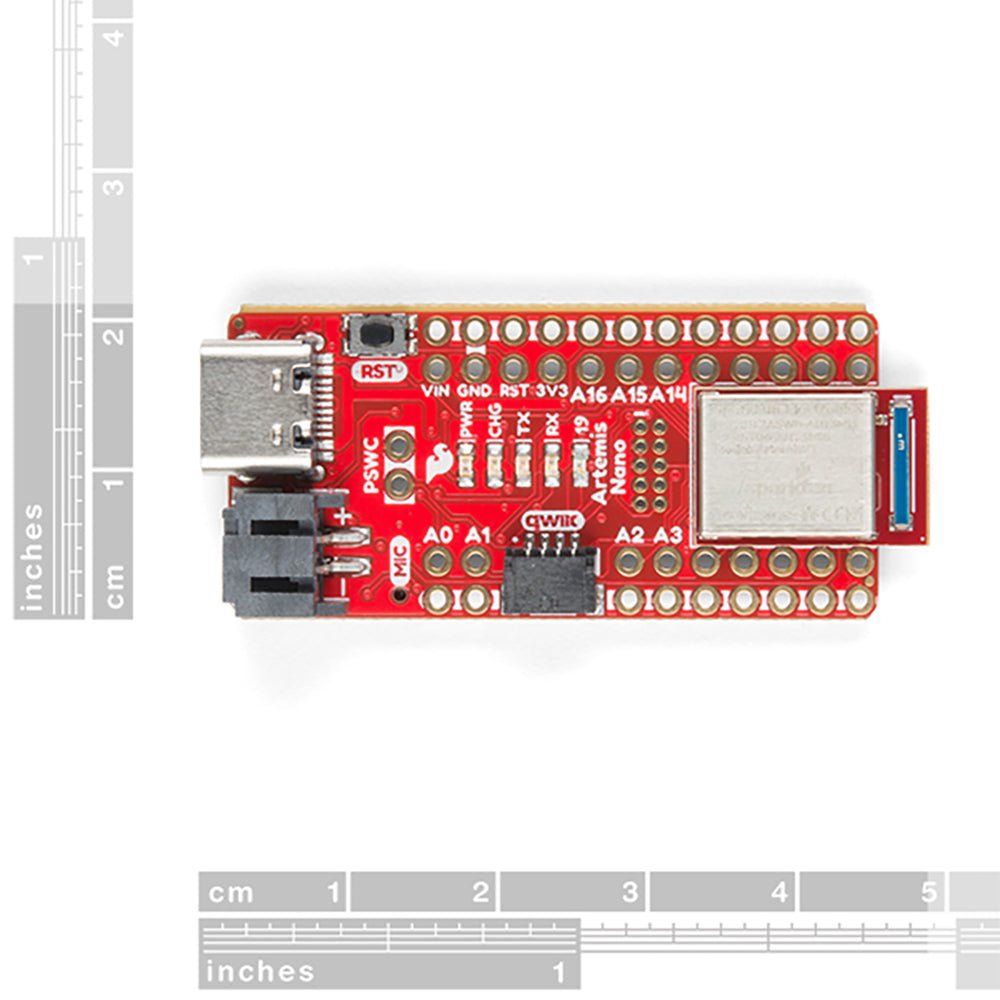

The RedBoard Artemis Nano is a minimal but convenient implementation of the Artemis module. A lightweight, 0.8mm thick PCB, with onboard LiPo-battery charging and a Qwiic connector, this board is easy to implement into tiny projects. A dual row of ground connections makes it easy to add lots of buttons, LEDs, and anything that requires its own GND connection. At the same time, the board is breadboard compatible if you solder the inner rows of pins.

A modern USB-C connector makes programming easy. The Nano is fully compatible with the SparkFun's Arduino core and can be programmed easily under the Arduino IDE. We've also exposed the JTAG connector for more advanced users who prefer to use the power and speed of professional tools. If you're looking for a simple, cost-effective board to replace your ageing Arduino Uno or Arduino Nano, look no further. We've even added a digital MEMS microphone for folks wanting to experiment with always-on voice commands with TensorFlow and machine learning.

With 1MB flash and 384k RAM, you'll have plenty of room for your sketches. The Artemis module runs at 48MHz with a 96MHz turbo mode available and with Bluetooth to boot!

Features

  • 17 GPIO - all interrupt capable
  • 8 ADC channels with 14-bit precision
  • 17 PWM channels
  • 2 UARTs
  • 4 I²C buses
  • 2 SPI buses
  • PDM Digital Microphone
  • Qwiic Connector
Product form

The RedBoard Artemis Nano is a minimal but convenient implementation of the Artemis module. A lightweight, 0.8mm thick PCB, with... Read more

€ 20,95 incl. VAT
Members € 18,86

      Details

      SKU: 19634
      EAN: DEV-15443

      Description

      The RedBoard Artemis Nano is a minimal but convenient implementation of the Artemis module. A lightweight, 0.8mm thick PCB, with onboard LiPo-battery charging and a Qwiic connector, this board is easy to implement into tiny projects. A dual row of ground connections makes it easy to add lots of buttons, LEDs, and anything that requires its own GND connection. At the same time, the board is breadboard compatible if you solder the inner rows of pins.

      A modern USB-C connector makes programming easy. The Nano is fully compatible with the SparkFun's Arduino core and can be programmed easily under the Arduino IDE. We've also exposed the JTAG connector for more advanced users who prefer to use the power and speed of professional tools. If you're looking for a simple, cost-effective board to replace your ageing Arduino Uno or Arduino Nano, look no further. We've even added a digital MEMS microphone for folks wanting to experiment with always-on voice commands with TensorFlow and machine learning.

      With 1MB flash and 384k RAM, you'll have plenty of room for your sketches. The Artemis module runs at 48MHz with a 96MHz turbo mode available and with Bluetooth to boot!

      Features

      • 17 GPIO - all interrupt capable
      • 8 ADC channels with 14-bit precision
      • 17 PWM channels
      • 2 UARTs
      • 4 I²C buses
      • 2 SPI buses
      • PDM Digital Microphone
      • Qwiic Connector
