SparkFun MicroMod Input and Display Carrier Board

  • BrandSparkFun

Description

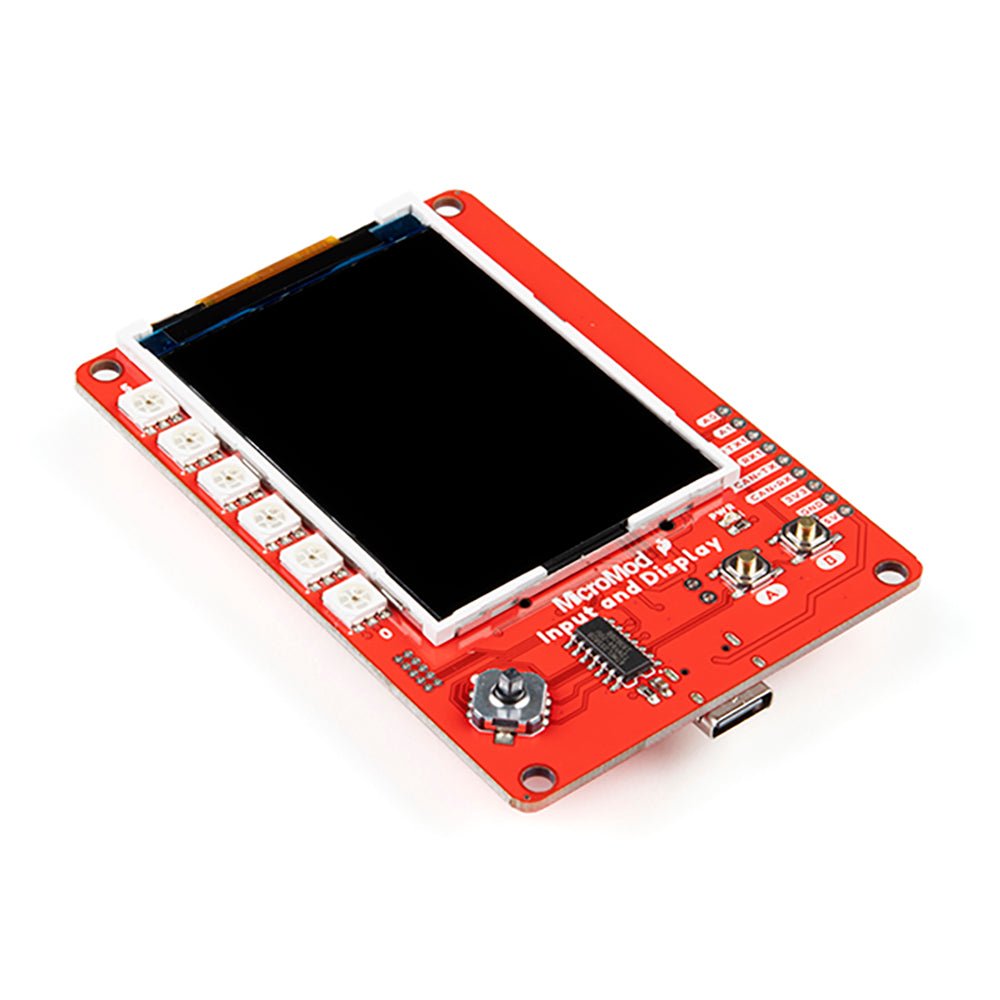

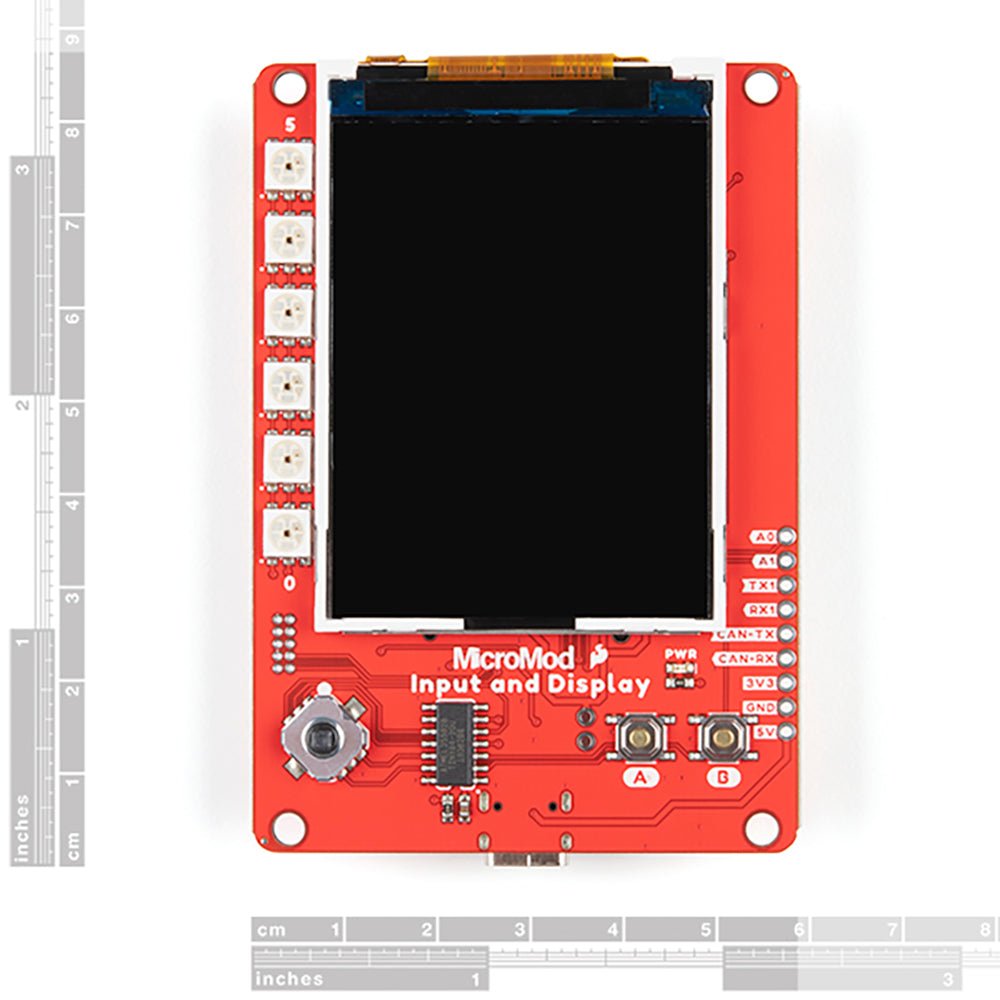

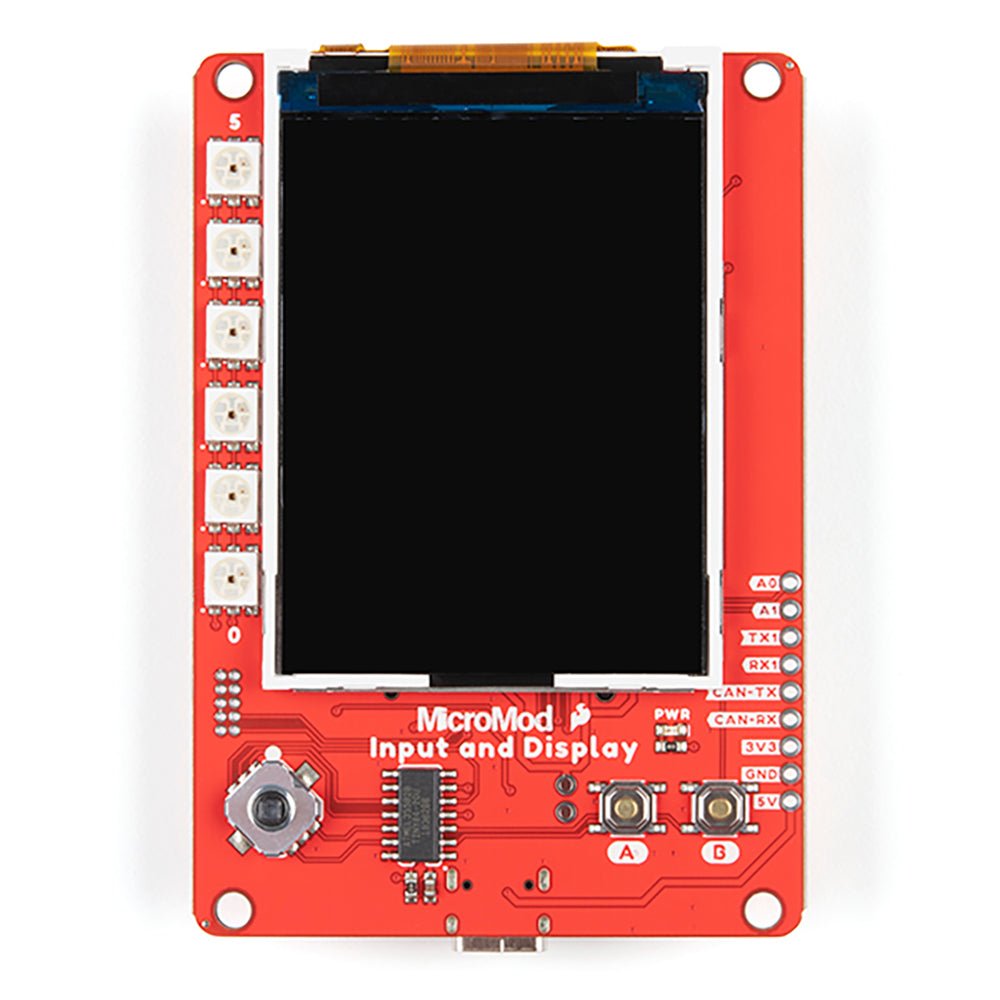

This carrier board combines a 2.4' TFT display, six addressable LEDs, onboard voltage regulator, a 6-pin IO connector, and microSD slot with the M.2 pin connector slot so that it can be used with compatible processor boards in our MicroMod ecosystem. We've also populated this carrier board with Atmel's ATtiny84 with 8kb of programmable flash. This little guy is preprogrammed to communicate with the processor over I²C to read button presses.

Features

  • M.2 MicroMod Connector
  • 240 x 320 pixel, 2.4' TFT display
  • 6 Addressable APA102 LEDs
  • Magnetic Buzzer
  • USB-C Connector
  • 3.3 V 1 A Voltage Regulator
  • Qwiic Connector
  • Boot/Reset Buttons
  • RTC Backup Battery & Charge Circuit
  • microSD
  • Phillips #0 M2.5 x 3 mm screw included
Product form

This carrier board combines a 2.4' TFT display, six addressable LEDs, onboard voltage regulator, a 6-pin IO connector, and microSD... Read more

€ 72,95 incl. VAT
Members € 65,66

      Details

      SKU: 19591
      EAN: DEV-16985

      Description

      This carrier board combines a 2.4' TFT display, six addressable LEDs, onboard voltage regulator, a 6-pin IO connector, and microSD slot with the M.2 pin connector slot so that it can be used with compatible processor boards in our MicroMod ecosystem. We've also populated this carrier board with Atmel's ATtiny84 with 8kb of programmable flash. This little guy is preprogrammed to communicate with the processor over I²C to read button presses.

      Features

      • M.2 MicroMod Connector
      • 240 x 320 pixel, 2.4' TFT display
      • 6 Addressable APA102 LEDs
      • Magnetic Buzzer
      • USB-C Connector
      • 3.3 V 1 A Voltage Regulator
      • Qwiic Connector
      • Boot/Reset Buttons
      • RTC Backup Battery & Charge Circuit
      • microSD
      • Phillips #0 M2.5 x 3 mm screw included
