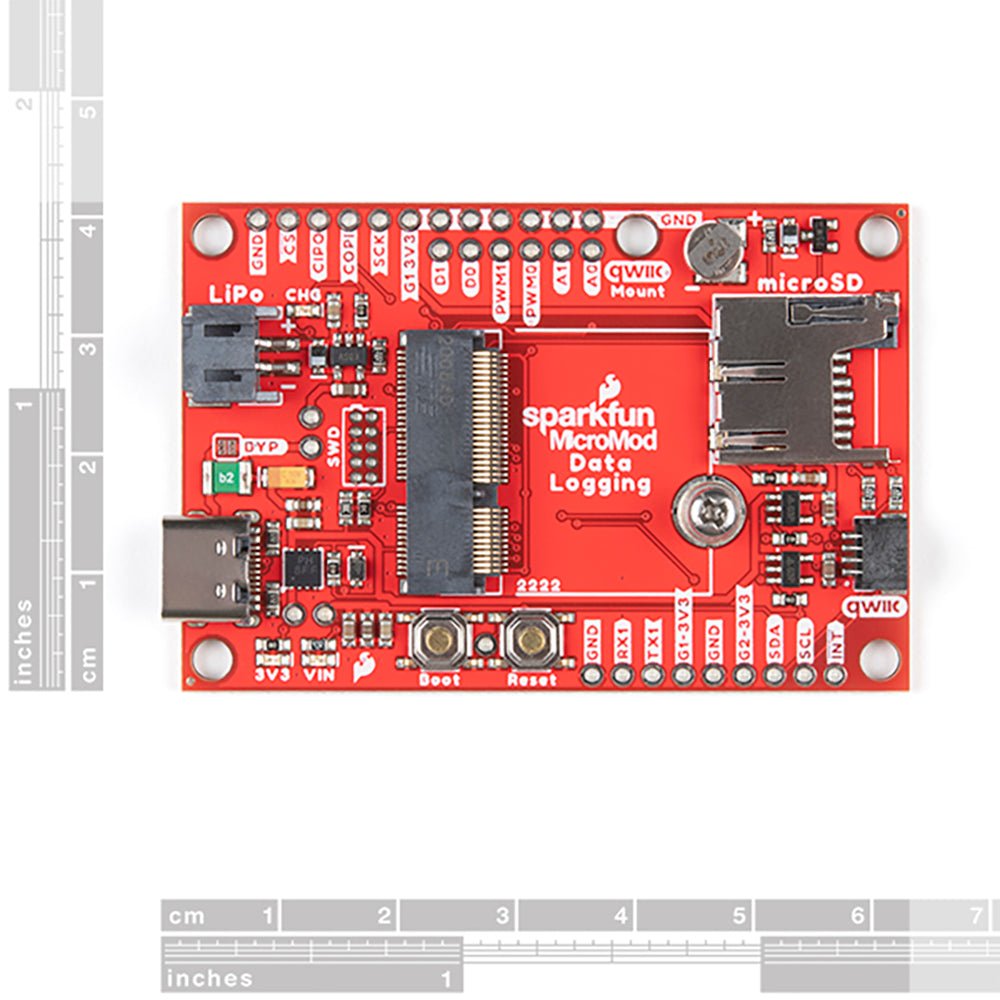

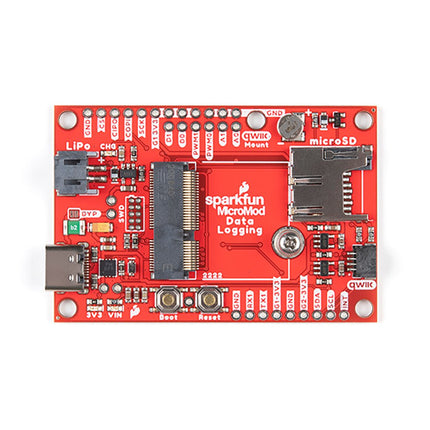

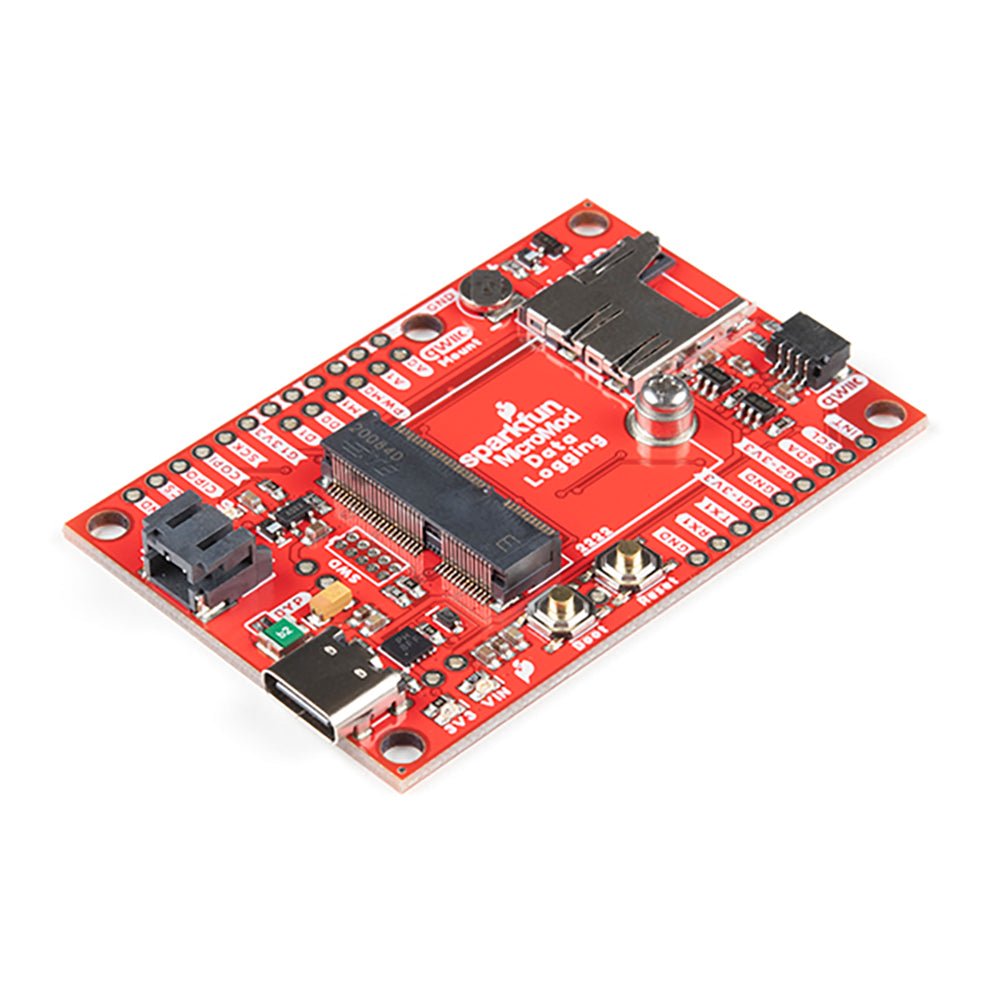

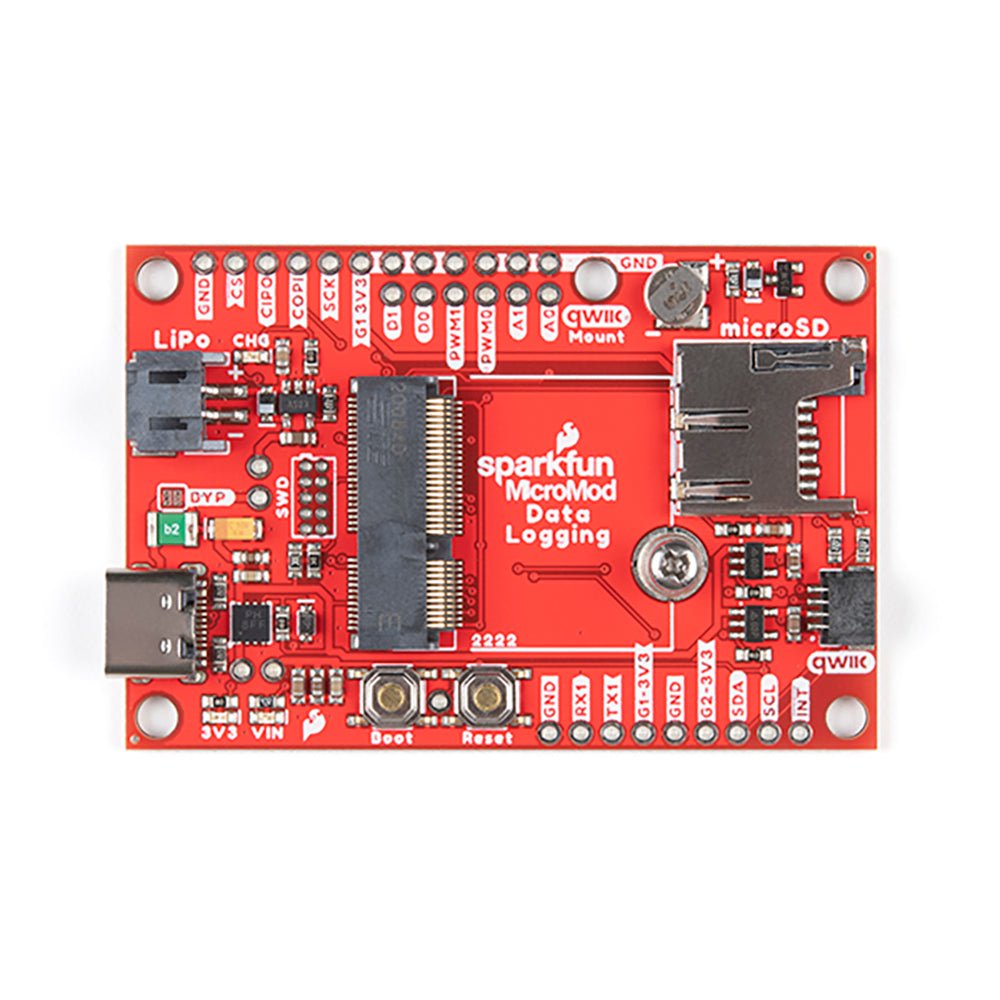

SparkFun MicroMod Data Logging Carrier Board

  • BrandSparkFun

Description

The Data Logging Carrier Board breaks out connections for I²C via a Qwiic connector or standard 0.1'-spaced PTH pins along with SPI and serial UART connections for logging data from peripheral devices using those communication protocols.

The Data Logging Carrier Board allows you to control power to both the Qwiic connector on the board and a dedicated 3.3 V power rail for non-Qwiic peripherals so you can pick and choose when to power the peripherals you are monitoring the data from. It also features a charging circuit for single-cell Lithium-ion batteries along with a separate RTC battery-backup circuit to maintain power to a real-time clock circuit on your Processor Board.

Features

  • M.2 MicroMod Connector
  • microSD socket
  • USB-C Connector
  • 3.3 V 1 A Voltage Regulator
  • Qwiic Connector
  • Boot/Reset Buttons
  • RTC Backup Battery & Charge Circuit
  • Independent 3.3 V regulators for Qwiic bus and peripheral add-ons
    • Controlled by digital pins on Processor Board to enable low power sleep modes
  • Phillips #0 M2.5 x 3 mm screw included
Product form

The Data Logging Carrier Board breaks out connections for I²C via a Qwiic connector or standard 0.1'-spaced PTH pins along... Read more

€ 24,95 € 17,95 (incl. VAT)
Members identical

      Details

      SKU: 19590
      EAN: DEV-16829

      Description

      The Data Logging Carrier Board breaks out connections for I²C via a Qwiic connector or standard 0.1'-spaced PTH pins along with SPI and serial UART connections for logging data from peripheral devices using those communication protocols.

      The Data Logging Carrier Board allows you to control power to both the Qwiic connector on the board and a dedicated 3.3 V power rail for non-Qwiic peripherals so you can pick and choose when to power the peripherals you are monitoring the data from. It also features a charging circuit for single-cell Lithium-ion batteries along with a separate RTC battery-backup circuit to maintain power to a real-time clock circuit on your Processor Board.

      Features

      • M.2 MicroMod Connector
      • microSD socket
      • USB-C Connector
      • 3.3 V 1 A Voltage Regulator
      • Qwiic Connector
      • Boot/Reset Buttons
      • RTC Backup Battery & Charge Circuit
      • Independent 3.3 V regulators for Qwiic bus and peripheral add-ons
        • Controlled by digital pins on Processor Board to enable low power sleep modes
      • Phillips #0 M2.5 x 3 mm screw included
